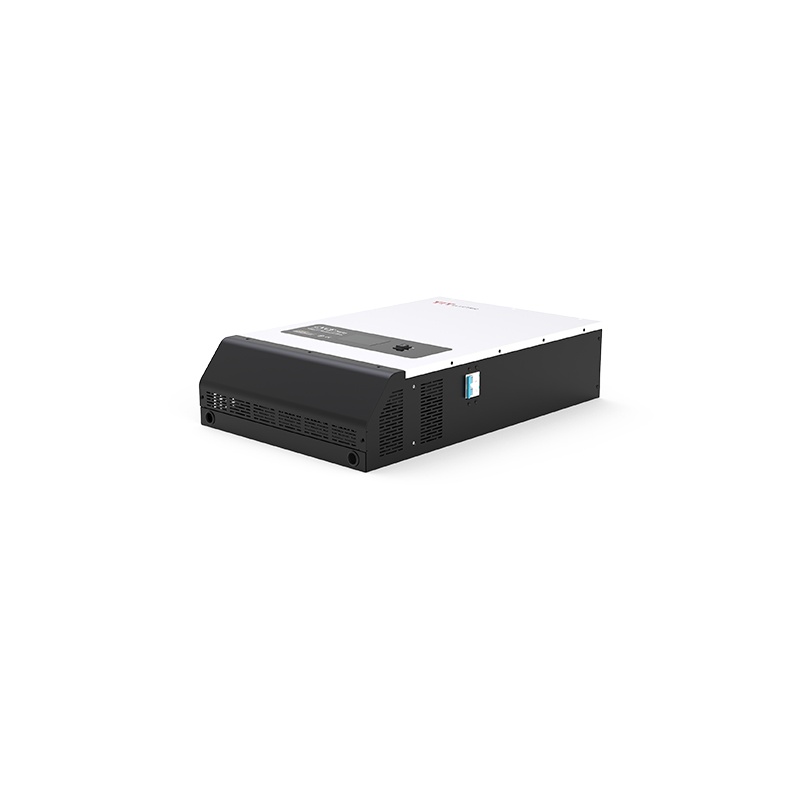

    CVCF 10K.5

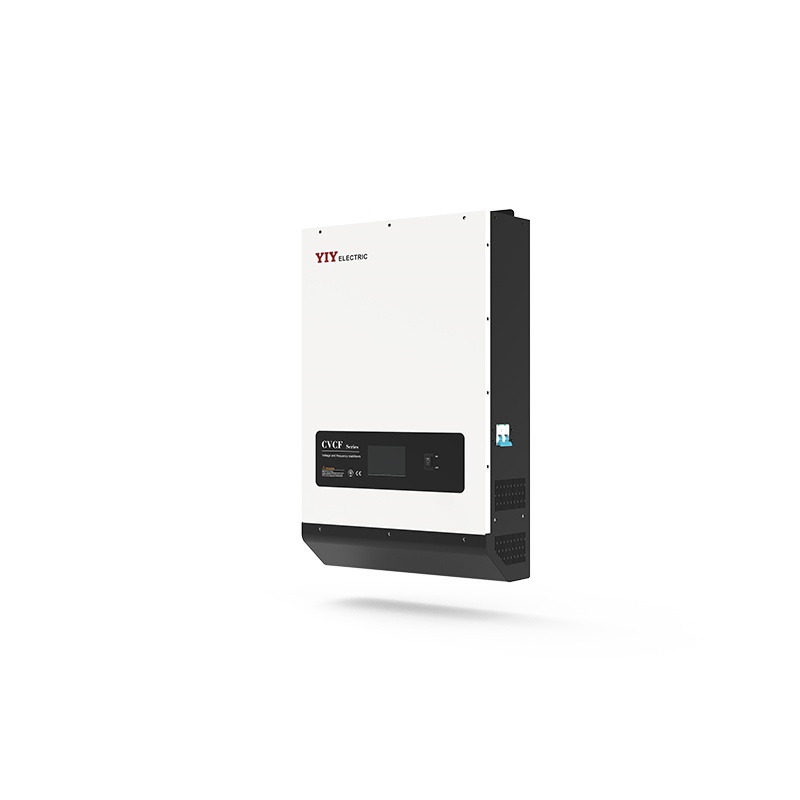

    CVCF 10K.3

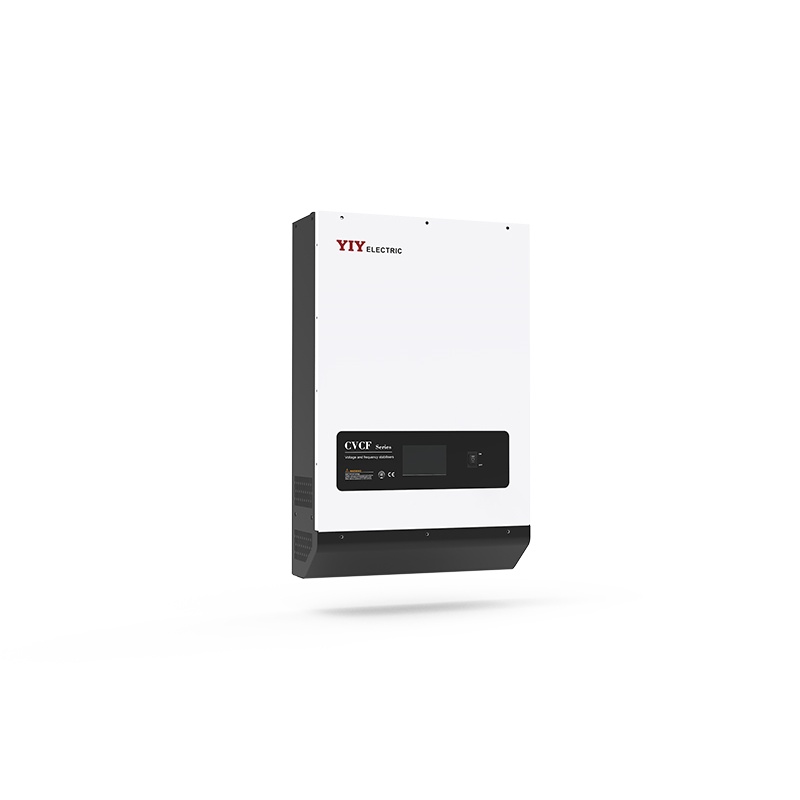

    CVCF 10K.1

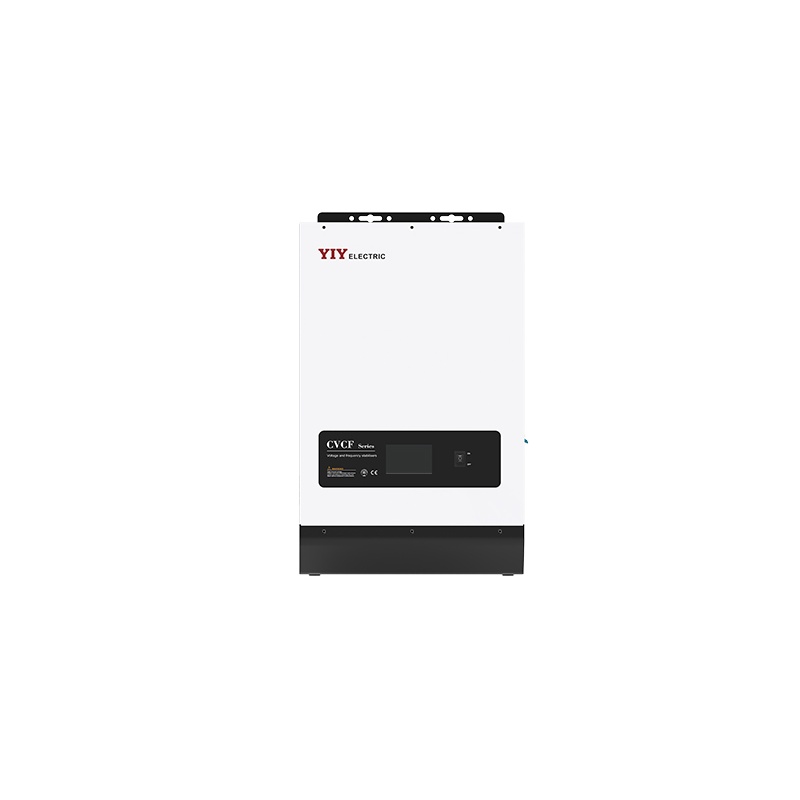

    CVCF 10K.2

    Series: CVCF IGBT Services

    CVCF IGBT Voltage & Frequency Stabilizer

    Advanced IGBT-type single-phase voltage and frequency stabilizer delivering ±0.5% output accuracy with 10ms correction time for precision applications requiring both voltage and frequency regulation. The CVCF series provides exceptional power conditioning from 5KVA to 10KVA with ultra-wide input voltage range (85-270VAC) and frequency range (35-70Hz), making it ideal for sensitive equipment, laboratory applications, and generator-powered systems. Perfect for applications demanding superior power quality, featuring THD<3% output waveform, PF>0.99 power factor, and generator compatibility for maximum versatility.

    • Ultra-Fast Correction Time (10ms)– Lightning-fast response protects sensitive equipment from voltage variations
    • Exceptional Output Accuracy (±0.5%)– Precision voltage regulation for critical applications
    • Ultra-Wide Input Range (85-270VAC)– Operates from extremely low to high input voltages
    • Broad Frequency Range (35-70Hz)– Compatible with various power sources and generators
    • Low Harmonic Distortion (THD<3%)– Clean output waveform for sensitive electronic equipment
    • High Power Factor (PF>0.99)– Superior energy efficiency and grid compatibility
    Get Precision Quote
    Download CVCF Specifications
    Specifications
    Application
    Related Products
    Contact

    CVCF IGBT Voltage & Frequency Stabilizer Complete Specifications

    SpecificationCVCF-5KVACVCF-10KVA
    Nominal Voltage230VAC 1Phase, 2Wire, +Earth230VAC 1Phase, 2Wire, +Earth
    Input Voltage Range85-270VAC
    Input Frequency Range35-70Hz
    Output Voltage220V/230V/240V ± 0.5%
    Correction Time10ms
    Voltage Regulation±0.5%
    Output Waveform DistortionTHD<3%
    Output Frequency50/60Hz
    Power FactorPF>0.99
    Automatic BypassYes
    Manual BypassYes
    Input Under Voltage80±1V
    Input Over Voltage280±3V
    Output Under Voltage184V/@220V, 192V/@230V, 201V/@240V
    Output Over Voltage246V/@220V, 250V/@230V, 260V/@240V
    Over-temperature ProtectionModule: 80℃ Protection / Recovery at 65℃
    Output Overload Protection110%-120% for 5s (3 times), 120%-150% for 2s (3 times), >150% cut off immediately
    Display ModeLCD/LED
    CommunicationRS485
    EfficiencyBetter Than 95%
    Cooling MethodForced cooling
    IP RatingIP20
    Operating Temperature0-45℃
    Humidity0-95% (RH-Non Condensing)
    Noise Level<60dB
    Product Size (mm)501*328*128.5580*358*128.5
    Shipping Size (mm)590*440*240670*470*240
    Product Weight (kg)1012
    Shipping Weight (kg)1214

    CVCF IGBT Voltage & Frequency Stabilizer Applications

    Laboratory Equipment

    Laboratory Equipment

    Precision voltage and frequency stabilization for analytical instruments, testing equipment, and measurement devices requiring clean, stable power for accurate results.
    • Applications: Analytical Instruments, Spectroscopy Equipment, Testing Devices, Measurement Tools, Laboratory Analyzers
    • Recommended Models: 5KVA – 10KVA
    • Core Value: Ultra-wide input range (85-270VAC) with ±0.5% output accuracy for precise laboratory measurements

    Get Solution

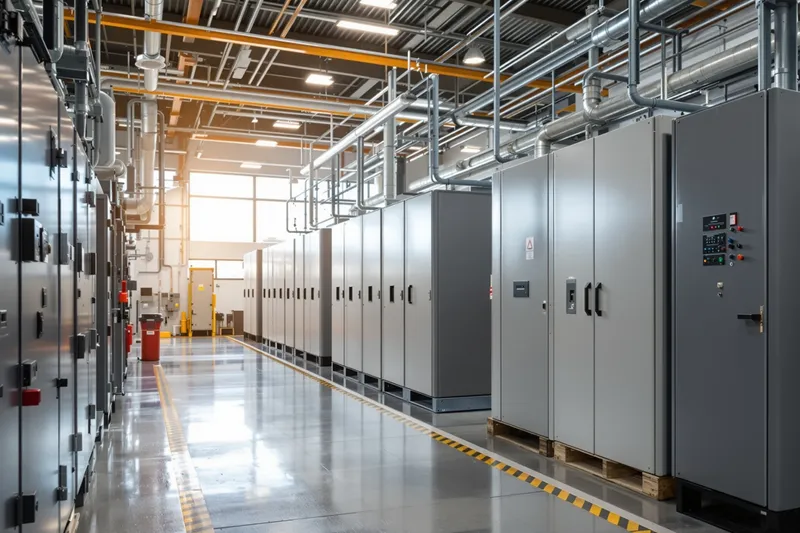

    Generator Backup Systems

    Generator Backup Systems

    Advanced power conditioning for generator-fed systems requiring frequency and voltage stabilization from variable power sources with broad frequency range compatibility.
    • Applications: Emergency Generators, Backup Power Systems, Remote Power Supplies, Mobile Power Units, Construction Sites
    • Recommended Models: 5KVA – 10KVA
    • Core Value: Broad frequency range (35-70Hz) with generator compatibility for reliable backup power conditioning

    Get Solution
    1Precision Manufacturing

    Precision Manufacturing

    Critical power quality protection for CNC machines, automated equipment, and quality control instruments requiring stable voltage and frequency for accurate operation.

    • Applications: CNC Machines, Automated Production Lines, Quality Control Equipment, Metrology Instruments, Process Control Systems
    • Recommended Models: 5KVA – 10KVA
    • Core Value: Low harmonic distortion (THD<3%) with 10ms correction time for sensitive manufacturing equipment

    Get Solution

    Why Choose YIY CVCF Series?

    34

    Ultra-Wide Input Voltage Range

    • Operates from extremely low to high input voltages (85-270VAC)
    • Exceptional tolerance for poor grid conditions and voltage variations
    • Suitable for areas with unstable power supply infrastructure
    • Automatic adaptation to different voltage standards worldwide



    35

    Advanced Frequency Stabilization

    • Broad frequency range compatibility (35-70Hz) for various power sources
    • Perfect for generator-powered applications with variable frequency
    • Stable 50/60Hz output regardless of input frequency variations
    • Ideal for international applications with different frequency standards



    36

    Pure Power Output

    • Ultra-low harmonic distortion (THD<3%) for clean power delivery
    • High power factor (PF>0.99) for superior energy efficiency
    • 10ms ultra-fast correction time protects sensitive equipment
    • ±0.5% output voltage accuracy for precision applications
