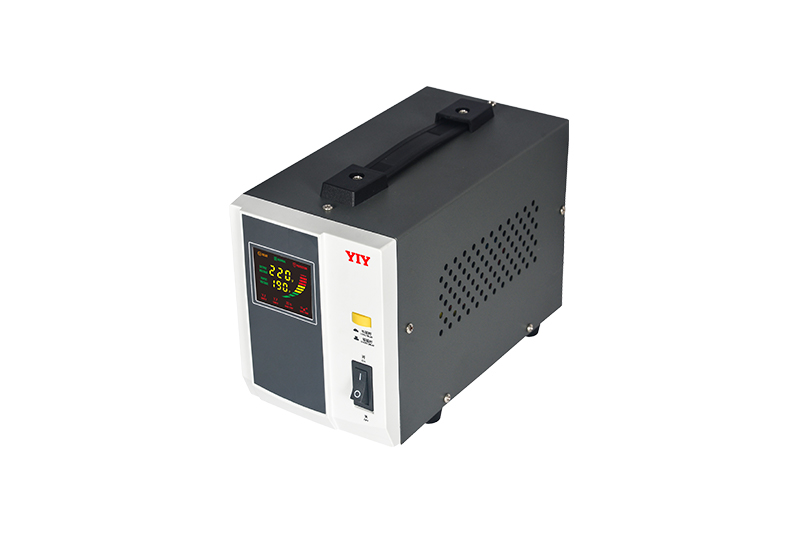

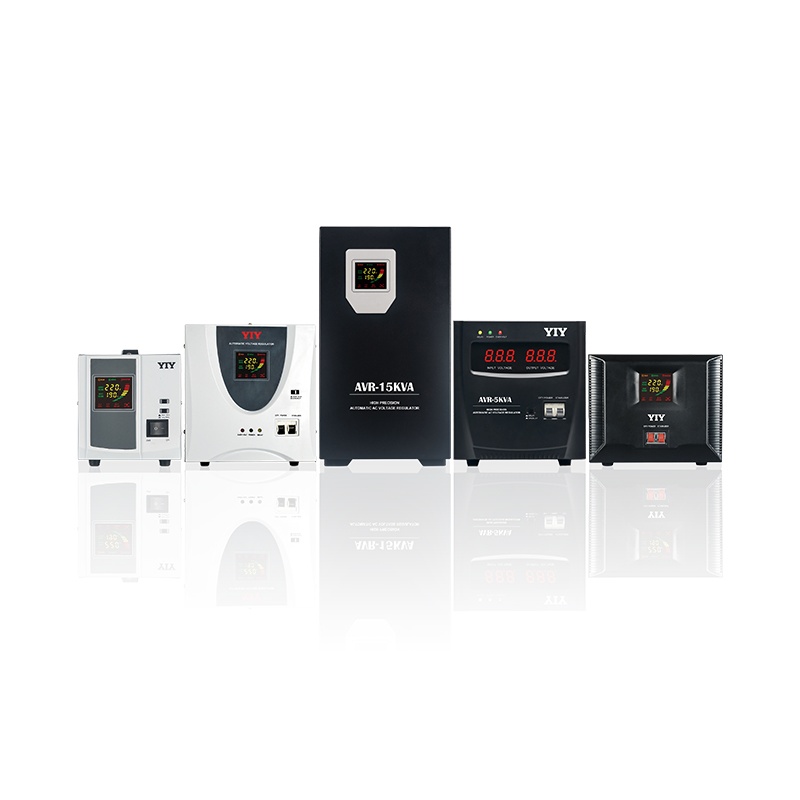

AVR Single-Phase Relay Voltage Stabilizer

Advanced single-phase relay type voltage stabilizer featuring MCU controlled PCB technology for residential, commercial, and light industrial applications. The AVR series delivers reliable voltage regulation from 500VA to 20000VA with ultra-wide input voltage range from 70V to 270V, ensuring optimal power quality even in areas with severe grid fluctuations. Perfect for home appliances, office equipment, and small commercial installations requiring cost-effective voltage protection, featuring 60ms response time, ±8% output precision, and comprehensive protection systems for maximum equipment safety.

  • MCU Controlled PCB– Intelligent microcontroller-based control for enhanced accuracy and reliability
  • Ultra-Wide Input Voltage Range– Operates from 70V-270V accommodating severe grid variations
  • Fast Response Time (60ms)– Quick voltage correction protects sensitive electronic equipment
  • High Output Precision (±8%)– Reliable voltage stability for residential and commercial applications
  • Dual Time Delay Options– Short delay (5s) and long delay (255s) for flexible startup control
  • Comprehensive Protection Suite– Short circuit, overload, and over-temperature protection

AVR Single-Phase Relay Voltage Stabilizer Complete Specifications

Standard Capacity Models (500VA-3000VA)

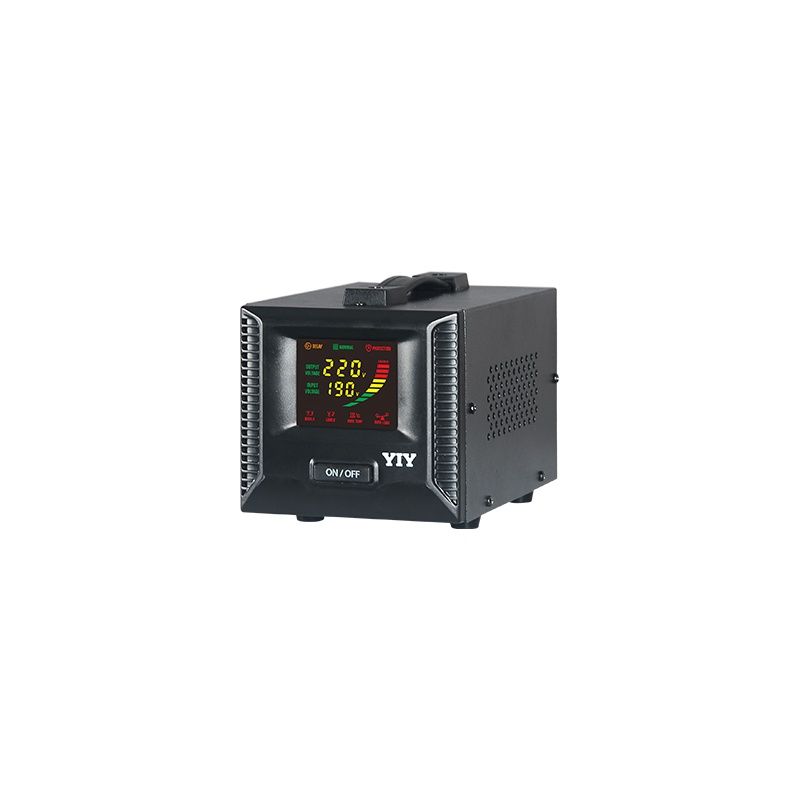

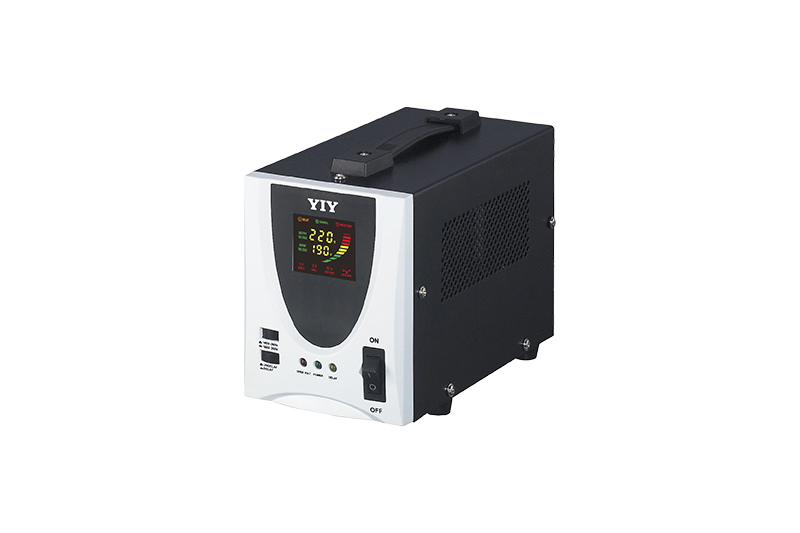

Specification 500VA 1000VA 1500VA 2000VA 3000VA
Phase Single phase Single phase Single phase Single phase Single phase
Input Voltage 70V-270V / 90V-270V / 140V-260V
Input Frequency 50Hz/60Hz
Response time 60ms
Output Voltage AC 220V ±8%~10%
Output Capacity 400W 800W 1200W 1600W 2400W
Low voltage 184V±4V
Over voltage 246V±4V
Protection Time Delay 5s / 255s optional
Overload/short circuit Fuse/MCB+MCU
Pcs per Carton 8 4 2 2 2
Shipping Wt.(kg) 19.5 25.8 14.6 16.6 17.6
Package dimensions (mm) 550*285*350 370*330*403 565*390*305 565*390*305 565*390*305
AC-AC Efficiency 95%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

High Capacity Models (5000VA-20000VA)

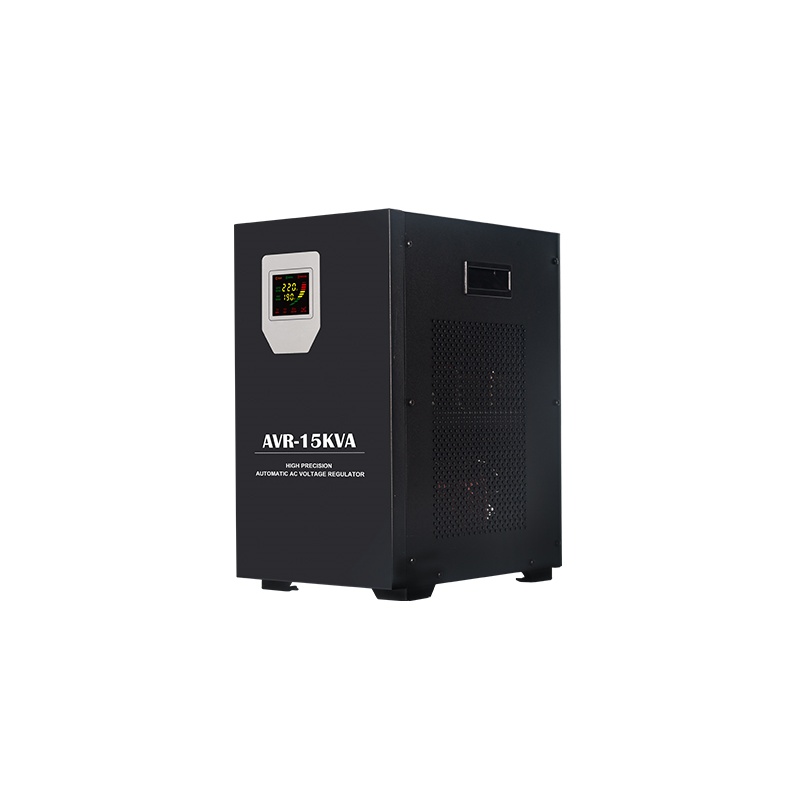

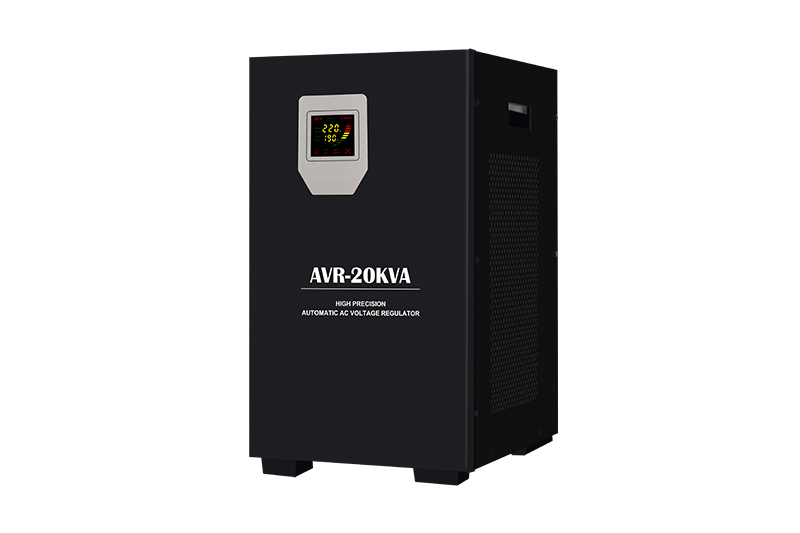

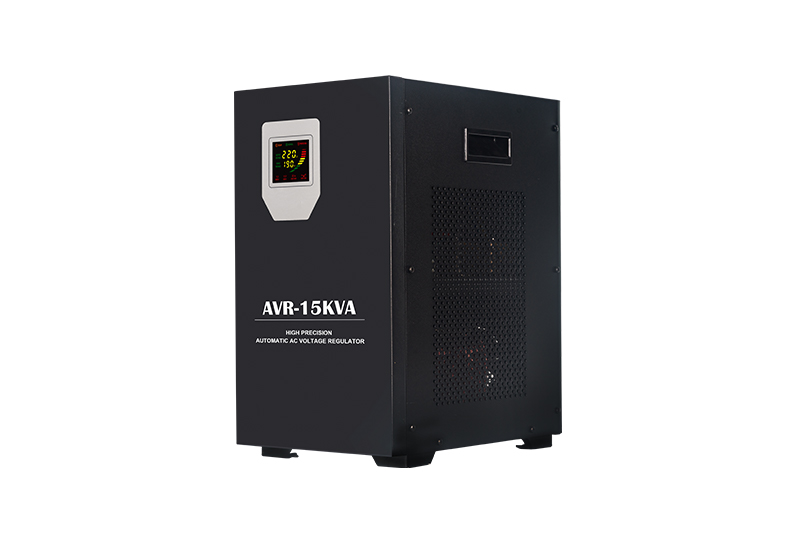

Specification 5000VA 8000VA 10000VA 12000VA 15000VA (Tower) 20000VA (Tower)
Phase Single phase Single phase Single phase Single phase Single phase Single phase
Input Voltage 70V-270V / 90V-270V / 140V-260V
Input Frequency 50Hz/60Hz
Response time 60ms
Output Voltage AC 220V ±8%~10%
Output Capacity 4000W 5600W 8000W 9600W 12000W 16000W
Low voltage 184V±4V
Over voltage 246V±4V
Protection Time Delay 5s / 255s optional
Overload/short circuit Fuse/MCB+MCU
Pcs per Carton 2 1 1 1 1 1
Shipping Wt.(kg) 23.7 15.3 18.4 18.6 19.4 27.1
Package dimensions (mm) 565*390*305 455*390*305 390*390*495 390*330*605 390*330*605 390*330*605
AC-AC Efficiency 95%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

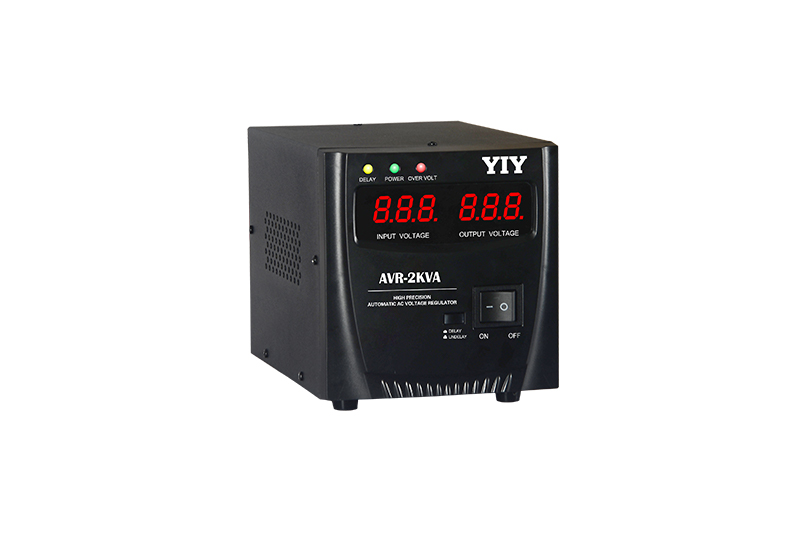

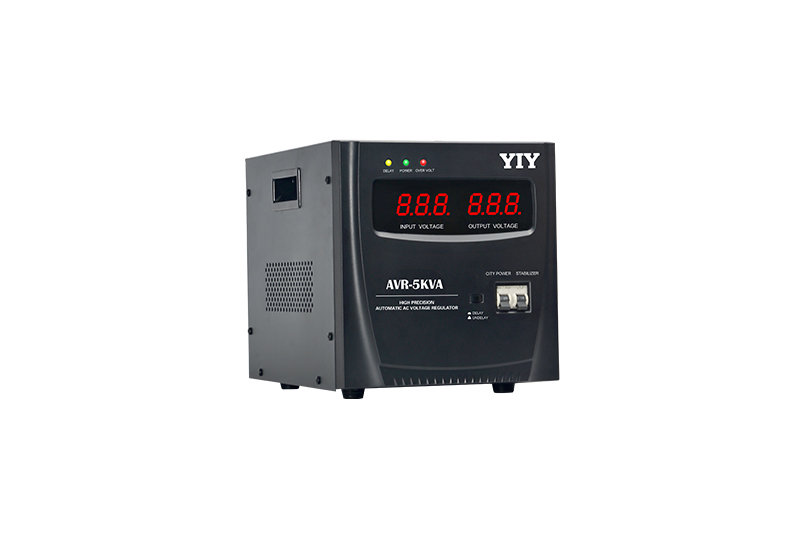

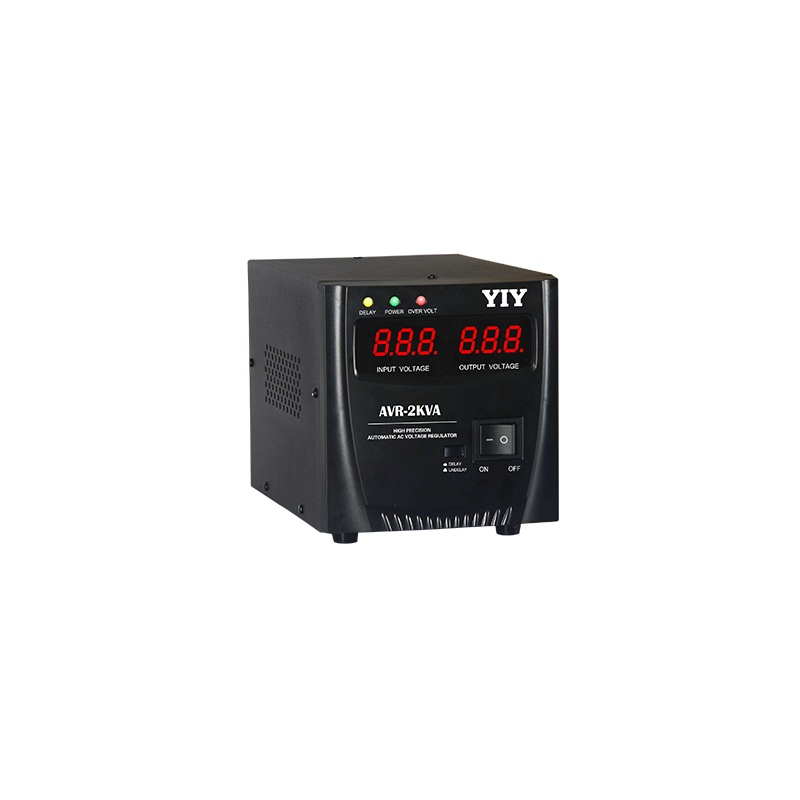

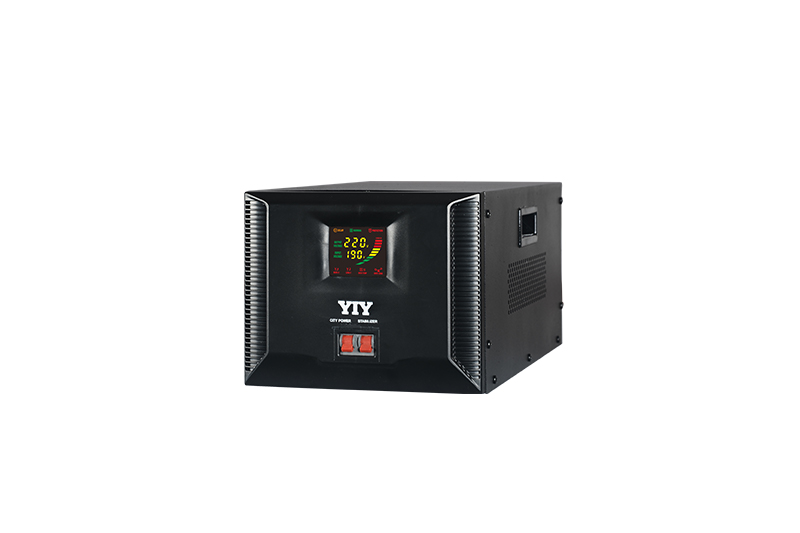

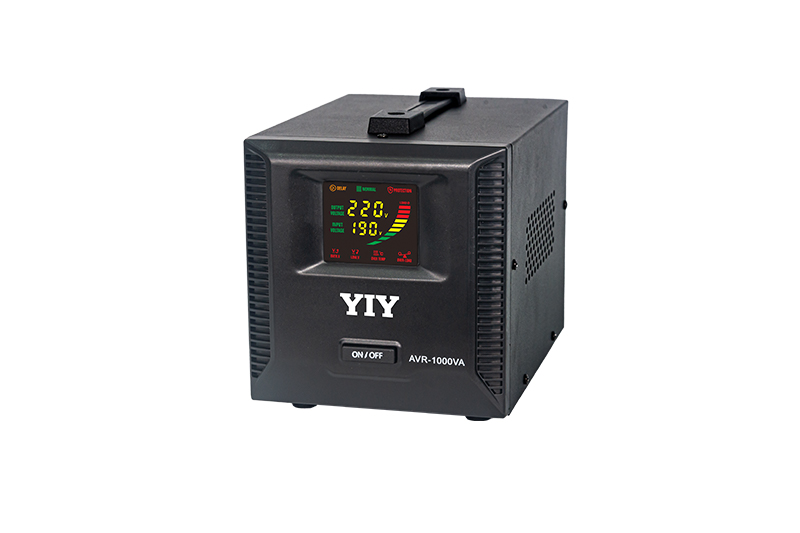

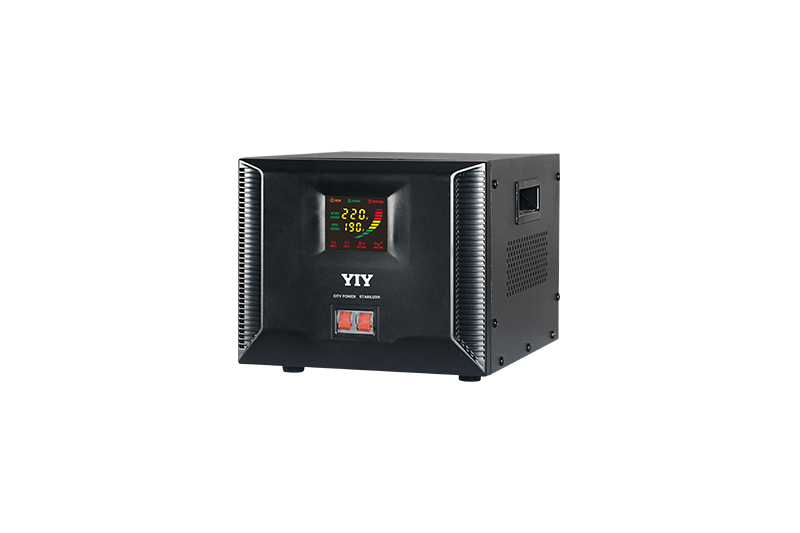

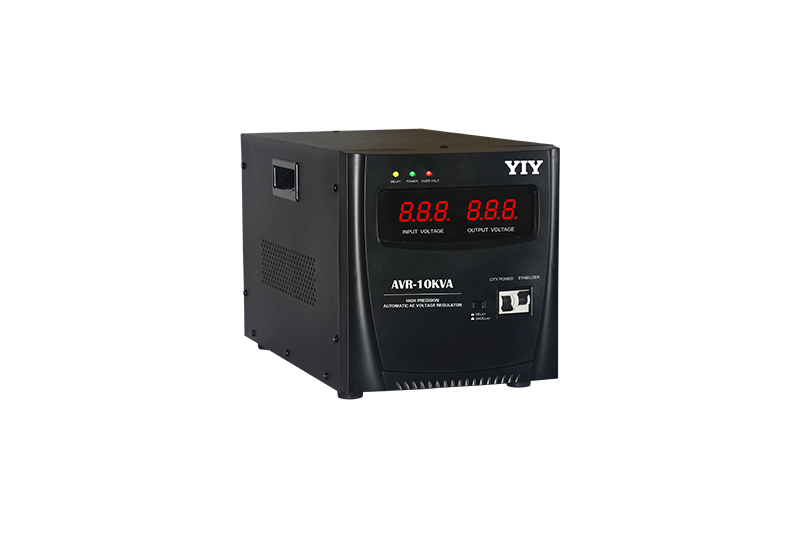

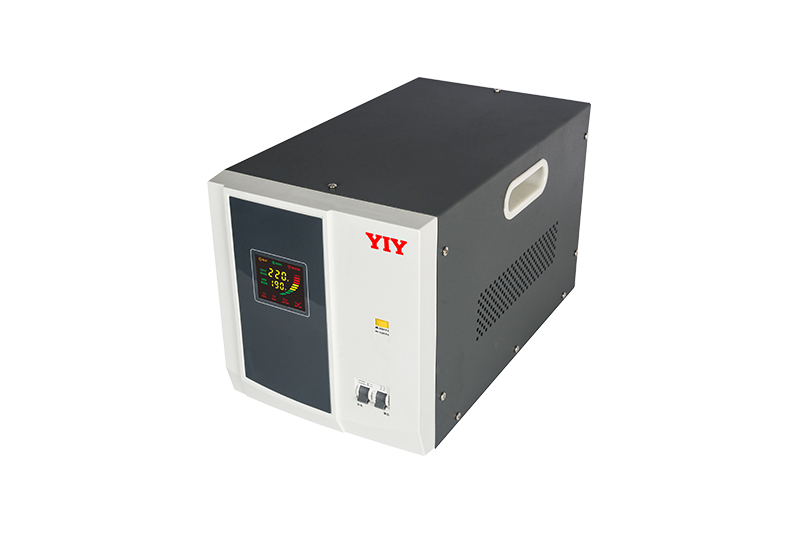

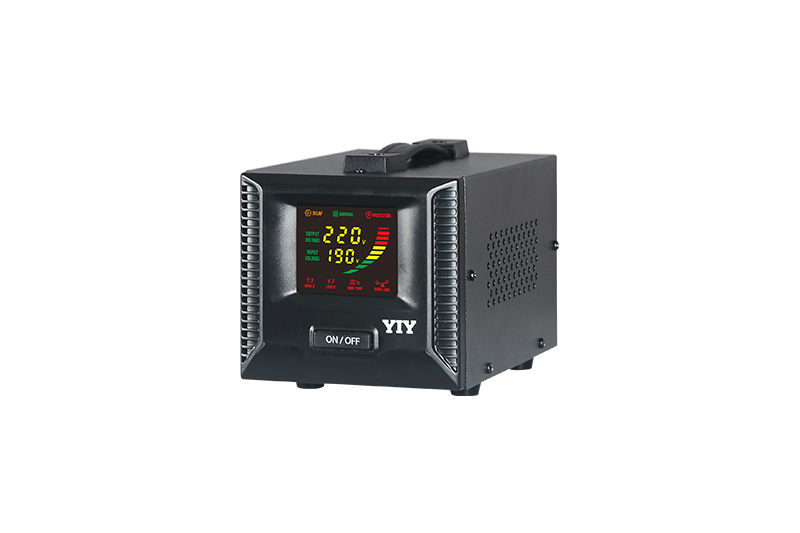

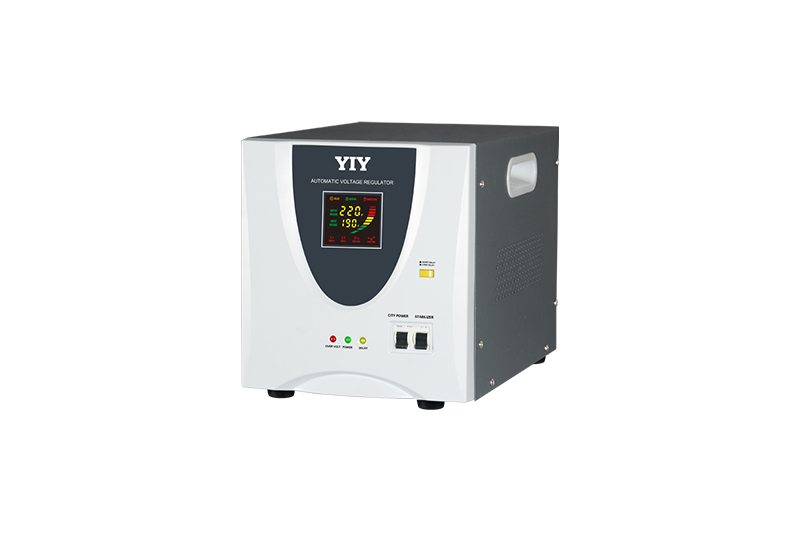

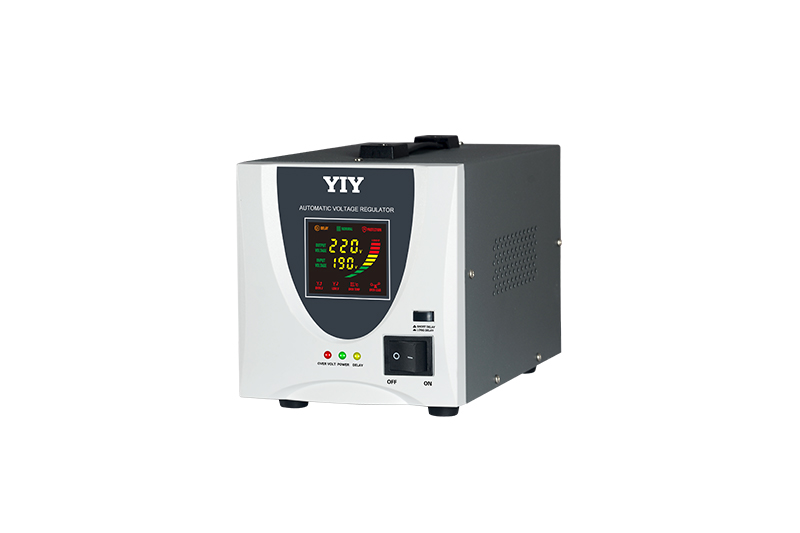

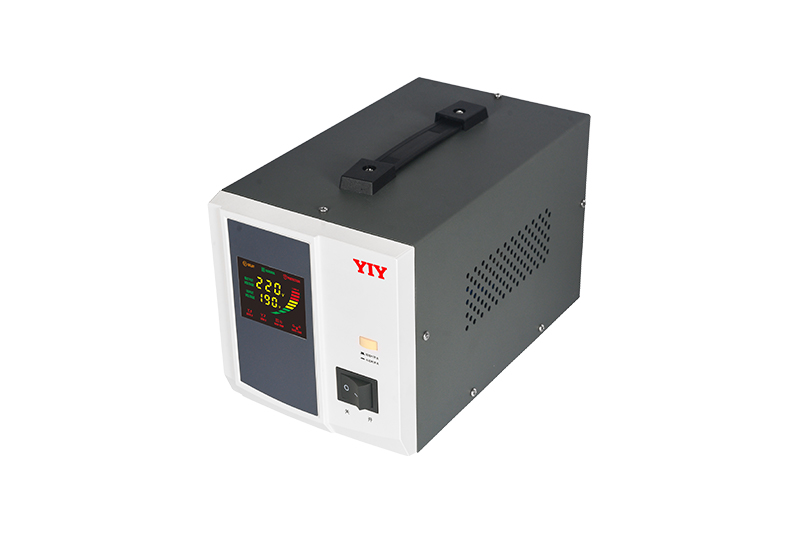

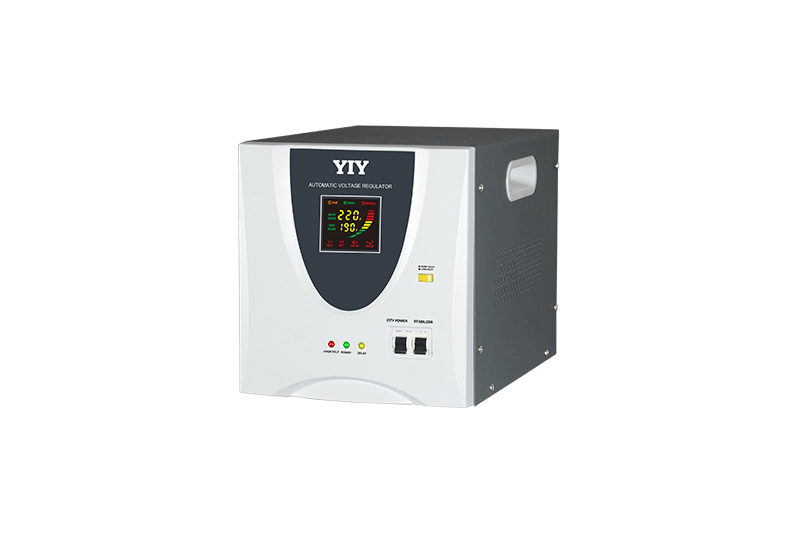

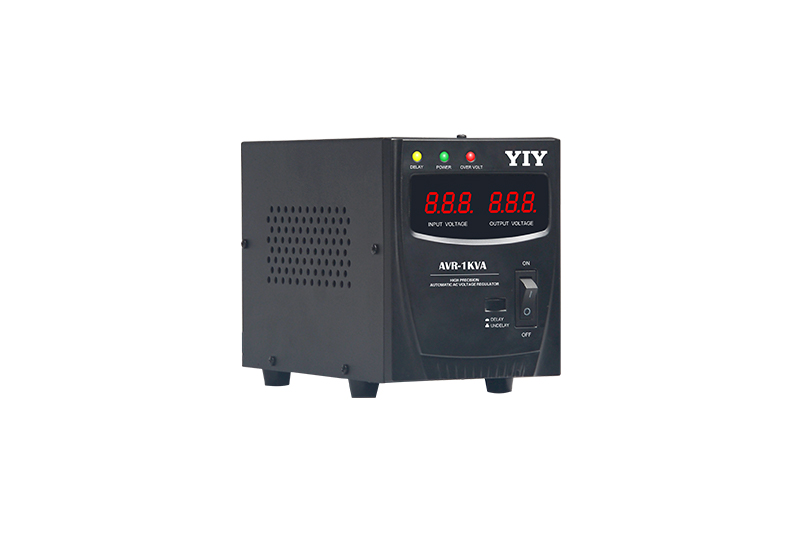

AVR Single-Phase Relay Voltage Stabilizer AVR-B

AVR Single-Phase Relay Voltage Stabilizer AVR-D

AVR Single-Phase Relay Voltage Stabilizer AVR-E

AVR Single-Phase Relay Voltage Stabilizer AVR-F

AVR Single-Phase Relay Voltage Stabilizer AVR-Cabinet

Display Options

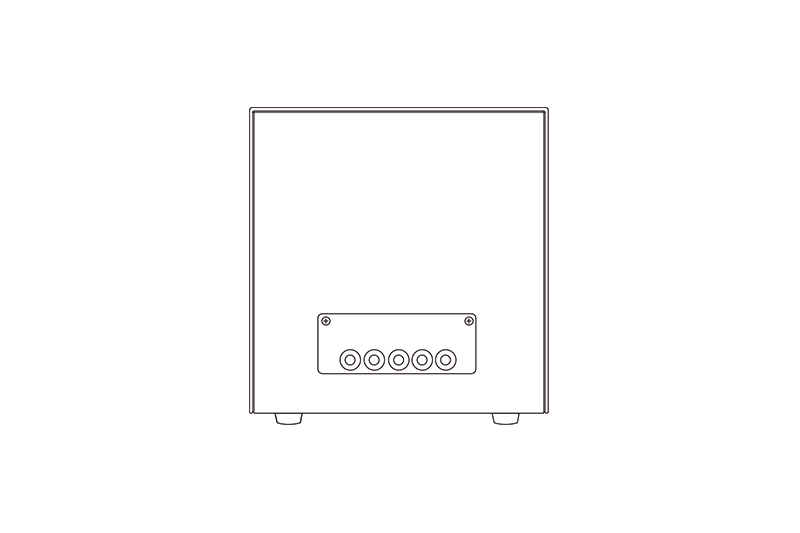

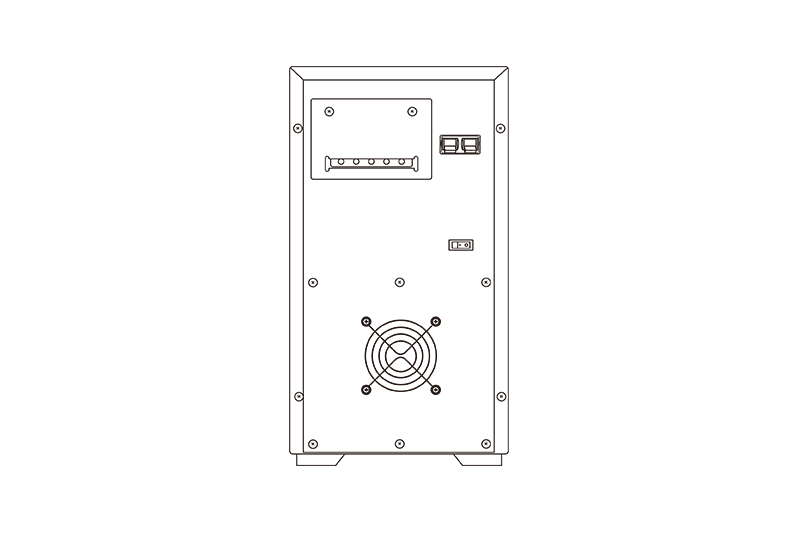

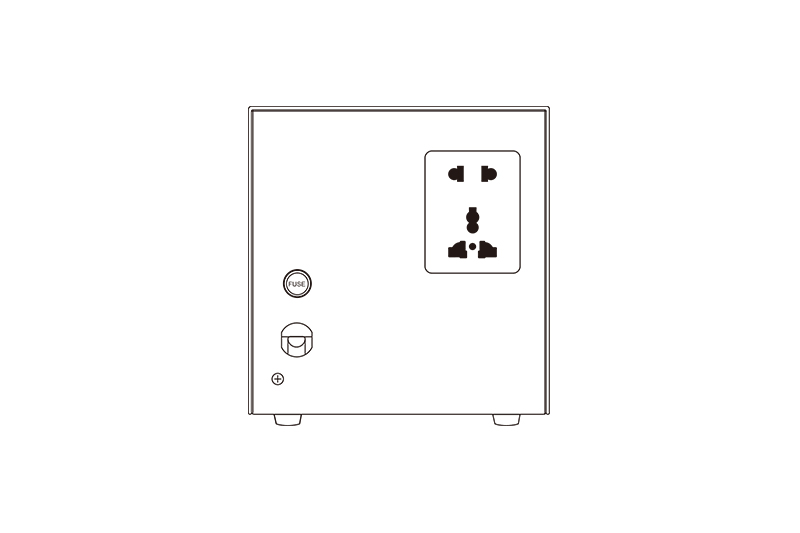

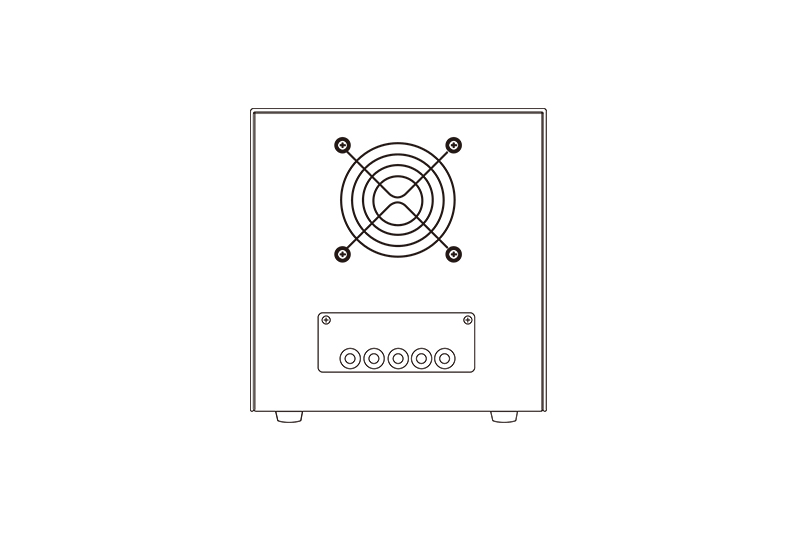

Rear Panel

Socket Options

AVR Single-Phase Relay Voltage Stabilizer Applications

Residential & Home Applications

Residential & Home Applications

Reliable voltage protection for household appliances and home electronics in residential environments.

  • Applications: Refrigerators, Air Conditioners, Televisions, Computers, Washing Machines, Lighting Systems
  • Recommended Models: 1000VA – 5000VA
  • Core Value: Protect home appliances from voltage fluctuations and extend equipment lifespan
Small Business & Office

Small Business & Office

Cost-effective voltage regulation for small business offices and professional workspaces.

  • Applications: Computers, Printers, Office Equipment, Lighting Systems, Small Commercial Appliances
  • Recommended Models: 2000VA – 10000VA
  • Core Value: Ensure business continuity and protect valuable office equipment from power issues
Retail & Commercial Establishments

Retail & Commercial Establishments

Professional voltage stabilization for retail stores and small commercial establishments.

  • Applications: POS Systems, Display Lighting, Refrigeration Units, Security Systems, Electronic Equipment
  • Recommended Models: 5000VA – 20000VA
  • Core Value: Maintain operations reliability and protect critical business equipment

Why Choose YIY AVR Series?

MCU Controlled PCB Technology

MCU Controlled PCB Technology

  • Intelligent microcontroller-based control system
  • Enhanced accuracy and reliability for precise regulation
  • Advanced digital control for optimal performance



Ultra-Wide Input Voltage Range

Ultra-Wide Input Voltage Range

  • Input range: 70V-270V accommodating severe grid variations
  • ±8% to ±10% output precision for consistent power quality
  • Multiple input range options for different applications



Fast Response Time

Fast Response Time

  • 60ms ultra-fast response time for immediate voltage correction
  • Dual time delay options: 5s short delay or 255s long delay
  • Comprehensive protection: overload, short circuit, over-temperature
