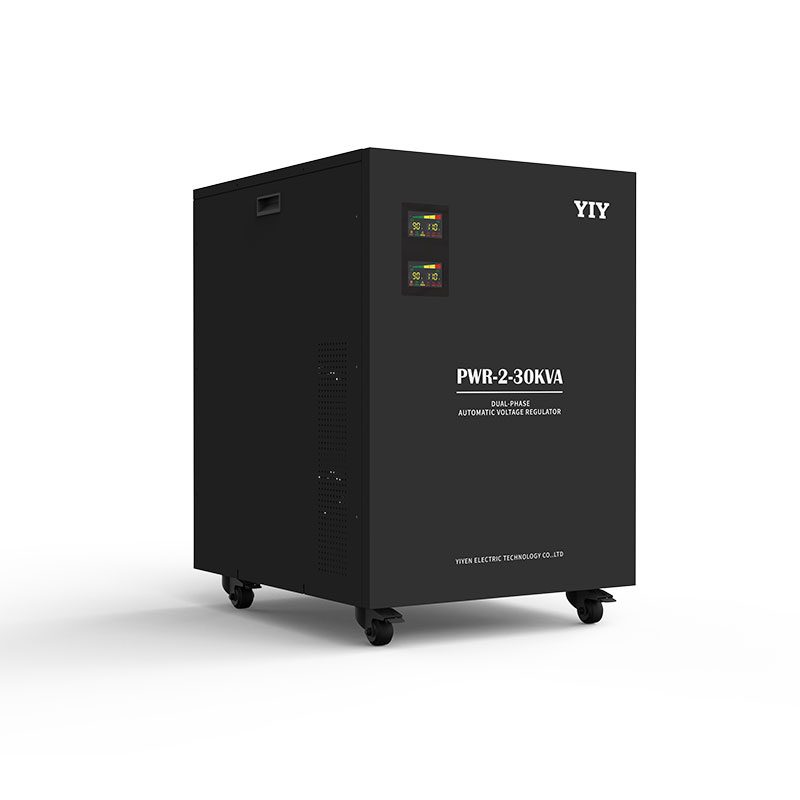

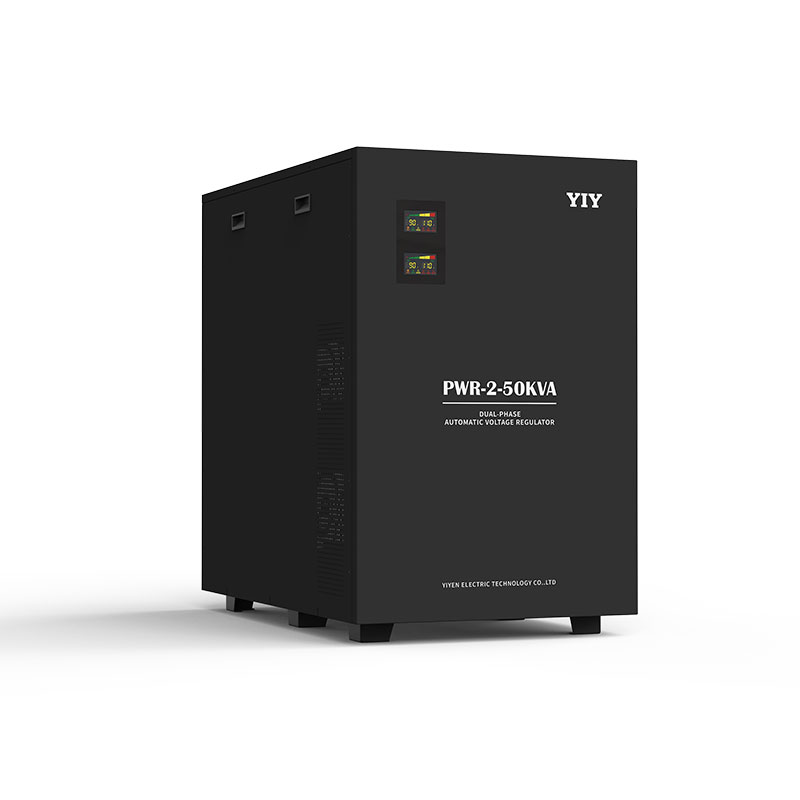

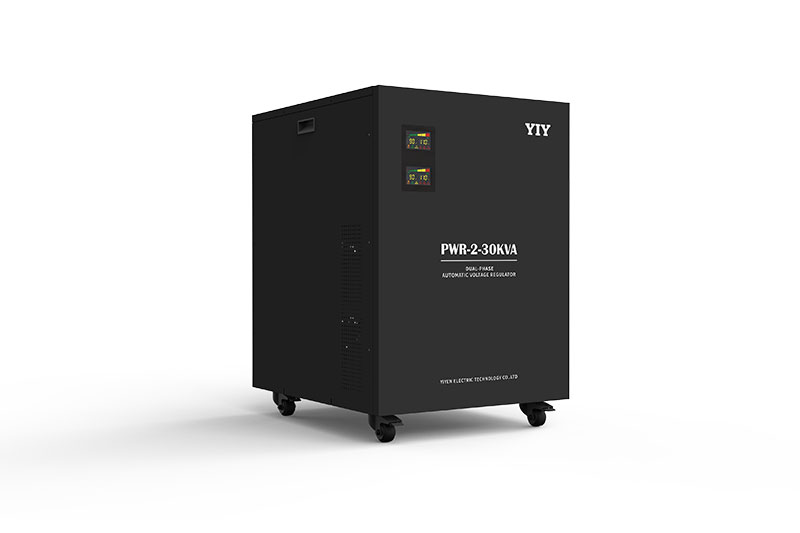

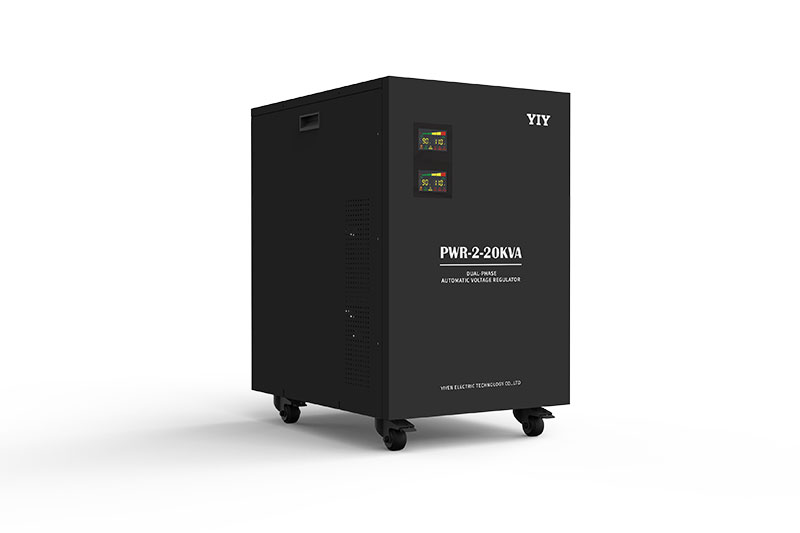

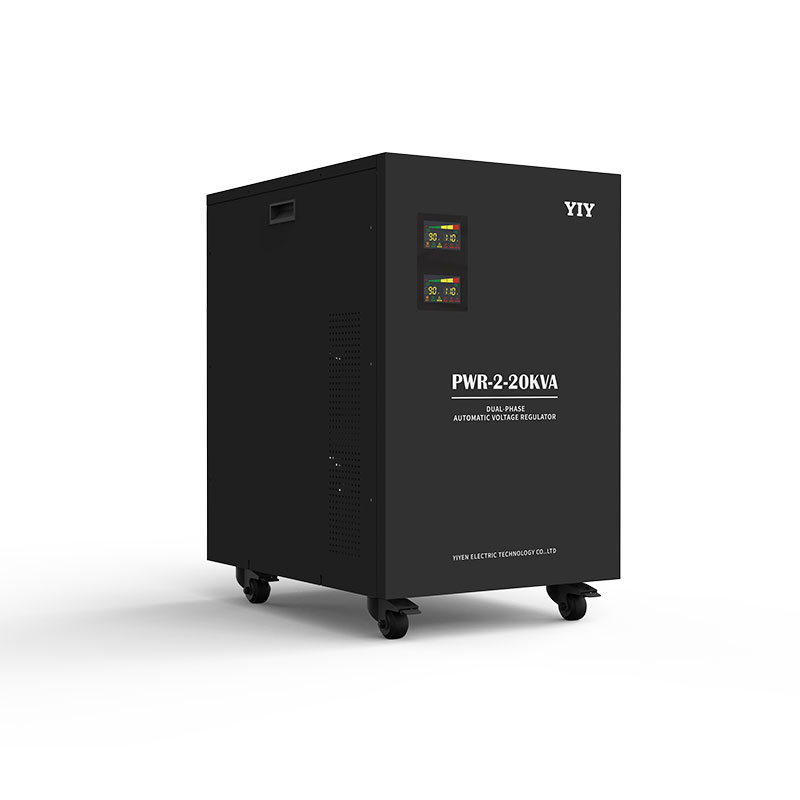

PWR-2 Dual Phase Servo Voltage Stabilizer
Professional dual phase servo motor voltage stabilizer delivering ±2% precision power protection for demanding industrial applications. Advanced MCU control technology with comprehensive protection systems and low input voltage accommodation for critical equipment across heavy-duty commercial and industrial environments.
-
±2% High Precision – Servo motor controlled accurate voltage regulation
-
Low Input Range – 96V-144V ultra-low input voltage accommodation
-
98% High Efficiency – Energy-saving AC-AC conversion technology
-
MCU Control – Microcontroller-based intelligent monitoring and protection
-
Multi-Protection – Over/under voltage, surge, overload, thermal protection
-
Dual Phase Power – 120V/240V dual phase output system support
PWR-2 Dual Phase Servo Stabilizer Complete Specifications
| Specification |
10KVA |
15KVA |
20KVA |
30KVA |
45KVA |
50KVA |
60KVA |
| Input |
Phase |
Dual Phase |
| Voltage |
AC 96V-144V |
|
Frequency |
50Hz/60Hz |
| Output |
Voltage |
AC 120V/240V±3% (110/220V±3% optional) |
| Capacity |
8KW |
12KW |
16KW |
24KW |
36KW |
40KW |
48KW |
| Frequency |
50Hz/60Hz |
| Protection |
Low Voltage |
100±4V/200±4V |
| Over Voltage |
134±4V/268±4V |
| Time Delay |
5s / 255s optional |
| Overload |
MCU (cutting off output for 3 seconds when exceeding rated power by 120%) |
| Short Circuit |
Circuit Breaker |
|
Other |
Surge protection |
| Efficiency |
AC-AC |
98% |
| Acoustic |
Noise level |
≤50dB |
| Environment |
Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |

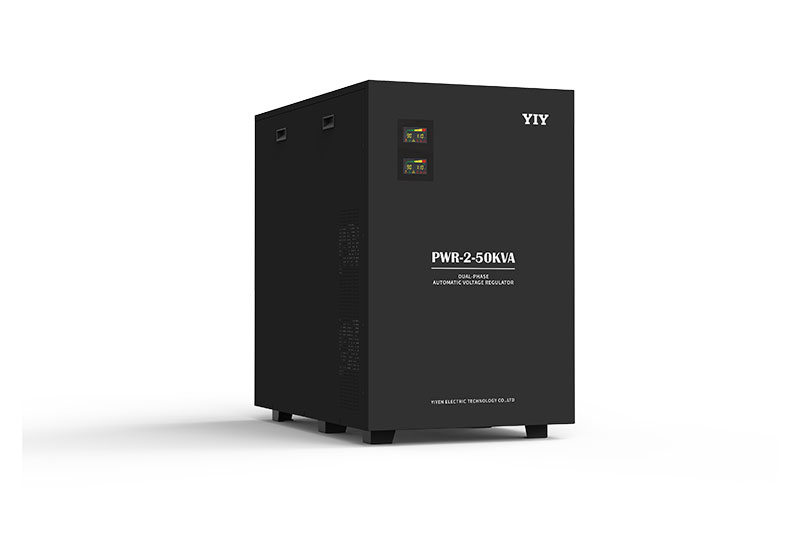

PWR-2 Dual Phase Voltage Stabilizer

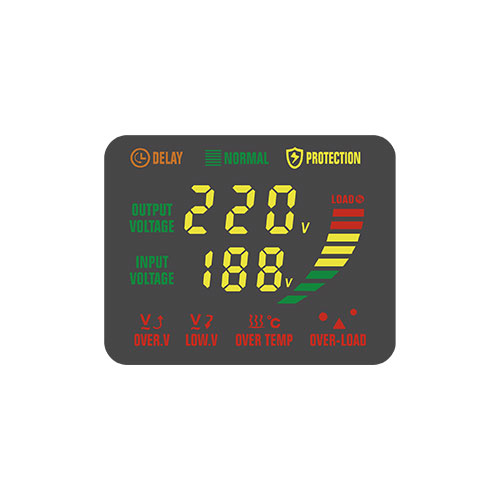

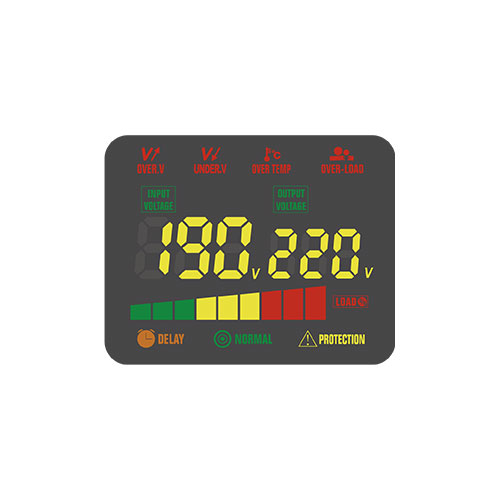

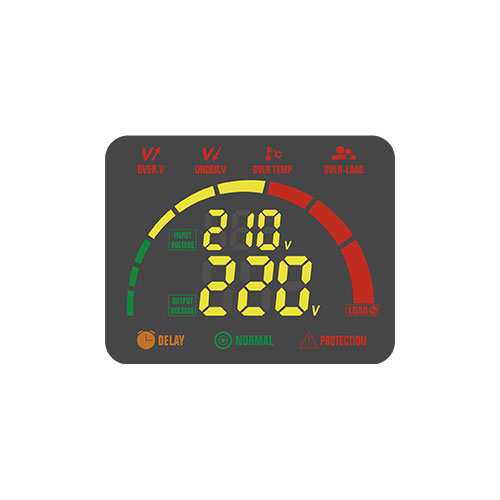

Display Options

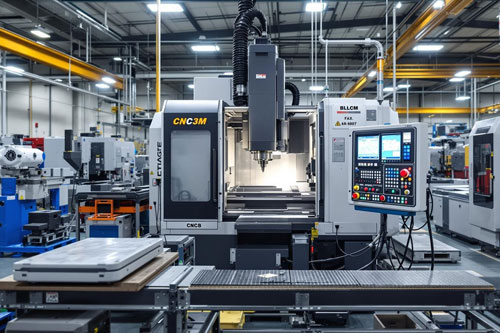

PWR-2 Dual Phase Servo Stabilizer Applications
Why Choose YIY PWR-2 Servo Stabilizers?
PWR-2: The Dual-Phase Specialist
Most voltage stabilizers are designed for single-phase (residential) or three-phase (industrial) power systems. The PWR-2 fills a gap that other manufacturers ignore: split-phase / dual-phase power systems found in specific regions (parts of Southeast Asia, Middle East, and North America) where two-phase 208V or 240V supply configurations are common. Instead of forcing a three-phase unit onto a two-phase supply (which wastes one phase of capacity) or running two separate single-phase units (which doubles maintenance), the PWR-2 provides purpose-built dual-phase regulation in a single enclosure.
Best Applications for PWR-2
The PWR-2 is specified for commercial buildings with split-phase 208V/240V supply — common in North American light commercial and in tropical regions where utility infrastructure uses dual-phase distribution. It also serves process equipment that requires balanced two-phase input: industrial ovens, large drying systems, and dual-winding motors where phase imbalance directly affects heating uniformity or motor torque.
Selection Notes: Where Dual-Phase Beats Single-Phase
PWR-2 fills a niche that generic product catalogs often blur: sites that do not have a clean full three-phase industrial supply, but have already outgrown normal single-phase branch stabilizers. That makes it a transition product for split-feed commercial sites, small facilities, and special regional power layouts where buying a full three-phase servo unit is unnecessary overkill.
- Best fit: commercial buildings, elevator rooms, small industrial units, clinics, and light technical spaces that need more than household single-phase capacity without moving to a full three-phase platform.
- Choose PWR-2 over wall-mounted single-phase units: when the site has already crossed into 10KVA to 60KVA demand and cable/service layout is no longer “household style”.
- Choose SVC-3 or PRO-3 instead: when the site is a true balanced 380V three-phase workshop and future expansion is likely.
- Buying checkpoint: confirm the actual supply architecture before quoting. Many “dual-phase” projects are misdiagnosed and should really be quoted as either large single-phase or standard three-phase.
For upstream sizing logic, use the industrial selection guide. If the workshop has already moved into standard three-phase distribution, compare against the 10-25 KVA three-phase guide.
