Series: PWR Services

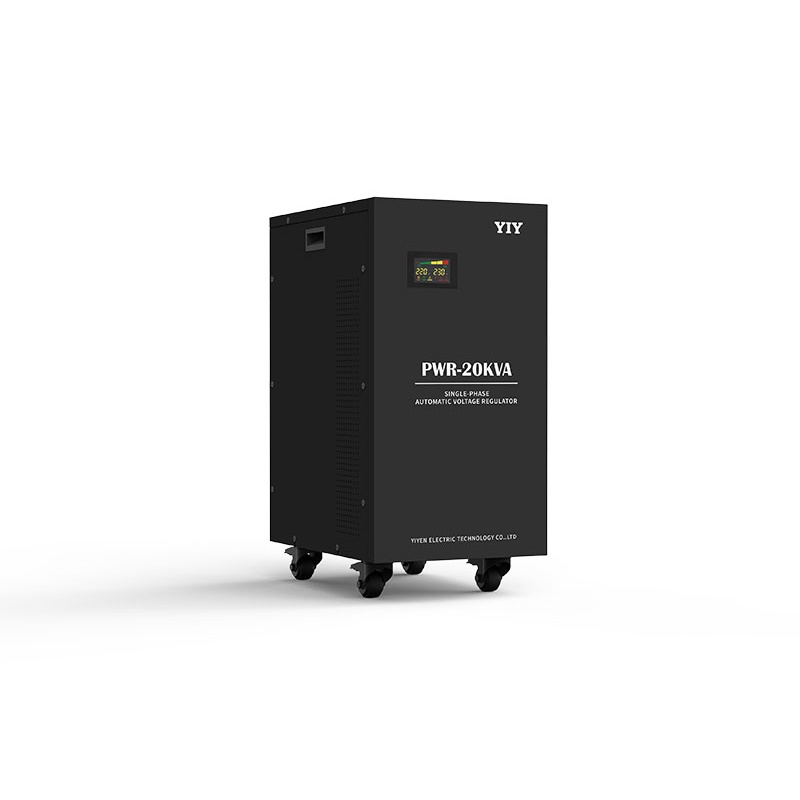

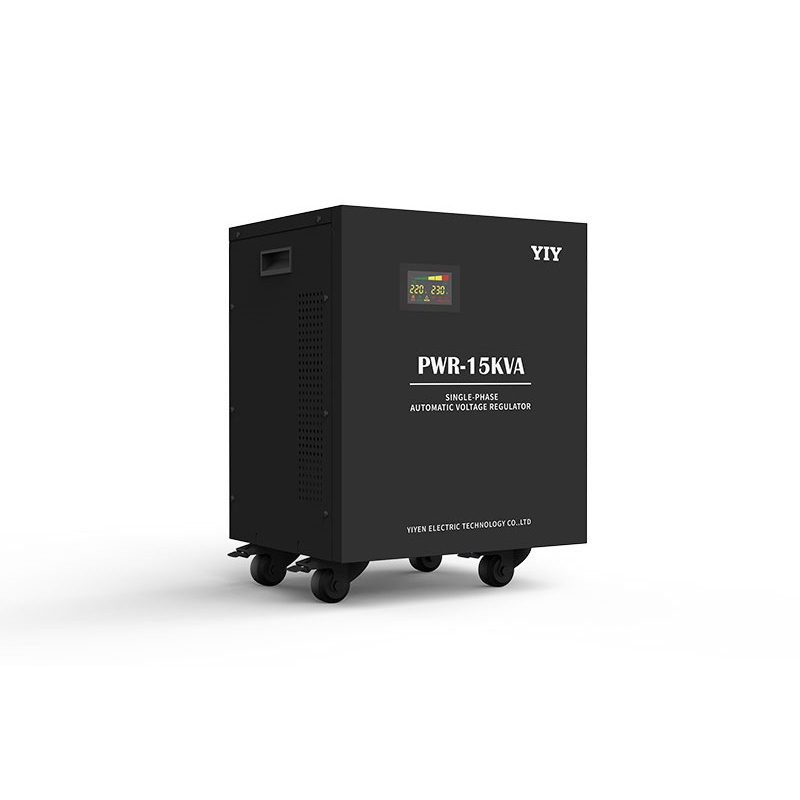

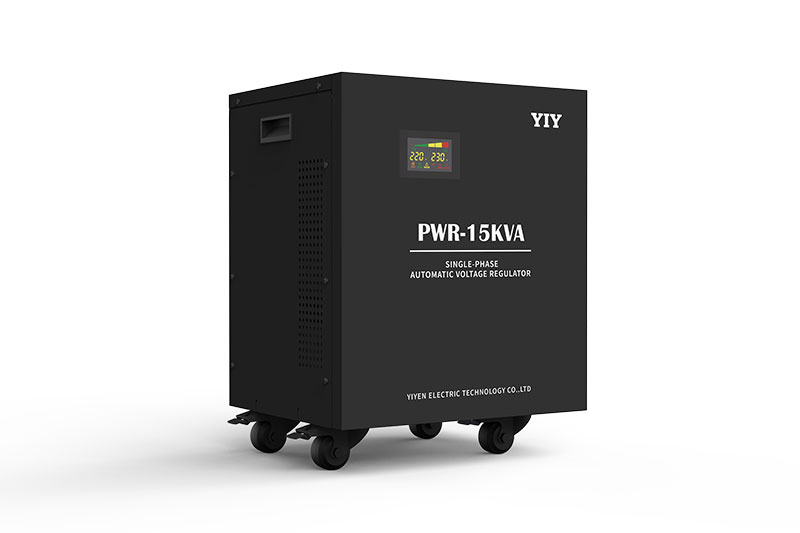

PWR High Power Voltage Stabilizer
Professional-grade high power voltage stabilizers designed for commercial and industrial applications requiring robust power conditioning. The PWR series delivers exceptional performance with capacity range from 15KVA to 100KVA, featuring advanced servo motor control technology, comprehensive protection systems, and heavy-duty construction for demanding environments. Engineered to maintain ≤2% voltage regulation precision under varying load conditions for optimal equipment protection.
- Low Input Voltage Capability– Handles extremely low input voltages (88V minimum)
- MCU Digital Control– Microcontroller-based intelligent monitoring system
- More Accurate Output Precision≤2%– Superior precision compared to standard models
- Multi Display Options– Professional display with multiple viewing options
- Enhanced Protection Systems– Over/under voltage, surge, and overload protection
- Thermistor Temperature Control– Advanced over-heat protection with precise sensors
PWR High Power Voltage Stabilizer Complete Specifications
| Specification |
PWR-15KVA |

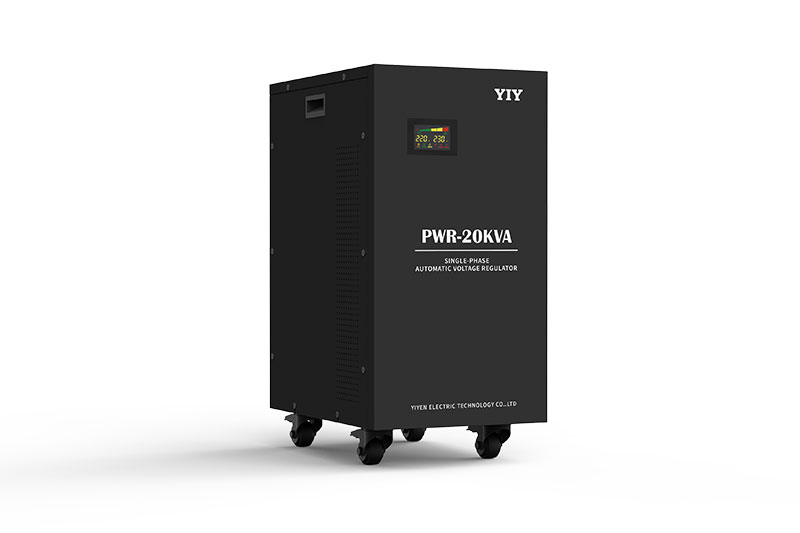

PWR-20KVA |

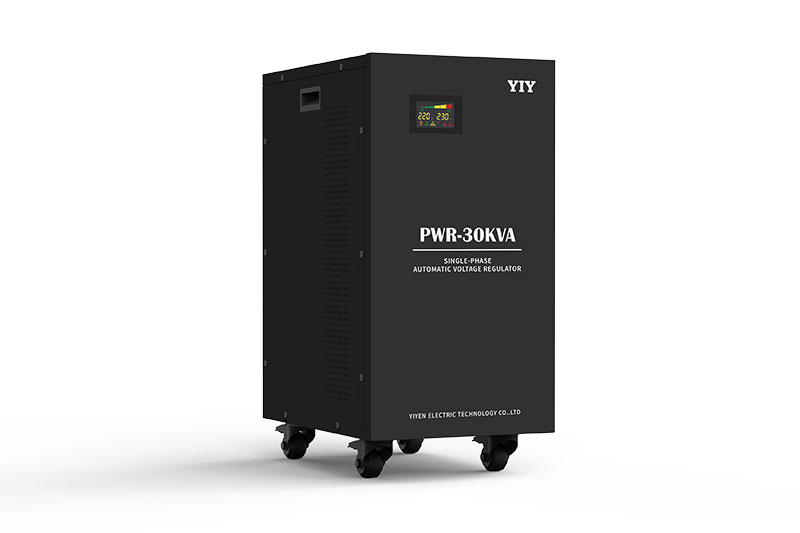

PWR-30KVA |
PWR-50KVA |
PWR-100KVA |
| Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
| Input Voltage (European) |
165V-275V (±25%) |
| Input Voltage (American) |
88V-132V (±20%) |
| Input Frequency |
50Hz/60Hz |
| Output Voltage (European) |
220V±2% / 230V±2% |
| Output Voltage (American) |
110V±2% / 120V±2% |
| Output Power |
12000W |
16000W |
24000W |
40000W |
80000W |
| Output Frequency |
50Hz/60Hz |
| Low Voltage Protection |
184V±4V / 194V±4V |
| Over Voltage Protection |
246V±4V / 256V±4V |
| Time Delay |
5s / 255s optional |
| Overload Protection |
MCU (120% for 3s) |
| Short Circuit Protection |
Circuit Breaker |
| Other Protection |
Surge Protection |
| Efficiency |
98% |
| Noise Level |
≤50dB |
| Operating Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
PWR High Power Voltage Stabilizer
Display Options

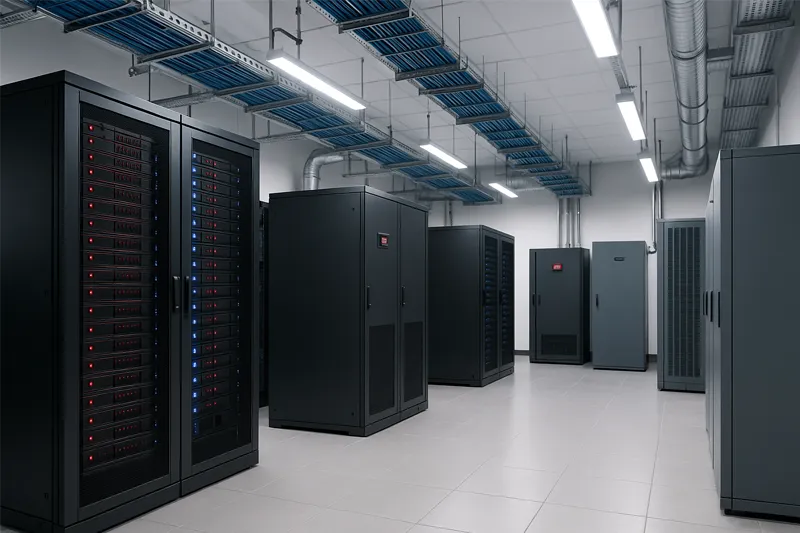

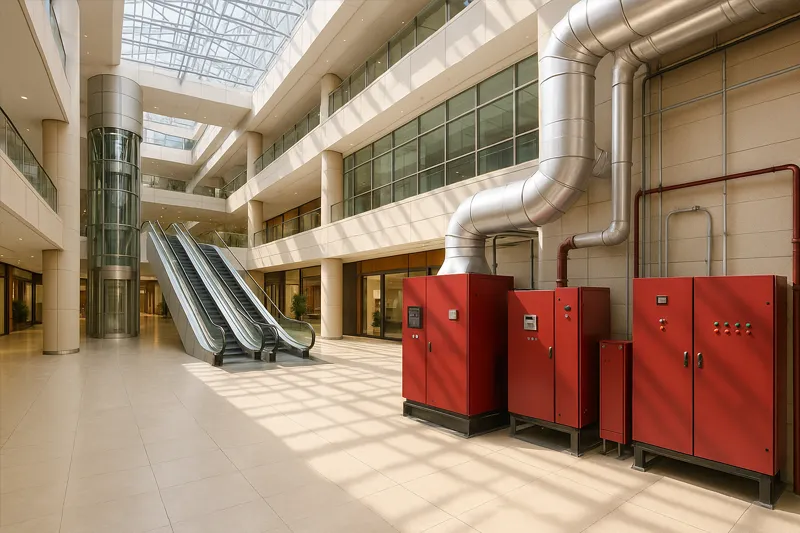

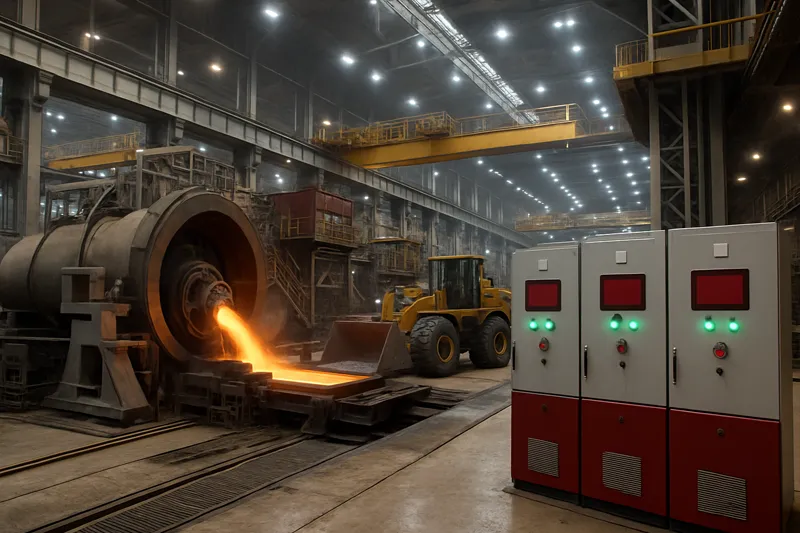

PWR High Power Voltage Stabilizer Applications
Why Choose YIY PWR Series?
Extreme Low Voltage Capability
-
Handles down to 88V input voltage
-
±25% input voltage range tolerance
-
Reliable operation in unstable grid conditions
-
Enhanced Surge Protection
-
Circuit Breaker Protection
-
Thermistor Temperature Control
PWR vs SBW: Precision vs Raw Capacity
Both handle medium-to-large three-phase loads, but the engineering priorities differ. The PWR uses MCU digital control with current monitoring to deliver ±1–2% precision and output current display — capabilities that the SBW’s analog servo control does not offer. The SBW trades that precision for massive capacity scaling (30–3000 KVA) and oil cooling for extreme duty cycles. The choice maps to your load: if output precision and digital monitoring matter more than raw capacity, choose PWR. If you need 200+ KVA or oil cooling for high-ambient environments, choose SBW.
Best Applications for PWR
The PWR series targets precision manufacturing (CNC machining centers, precision printing, semiconductor packaging) where ±1–2% output accuracy and real-time current monitoring prevent process defects, and medical imaging facilities (CT, MRI, fluoroscopy suites) where voltage stability directly affects image quality and patient safety. Its 15–100 KVA range covers the typical single-facility equipment protection envelope without the physical footprint and oil containment requirements of the SBW.
Need OEM / private-label supply?
YIY supports custom specs, branding, and private-label voltage stabilizers for distributors and importers.
Start OEM Project →
|
Contact / RFQ →
