Series: PWR-3 Series

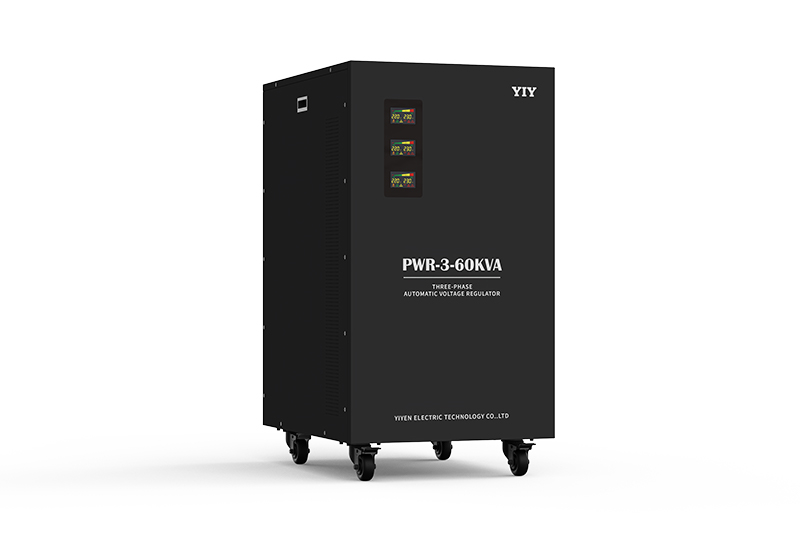

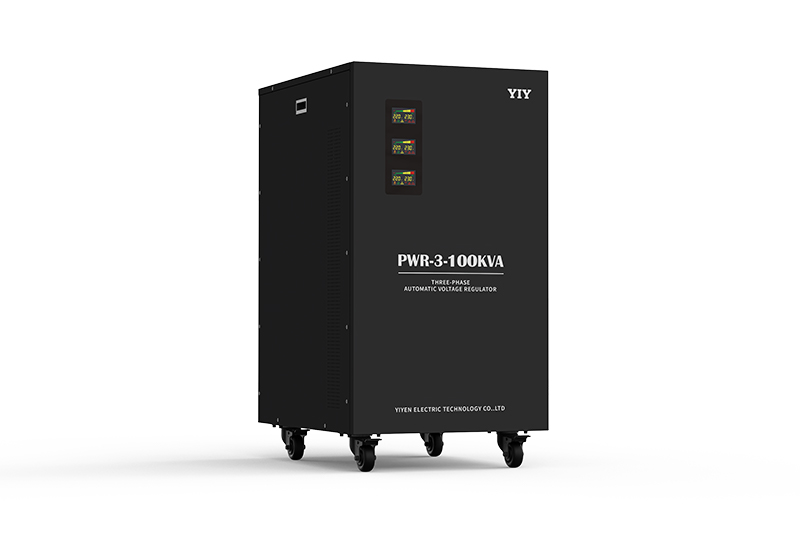

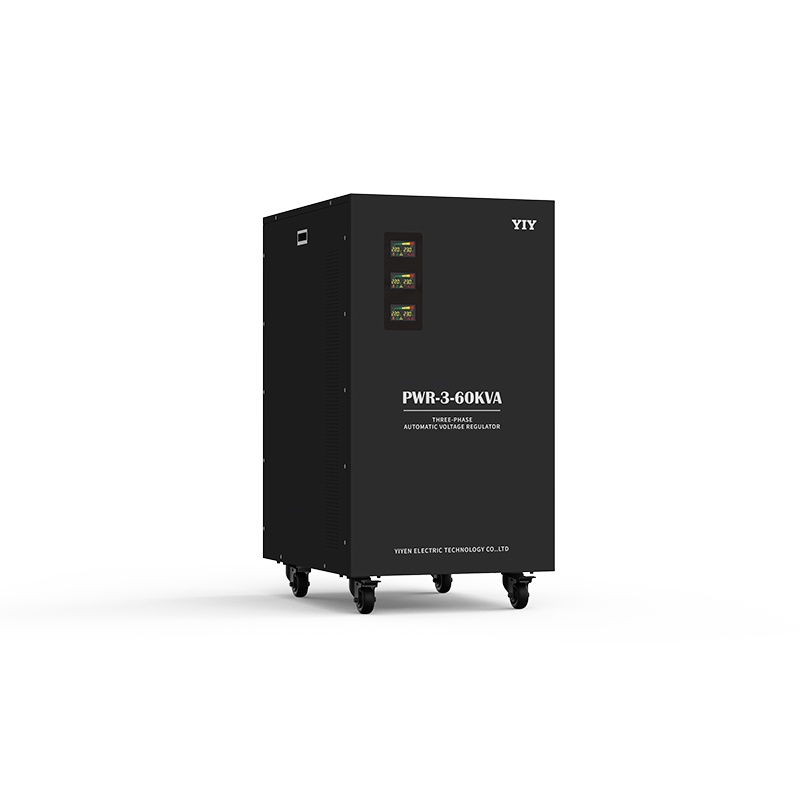

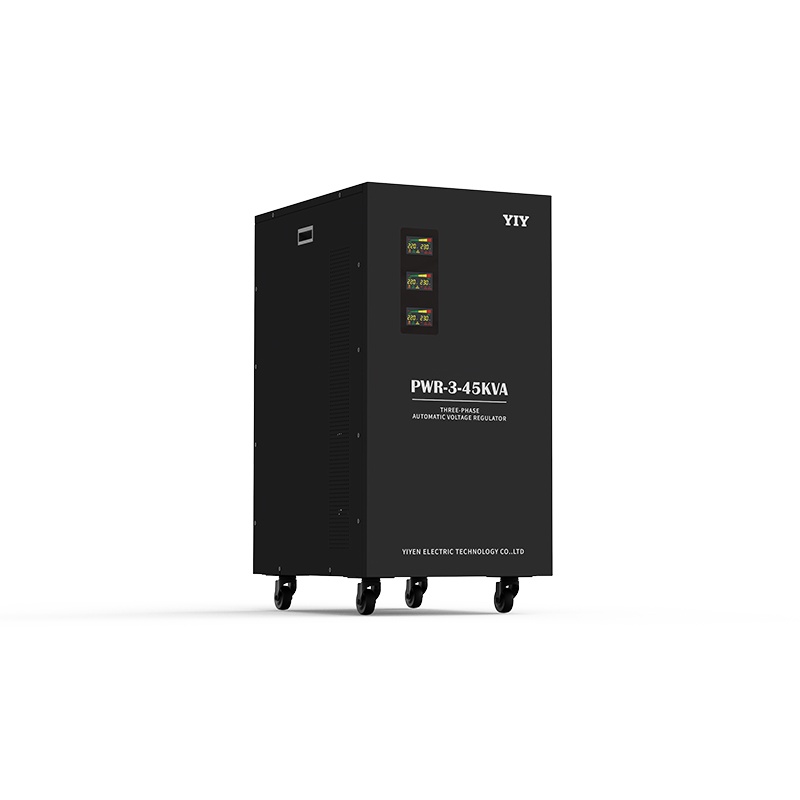

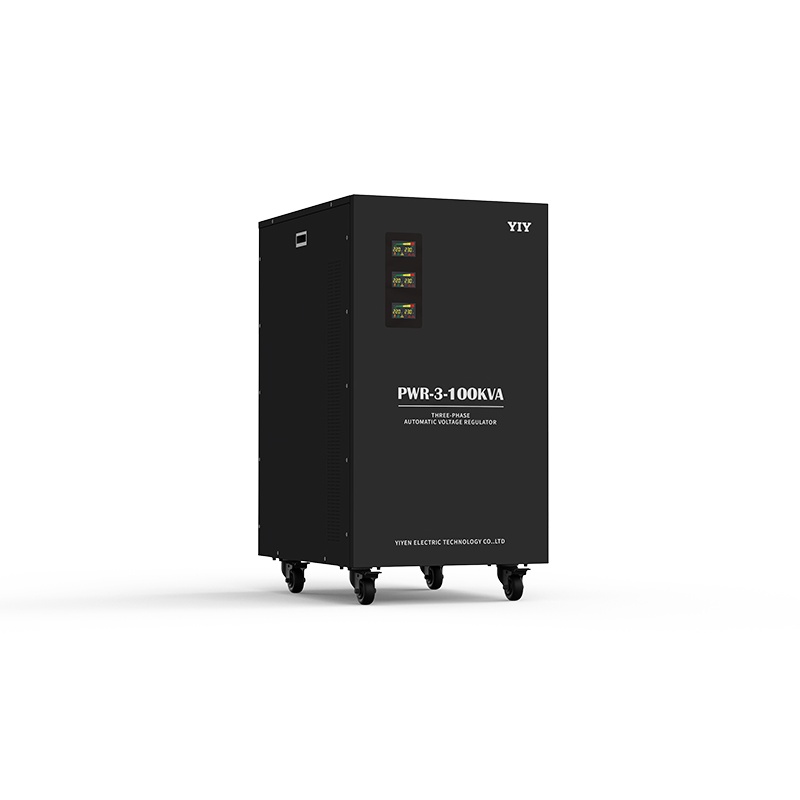

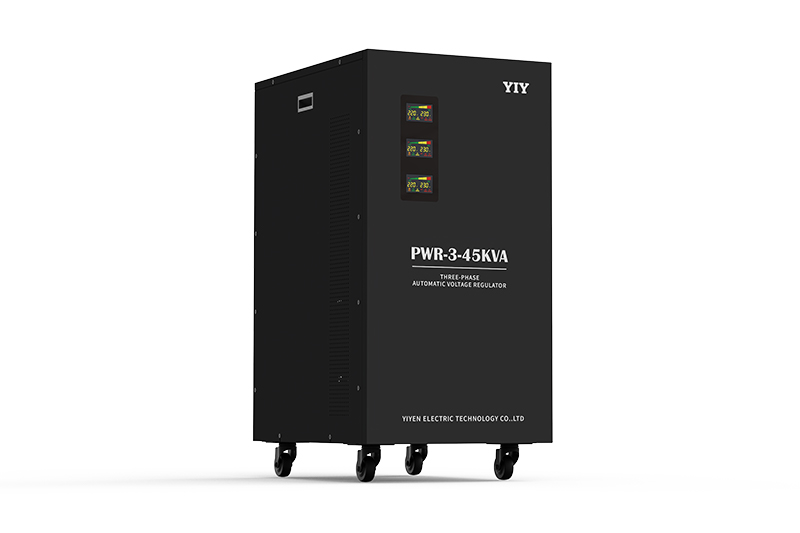

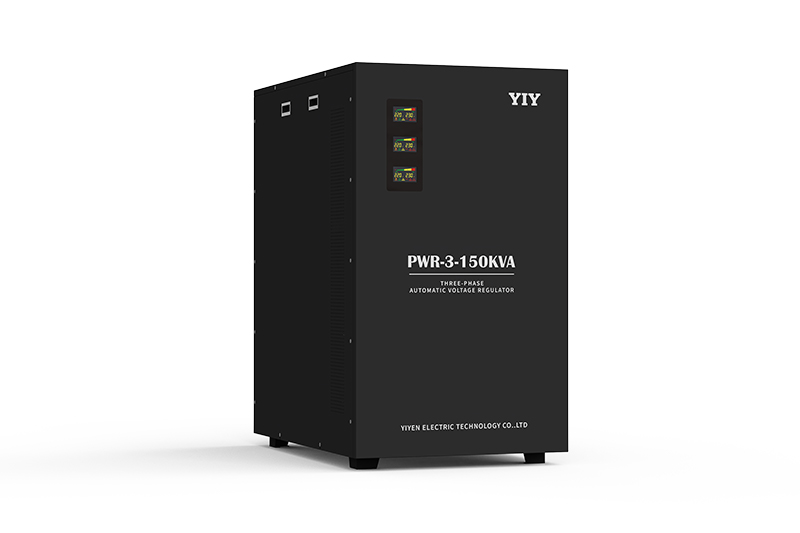

PWR-3 Three-Phase Servo Voltage Stabilizer
High-power three-phase servo motor voltage stabilizer engineered for demanding industrial applications requiring exceptional power handling and ultra-low input voltage capability. The PWR-3 series delivers superior ≤2% output precision across power ratings from 45KVA to 150KVA, featuring advanced MCU control technology and comprehensive protection systems. Perfect for heavy industrial equipment, large manufacturing facilities, and critical infrastructure where high-capacity voltage regulation is essential, supporting both European and American voltage standards with 100% unbalanced loading capability.
- Ultra-Low Input Voltage Capability– Operates from extremely low input voltages for maximum grid compatibility
- ≤2% Output Precision– Superior voltage accuracy for precision heavy industrial equipment
- MCU Control Technology– Intelligent microcontroller control for enhanced stability and protection
- ≥120% Overload Protection– Advanced PCB-based overload protection with 3-second cutoff capability
- Surge Protection– Built-in surge protection shields equipment from grid disturbances
- Multi Display System– Multiple display options for comprehensive system monitoring
PWR-3 Three-Phase Servo Voltage Stabilizer Complete Specifications
European Standard Configuration (380V/400V System)
| Specification |
PWR-3-45K |
PWR-3-60K |
PWR-3-100K |
PWR-3-120K |
PWR-3-150K |
| Phase |
3-phase 4-wire |
3-phase 4-wire |
3-phase 4-wire |
3-phase 4-wire |
3-phase 4-wire |
| Input Voltage |
AC 285V-475V(±25%) / 266V-494V(±30%) |
| Input Frequency |
50Hz/60Hz |
| Output Voltage |
AC 380V±3% / 400V±3% |
| Output Capacity |
36000W |
48000W |
80000W |
96000W |
120000W |
| Output Frequency |
50Hz/60Hz |
| Low voltage |
318±7V / 335±7V |
| Over voltage |
425V±7V / 442V±7V |
| Time delay |
5s |
| Overload Protection |
MCU (cutting off output for 3 seconds when exceeding rated power by 120%) |
| Short circuit |
Circuit Breaker |
| Other Protection |
Surge, phase-sequence, phase loss |
| AC-AC Efficiency |
98% |
| Noise level |
≤50dB |
| Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
American Standard Configuration (208V/220V System)
| Specification |
PWR-3-45K |
PWR-3-60K |
PWR-3-100K |
PWR-3-120K |
PWR-3-150K |
| Phase |
3-phase 3-wire |
3-phase 3-wire |
3-phase 3-wire |
3-phase 3-wire |
3-phase 3-wire |
| Input Voltage |
AC 166V-250V(±20%) / 156V-260V(±25%) / 145V-270V(±30%) |
| Input Frequency |
50Hz/60Hz |
| Output Voltage |
AC 208V±3% / 220V±3% |
| Output Capacity |
36000W |
48000W |
80000W |
96000W |
120000W |
| Output Frequency |
50Hz/60Hz |
| Low voltage |
174±4V / 184±4V |
| Over voltage |
233V±4V / 246V±4V |
| Time delay |
5s |
| Overload Protection |
MCU (cutting off output for 3 seconds when exceeding rated power by 120%) |
| Short circuit |
Circuit Breaker |
| Other Protection |
Surge, phase-sequence, phase loss |
| AC-AC Efficiency |
98% |
| Noise level |
≤50dB |
| Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
PWR-3 Three-Phase Servo Voltage Stabilizer

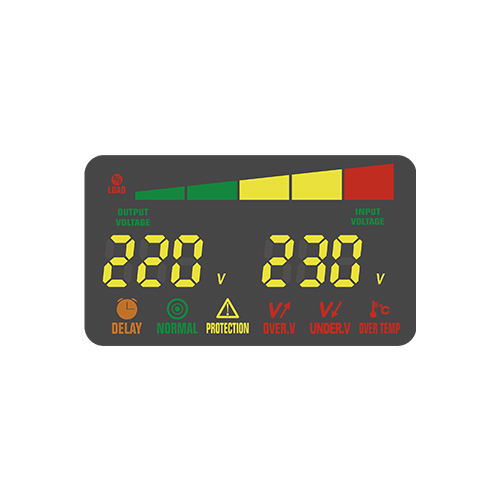

Display Options
PWR-3 Three-Phase Servo Voltage Stabilizer Applications
Why Choose YIY PWR-3 Series?
Ultra-Low Input Voltage Range
-
European Standard: 285V-475V (±25% wide range)
-
US Standard: 166V-250V (±30% wide range)
-
Adapts to extreme grid fluctuation environments
High Precision Output Control
-
≤2% output precision guarantee
-
MCU microcontroller technology
-
Multi-display system for real-time monitoring
Industrial-Grade Protection
-
≥120% overload protection capability
-
Comprehensive surge protection design
-
Multiple safety protection mechanisms
PWR-3 vs PRO-3: Capacity and Grid Tolerance
Both are three-phase servo stabilizers, but they target different ends of the industrial spectrum. The PRO-3 covers 1.5–100 KVA and optimizes for precision monitoring in moderate grid conditions. The PWR-3 starts at 45 KVA and extends to 150 KVA, engineered specifically for ultra-low input voltage tolerance (±25–30% from nominal) — the kind of grid instability found in developing industrial zones, mining regions, and rural infrastructure projects. The PWR-3 also supports dual-standard voltage output (EU 380V/400V and US 208V/220V), making it the default choice for export-oriented manufacturing equipment.
Choose PRO-3 for precision loads on stable-to-moderate grids. Choose PWR-3 when the grid regularly drops 25%+ below nominal or the installation spans international voltage standards.
Best Applications for PWR-3
The PWR-3 dominates two demanding segments: heavy industry in emerging markets (steel mills, cement plants, mining auxiliary systems) where grid voltage routinely sags 25–30% below nominal during peak demand, and large-scale infrastructure projects (airports, exhibition centers, water treatment plants) where 45–150 KVA three-phase capacity with 100% unbalanced load support is a non-negotiable requirement. Its 98% efficiency rating also makes it the most cost-effective choice for 24/7 continuous-duty installations where energy losses compound over the stabilizer’s 10–15 year service life.
Compare PWR-3 with related three-phase options
Use this review path to compare three-phase servo options, confirm factory support, and download the right technical package before planning a 45-150KVA installation.
Selection Notes: Why Buyers Choose PWR-3
PWR-3 should not be positioned as a generic three-phase cabinet. Its real differentiator is the ultra-low input operating range and the way that helps factories stay online on weak grids, long feeder runs, and remote industrial sites where a normal 380V three-phase servo unit starts to lose regulation headroom.
- Best fit: rural factories, telecom infrastructure rooms, remote workshops, and industrial feeders where undervoltage is frequent rather than occasional.
- Choose PWR-3 over PRO-3: when grid weakness and low input voltage tolerance matter more than broad standard-capacity coverage.
- Choose SBW or SBW-F instead: when the project moves beyond the 150KVA class or the installation needs oil-cooled heavy-duty architecture for central feeder duty.
- Choose AVC instead: when the deciding factor is sub-cycle response and +/-0.5% precision for electronics-heavy or mission-critical loads.
Use the telecom power solution page for weak-grid infrastructure scenarios, and the 200-500 KVA industrial guide when the project is approaching central-feeder scale.
