SBW-F IP54 Three Phase Servo Voltage Stabilizer

Professional three phase servo motor automatic voltage stabilizer delivering ±3% precision power protection for large-scale industrial applications. Designed with advanced European technology and independent phase control for optimal performance in complex power grid environments. IP54 protection rating ensures reliable operation in demanding conditions.
  • ±3% High Precision – Advanced servo motor controlled voltage regulation
  • Independent Phase Control – Best for unbalanced loads with individual phase regulation
  • IP54 Protection – Dust and water splash resistant for harsh environments
  • Wide Input Range – ±20%/±25%/±30% input voltage accommodation
  • MCU Protection – Comprehensive microcontroller-based safety systems
  • 150KVA-3000KVA – Large capacity range for heavy-duty industrial applications

SBW-F IP54 Three Phase Servo Stabilizer Complete Specifications

Specification 150KVA 200KVA 250KVA 300KVA 400KVA 500KVA
Input Phase 3-phase 4-wire
Voltage AC 304V-456V(±20%) / 285V-475V(±25%) / 266V-494V(±30%)
Frequency 50Hz/60Hz
Output Voltage AC 380V±3% / 400V±3%
Capacity 120KW 160KW 200KW 240KW 320KW 400KW
Frequency 50Hz/60Hz
Bypass Current 400A 400A 630A 630A 800A 1000A
Protection Low Voltage 318±7V / 335±7V
Over Voltage 425V±7V / 442V±7V
Time Delay 10 seconds
Overload MCU (cutting off output for 60 seconds when exceeding rated power by 120%)
Short Circuit Circuit Breaker
Other Surge, phase-sequence, phase loss
Specification 600KVA 1000KVA 1500KVA 2000KVA 3000KVA
Input Phase 3-phase 4-wire
Voltage AC 304V-456V(±20%) / 285V-475V(±25%) / 266V-494V(±30%)
Frequency 50Hz/60Hz
Output Voltage AC 380V±3% / 400V±3%
Capacity 480KW 800KW 1200KW 1600KW 2400KW
Frequency 50Hz/60Hz
Bypass Current 1250A 2250A 3200A 4000A 6300A
Protection Low Voltage 318±7V / 335±7V
Over Voltage 425V±7V / 442V±7V
Time Delay 10 seconds
Overload MCU (cutting off output for 60 seconds when exceeding rated power by 120%)
Short Circuit Circuit Breaker
Other Surge, phase-sequence, phase loss

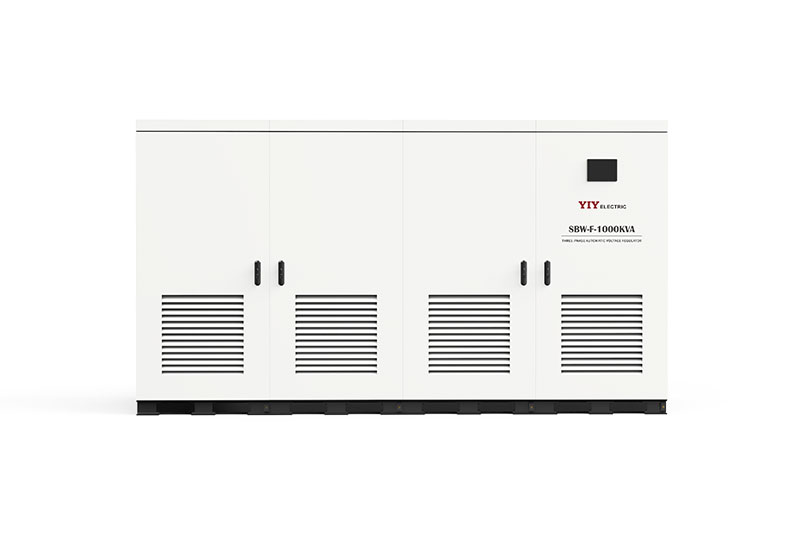

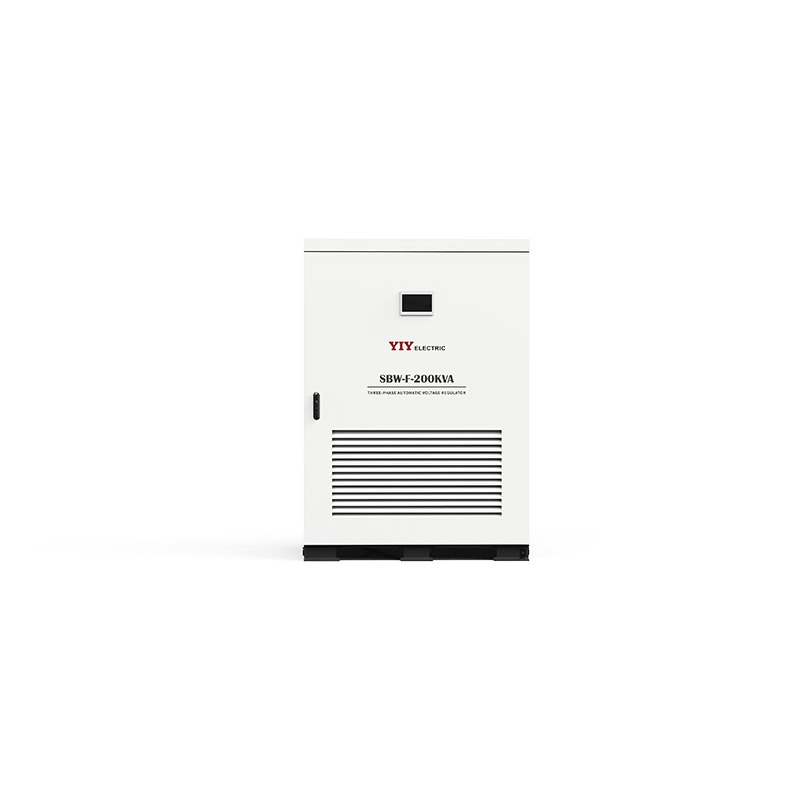

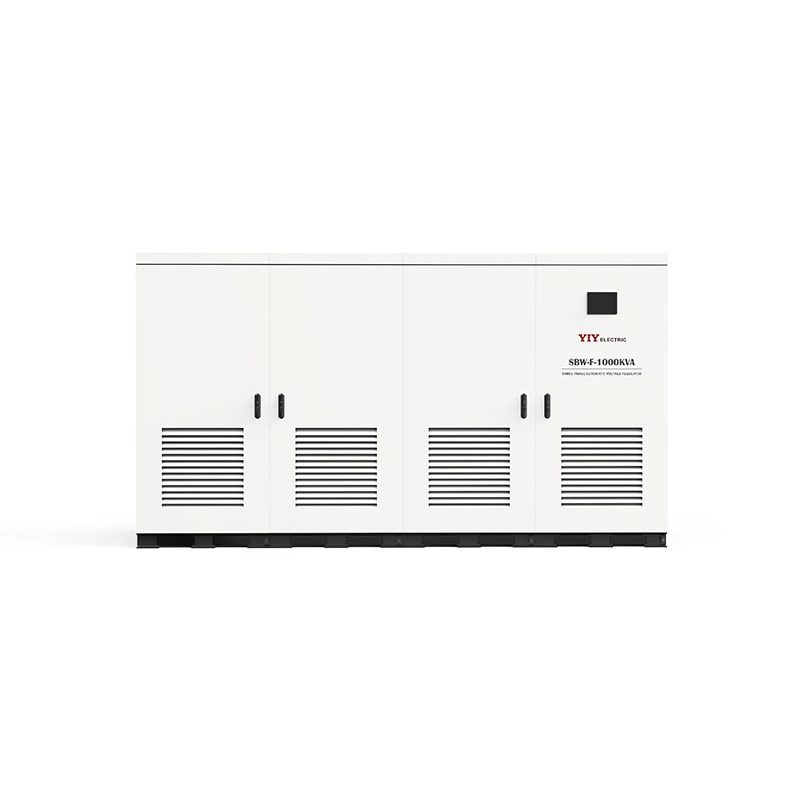

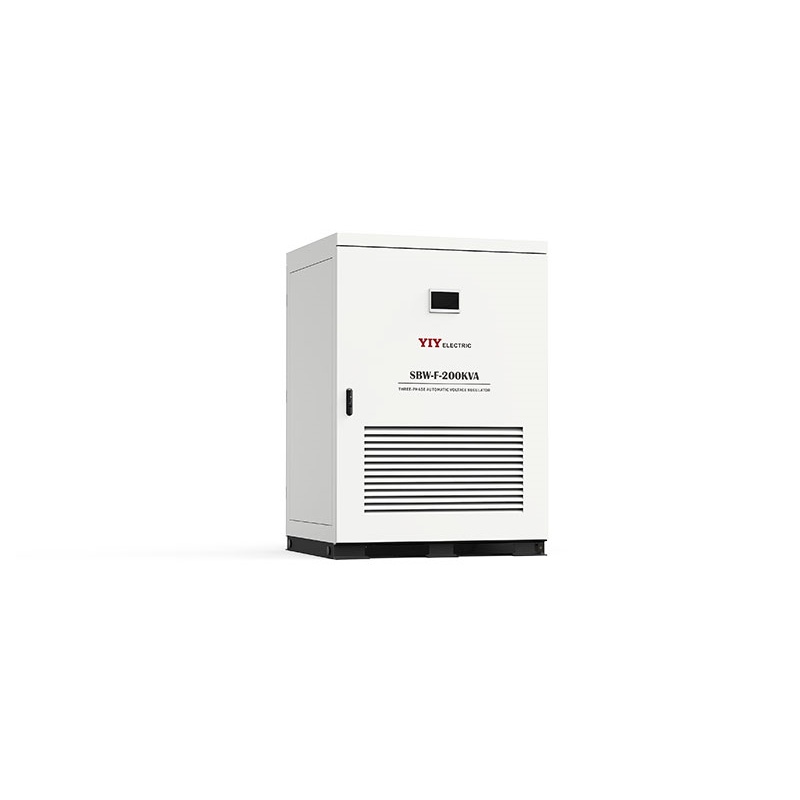

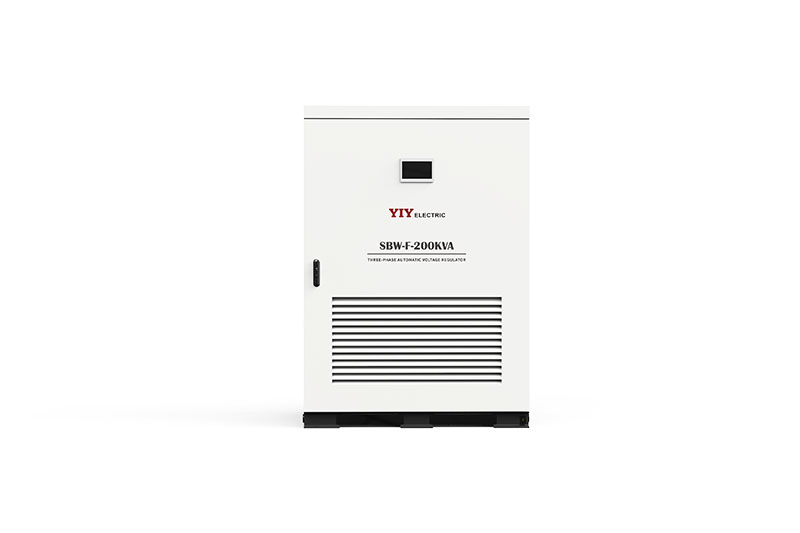

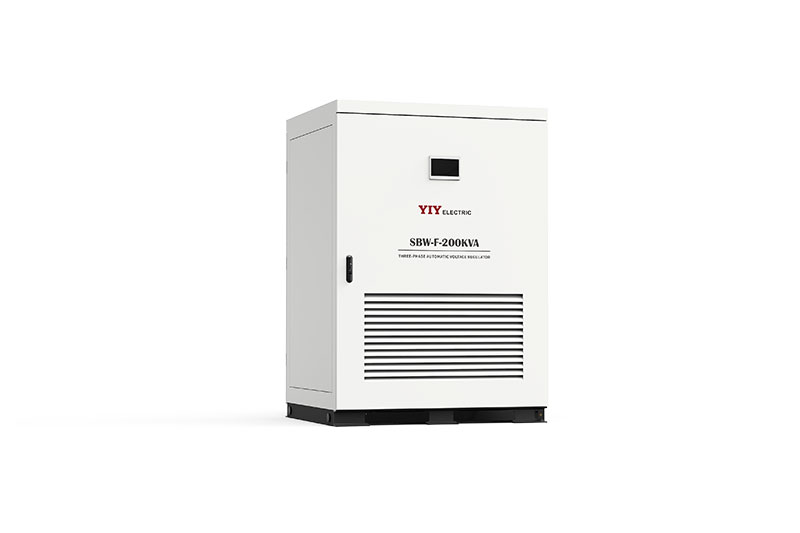

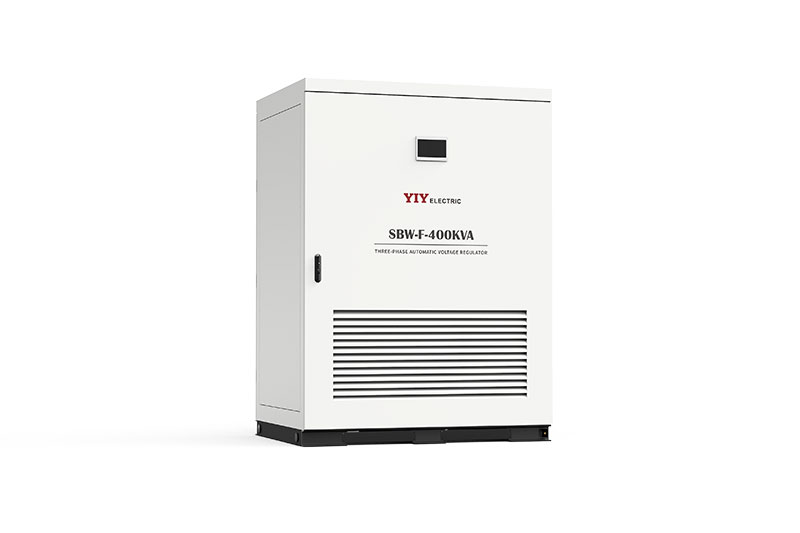

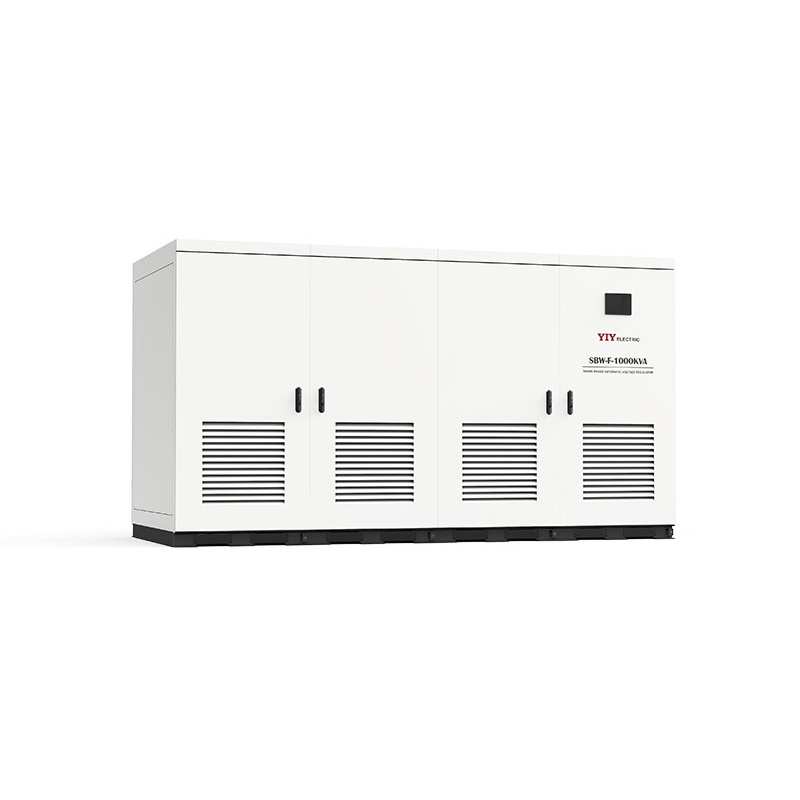

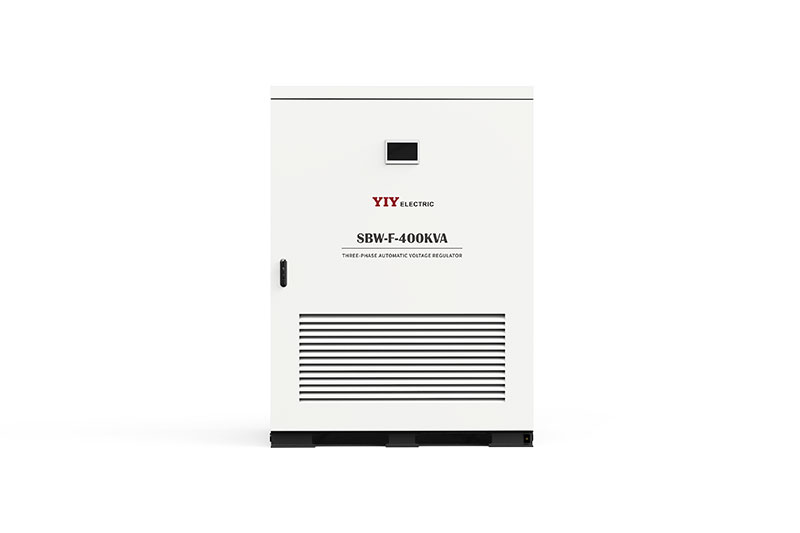

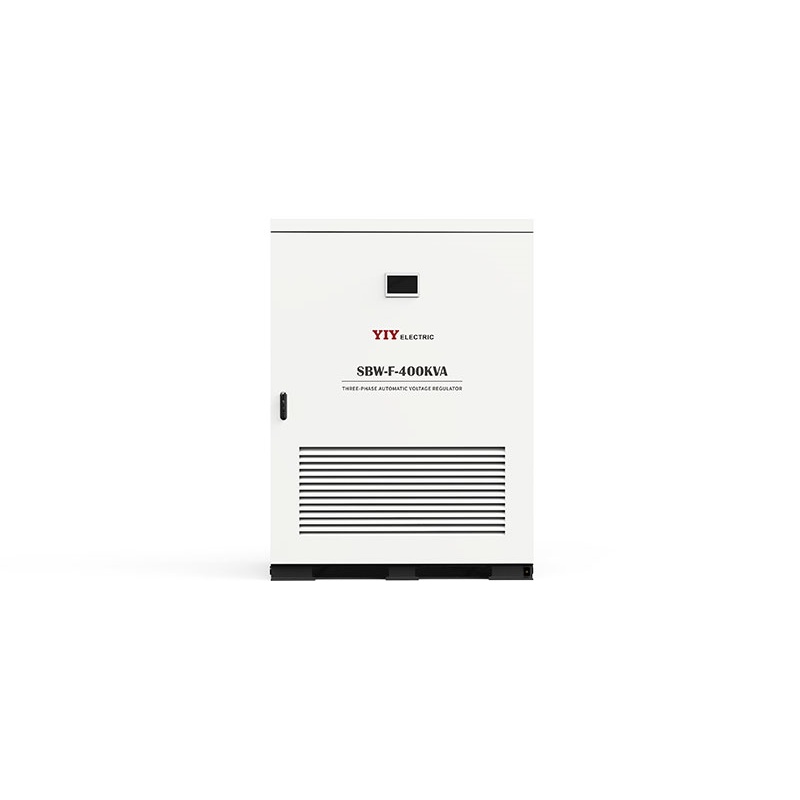

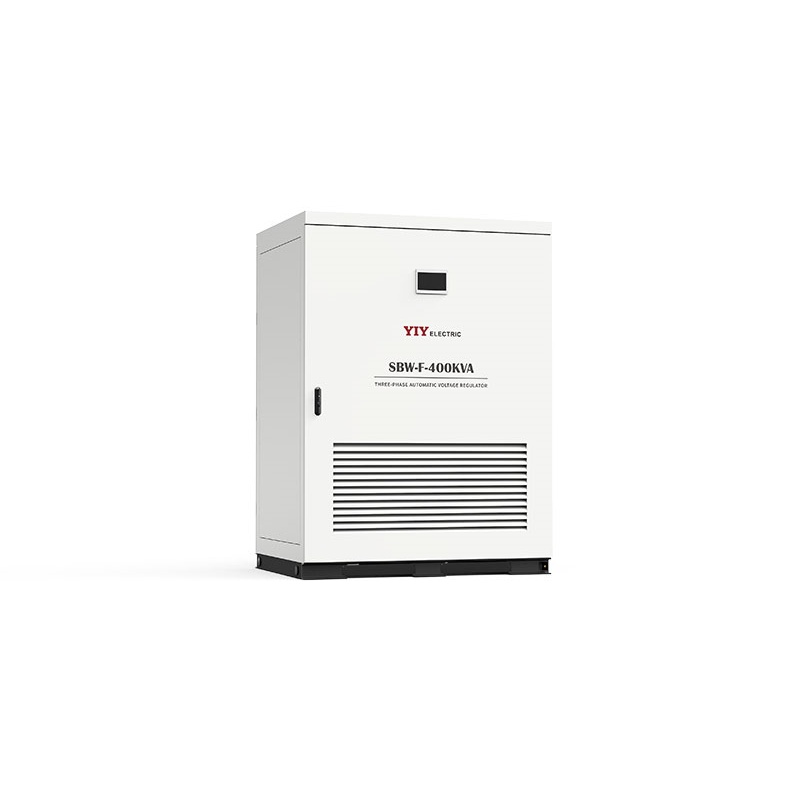

SBW-F IP54 Three Phase Servo Stabilizer

SBW-F IP54 Three Phase Servo Stabilizer Applications

industrial-manufacturing - YIY voltage stabilizer guide illustration

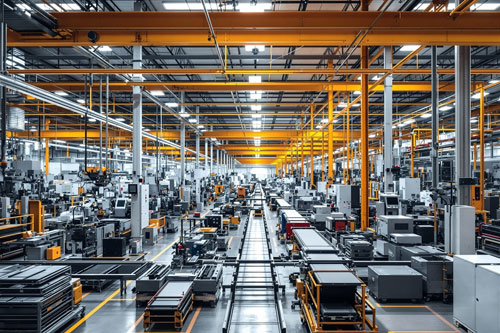

Industrial Manufacturing

Heavy-duty voltage regulation for large-scale manufacturing operations requiring stable three-phase power.
  • Applications: Production Lines, Heavy Machinery, Industrial Processing, Manufacturing Equipment
  • Recommended Models: 500KVA – 3000KVA
  • Core Value: Maximize production efficiency with independent phase control for unbalanced loads
YIY voltage stabilizer for agriculture and processing

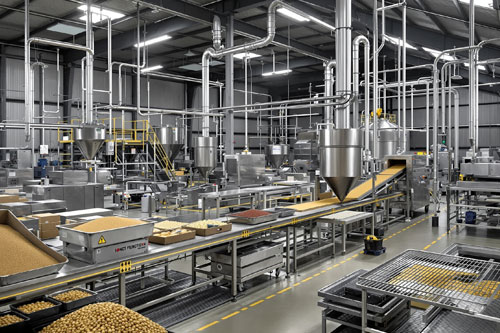

Agriculture & Processing

Reliable power protection for agricultural facilities and food processing operations.
  • Applications: Irrigation Systems, Grain Processing, Cold Storage, Agricultural Automation
  • Recommended Models: 150KVA – 600KVA
  • Core Value: Ensure continuous operation in rural areas with challenging power conditions
YIY voltage stabilizer industry application

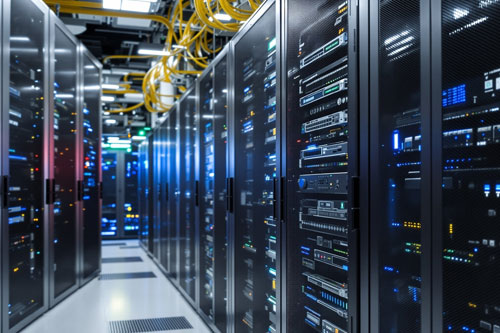

Transportation & Telecommunications

Critical infrastructure power stability for transportation hubs and telecom facilities.
  • Applications: Railway Systems, Airport Equipment, Data Centers, Telecom Stations
  • Recommended Models: 400KVA – 2000KVA
  • Core Value: Maintain service reliability with IP54 protection in demanding environments

Why Choose YIY SBW-F IP54 Servo Stabilizers?

YIY independent phase control voltage stabilizer

Independent Phase Control

  • Individual Phase Regulation
  • Optimal for Unbalanced Loads
  • Precise Voltage Stability
  • Advanced European Technology
YIY robust protection voltage stabilizer

Robust Protection

  • IP54 Dust & Water Resistance
  • MCU Overload Protection
  • Phase-Sequence & Phase Loss Detection
  • Surge Protection
YIY wide capacity range voltage stabilizer

Wide Capacity Range

  • 150KVA to 3000KVA
  • ±20%/±25%/±30% Input Range
  • 380V/400V Output Options
  • 50Hz/60Hz Compatible

Contact Us

Don’t hesitate to reach out for any questions, quotes, or specialized advice. Our industry veterans are available to guide you through your specific needs.

    Get In Touch

    Zhejiang Yiyen Holding Group Co.,Ltd

    Address:

    No.77, Xiang Long Road, Lian Du Zone, Lishui City, Zhejiang Province, China

    E-Mail:

    yiyen at yiyen.com

    Phone/WhatsApp:

    Follow Our Social Media

    WhatsApp
    LinkedIn

    SBW-F vs SBW: When IP54 and Independent Phase Control Matter

    The SBW-F exists because real industrial environments are not clean electrical rooms. Its IP54 enclosure protects against dust ingress and water splash — non-negotiable for outdoor substations, mining sites, agricultural processing, and coastal industrial zones. Its independent phase control regulates each of the three phases separately, which the standard SBW cannot do. In facilities where one phase carries 70% of the load while the others carry 15% each, the SBW-F corrects each phase independently. The SBW would either over-correct the light phases or under-correct the heavy one.

    Best Applications for SBW-F

    The SBW-F dominates in outdoor and semi-outdoor industrial installations: mining pit-side power distribution, port crane power feeds, and agricultural cold storage where the stabilizer sits adjacent to the equipment in an unsheltered environment. It is also the default specification for foundries, cement plants, and chemical facilities where airborne particulate, vibration, and humidity would degrade a standard-enclosure unit within 2–3 years.

    Selection Notes: When IP54 Changes the Buying Decision

    SBW-F is not simply “SBW with a different enclosure”. The IP54 version exists for sites where dust, humidity, splash risk, and outdoor-adjacent installation conditions are part of the electrical specification from day one. That makes it a harsher-environment product first, and a high-capacity servo stabilizer second.

    • Best fit: mining, cement, coastal factories, agricultural processing, utility yards, and telecom or generator installations with dust or moisture exposure.
    • Choose SBW-F over SBW: when enclosure protection, ingress resistance, and outdoor-adjacent survivability are written into the project spec.
    • Choose indoor SBW instead: when the stabilizer will sit in a protected electrical room and the buyer does not need to pay for the harsher enclosure package.
    • Commercial checkpoint: include cable glands, ventilation path, and service clearance in the quote. On IP54 projects, enclosure details often influence the buying decision as much as the KVA rating.

    For harsh-site examples, compare with the telecom solution page and the generator protection page. For capacity planning at plant scale, use the 200-500 KVA industrial guide.
