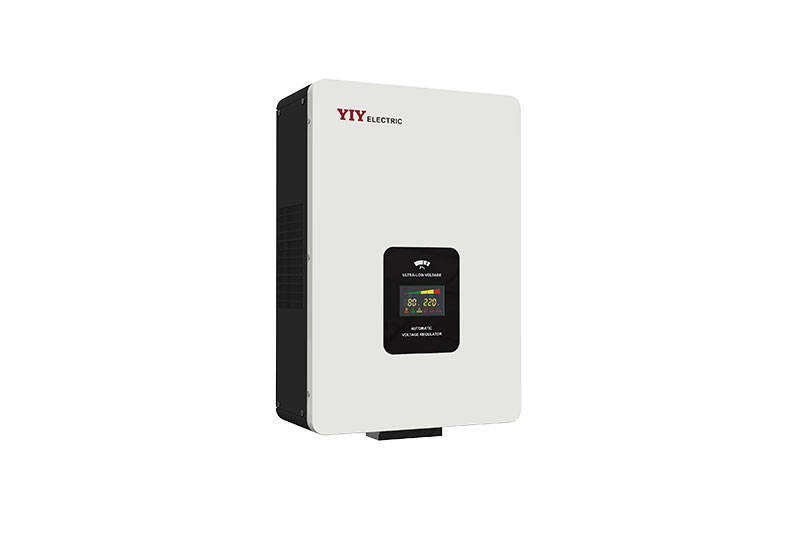

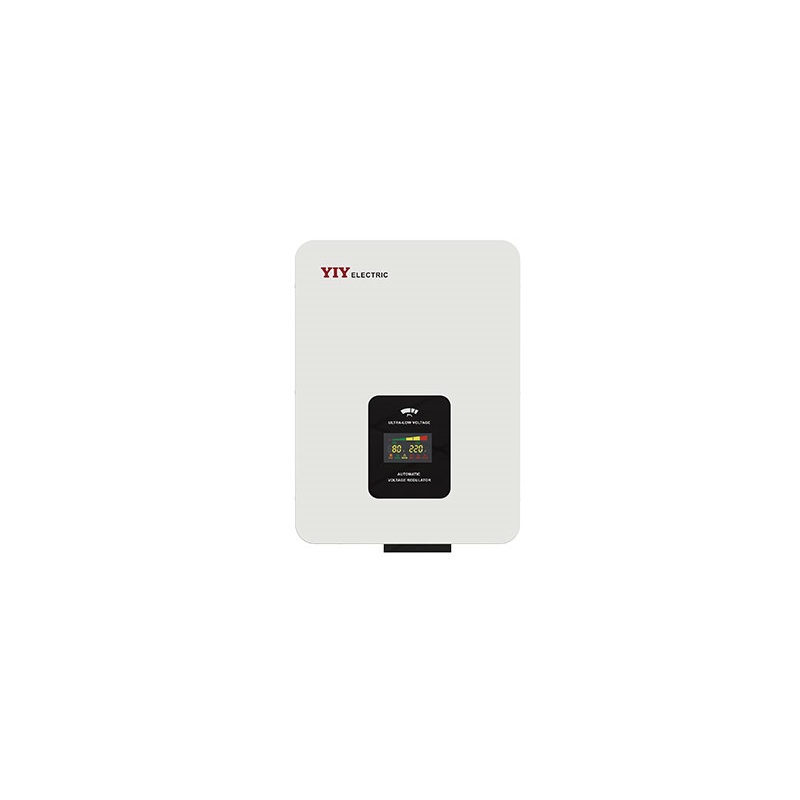

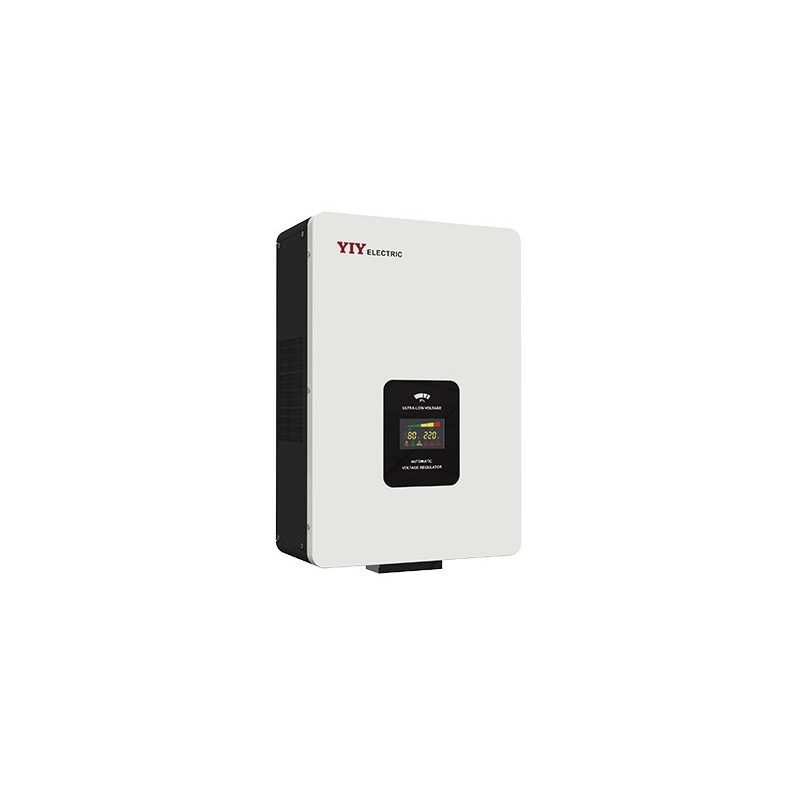

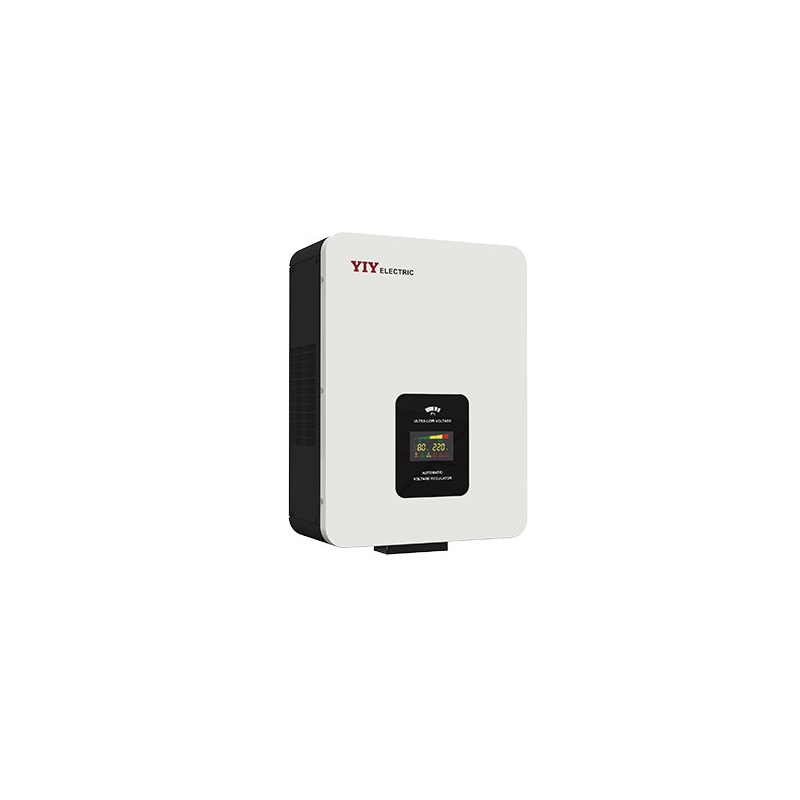

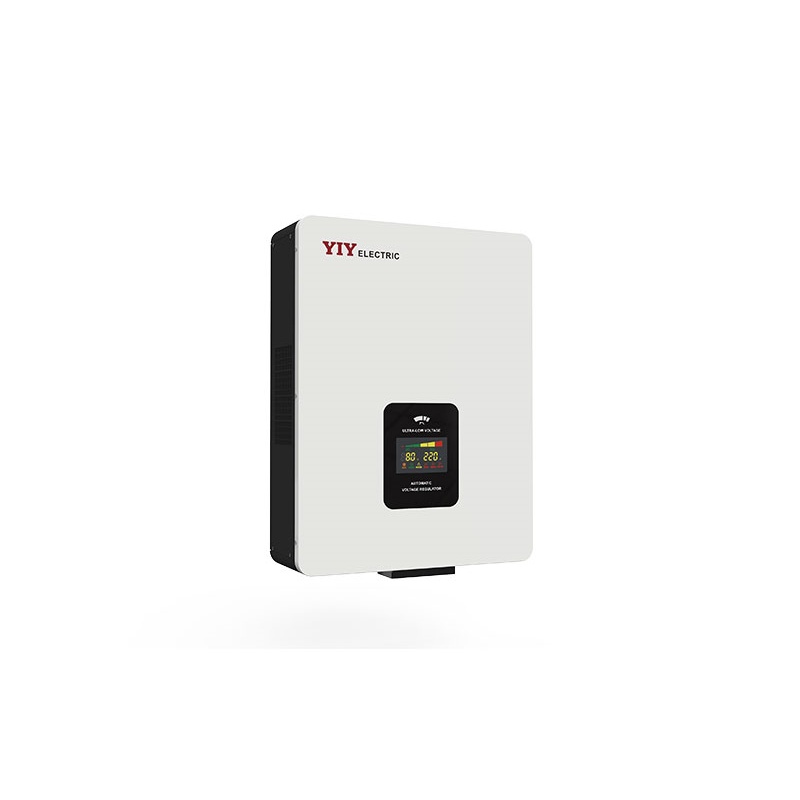

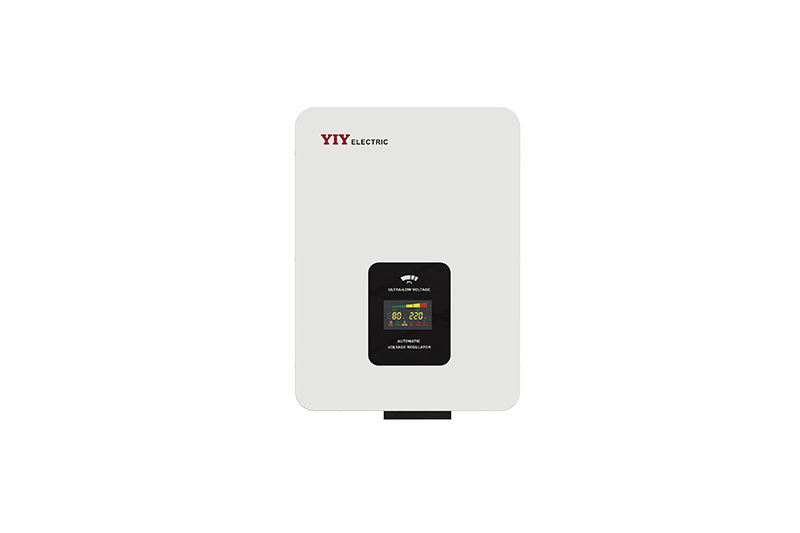

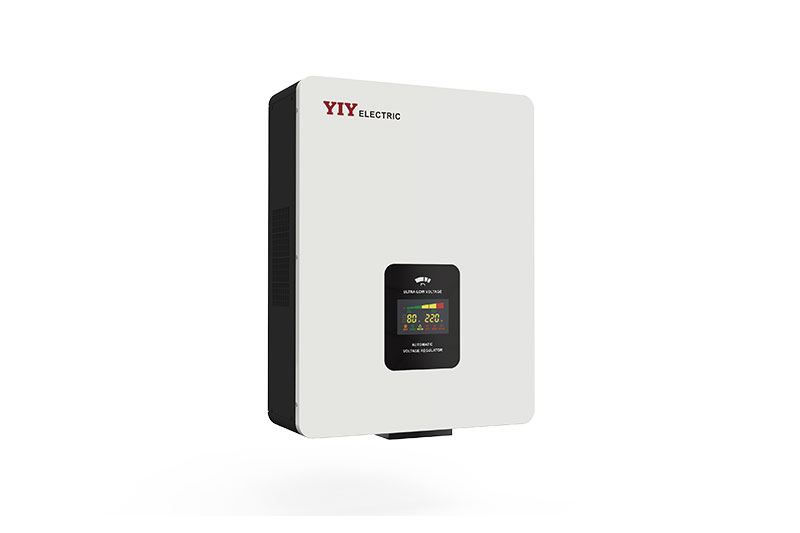

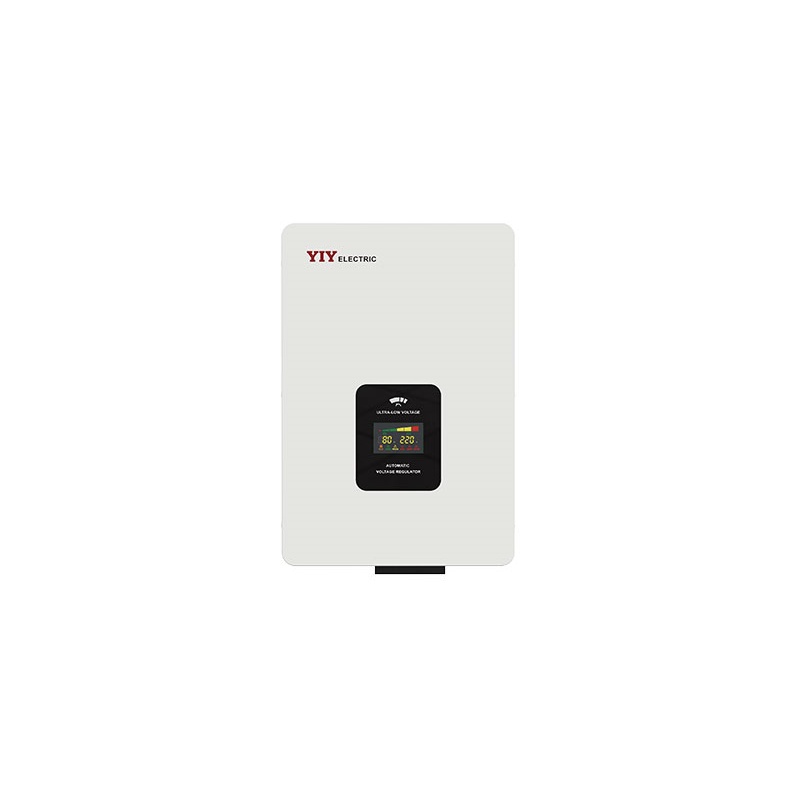

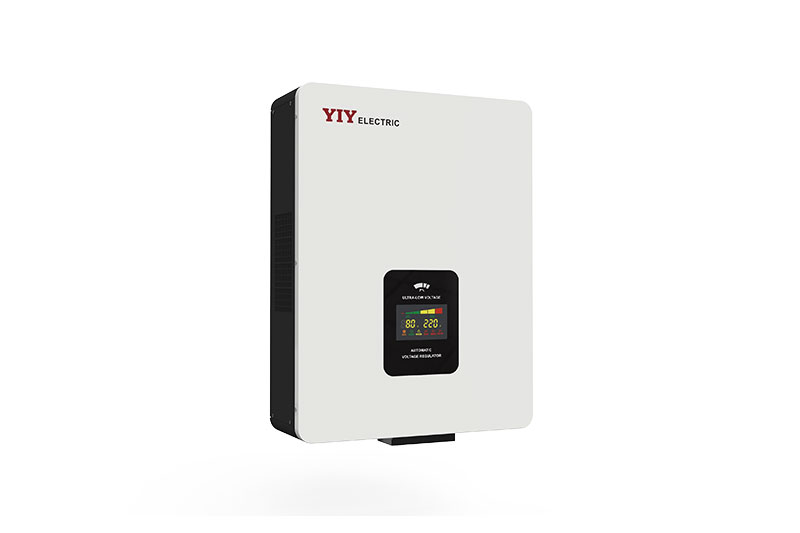

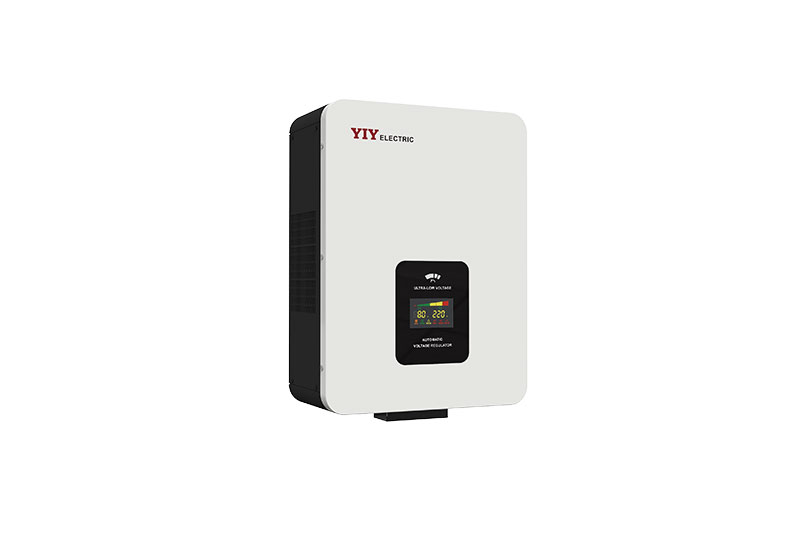

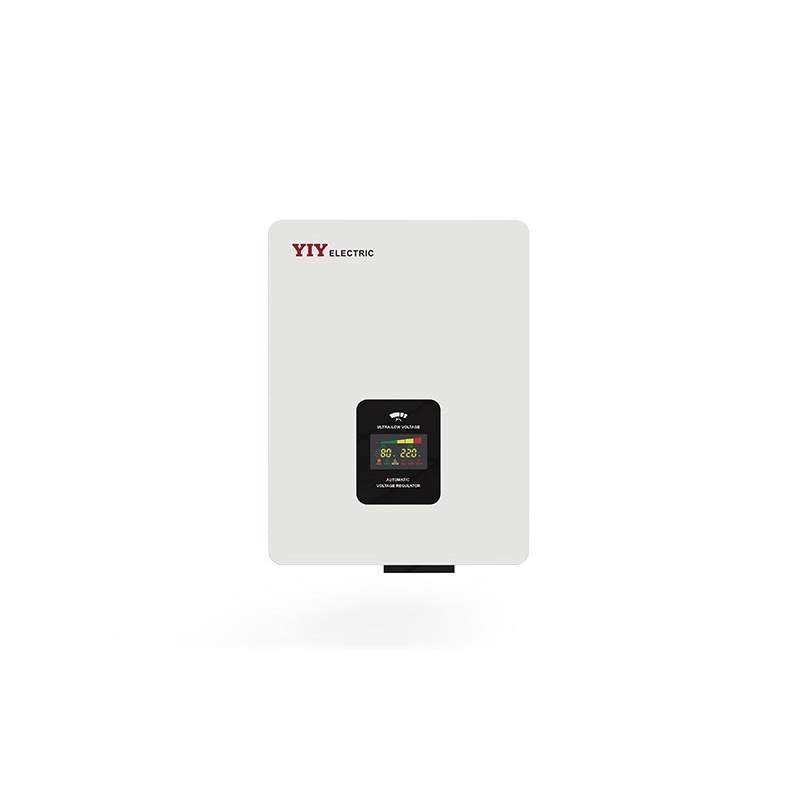

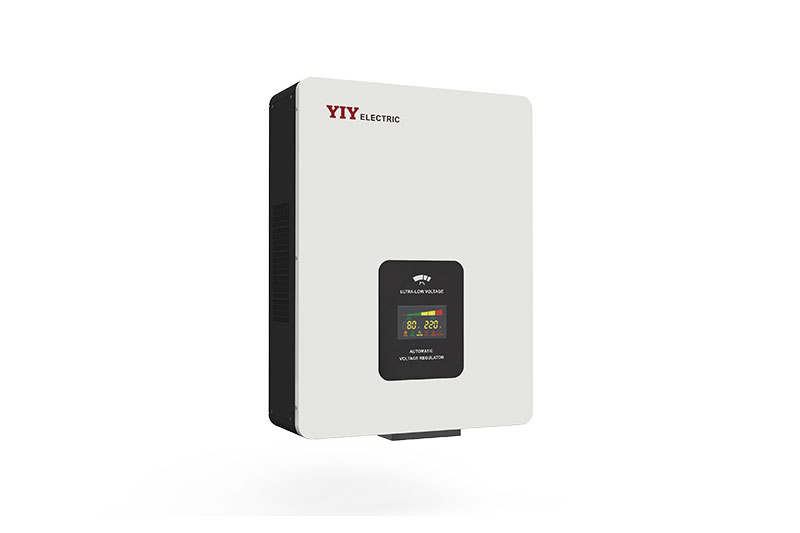

TWS Wall-Mounted Single Phase Servo Voltage Stabilizer
Professional wall-mounted single phase servo motor voltage stabilizer delivering ±3% precision power protection for residential, commercial, and light industrial applications. Ultra-low input voltage capability (80V-260V) with fast ≤2s reaction time ensures optimal equipment protection in areas with severe voltage fluctuations.
-
±3% High Precision – Accurate 220V/230V ±3% voltage regulation
-
Ultra-Low Input – 80V-260V ultra-wide input voltage range
-
Fast Response – Voltage stabilization time ≤2s
-
Wall-Mounted Design – Space-saving installation for various applications
-
MCU Protection – Comprehensive microcontroller-based safety systems
-
Flexible Delay – Short (5s) and long (255s) delay options
TWS Wall-Mounted Servo Stabilizer Complete Specifications
| Specification |
3000VA |
5000VA |
10KVA |
15KVA |
20KVA |
30KVA |
| Input |
Phase |
Single Phase |
| Voltage |
AC 80V-260V |
|
Frequency |
50Hz/60Hz |
| Output |
Voltage |
AC 220V±3% / 230V±3% |
| Capacity |
2400W |
4000W |
8KW |
12KW |
16KW |
24KW |
| Frequency |
50Hz/60Hz |
| Protection |
Low Voltage |
184±4V / 194±4V |
| Over Voltage |
246V±4V / 256V±4V |
| Time Delay |
5s (255s optional) |
|
Overload |
MCU (cutting off output for 3 seconds when exceeding rated power by 120%) |
|
Short Circuit |
Circuit Breaker |
|
Other |
Over temperature protection, Surge protection (optional) |
| Product |
Dimension (mm) |
— |
340×460×160 |
340×510×160 |
540×725×240 |
540×725×240 |
540×725×240 |
| Efficiency |
AC-AC |
98% |
| Acoustic |
Noise Level |
≤50dB |
| Environment |
Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
PWR-3 Three-Phase Servo Voltage Stabilizer
Display Options
TSS A.jpg
TSS Wall-Mounted Servo Voltage Stabilizer #5
TSS B.jpg
TSS Wall-Mounted Servo Voltage Stabilizer #4
TSS C.jpg
TSS Wall-Mounted Servo Voltage Stabilizer #3
TSS D.jpg
TSS Wall-Mounted Servo Voltage Stabilizer #2

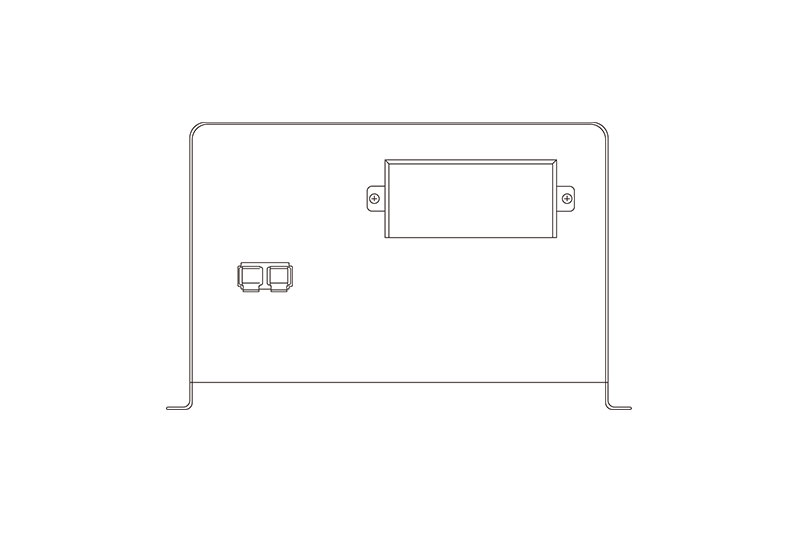

Bottom Panel

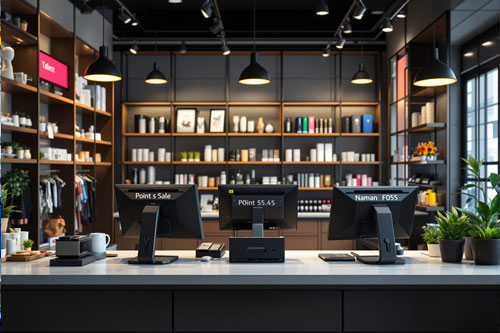

TWS Wall-Mounted Servo Stabilizer Applications
Why Choose YIY TWS Servo Stabilizers?
-
Over/Under Voltage Protection
-
Over Temperature Protection
-
MCU Overload Control
-
Optional Surge Protection
