Series: SWR Services

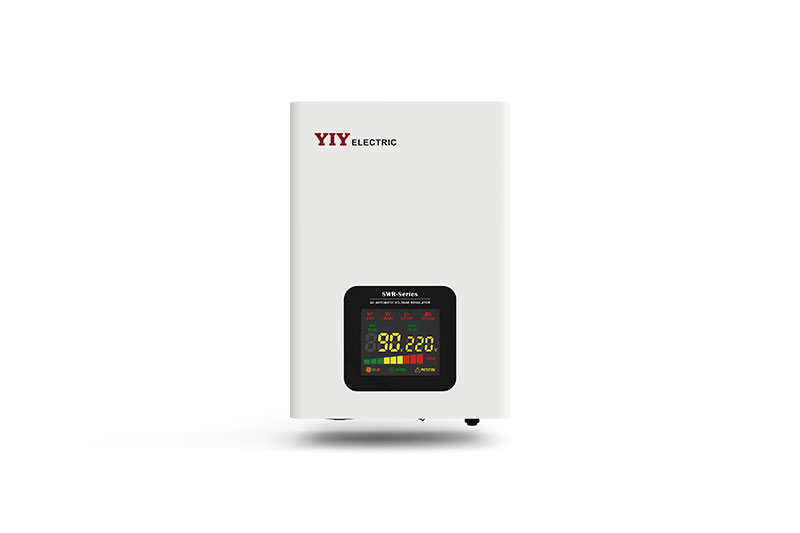

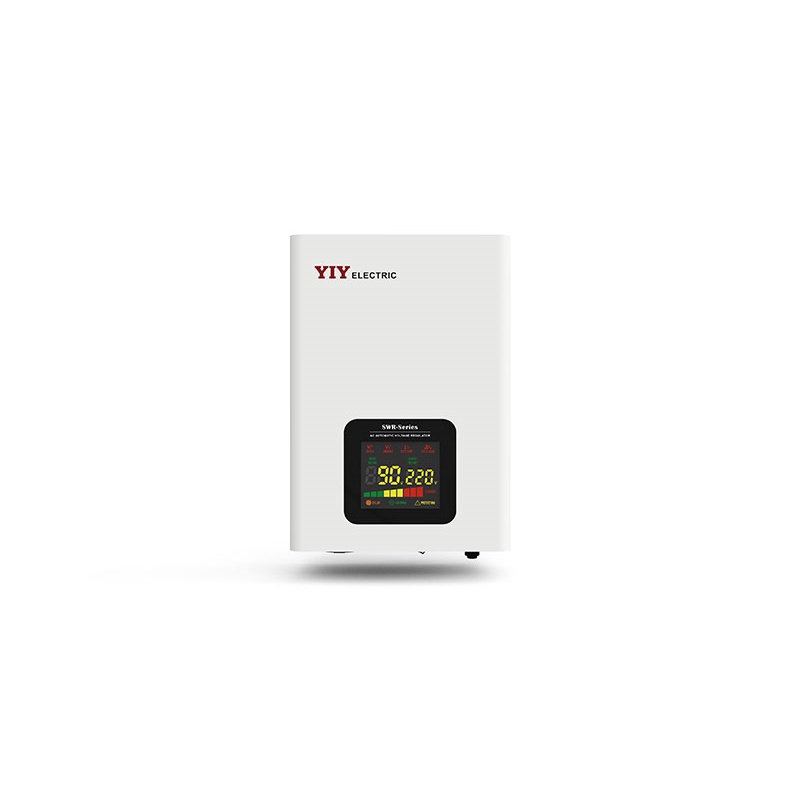

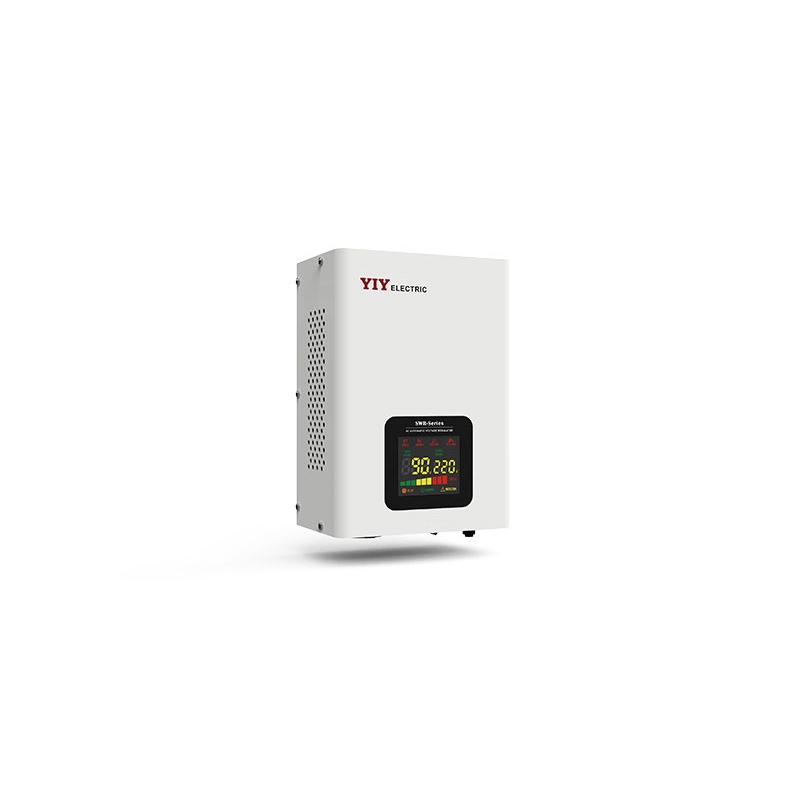

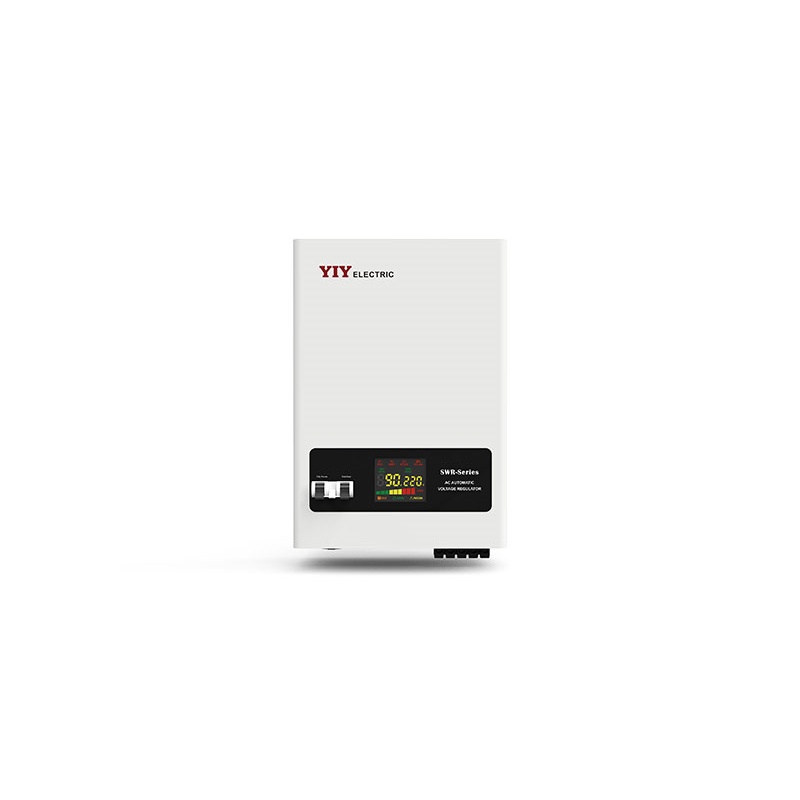

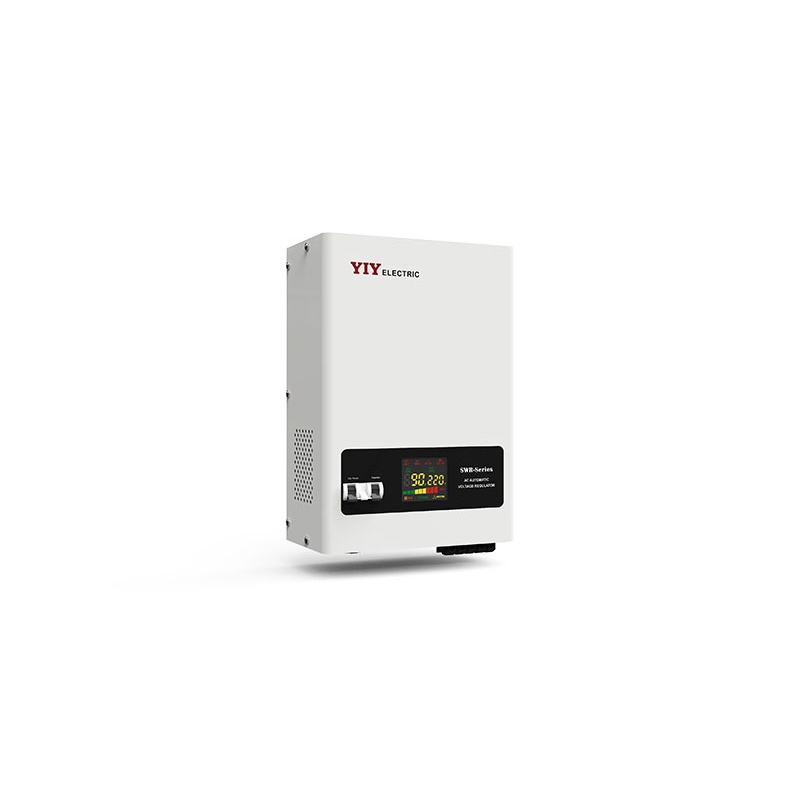

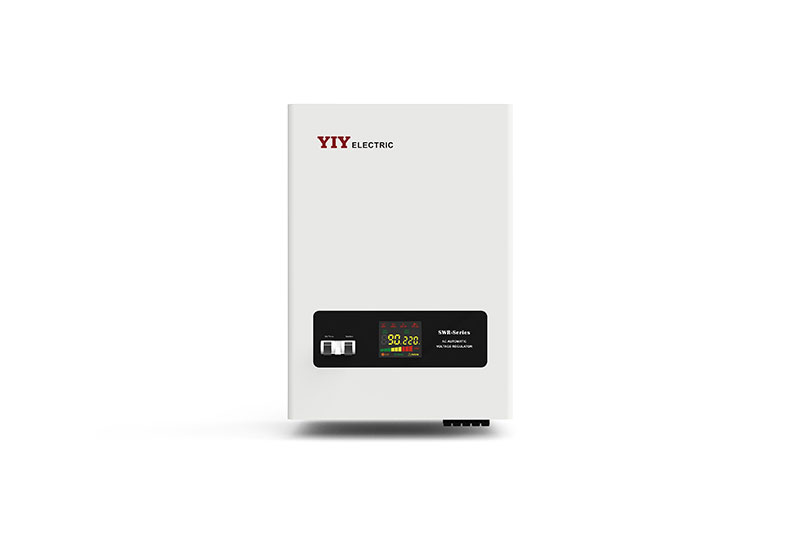

SWR Wall-Mounted Single Phase Relay Voltage Stabilizer

Professional wall-mounted single-phase relay voltage stabilizer delivering ±10% output regulation for residential, commercial and light-industrial applications. Capacity-specific input windows are available for 220/230V systems, with ≤60ms reaction time and standard protection functions. Confirm the required input range and model capacity in the datasheet before quotation.
  • ±10% Output Range – Cost-effective 220V/230V ±10% voltage regulation
  • Ultra-Low Input –90V-275V for 0.5-3KVA models; 45V-275V or 90V-275V for 5-20KVA models
  • Super Fast Response – ≤60ms response time with zero cross technology
  • Relay Technology – High efficiency toroidal transformer with relay switching
  • MCU Control – Precision output control with relay failure detection
  • Wide Capacity Range – 0.5KVA to 20KVA for various applications

SWR Wall-Mounted Relay Stabilizer Complete Specifications

Specification 0.5KVA 1KVA 1.5KVA 2KVA 3KVA
Input Phase Single Phase
Voltage
AC 90V-275V



Frequency 50Hz/60Hz
Output Voltage AC 220V±10% / 230V±10%
Capacity 400W 800W 1200W 1600W 2400W
Frequency 50Hz/60Hz
Protection Low Voltage 184±4V / 194±4V
Over Voltage 246V±4V / 256V±4V
Time Delay 5s (255s optional)
Overload MCU (cutting off output for 3 seconds when exceeding rated power by 120%)
Short Circuit Circuit Breaker
Other Surge protection (optional)
Efficiency AC-AC 98%
Acoustic Noise Level ≤50dB
Environment Temperature -5℃ to 40℃
Humidity 20% to 90%
Specification 5KVA 8KVA 10KVA 12KVA 15KVA 20KVA
Input Phase Single Phase
Voltage
AC 45V-275V / 90V-275V



Frequency 50Hz/60Hz
Output Voltage AC 220V±10% / 230V±10%
Capacity 4000W 6400W 8KW 9.6KW 12KW 16KW
Frequency 50Hz/60Hz
Protection Low Voltage 184±4V / 194±4V
Over Voltage 246V±4V / 256V±4V
Time Delay 5s (255s optional)
Overload MCU (cutting off output for 3 seconds when exceeding rated power by 120%)
Short Circuit Circuit Breaker
Other Surge protection (optional)
Efficiency AC-AC 98%
Acoustic Noise Level ≤50dB
Environment Temperature -5℃ to 40℃
Humidity 20% to 90%

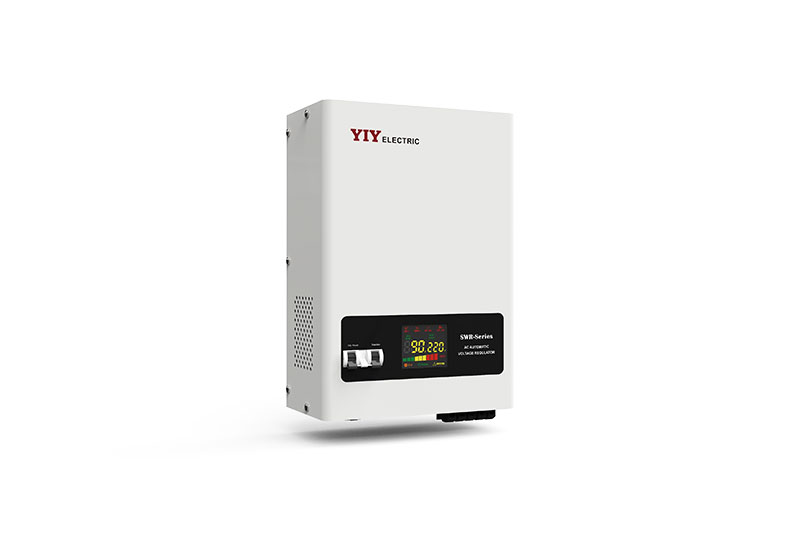

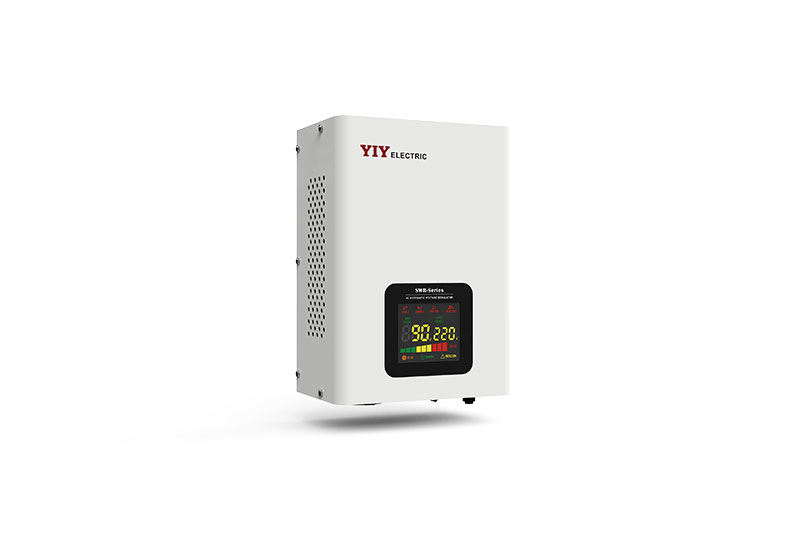

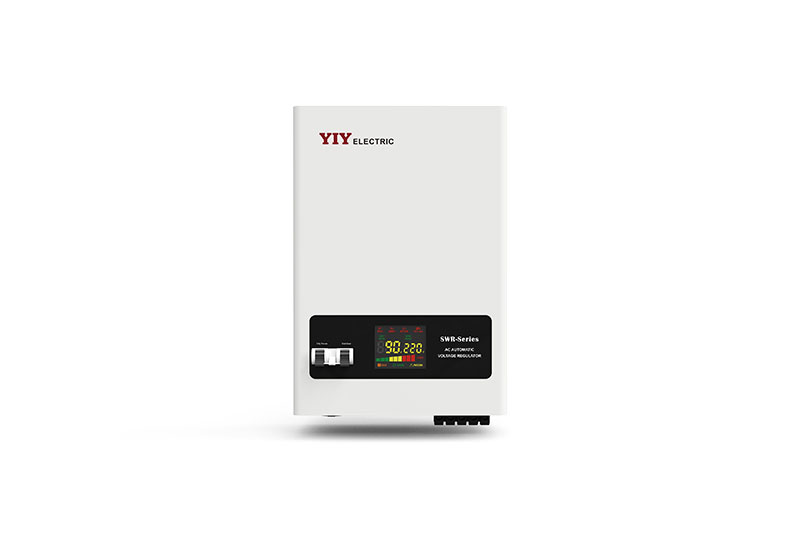

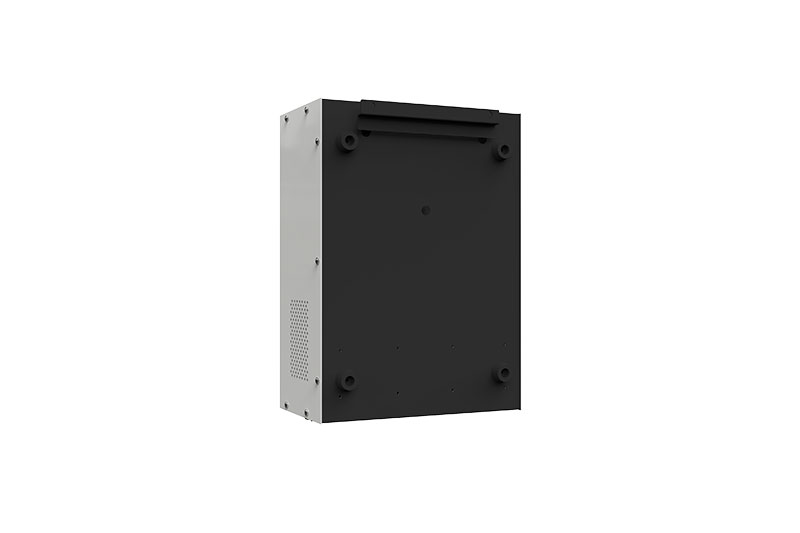

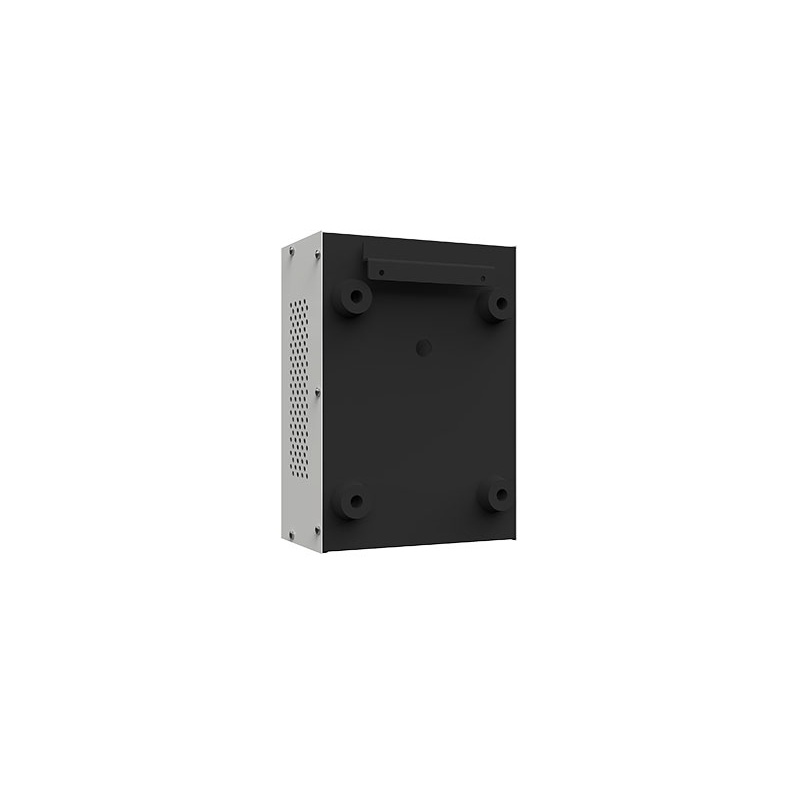

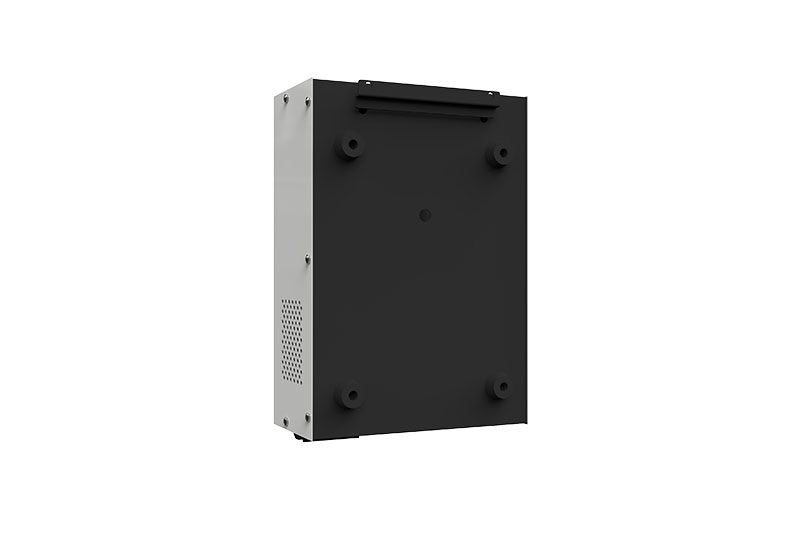

SWR Wall-Mounted Relay Stabilizer

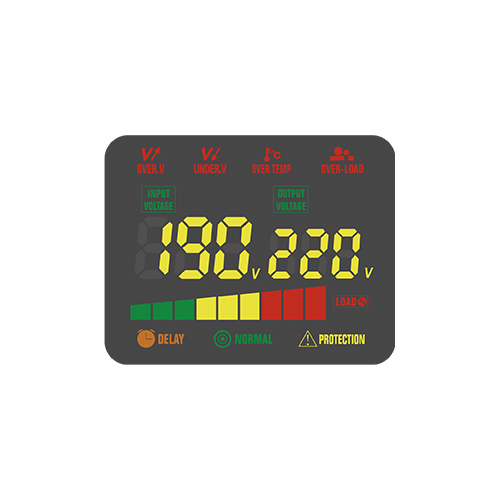

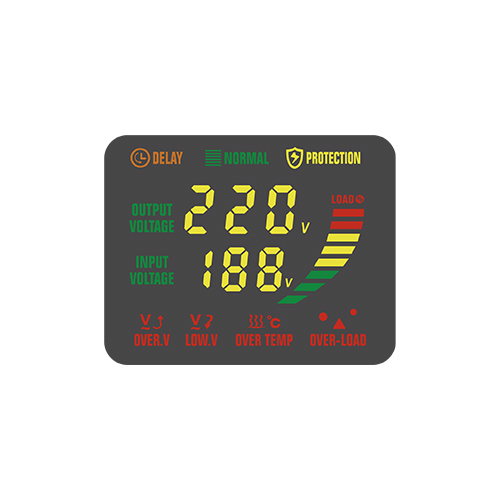

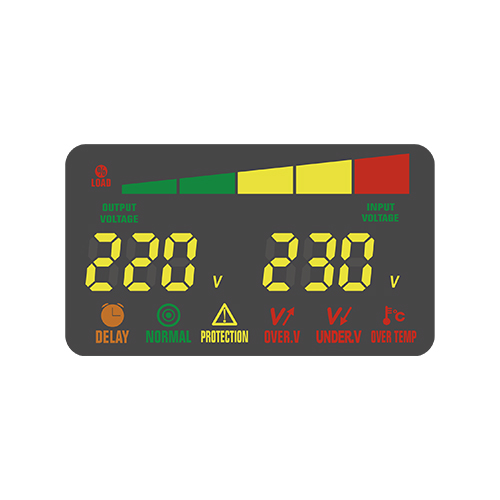

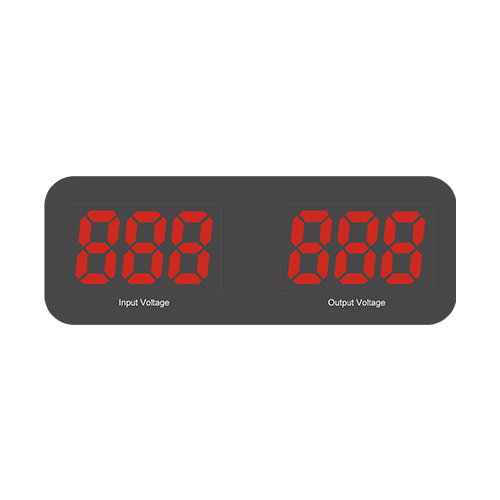

Display Options

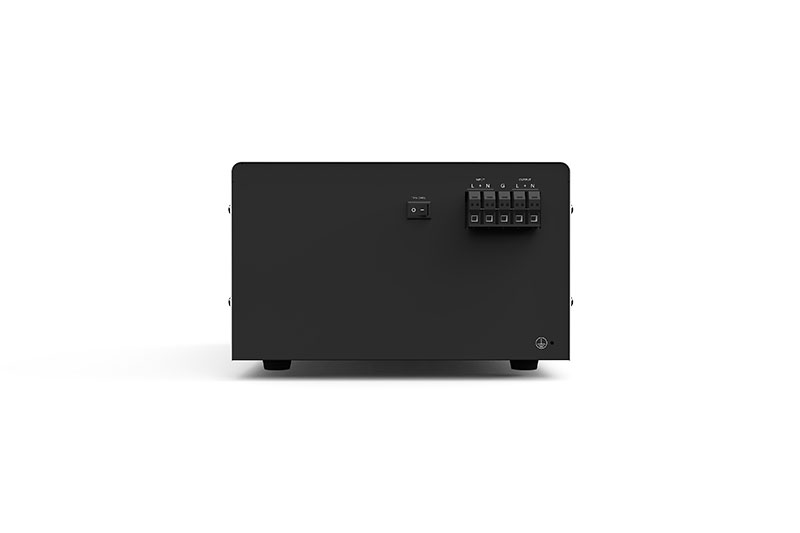

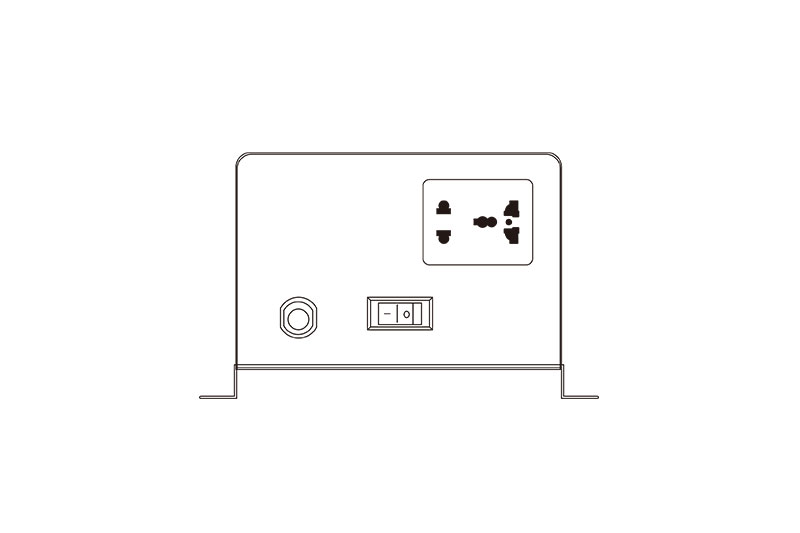

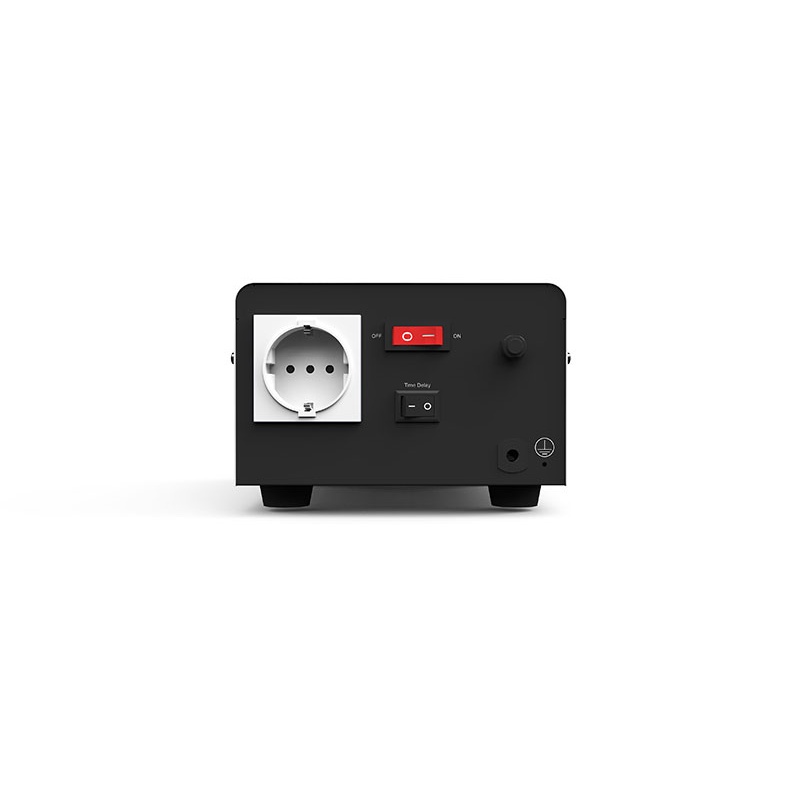

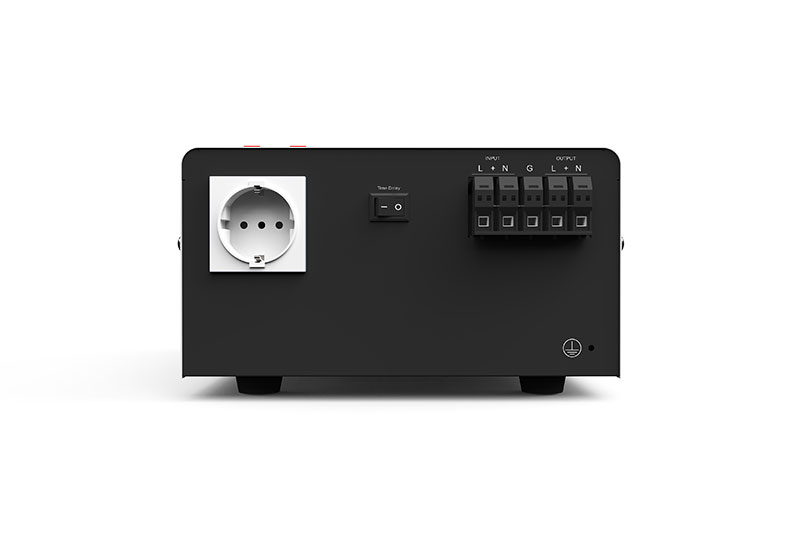

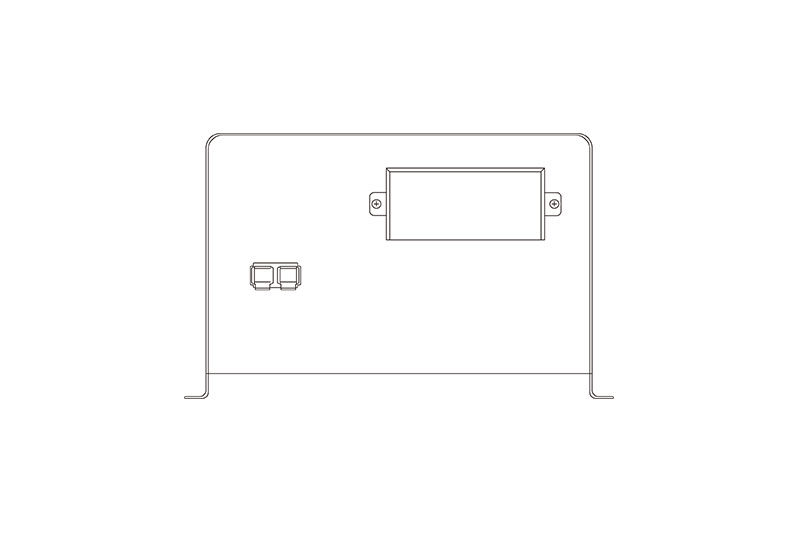

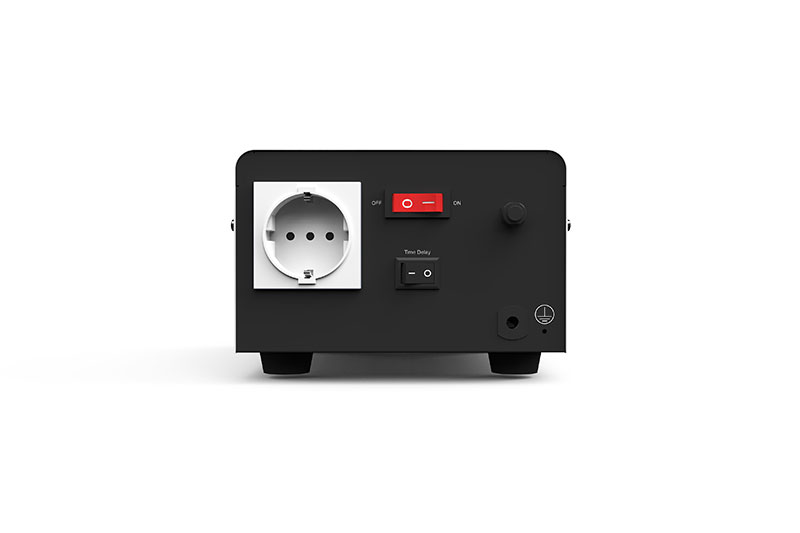

Bottom Panel

SWR Wall-Mounted Relay Stabilizer Applications

YIY voltage stabilizer residential application

Residential Homes

Cost-effective voltage protection for home appliances with ±10% output range suitable for most household equipment.
  • Applications: Home Appliances, Air Conditioning, Refrigerators, Television, Lighting Systems
  • Recommended Models: 0.5KVA – 3KVA
  • Core Value: Affordable power protection with fast 60ms response time for home electronics
YIY voltage stabilizer commercial application

Small Commercial & Retail

Reliable voltage regulation for small businesses with relay technology offering excellent value.
  • Applications: Retail Shops, Small Offices, Cash Registers, Computers, Office Equipment
  • Recommended Models: 3KVA – 10KVA
  • Core Value: Cost-effective business power protection with MCU-controlled precision
light-industrial-&-workshops - YIY voltage stabilizer guide illustration

Light Industrial & Workshops

Economical power stability for workshops and light manufacturing with ultra-low input capability.
  • Applications: Workshops, Small Manufacturing, Hand Tools, Light Equipment, Testing Devices
  • Recommended Models: 10KVA – 20KVA
  • Core Value: Budget-friendly industrial voltage regulation with 45V ultra-low input tolerance

Why Choose YIY SWR Relay Stabilizers?

YIY cost benefits infographic

Cost-Effective Solution

  • ±10% Output Range
  • 98% Energy Efficiency
  • Capacity-Specific Input Options
  • High Efficiency Toroidal Transformer
YIY performance benefits infographic

Fast & Reliable

  • Super Fast ≤60ms Response
  • Zero Cross Transfer Technology
  • Relay Failure Detection
  • MCU Precision Control
YIY product flexibility infographic

Flexible Options

  • 0.5KVA to 20KVA Range
  • Customizable Case Colors
  • Multiple Display Options (A/B/C/D/Dual LED)
  • Optional Surge Protection
