Series: SVC Services

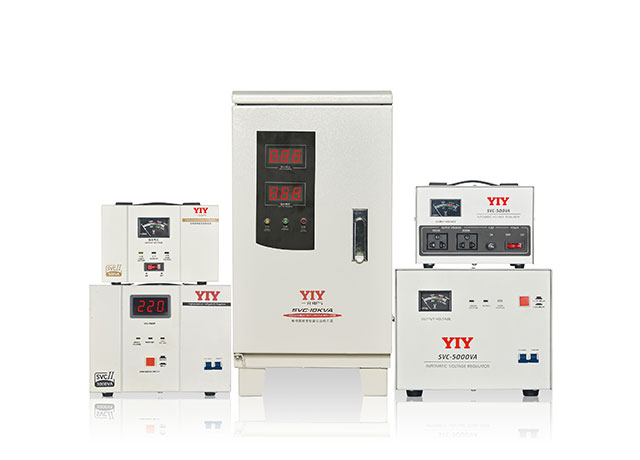

SVC Servo Voltage Stabilizer
Professional single phase servo motor voltage stabilizer delivering ±3% precision power protection. Advanced digital control technology with comprehensive protection systems for critical equipment across home, commercial and industrial applications.
- ±3% High Precision – Servo motor controlled accurate voltage regulation
- Wide Input Range – 150V-264V input voltage accommodation
- 98% High Efficiency – Energy-saving AC-AC conversion technology
- Digital Control – MCU-based intelligent monitoring and protection
- Multi-Protection – Over/under voltage, short circuit, overload protection
- Global Compatibility – Dual voltage 220V/127V system support

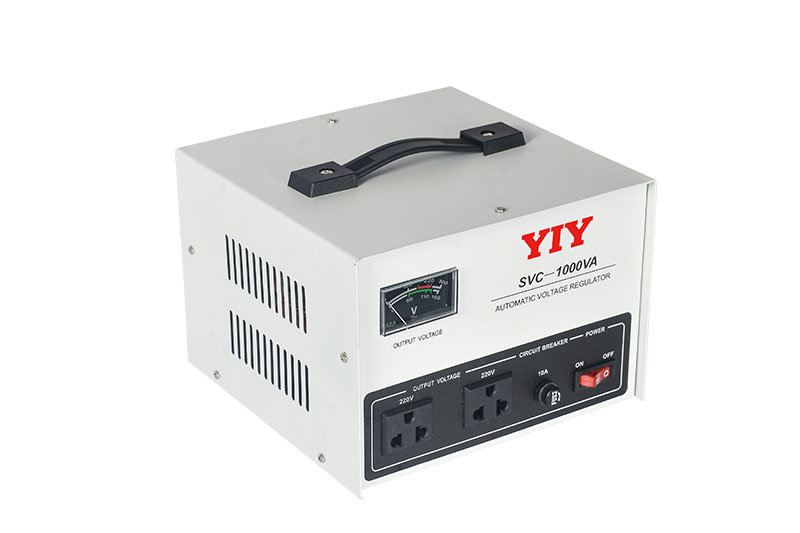

SVC Servo Voltage Stabilizer Complete Specifications
| Specification |
500VA |
1000VA |
1500VA |
2000VA |
3000VA |
5000VA |
| Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
| Input Voltage |
150V-250V or 105V-149V |
| Input Frequency |
50Hz/60Hz |
| Output Voltage |
220V±3% or 127V±3% |
| Output Power |
400W |
800W |
1200W |
1600W |
2400W |
4000W |
| Output Frequency |
50Hz/60Hz |
| Low Voltage Protection |
184V±4V or 107V±4V |
| Over Voltage Protection |
246V±4V or 142V±4V |
| Time Delay |
3-6s / 3-6min optional |
| Protection |
Fuse/MCB |
| Efficiency |
98% |
| Noise Level |
≤50dB |
| Operating Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
| Package Dimensions (mm) |
430×250×330 |
500×240×380 |
610×257×280 |
610×365×275 |
610×425×275 |
Varies |
| Shipping Weight (kg) |
14.6 |
18.2 |
22.8 |
18.9 |
23.4 |
28 |
| Units per Carton |
4 |
2 |
2 |
2 |
2 |
1 |
| Specification |
8000VA |

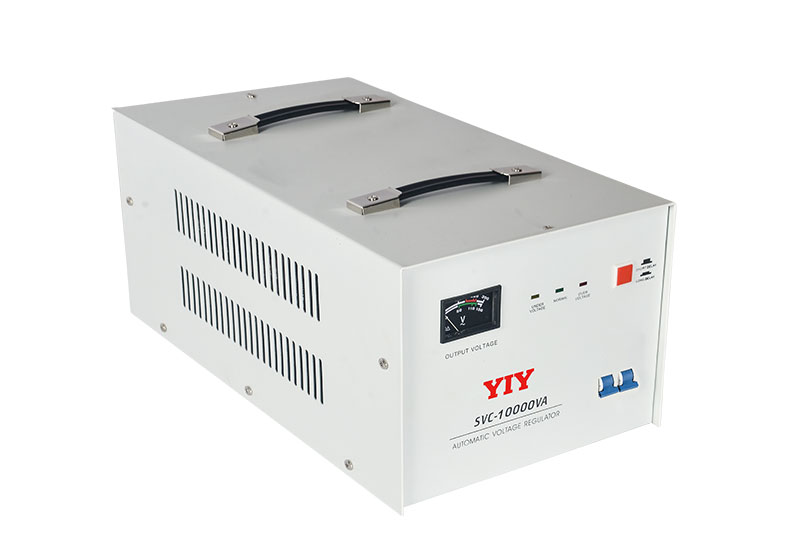

10000VA |
12KVA |
10KVA (Tower) |
15KVA (Tower) |
20KVA (Tower) |
30KVA (Tower) |
| Phase |
Single Phase |
| Input Voltage |
150V-250V or 176V-264V |
| Input Frequency |
50Hz/60Hz |
| Output Voltage |
220V±3% or 127V±3% |
| Output Power |
6400W |
8000W |
9600W |
8000W |
12000W |
16000W |
24000W |
| Output Frequency |
50Hz/60Hz |
| Low Voltage Protection |
184V±4V or 107V±4V |
| Over Voltage Protection |
246V±4V or 142V±4V |
| Time Delay |
3-6s / 3-6min optional |
| Protection |
Fuse/MCB |
| Efficiency |
98% |
| Noise Level |
≤50dB |
| Operating Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
| Package Dimensions (mm) |
460×360×290 |
370×330×580 |
446×345×630 |
560×380×775 |
660×380×775 |
Varies |
Varies |
| Shipping Weight (kg) |
23.7 |
25 |
27 |
34.5 |
54.5 |
79.2 |
100 |
| Units per Carton |
1 |
SVC Cabinet Type

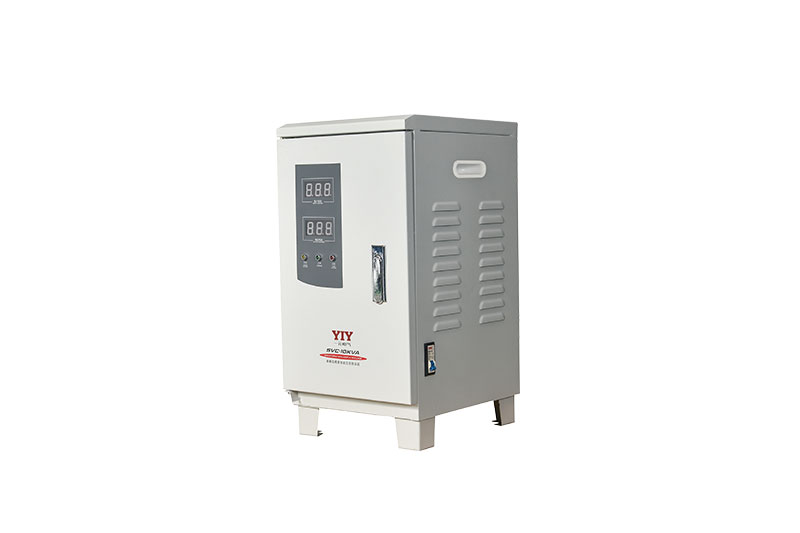

TWS/SWR/AVR 10KVA Voltage Stabilizer

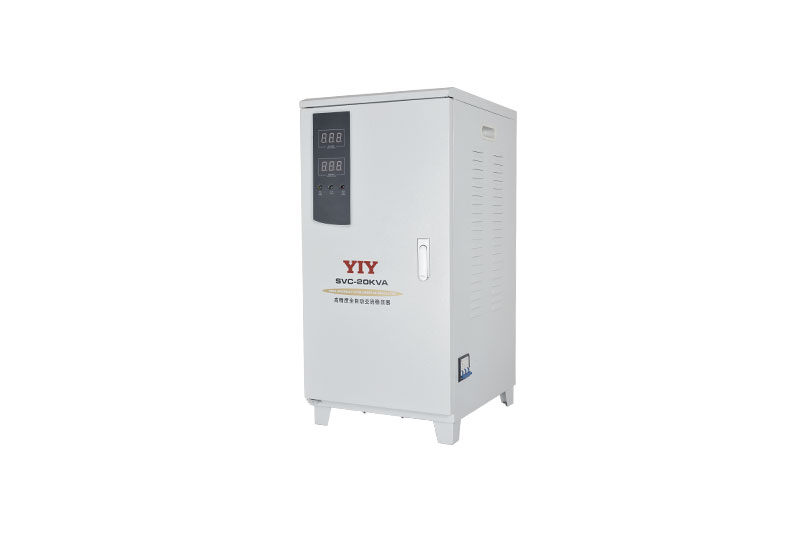

TWS/SWR/AVR 20KVA Voltage Stabilizer

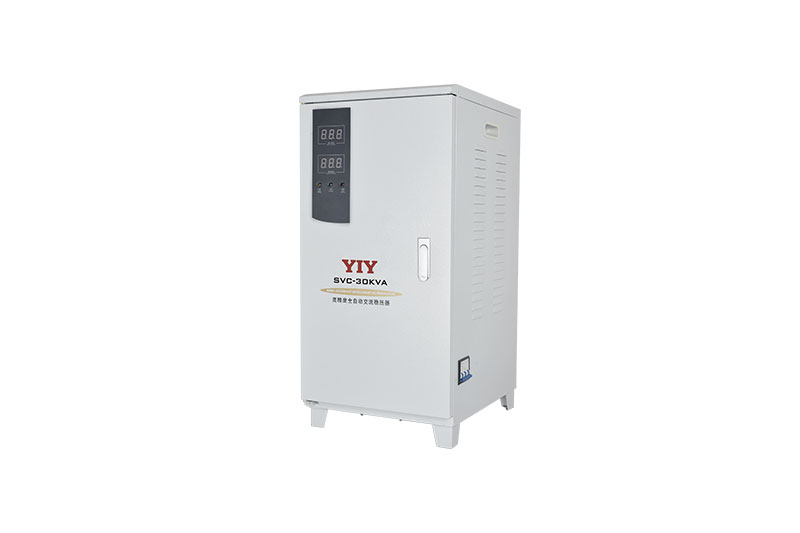

TWS/SWR/AVR 30KVA Voltage Stabilizer

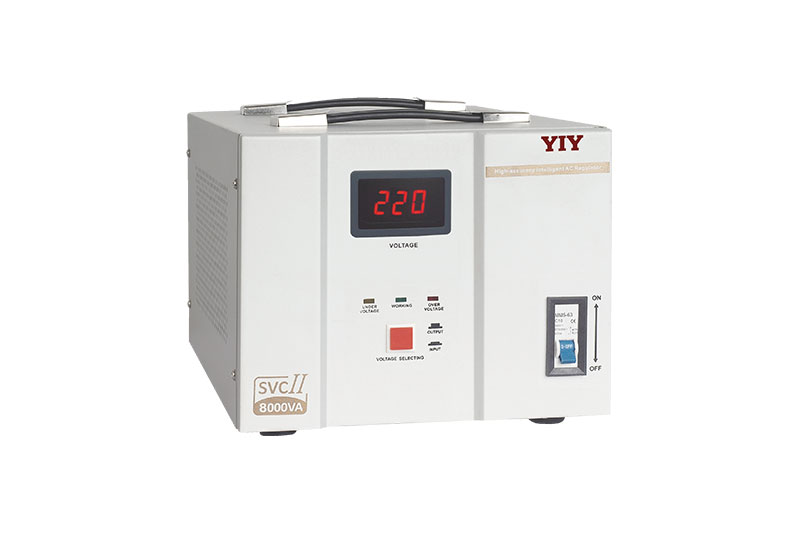

SVC1
SVC2

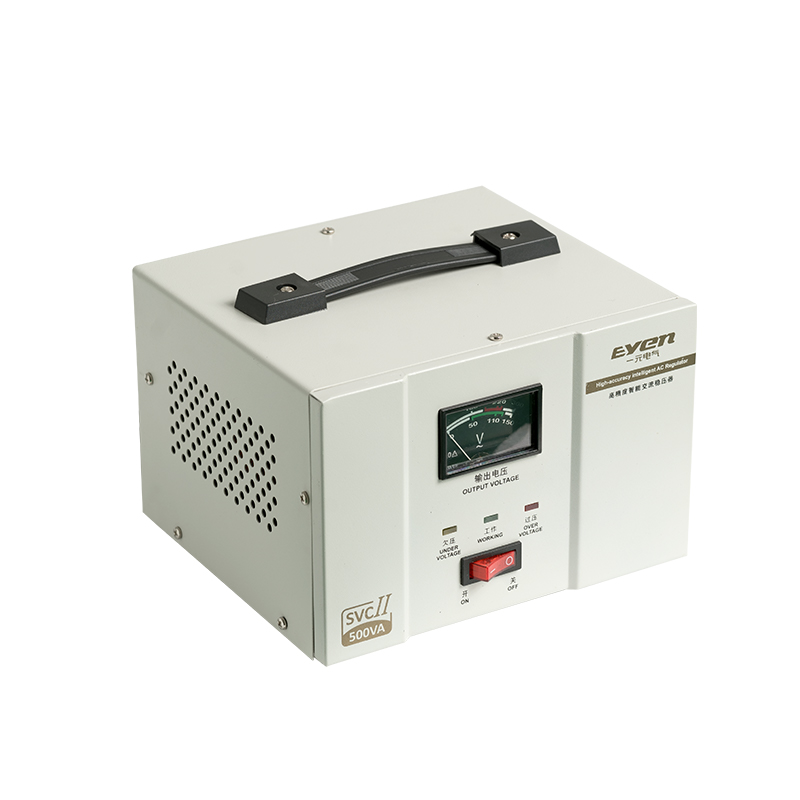

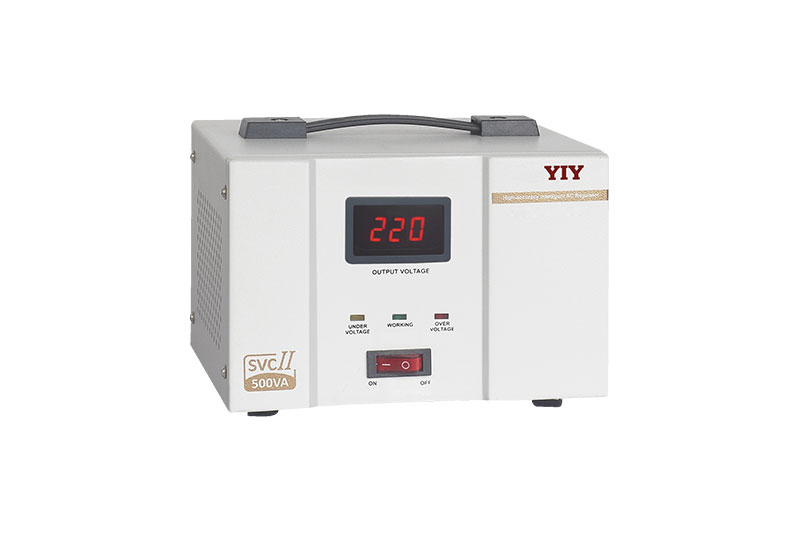

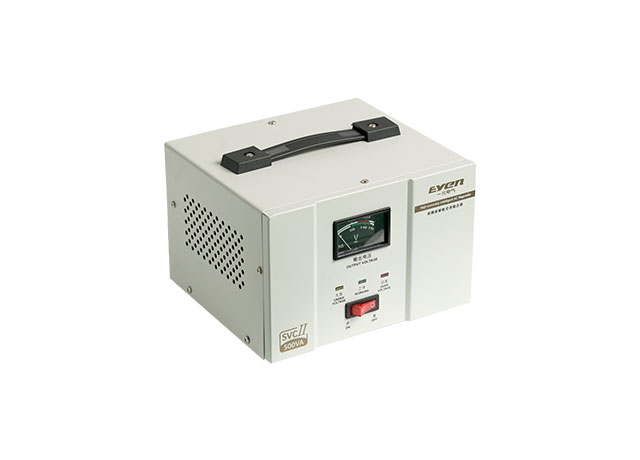

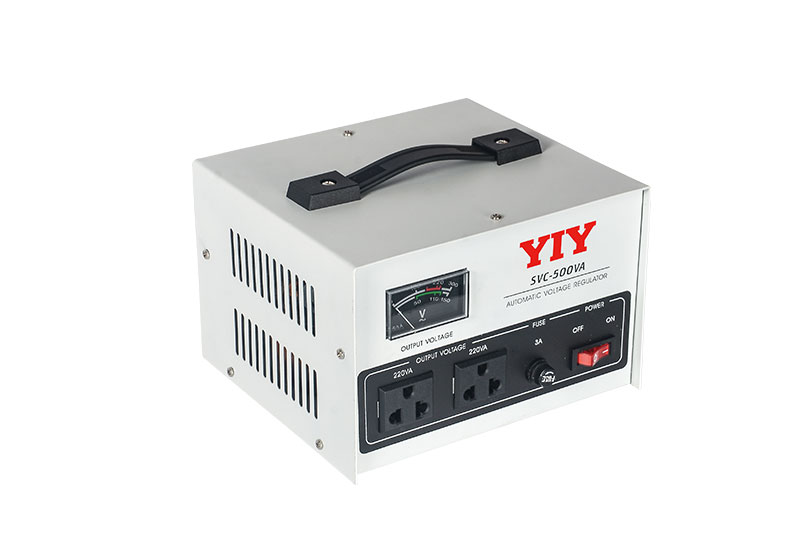

TWS/SWR/AVR 500VA Voltage Stabilizer #2

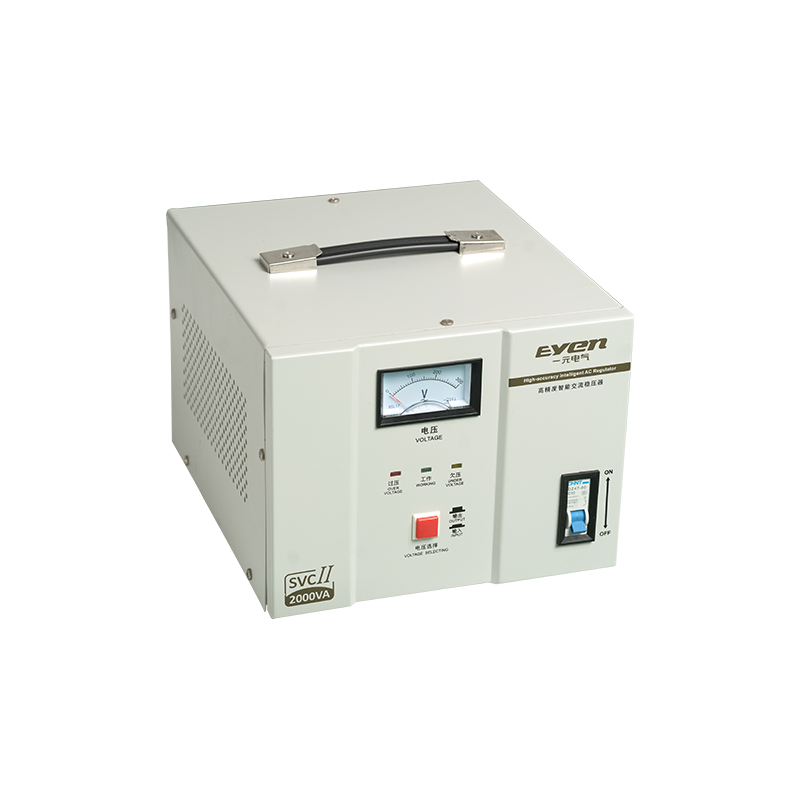

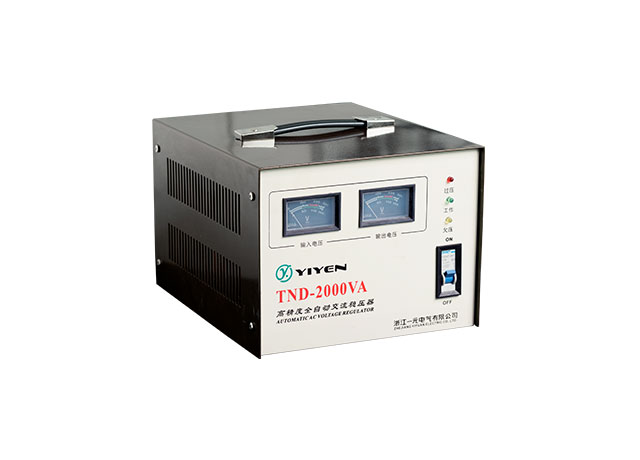

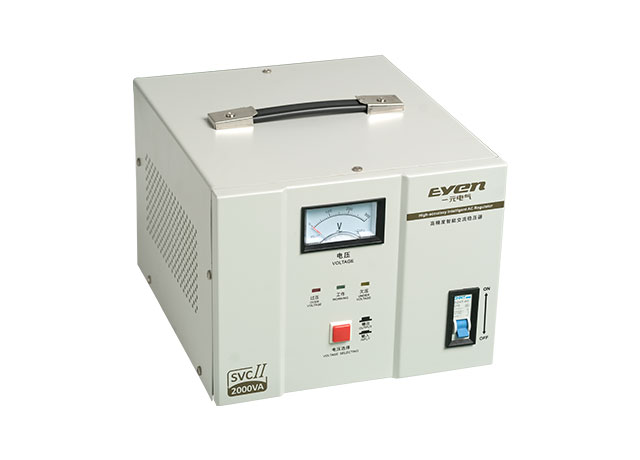

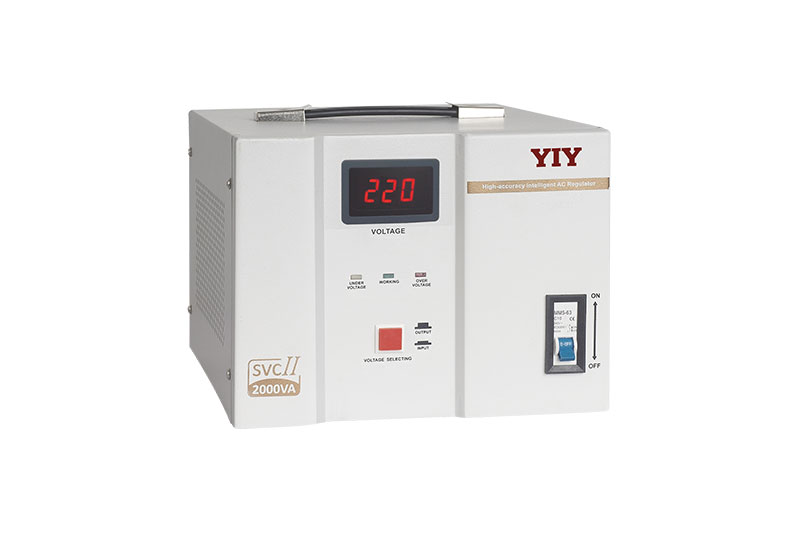

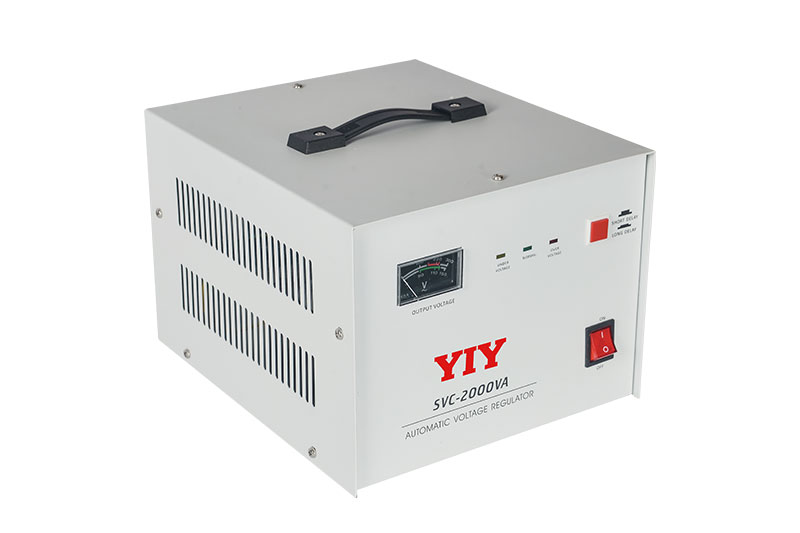

TWS/SWR/AVR 2000VA Voltage Stabilizer #2

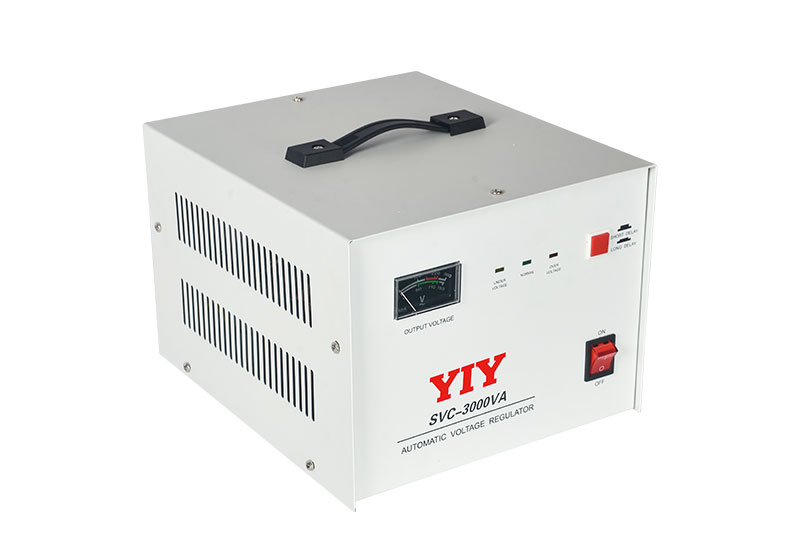

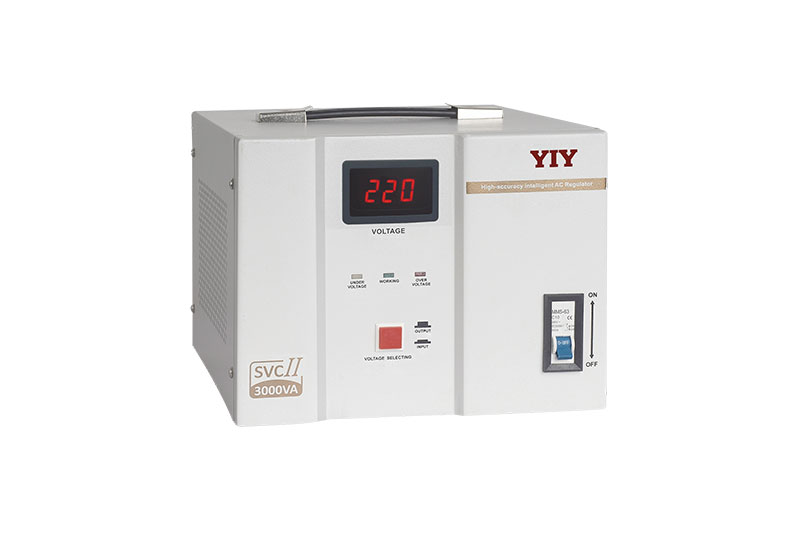

TWS/SWR/AVR 3000VA Voltage Stabilizer #2

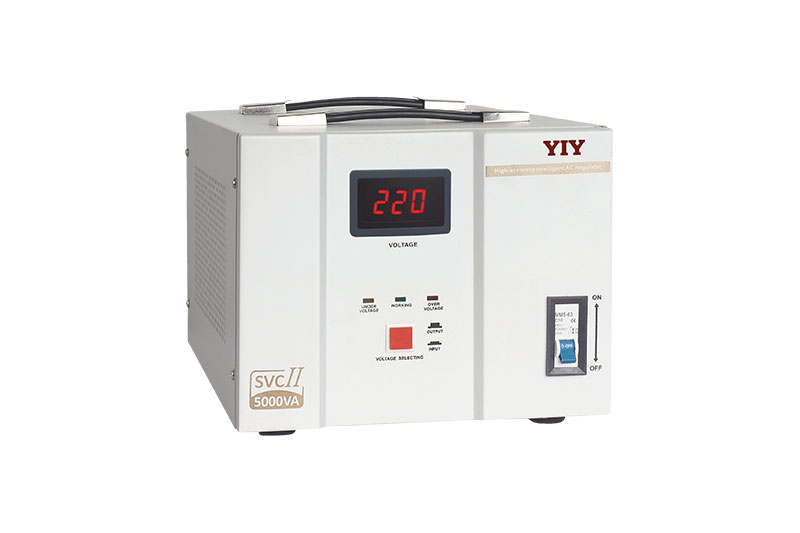

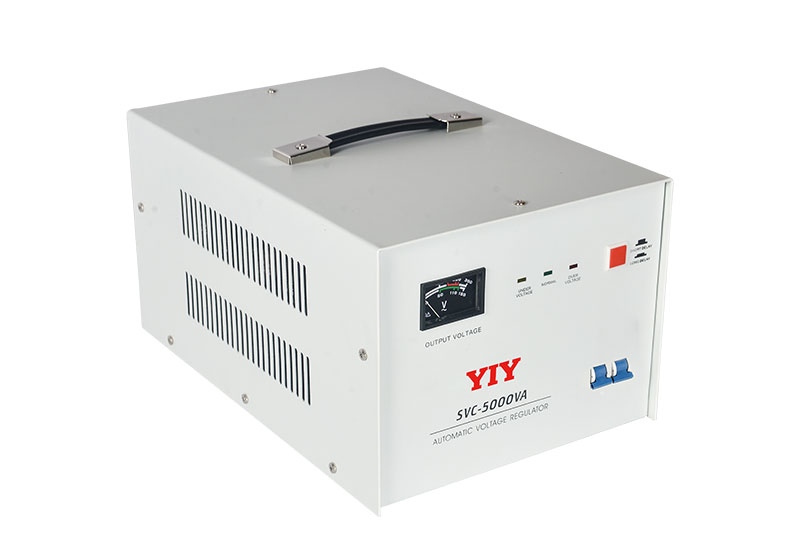

TWS/SWR/AVR 5000VA Voltage Stabilizer #2

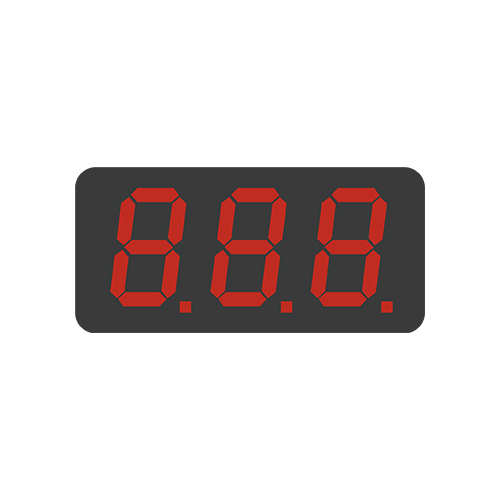

Display Options

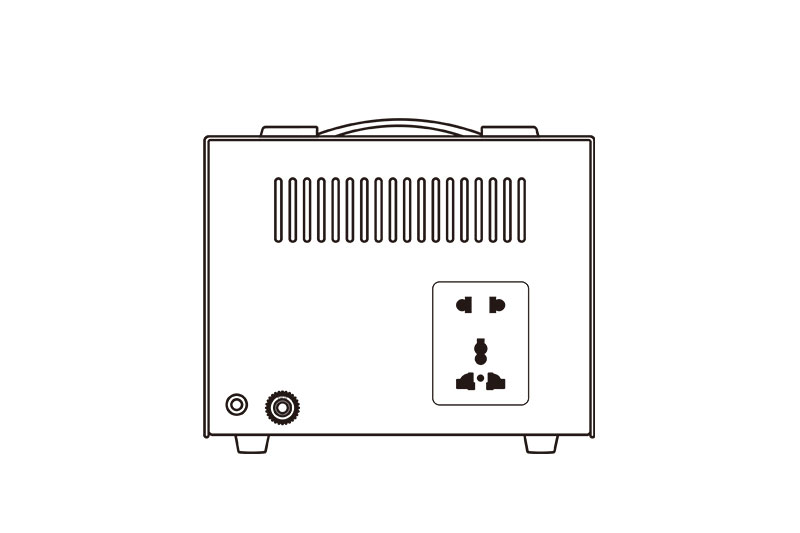

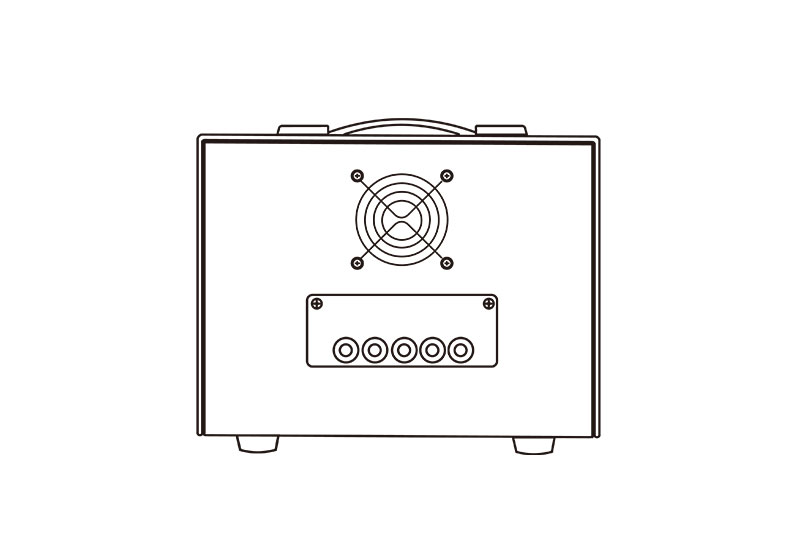

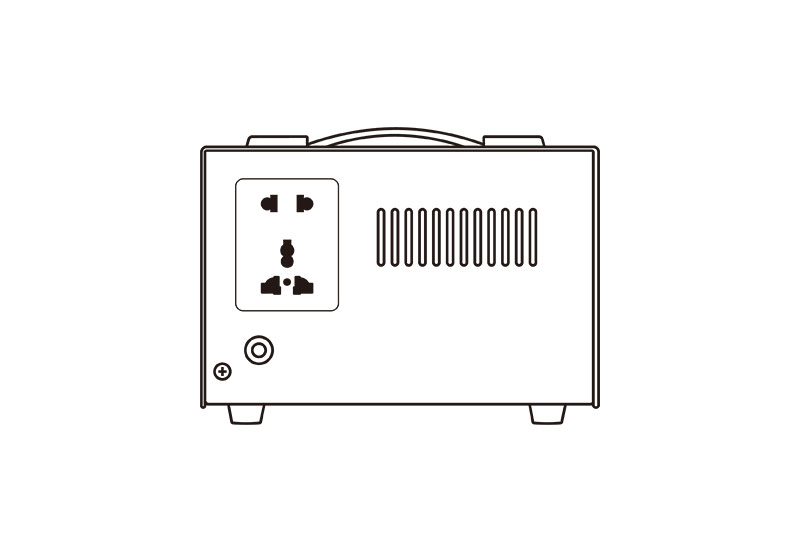

Rear Panel
Socket Options
European Voltage Stabilizer

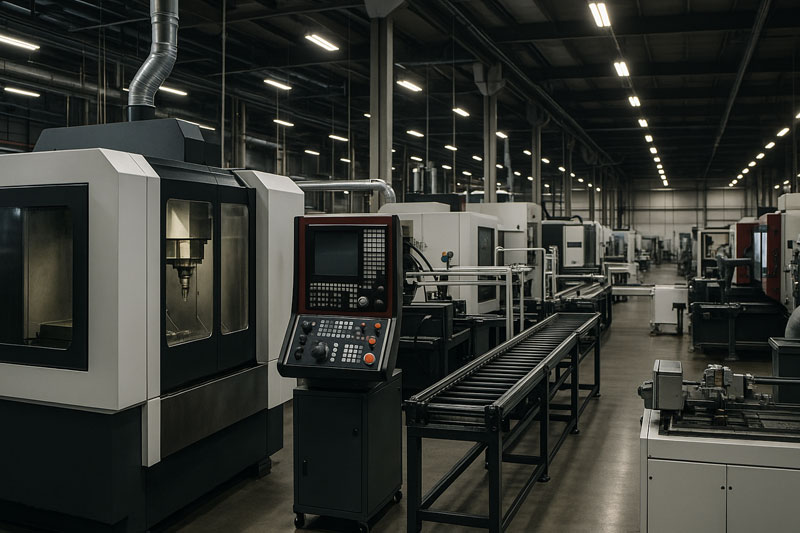

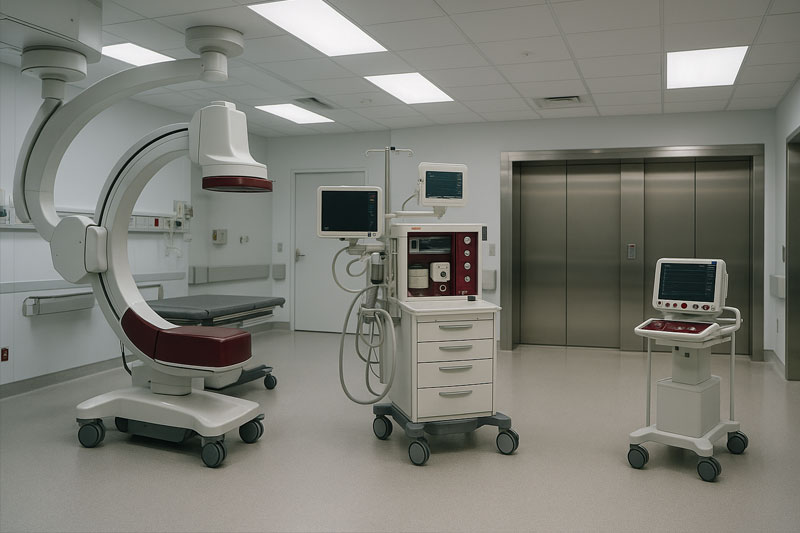

SVC Servo Voltage Stabilizer Applications
Why Choose YIY SVC Servo Stabilizers?
-
Dual Voltage (220V/127V)
-
50Hz/60Hz Compatible
-
International Standards
SVC vs PRO: When to Choose Which
Both the SVC and PRO series use servo motor technology, but they serve different priorities. The SVC is the cost-effective general-purpose option with the widest capacity range in YIY’s lineup (0.5–500 KVA, single-phase and three-phase), making it the default choice when budget matters more than monitoring precision. The PRO adds dual-LED voltage display, automatic fan-failure protection, and ≥120% overload handling — features that justify the premium when protecting mission-critical equipment where unplanned downtime has measurable cost.
Choose SVC when: your load is general office equipment, small retail, or light industrial machinery where ±3% output precision is sufficient and cost-per-unit is the primary selection criteria.
Choose PRO when: your load includes data center servers, medical diagnostic equipment, or broadcast transmitters where dual-display monitoring and fan-fault protection prevent costly downtime.
Best Applications for SVC

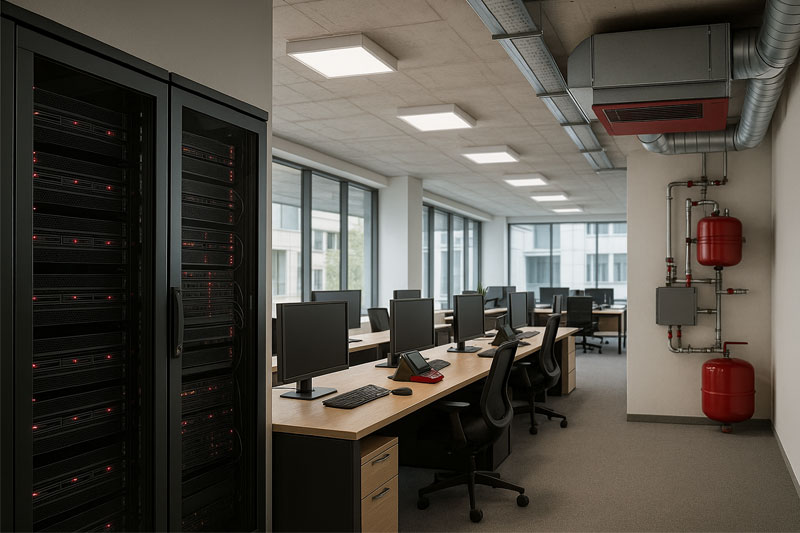

The SVC series dominates two application segments: small commercial installations (retail stores, restaurants, small offices) where single-phase 1–5 KVA units protect POS systems, refrigeration, and lighting at the lowest servo-class price point; and light industrial workshops where three-phase 10–30 KVA units protect general-purpose machinery, packaging equipment, and distribution panels that do not require precision-grade regulation. Its 0.5–500 KVA range also makes it the only YIY servo series that covers both residential and heavy industrial capacity bands in a single product family.
