TWS Wall-Mounted Single Phase Servo Voltage Stabilizer
YIY offers industry-leading servo voltage stabilizers with ±0.5% precision output control. Our advanced motor-driven technology provides superior voltage regulation with wide input voltage range (80V-280V), exceptional reliability, and comprehensive protection systems for your critical equipment.
YIY comprehensive servo voltage stabilizer lineup offers solutions from 500VA to 3000KVA for all power protection requirements.





Selection guide
A servo stabilizer corrects voltage continuously. The control board measures the output, and a servo motor moves a carbon brush along an autotransformer winding until the output is back inside its band. Because the correction is stepless, the output holds a narrow window instead of jumping between transformer taps. The trade-off is mechanical: the brush and motor need periodic inspection, and correction speed is set by how fast the motor travels.
Across the YIY servo range the product pages list ±2% to ±3% output tolerance and 98% AC-AC efficiency, from 500VA single-phase SVC units to 3000kVA SBW cabinets. That span is why servo is the default choice for most mixed industrial and commercial loads.
Pick the family by phase and input window first, then by capacity. On single-phase supplies, SVC and PRO cover 500VA–30kVA on a 150–250V input; TWS accepts 80–260V for weak rural lines; PWR takes single-phase up to 100kVA; PWR-2 serves 120/240V split-phase systems. On three-phase supplies, SVC-3 and PRO-3 start at 1.5kVA, PWR-3 adds phase-sequence and phase-loss protection from 45kVA to 150kVA, and SBW / SBW-F carry the range to 3000kVA.
| Model | Phase | Ratings | Input range | Output |
|---|---|---|---|---|
| SVC Servo Voltage Stabilizer | Single | 500VA–30kVA | 150–250V or 105–149V (≤5kVA); 150–250V or 176–264V (8kVA+) | 220V or 127V ±3% |
| PRO Servo Voltage Stabilizer | Single | 500VA–30kVA | 150–250V or 105–149V (≤5kVA); 150–250V or 176–264V (8kVA+) | 220V or 127V ±2% (≤5kVA); ±3% (8kVA+) |

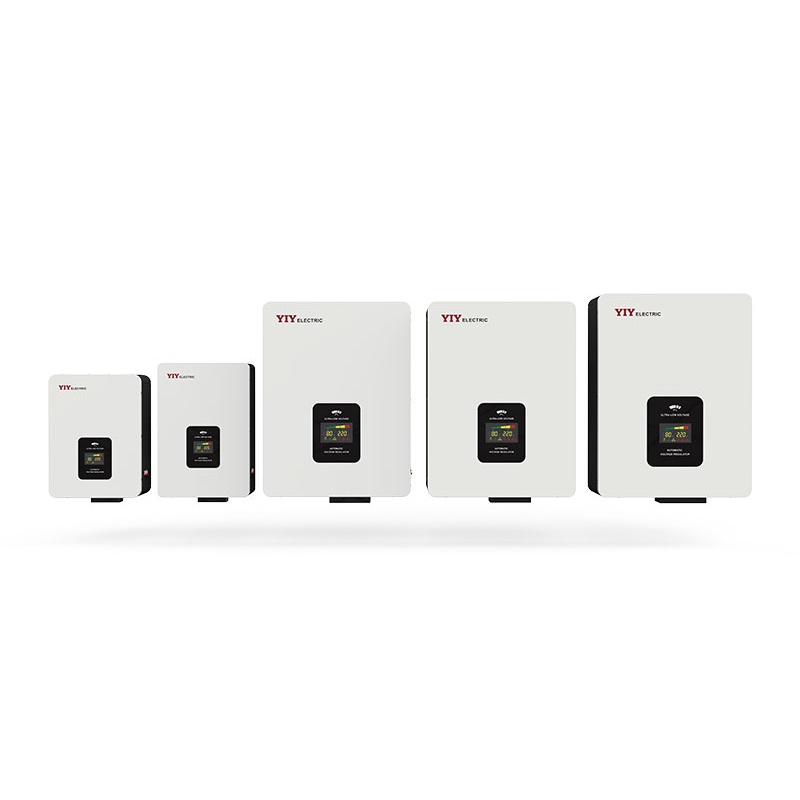

| TWS Wall-Mounted Single-Phase Servo Stabilizer | Single, wall-mounted | 3–30kVA | 80–260V | 220V / 230V ±3% |

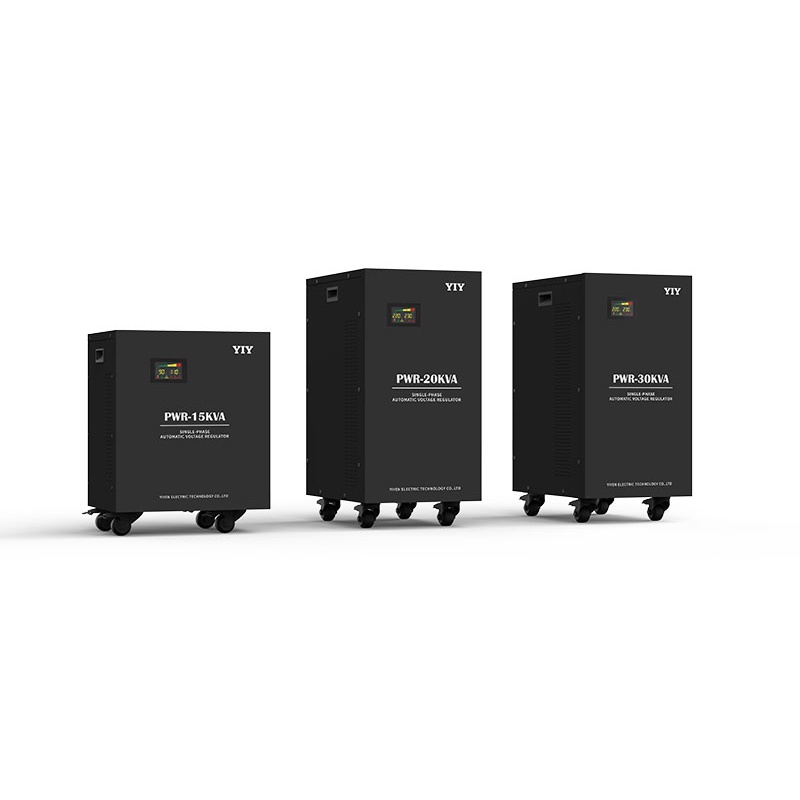

| PWR High Power Voltage Stabilizer | Single | 15–100kVA | 165–275V (EU) / 88–132V (US) | 220/230V ±2%; 110/120V ±2% |
| PWR-2 Dual-Phase Servo Stabilizer | Dual phase | 10–60kVA | 96–144V | 120/240V ±3% |

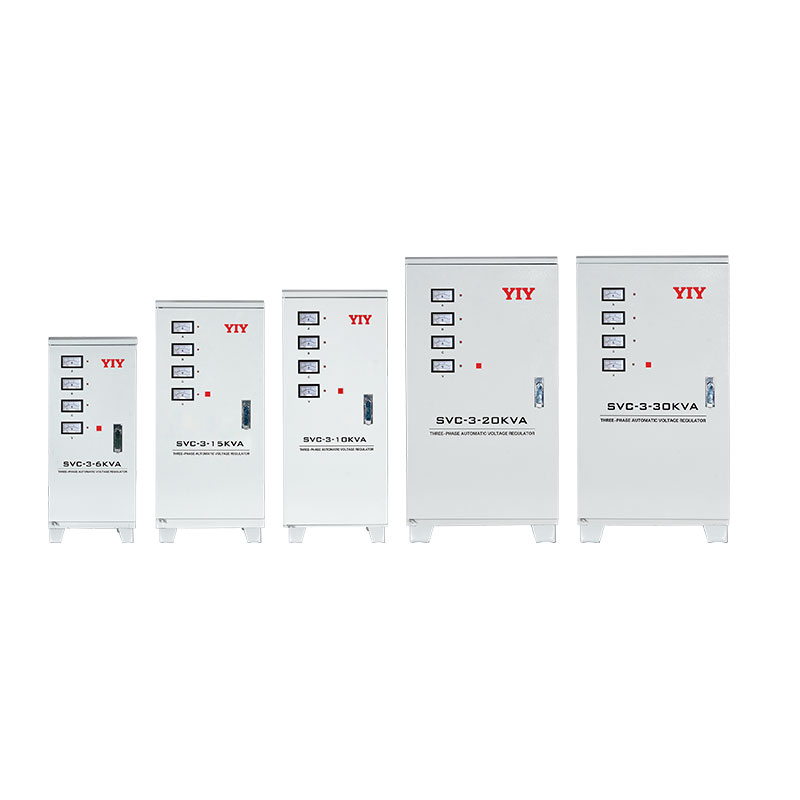

| SVC-3 Three-Phase Servo Stabilizer | Three, 4-wire | 1.5–100kVA | 278–433V (to 30kVA); 304–456V (45kVA+) | 380V ±3% |

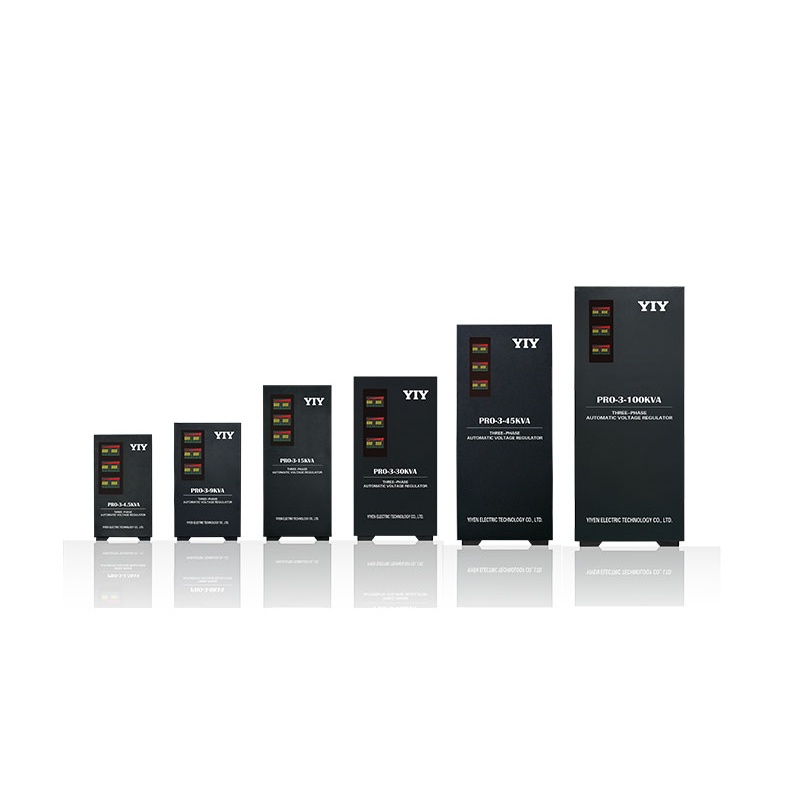

| PRO-3 Three-Phase Servo Stabilizer | Three, 4-wire | 1.5–100kVA | 278–433V (to 30kVA); 304–456V (45kVA+) | 380V ±3% |
| PWR-3 Three-Phase Servo Stabilizer | Three, 4-wire | 45–150kVA | 285–475V (±25%) or 266–494V (±30%) | 380/400V ±3% |

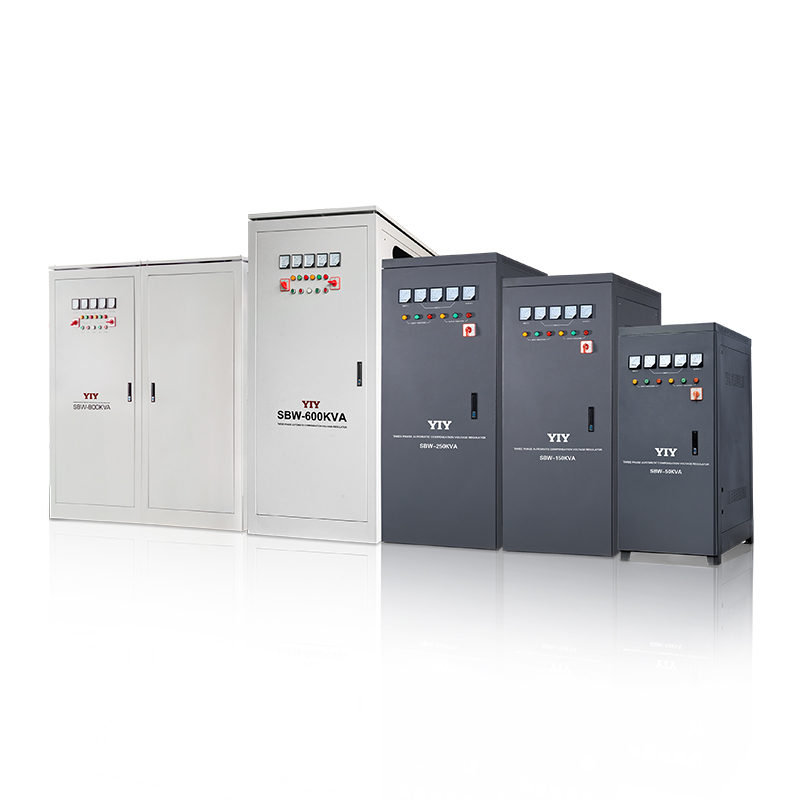

| SBW Three-Phase Servo Stabilizer | Three, 4-wire | 50–3000kVA | 304–456V | 380V ±3% |

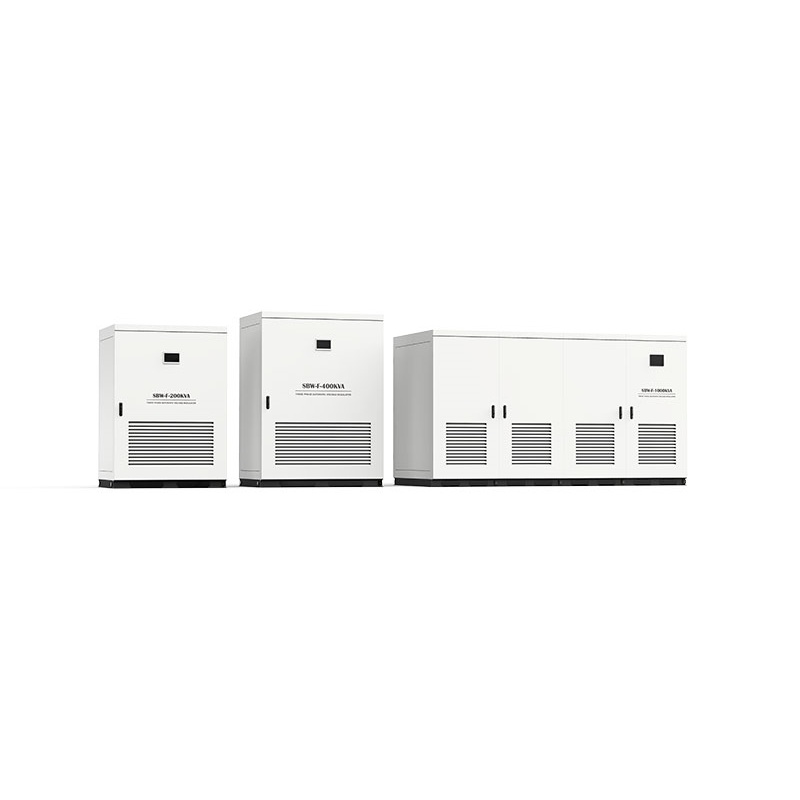

| SBW-F IP54 Three-Phase Servo Stabilizer | Three, 4-wire | 150–3000kVA | 304–456V / 285–475V / 266–494V | 380/400V ±3% |
Values copied from each product page’s specification table. Confirm the final rating against the datasheet for your project.
Three-phase PRO-3 and SVC-3 units from 1.5kVA keep spindle drives and controllers inside their voltage window without oversizing for the whole building.
PWR-3 lists phase-sequence and phase-loss protection alongside surge protection, which suits motor loads that must not run on a missing phase.
TWS wall-mounted units accept 80–260V input and still deliver 220/230V ±3%, so one model covers sites where evening voltage collapses.
SVC and PRO run in 500VA steps up to 30kVA, giving a private-label range that covers home, office and small-workshop buyers under one platform.
Add up the running power of every connected load, then compare it with the output power on the product page, not the VA rating. For example, the SVC page lists 4000W output for the 5000VA model. Leave headroom for motor starting current, and send us the nameplates if you are unsure.
Both cover 500VA–30kVA. The PRO page lists ±2% output on models up to 5kVA (SVC lists ±3%), PCB-level overload protection at ≥120%, and a 5s/255s time delay. SVC offers a 3–6s or 3–6min delay.
The TWS wall-mounted series lists an 80–260V input window with 220/230V ±3% output from 3kVA to 30kVA, the widest single-phase servo input in the range.
Choose SBW-F when the plant room is dusty or humid, or when you need a choice of ±20%, ±25% or ±30% input windows. Its page also lists bypass current from 400A at 150kVA to 6300A at 3000kVA.
Yes. Since 2008, YIY has built Servo, Relay and IGBT stabilizers in a 30,000 m² plant with 300+ staff, producing 1,000,000+ units a year for buyers in 130+ countries. OEM/ODM programmes cover branding, labels, packaging and voltage customisation.
A: A servo voltage stabilizer uses a motor-driven mechanism to automatically correct voltage fluctuations. The system constantly monitors incoming voltage and adjusts a variable transformer (variac) using a servo motor to maintain stable output voltage. This mechanical adjustment provides precise, smooth voltage correction without introducing electrical noise.
A:Servo stabilizers provide several key advantages: (1) Extremely precise output regulation (±0.5% to ±2%), (2) Smooth, stepless voltage adjustment, (3) High efficiency (98%+), (4) Ability to handle wide input voltage ranges, (5) Robust performance for industrial applications, and (6) Excellent reliability for critical equipment.
A: Our servo stabilizers can accommodate a wide input voltage range, typically from 80V to 280V depending on the model. Our TSS Series offers ultra-wide input range starting from 80V, while standard models handle 150V-250V input range. Custom input ranges are available for special applications.
A: Our servo voltage stabilizers typically respond to voltage fluctuations within ≤2 seconds, which provides optimal protection for most applications. This response time ensures smooth correction without abrupt changes that could affect sensitive equipment.
A:Single-phase servo stabilizers are designed for residential and light commercial applications running on single-phase power (typically 220V-240V). Three-phase servo stabilizers are engineered for industrial equipment and facilities using three-phase power (typically 380V-400V in Europe or 208V/480V in the US), with independent phase compensation capability for handling 100% unbalanced loads.
A: We manufacture servo voltage stabilizers from 500VA for small applications up to 3000KVA for industrial installations. Our SVC and PRO series cover 500VA-30KVA, PWR series handles 15KVA-100KVA, and our SBW/SBW-F series delivers 150KVA-3000KVA for maximum industrial capacity.
A: Servo stabilizers use mechanical servo motors and carbon brushes for voltage correction, while static/IGBT stabilizers utilize electronic components. Servo technology offers advantages in handling continuous heavy loads, excellent overload capacity, and reliable performance in harsh environments. Static stabilizers provide faster response times and may be preferred for highly sensitive electronic equipment.
A: With proper maintenance, our servo voltage stabilizers typically provide 10-15 years of reliable service. The carbon brushes may require replacement every 3-5 years depending on usage, but this is a simple maintenance procedure that ensures continued optimal performance.
A: Yes, we provide extensive customization options including specialized input/output voltage parameters, tropical designs for high-humidity environments, custom mounting configurations, enhanced protection features, and complete OEM/ODM services with your branding.
A: Our standard warranty is 2 years on all servo stabilizer models, with extended warranty options available up to 5 years. We also provide comprehensive after-sales support including installation guidance, maintenance training, and spare parts availability.
