Series: PRO Series

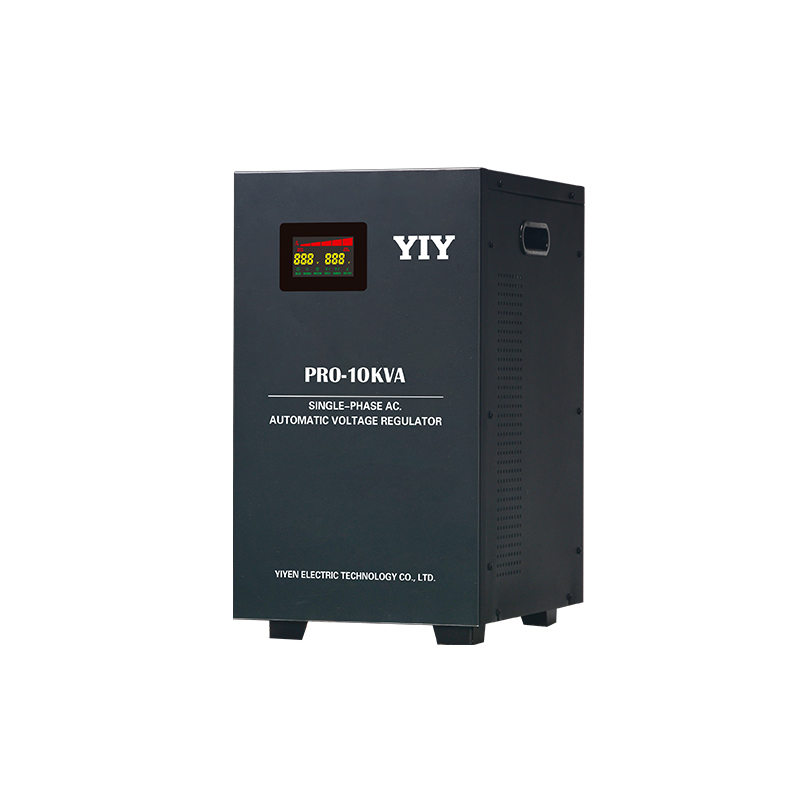

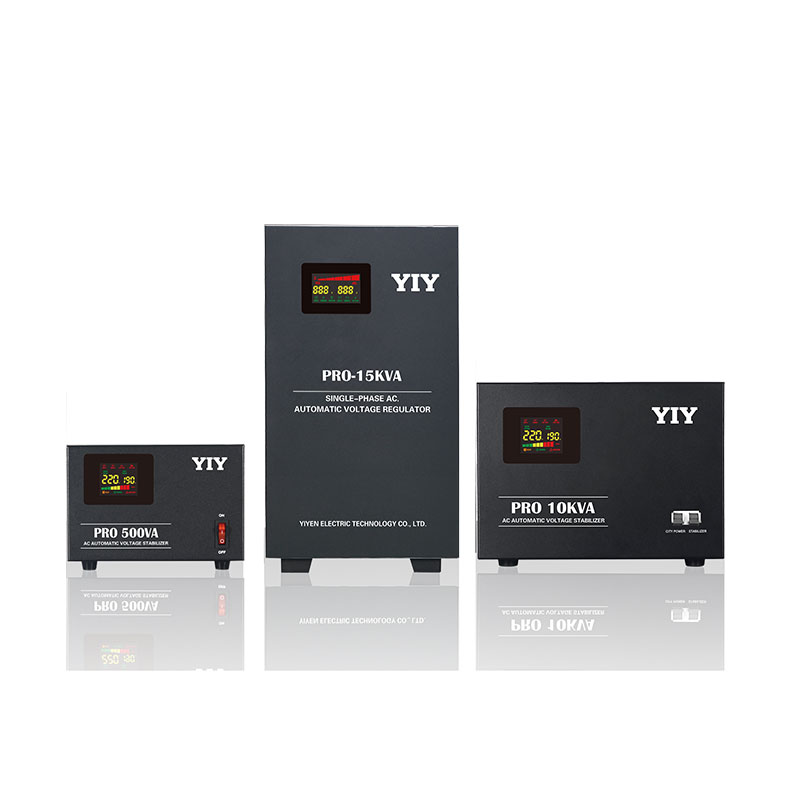

PRO Servo Voltage Stabilizer
Advanced single phase servo voltage stabilizer with ≤2% precision and intelligent MCU control. Professional digital display technology with comprehensive protection systems including fan failure detection for reliable power conditioning.
- ≤2% High Precision– More accurate output precision than standard models
- MCU Digital Control– Microcontroller-based intelligent monitoring system
- Dual LED Display– Multi-display options with digital readouts
- Fan Failure Protection– Automatic output cutoff when fan malfunctions
- 120% Overload Protection– Enhanced overload capability on PCB level
- Thermistor Technology– Upgraded over-heat protection with temperature sensor
PRO Professional Voltage Stabilizer Complete Specifications
| Specification |
500VA |
1000VA |
1500VA |
2000VA |
5000VA |
3000VA |
| Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
| Input Voltage |
150V-250V or 105V-149V |
| Input Frequency |
50Hz/60Hz |
| Output Voltage |
220V±2% or 127V±2% |
| Output Power |
400W |
800W |
1200W |
1600W |
4000W |
2400W |
| Output Frequency |
50Hz/60Hz |
| Low Voltage Protection |
184V±4V or 107V±4V |
| Over Voltage Protection |
246V±4V or 142V±4V |
| Time Delay |
5s / 255s optional |
| Overload Protection |
≥120% (PCB Level) |
| Protection |
Fuse/MCB |
| Efficiency |
98% |
| Noise Level |
≤50dB |
| Operating Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
| Package Dimensions (mm) |
430×250×330 |
500×240×380 |
610×257×280 |
610×365×275 |
Varies |
610×425×275 |
| Shipping Weight (kg) |
14.6 |
18.2 |
22.8 |
18.9 |
28 |
23.4 |
| Units per Carton |
4 |
4 |
2 |
2 |
2 |
2 |
| Specification |
8000VA |
10000VA |
12KVA |

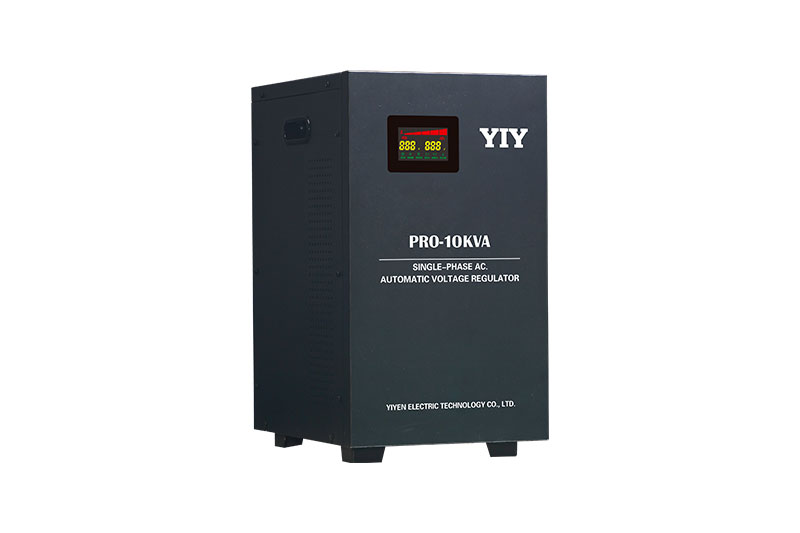

10KVA (Tower) |
15KVA (Tower) |
20KVA (Tower) |
30KVA (Tower) |
| Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
Single Phase |
| Input Voltage |
150V-250V or 176V-264V |
| Input Frequency |
50Hz/60Hz |
| Output Voltage |
220V±3% or 127V±3% |
| Output Power |
6400W |
8000W |
9600W |
8000W |
12000W |
16000W |
24000W |
| Output Frequency |
50Hz/60Hz |
| Low Voltage Protection |
184V±4V or 107V±4V |
| Over Voltage Protection |
246V±4V or 142V±4V |
| Time Delay |
3-6s / 3-6min optional |
| Protection |
Fuse/MCB |
| Efficiency |
98% |
| Noise Level |
≤50dB |
| Operating Temperature |
-5℃ to 40℃ |
| Humidity |
20% to 90% |
| Package Dimensions (mm) |
460×360×290 |
370×330×580 |
446×345×630 |
560×380×775 |
660×380×775 |
Varies |
Varies |
| Shipping Weight (kg) |
23.7 |
25 |
27 |
34.5 |
54.5 |
79.2 |
100 |
| Units per Carton |
1 |

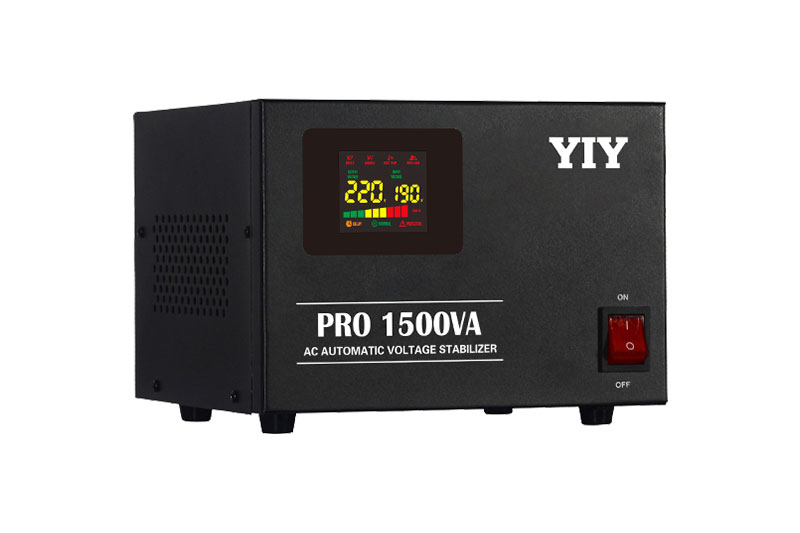

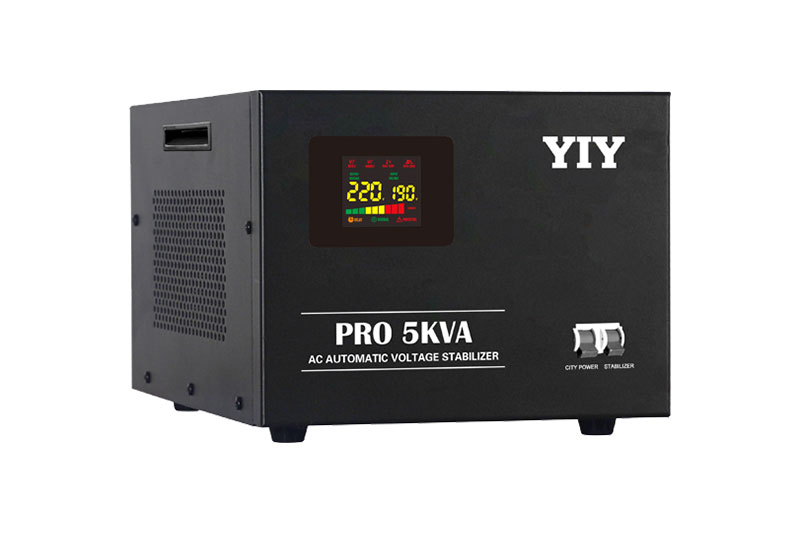

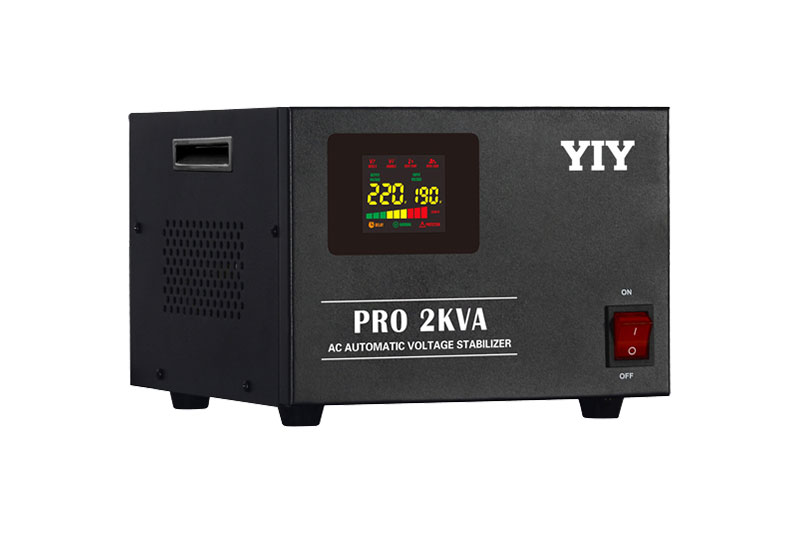

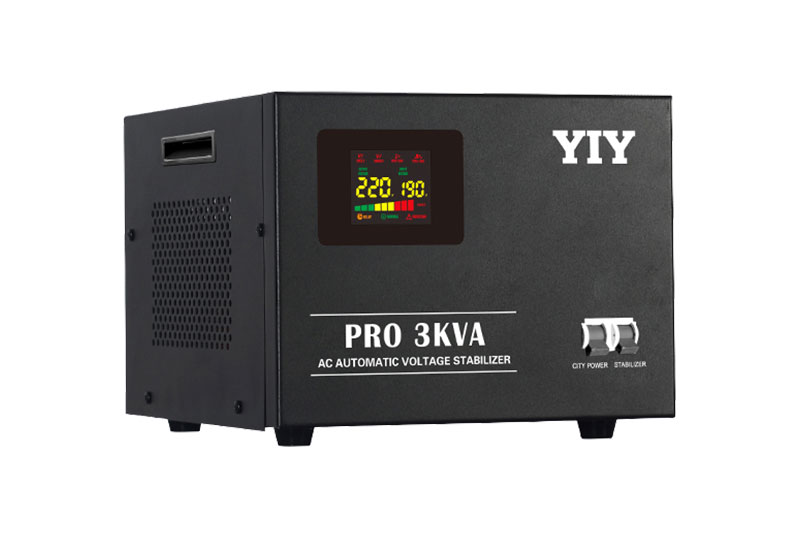

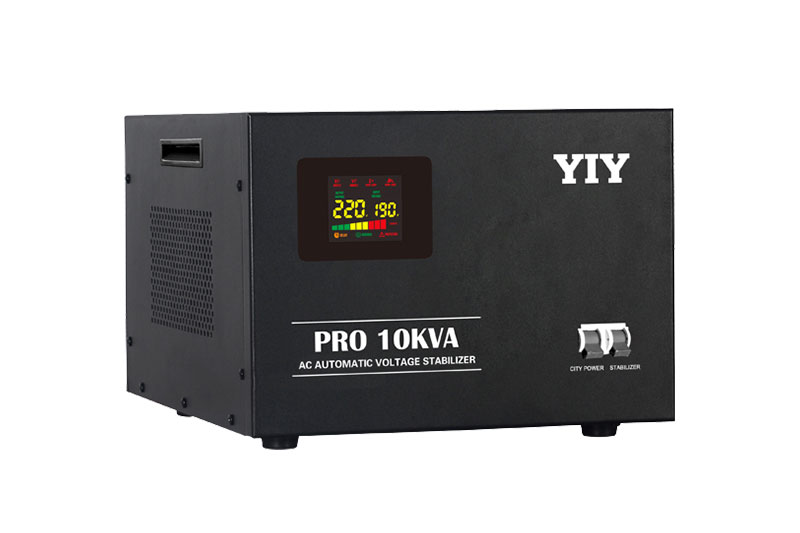

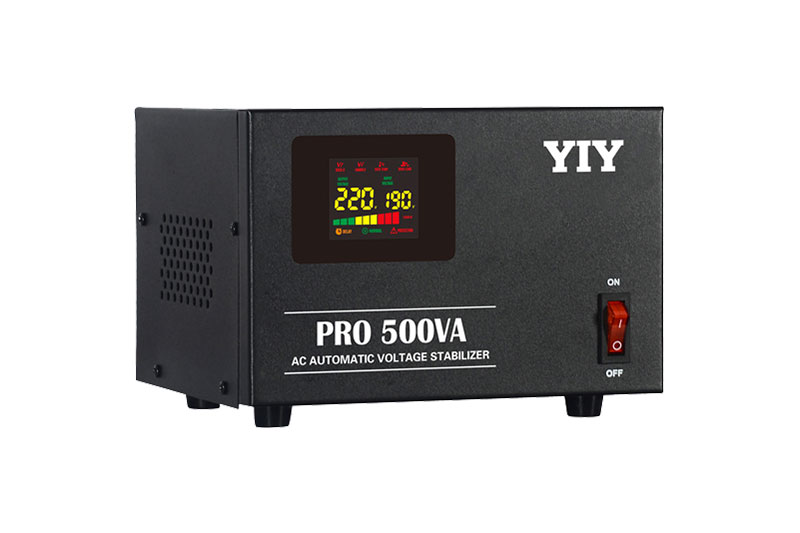

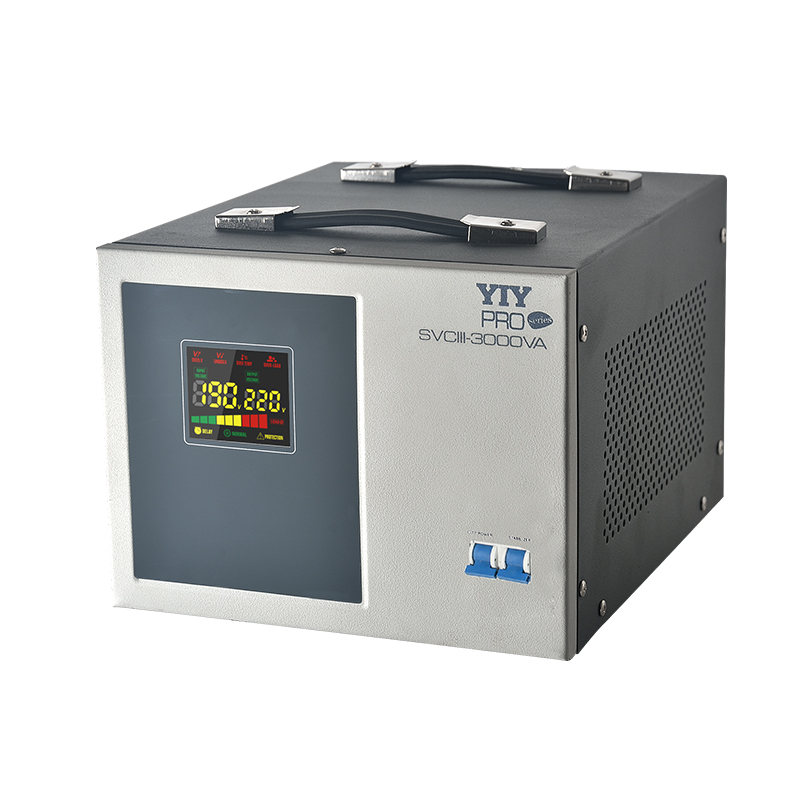

PRO Professional Voltage Stabilizer PRO-E

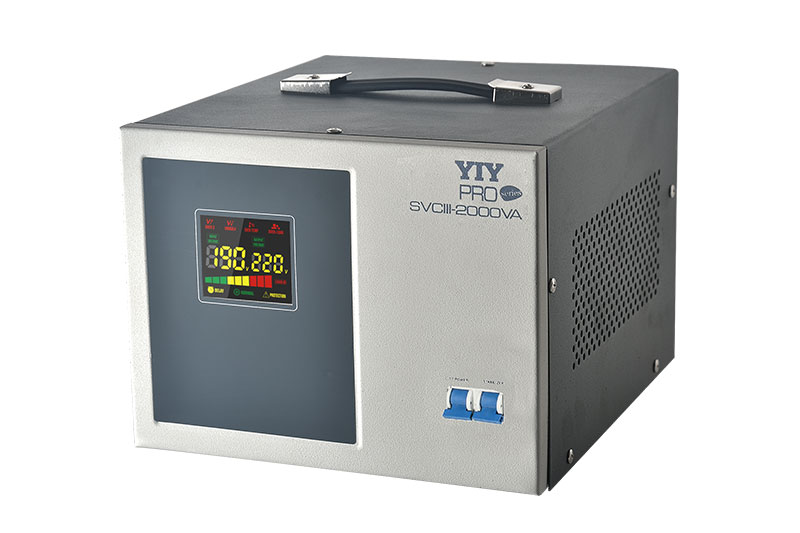

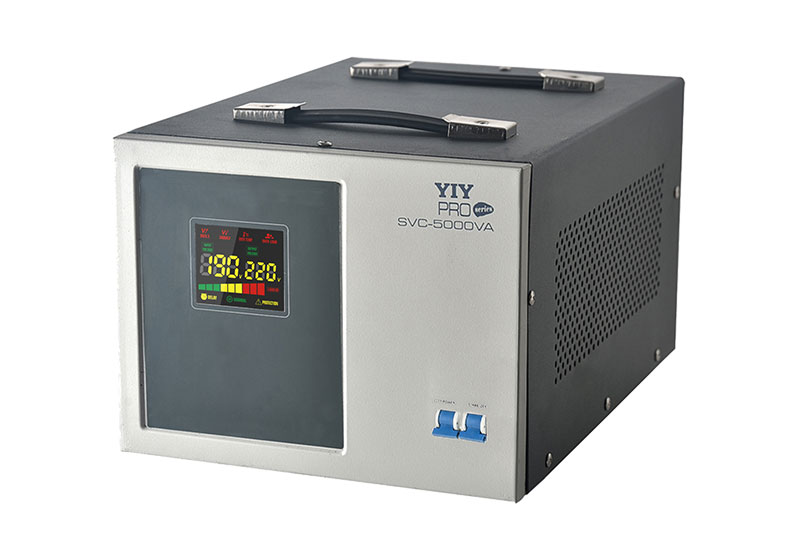

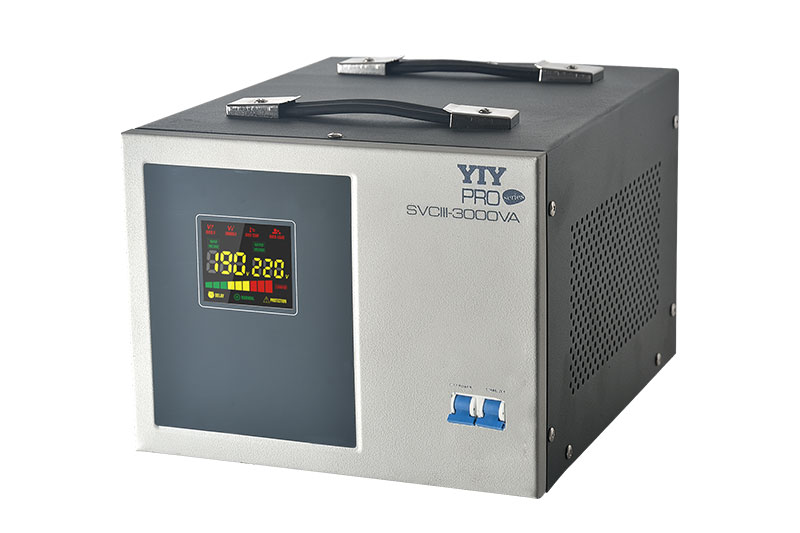

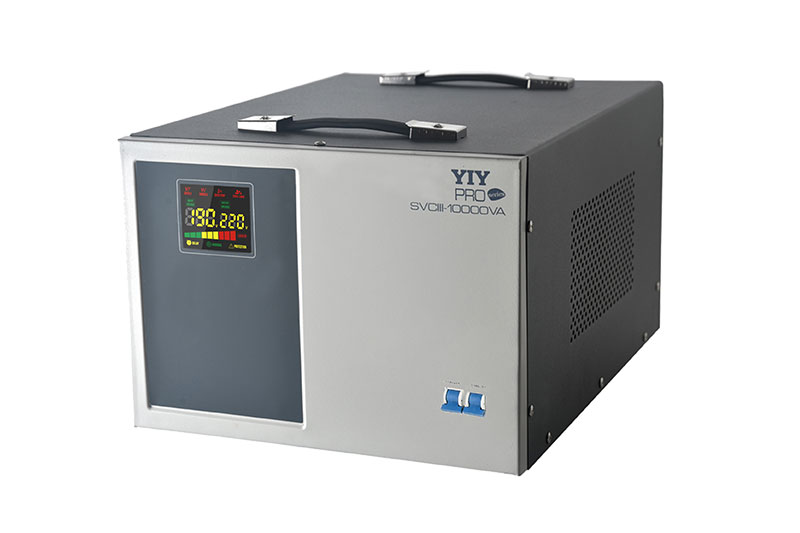

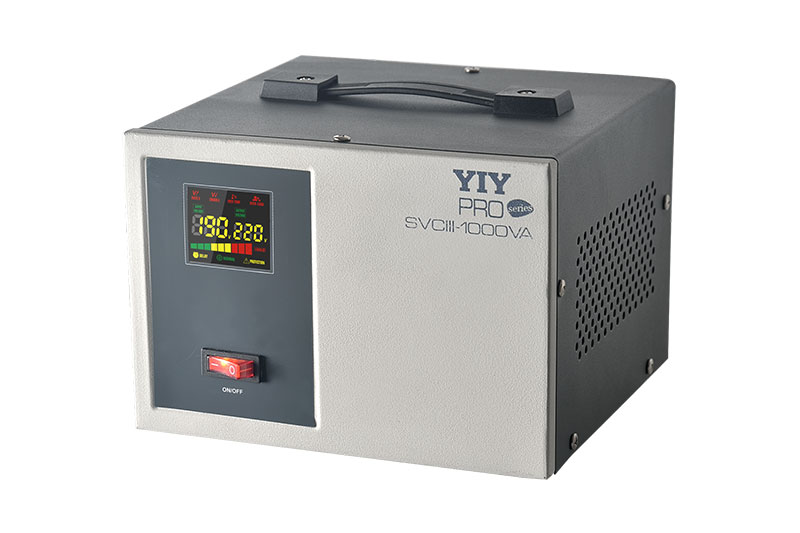

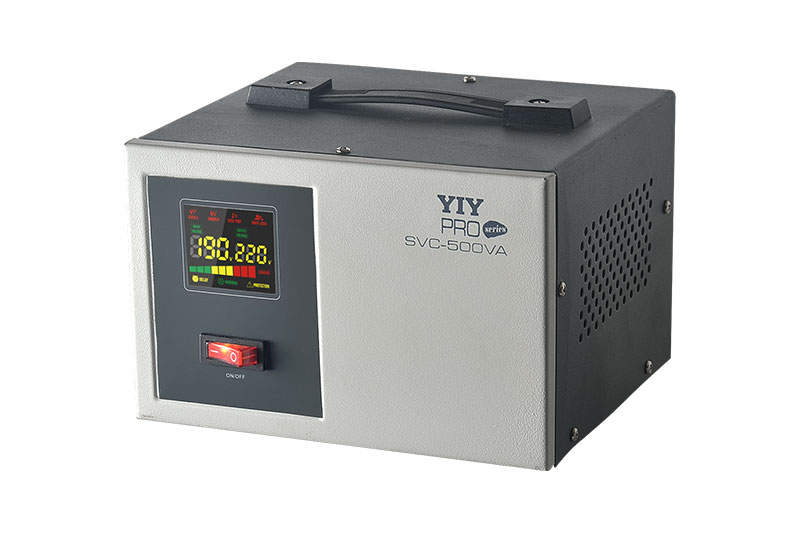

PRO Professional Voltage Stabilizer PRO C
PWR/PWR-3 Series 10000VA Voltage Stabilizer
PWR/PWR-3 Series 15000VA Voltage Stabilizer

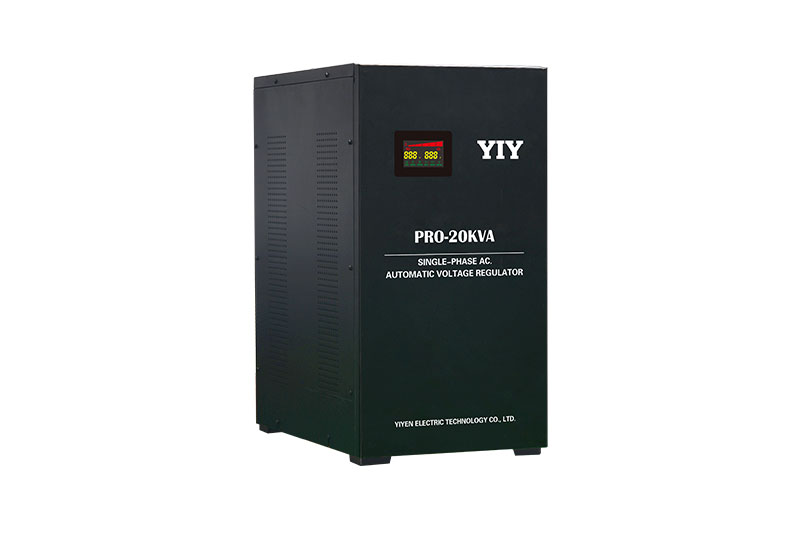

PWR/PWR-3 Series 20000VA Voltage Stabilizer

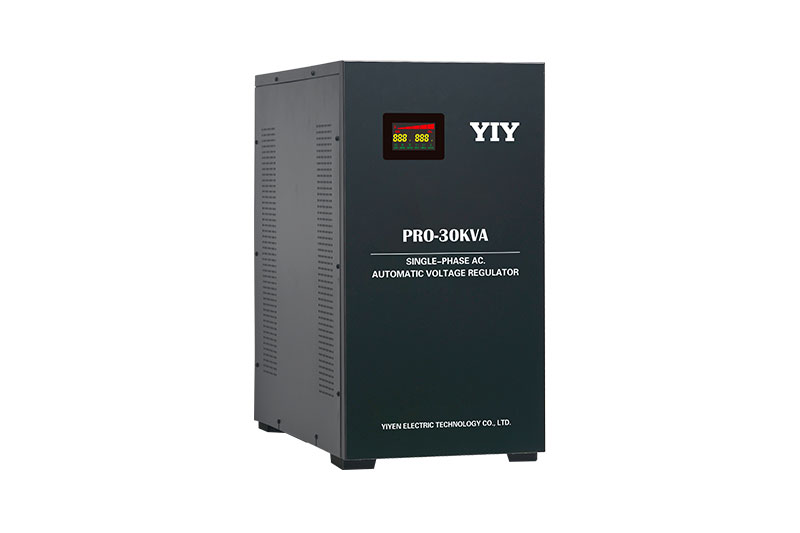

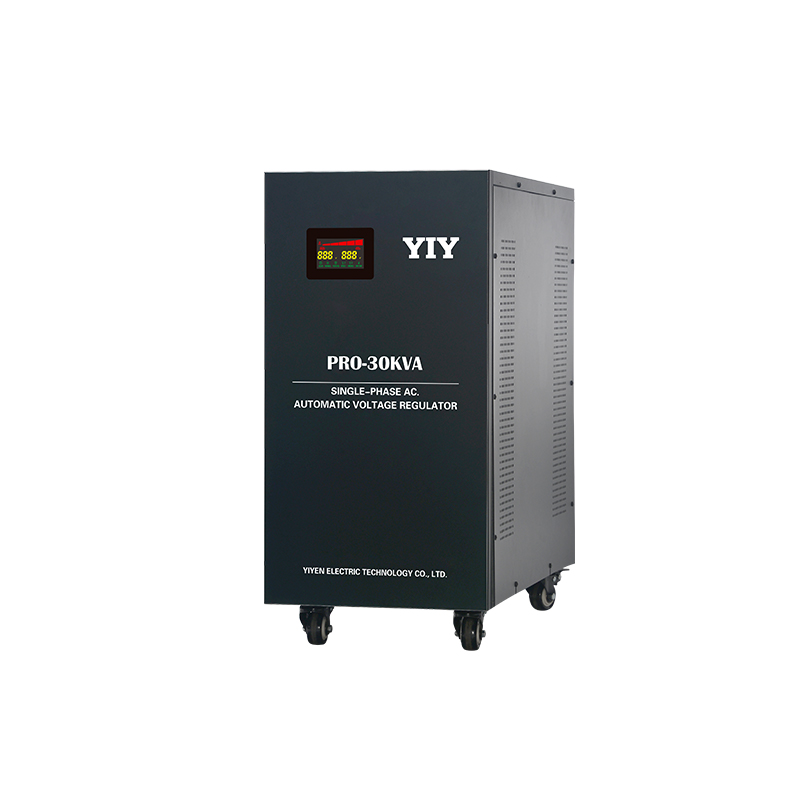

PWR/PWR-3 Series 30000VA Voltage Stabilizer

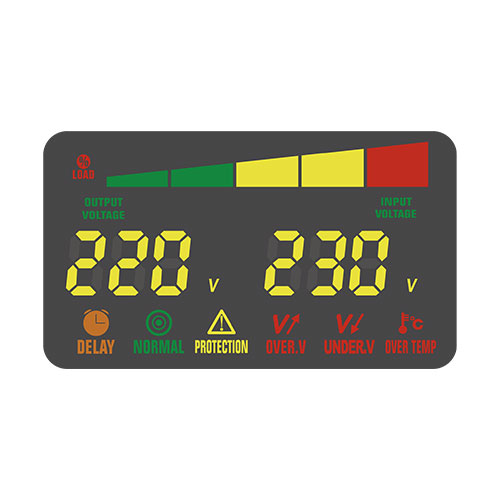

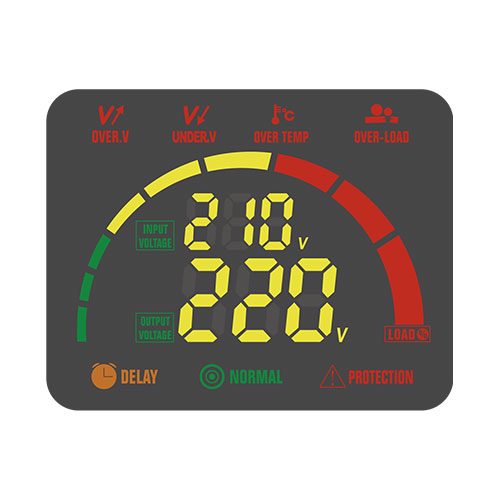

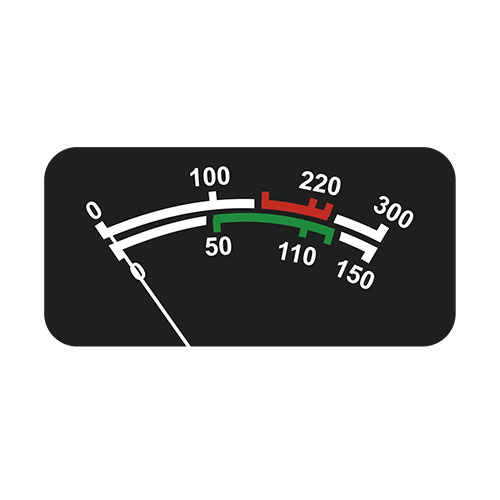

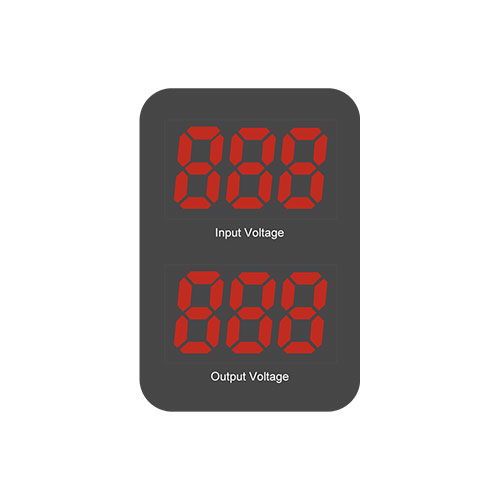

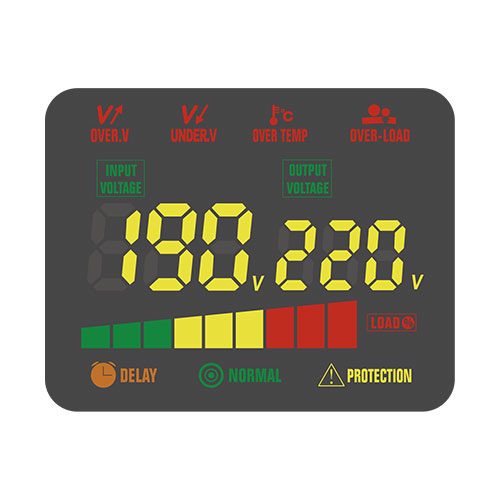

Display Options

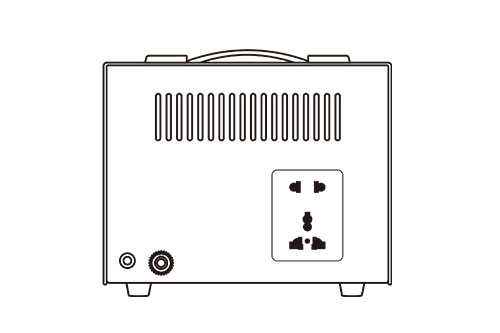

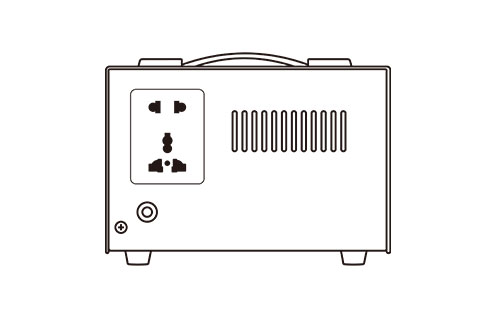

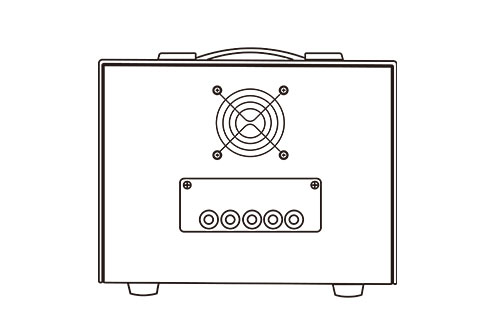

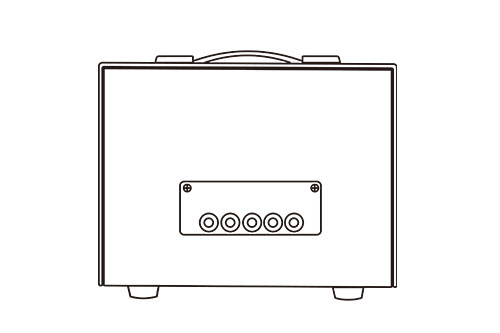

Rear Panel

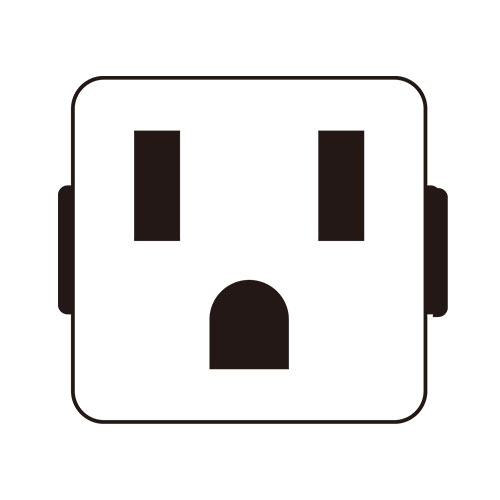

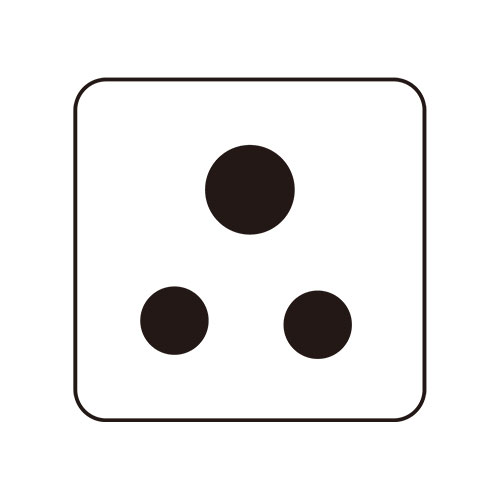

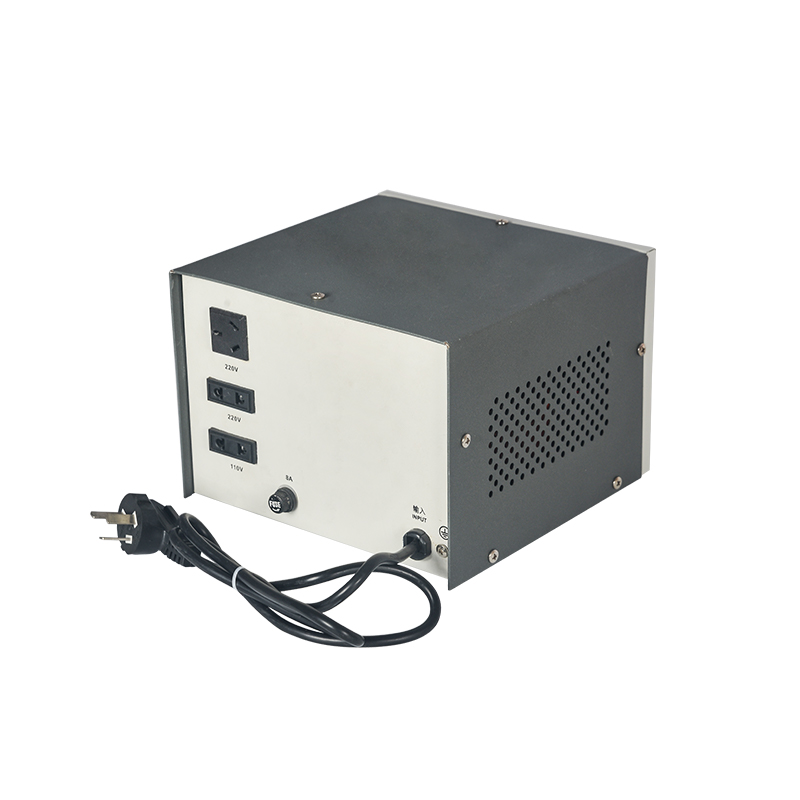

Socket Options
European Voltage Stabilizer
PRO Professional Voltage Stabilizer Applications
Why Choose YIY PRO Series?
PRO vs SVC: Why the Premium Matters
The PRO series shares servo motor technology with the SVC series but adds a critical protection layer that the SVC lacks: dual-LED input/output voltage display for real-time monitoring, and automatic fan-failure detection that shuts down the unit before thermal damage occurs. The PRO also guarantees ≥120% overload capacity — essential for equipment with unpredictable load spikes. These features add 20–30% to the unit cost but eliminate the two most common causes of stabilizer-related equipment damage: undetected overheating and unmonitored voltage drift.
The decision is simple: if the cost of one hour of unplanned downtime exceeds the PRO/SVC price difference, the PRO pays for itself on the first incident it prevents.
Best Applications for PRO
The PRO series is purpose-built for data centers and server rooms where the dual-LED display gives NOC staff instant visibility into input/output voltage without external instrumentation, and for broadcast and telecommunications facilities where fan-failure auto-shutdown prevents thermal cascading that could take an entire transmitter chain offline. It is also the standard specification for hospital diagnostic imaging (CT, MRI, X-ray) where voltage deviations affect image quality and fan failure in enclosed equipment rooms creates patient safety risks.
Compare PRO with related stabilizer options
Use this review path to compare single-phase precision options, confirm factory capability, and download the right technical material before asking for a commercial quote.
Selection Notes: When PRO Is the Better Fit
The PRO series is the right single-phase cabinet servo platform when the buyer needs cleaner front-panel control, dealer-friendly SKU coverage from 500VA to 30KVA, and better service access than a wall-mounted household unit. It is not the “default for every servo project”; it is the better choice when branch-level capacity, display visibility, and cabinet format matter more than extreme low-voltage ride-through.
- Best fit: retail branches, office circuits, clinic equipment rooms, light workshops, and dealer stock where one cabinet format must cover multiple single-phase capacities.
- Choose PRO over wall-mounted models: when the load is too large for a compact wall enclosure, when socket/display variants matter, or when bench service access is part of the buying decision.
- Choose SVC instead: when the load is more motor-heavy and long-duty precision matters more than front-panel convenience and cabinet SKU breadth.
- Step up to three-phase models: if the project uses industrial 380V distribution or the branch panel is already moving into the medium-capacity band.
For branch-level sizing, start with the small-capacity sizing guide. If the project is moving into a true three-phase workshop, jump to the 10-25 KVA three-phase selection guide.
