Large Capacity Voltage Stabilizers
(150-3000KVA)

Heavy-duty voltage stabilizers engineered for the most demanding industrial applications. Power plants, mining operations, steel mills, and mega-scale facilities trust our large capacity solutions for critical power protection.

WHAT WE DO

Why Choose YIY Large Capacity Voltage Stabilizers?

home (1)

Extreme Duty Industrial Engineering

Purpose-built for the harshest industrial environments including mining, steel production, and heavy manufacturing. Designed to withstand extreme temperatures, vibration, dust, and corrosive conditions.
YIY Digital Twin Technology

Mega-Scale Power Management

Single units up to 3000KVA with unlimited parallel capacity for multi-megawatt installations. Advanced load sharing and redundancy systems ensure continuous operation of critical industrial processes.
YIY prototype icon

Custom Engineered Solutions

Every large capacity installation is uniquely engineered to meet specific site requirements. Complete turnkey solutions from initial design through commissioning and long-term maintenance support.

By Product Technology

By Voltage Standard

By Capacity

Large Capacity Voltage Stabilizer Product Range

Complete large capacity voltage stabilizer solutions from 150KVA to 3000KVA for mega-scale industrial applications.

Large Capacity Model Families (45KVA-3000KVA)

Series Topology Typical Capacity Window Best Fit Why Buyers Choose It
PWR High-power servo 45-100KVA Single-phase heavy commercial loads and large equipment clusters Tighter output control for higher-power single-phase projects
PWR-3 Three-phase high-precision servo 45-500KVA Automotive lines, precision process equipment, fast-response industrial loads Higher regulation precision with project-ready three-phase architecture
SBW Three-phase servo 200-1500KVA Cement, process industry, plant utility feeders Rugged large-capacity platform for continuous-duty industrial service
SBW-F Three-phase IP54 servo 300-3000KVA Mining, steel, outdoor or dusty industrial sites Heavy-duty enclosure and site-ready configuration for harsh environments

Use this shortlist to compare PWR high-power servo, PWR-3, SBW, and SBW-F IP54 before finalizing a site-specific large-capacity brief.

Project Planning Checklist for 150-3000KVA Installations

Project factor What to confirm before quotation Helpful internal reference
Load profile Total kVA, motor inrush, harmonic sources, future expansion, and whether N+1 redundancy or maintenance bypass is required. Three-phase stabilizers
Site environment Indoor vs outdoor installation, dust, vibration, humidity, ambient temperature, and the IP enclosure level expected on site. SBW-F IP54
Voltage standard Utility voltage, transformer interface, line length, bypass arrangement, and target output tolerance for the protected process. Download technical materials
Delivery confidence Factory test scope, certifications, commissioning support, spare-parts planning, and after-sales ownership before installation approval. Manufacturing / Certifications / OEM Service

For company background and project support capability, review About YIY before requesting a site-specific large-capacity proposal.

Quick Selection Guide for YIY Large Capacity Voltage Stabilizer

Industry Sector Recommended Series Typical Capacity Key Requirements
Steel & Metallurgy SBW-F 500KVA – 3000KVA Unbalanced loads, harsh conditions
Mining & Extraction SBW-F 300KVA – 2000KVA Extreme environments, high reliability
Power Generation SBW / SBW-F 1000KVA – 3000KVA Grid stability, redundancy
Chemical Processing PWR-3 / SBW-F 150KVA – 1000KVA Precision control, safety critical
Cement & Building Materials SBW 200KVA – 1500KVA Cost-effective, robust operation
Automotive Manufacturing PWR-3 45KVA – 500KVA High precision, fast response

Professional Large Capacity Voltage Stabilizer OEM Services

Custom-engineered mega-scale voltage stabilization solutions designed specifically for your industrial requirements. Complete turnkey projects from concept to commissioning for the world’s most demanding applications.
  • Ultra-Heavy Equipment Assembly – Specialized facilities for 3000KVA+ units, overhead crane capacity up to 50 tons
  • Advanced Testing Infrastructure – High-voltage test laboratories, full-load testing up to 10MVA, harmonic analysis equipment
  • Global Project Logistics – Specialized heavy transport coordination, modular shipping solutions, worldwide installation support

Large Capacity Voltage Stabilizer Applications

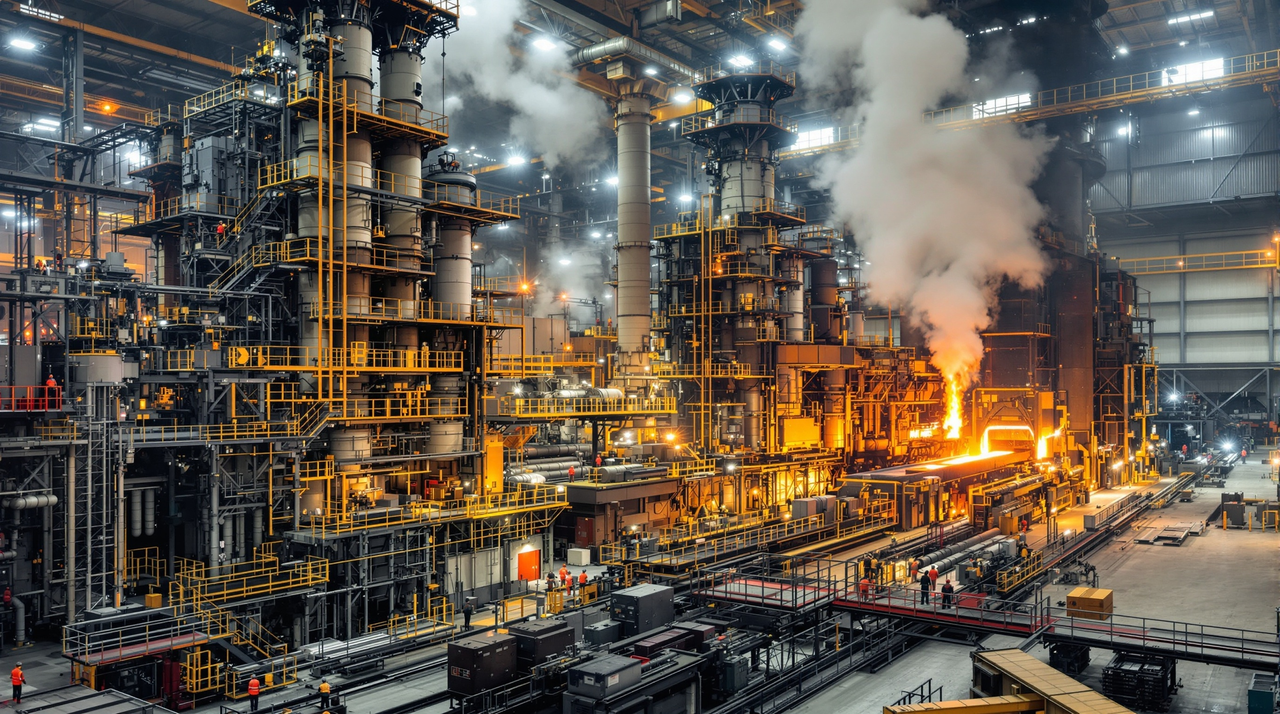

YIY voltage stabilizer in heavy steel and manufacturing

Heavy Steel &
Manufacturing

Protect blast furnaces, steel rolling mills, and massive industrial equipment. Ensure continuous operation of critical heavy manufacturing processes in steel plants and foundries requiring mega-scale power protection.

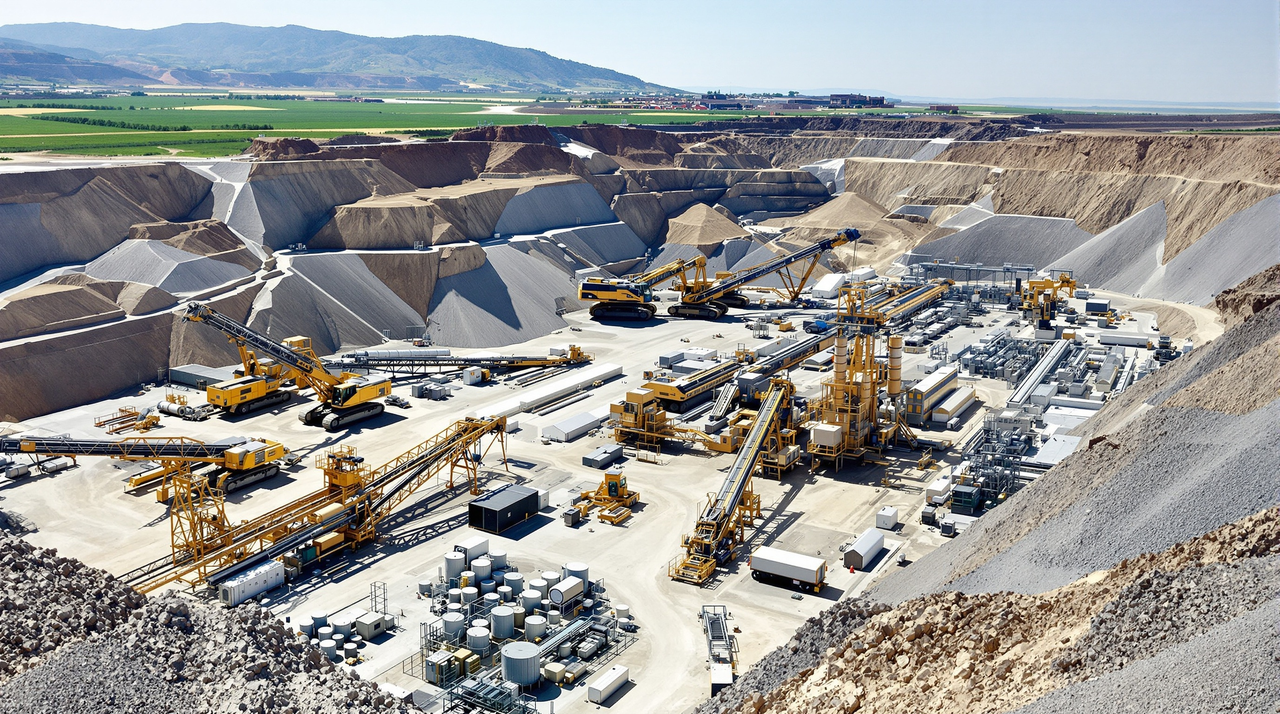

YIY voltage stabilizer in mining and extraction industries

Mining & Extraction
Industries

Reliable power protection for massive excavators, conveyor systems, crushing equipment, and processing facilities. Withstand harsh mining environments while protecting critical extraction and processing operations.

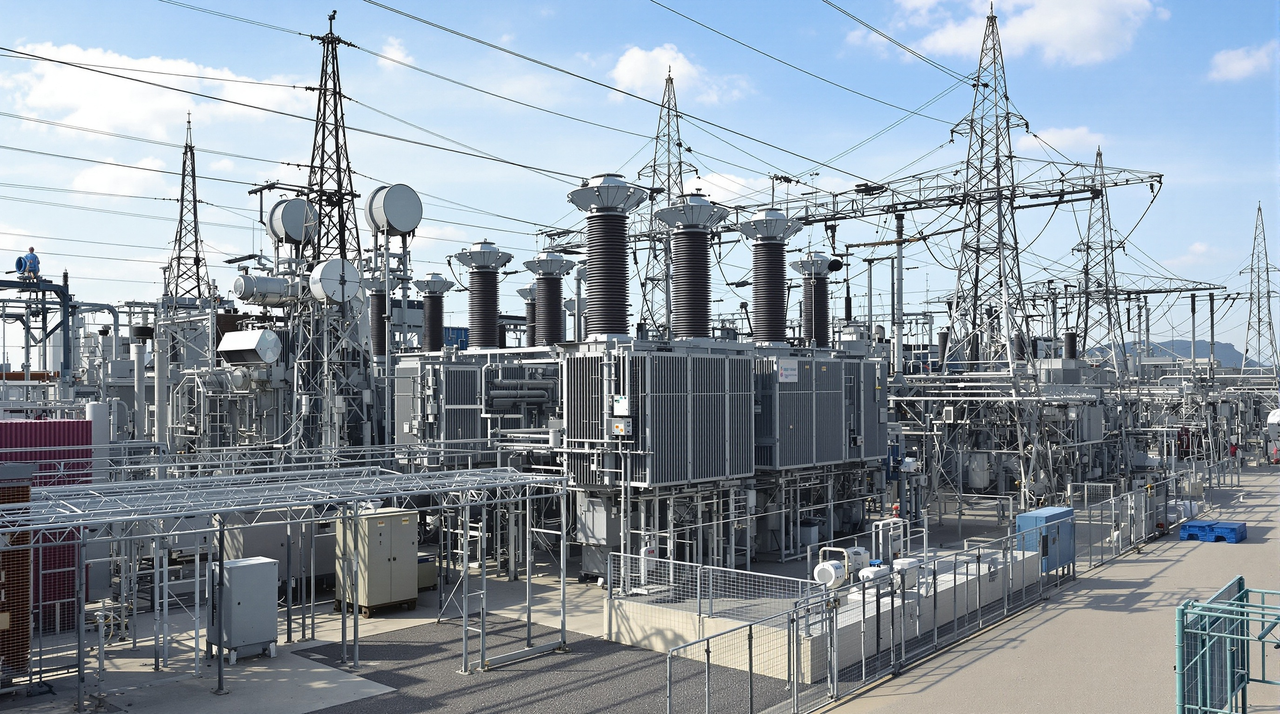

YIY voltage stabilizer in power plants and electrical infrastructure

Power Plants & Electrical Infrastructure

Critical voltage regulation for power generation facilities, substations, and transmission systems. Ensure stable operation of massive transformers, switchgear, and electrical infrastructure in utility and industrial power systems.

Selection guide

How to specify a 150–3000kVA voltage stabilizer

At 150kVA and above, the stabilizer becomes part of the low-voltage switchboard design. The correction method, input window, enclosure, bypass and delivery logistics all have to be fixed before the price is meaningful.

YIY offers two routes at this size. Servo cabinets (SBW from 50kVA to 3000kVA, SBW-F IP54 from 150kVA to 3000kVA, PWR-3 up to 150kVA) hold 380/400V ±3% across wide, slow supply swings. The IGBT-based AVC active voltage conditioner (three-phase 30–500kVA, larger frames to 3600kVA) corrects sags with an initial response under 250μs and typical accuracy under ±0.5%.

Choose this range when

  • Servo (SBW / SBW-F): the supply drifts slowly and widely, and the site wants a ±20%, ±25% or ±30% input window held at ±3% output.
  • AVC: the problem is short sags that trip process lines, and you need correction inside half a cycle with independent control on each phase.
  • SBW-F IP54: the plant room is dusty or humid, or the cabinet sits close to production.

Look elsewhere when

  • The load is below roughly 150kVA: PWR-3 (45–150kVA) or the medium-capacity range is usually simpler to install.
  • You need frequency conversion, not just voltage correction: discuss a CVCF-type solution with our engineers.

Plan logistics early. The SBW page lists the 500kVA model in a 1400×1100×2060mm package at 1075kg shipping weight, 600–1000kVA as two cabinets, and 1200–3000kVA as two to six cabinets. SBW-F lists bypass current from 400A at 150kVA to 6300A at 3000kVA, which sets the size of the switchgear interface.

Specification summary

ModelTechnologyRatingsInput rangeOutput / key data
SBW Three-Phase Servo StabilizerServo cabinet50–3000kVA304–456V380V ±3%; −15°C to +45°C
SBW-F IP54 Three-Phase Servo StabilizerServo cabinet, IP54150–3000kVA304–456V / 285–475V / 266–494V380/400V ±3%; bypass 400–6300A
PWR-3 Three-Phase Servo StabilizerServo45–150kVA285–475V (±25%) / 266–494V (±30%)380/400V ±3%; phase-loss protection
AVC Active Voltage ConditionerIGBT, contactless30–500kVA (3-phase); to 3600kVA228–456V (380V application)<±0.5% typical; sag response <250μs

Values copied from each product page’s specification table. AVC frames above 500kVA are listed as RND.

Application scenarios

Plant-wide incomer protection

One SBW or SBW-F cabinet at the main LV board protects a whole factory instead of dozens of machine-level units, with a single bypass and maintenance point.

Process lines sensitive to sags

AVC independent per-phase control and sag correction within half a cycle keep extrusion, printing or packaging lines running through short grid dips.

Commercial towers and campuses

SBW-F IP54 cabinets with automatic bypass suit plant rooms that serve lifts, chillers and pumps from one transformer.

EPC and infrastructure projects

Published dimensions, weights and bypass currents let contractors fix crane access, plinths and cable sizing at the design stage.

Buyer questions

Should a 500kVA site use a servo cabinet or an active voltage conditioner?

Use servo when the supply drifts slowly across a wide range. Use AVC when short sags are the issue. AVC lists a ±10% continuous regulation range with ±4% sag-correction accuracy, while SBW-F holds ±3% across up to ±30% input.

How is a 1000kVA SBW shipped?

The SBW page lists 1000kVA as two cabinets of 1680×1300×1800mm, with 2360kg shipping weight.

What bypass rating should we plan for?

SBW-F lists bypass current of 400A at 150–200kVA, 630A at 250–300kVA, 800A at 400kVA, 1000A at 500kVA and up to 6300A at 3000kVA.

Which input window should we choose: ±20%, ±25% or ±30%?

Choose from measured minimum and maximum voltage at the incomer. SBW-F lists 304–456V, 285–475V and 266–494V windows on a 380/400V system.

What data should we send for a 150–3000kVA quotation?

Send the load list, transformer and incomer rating, a voltage log, phase configuration, plant-room environment, the bypass and switchgear interface, and site access dimensions. Since 2008, YIY has built Servo, Relay and IGBT stabilizers in a 30,000 m² plant with 300+ staff, producing 1,000,000+ units a year for buyers in 130+ countries.

Frequently Asked Question

A: Our largest standard single unit is 3000KVA. For larger requirements, we design parallel systems with unlimited capacity. Our largest installation to date is 50MVA using parallel units with full redundancy.

A: Large units are designed with modular construction for easier transportation. We coordinate with specialized heavy transport companies and provide on-site assembly. Our installation teams have experience with crane operations and complex mechanical installations.

A: Engineering and manufacturing typically takes 3-6 months depending on customization level. Installation and commissioning adds 1-3 months. Rush projects can be accommodated with dedicated resources and expedited manufacturing.

A: Yes, our large capacity units are designed for operation up to 5000m altitude and temperature ranges from -40°C to +70°C. Special cooling systems and component derating ensure reliable operation in extreme conditions.

A: We offer N+1, N+2, and 2N redundancy configurations. For the most critical applications, we can design geographically separated redundant systems with automatic failover and manual transfer capabilities.

A: Large units include advanced harmonic filtering, power factor correction, and real-time power quality monitoring. We perform detailed harmonic analysis and design custom filtering solutions for each installation.

A: Preventive maintenance programs include quarterly visual inspections, annual comprehensive testing, and biennial major maintenance. We offer full-service maintenance contracts with guaranteed response times and spare parts availability.

A: Yes, our systems support all major industrial communication protocols including Modbus, DNP3, IEC 61850, and custom protocols. We provide complete integration with DCS, SCADA, and building management systems.

A: Our large capacity units meet IEC, IEEE, ANSI, and regional standards. We can provide certifications for specific applications including marine (DNV), railway (EN50155), and hazardous areas (ATEX/IECEx).

A: Large capacity installations include 2-year comprehensive warranty with optional extensions up to 10 years. We maintain dedicated spare parts inventory and provide guaranteed 24-hour emergency response for critical installations.
