Series: SBW Services

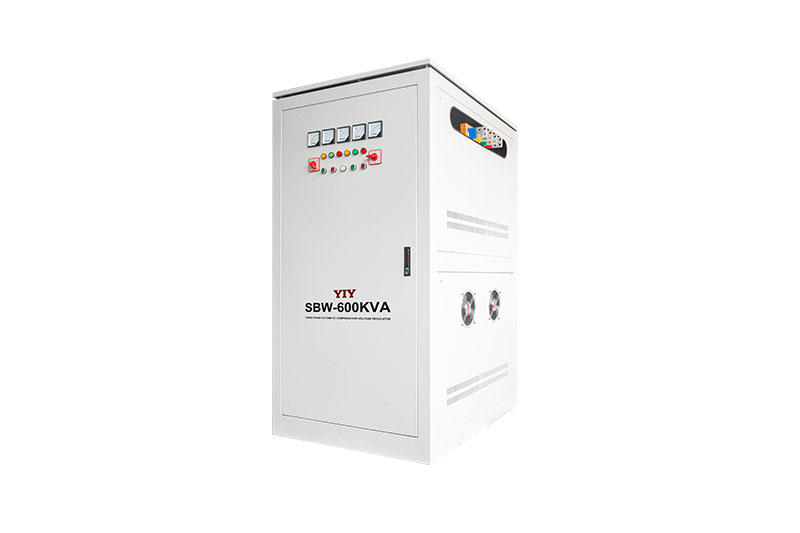

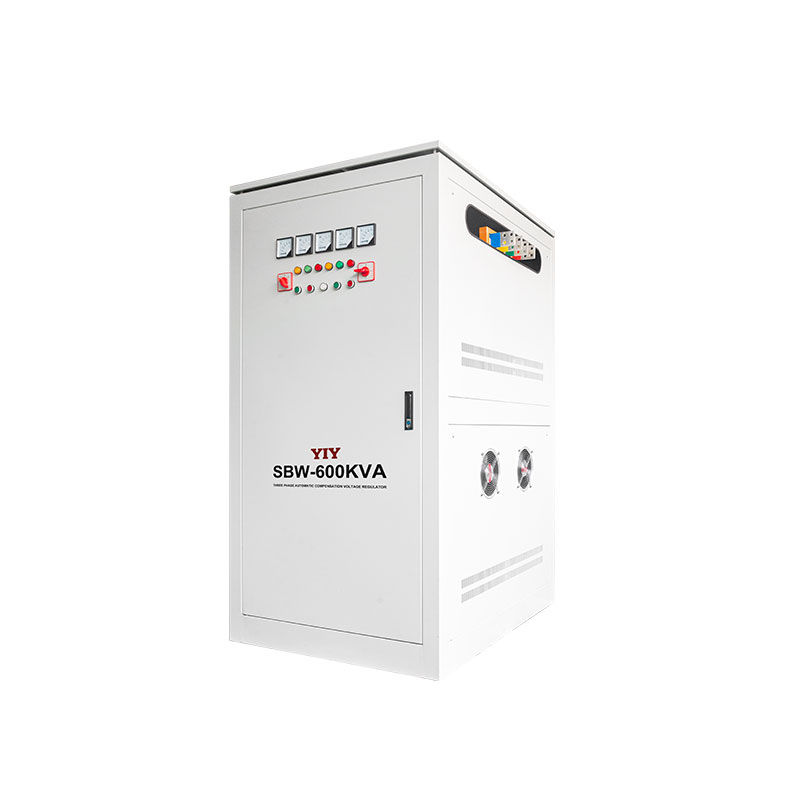

SBW Three-Phase Servo Voltage Stabilizer

High-capacity three-phase servo motor automatic compensation voltage stabilizer designed with advanced European technology for balanced three-phase load applications. The SBW series delivers exceptional power handling from 50KVA to 3000KVA with proven three-phase automatic compensation technology, ensuring stable voltage regulation during external grid fluctuations or load changes. Perfect for industrial facilities with balanced loads requiring reliable voltage conditioning, featuring no waveform distortion, 98% efficiency, and simple design with low maintenance costs for maximum operational reliability.

  • Advanced European Technology– Customizable design for different regional power grid requirements
  • High Capacity Range– 50KVA to 3000KVA covering extensive industrial power needs
  • Balanced Load Optimization– Specifically designed for three-phase balanced loads with overall voltage stability
  • No Waveform Distortion– Pure sine wave output maintains power quality integrity
  • High Efficiency (98%)– Superior energy conversion minimizes operational costs
  • Stable Voltage Regulation– Maintains consistent output during grid fluctuations and load changes

SBW Three-Phase Servo Voltage Stabilizer Complete Specifications

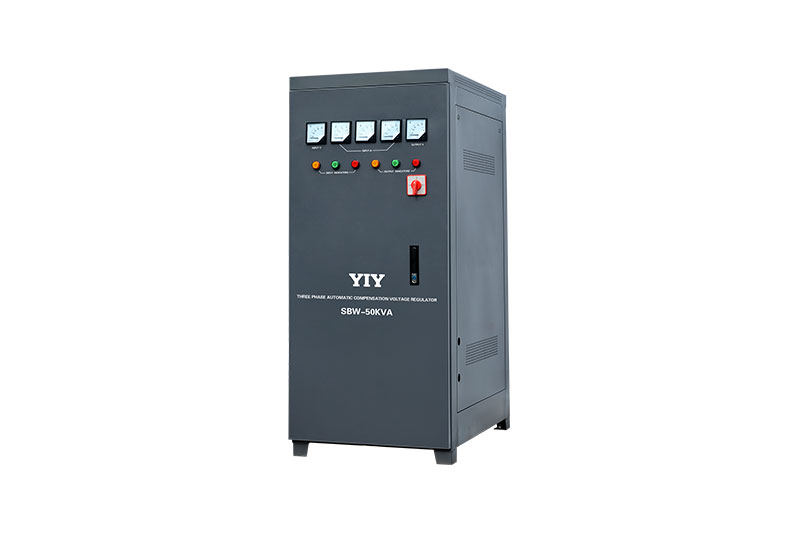

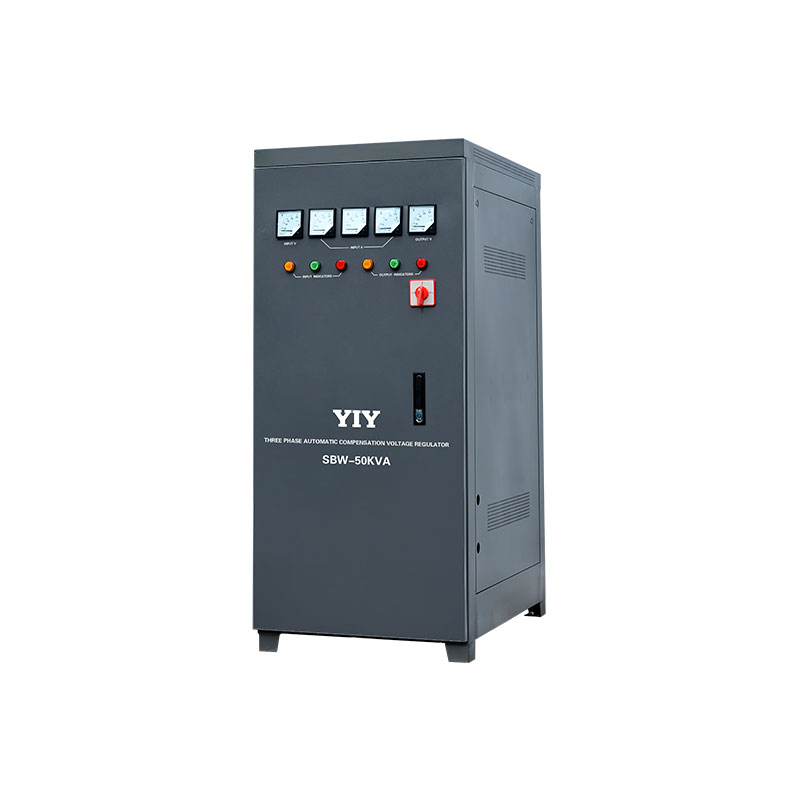

Medium to High Capacity Models (50KVA-350KVA)

Swipe or use Shift + mouse wheel to view all capacities.

Specification 50KVA 60KVA 80KVA 100KVA 150KVA 200KVA 250KVA 300KVA
Phase 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire
Input Voltage AC 304V-456V
Input Frequency 50Hz/60Hz
Output Voltage AC 380V ±3%
Output Capacity 40000W 48000W 64000W 80000W 120000W 160000W 200000W 240000W
Low voltage 318V ±7V
Over voltage 426V±7V
Time Delay 3-6s/3-6min optional
Overload/short circuit MCB/MCCB
Pcs per Carton 1
Net Wt.(kg) / 210 / 260 430 / / /
Shipping Wt.(kg) / 220 / 280 450 / / /
Package dimensions (mm) 600*750*1330 620*850*1440 750*1000*1750 900*1100*1790 1100*1000*1790 1100*1000*1790 1100*1000*1790 1100*1000*1790
AC-AC Efficiency 98%
Noise level ≤50dB
Temperature -15℃ to +45℃
Humidity 20% to 90%

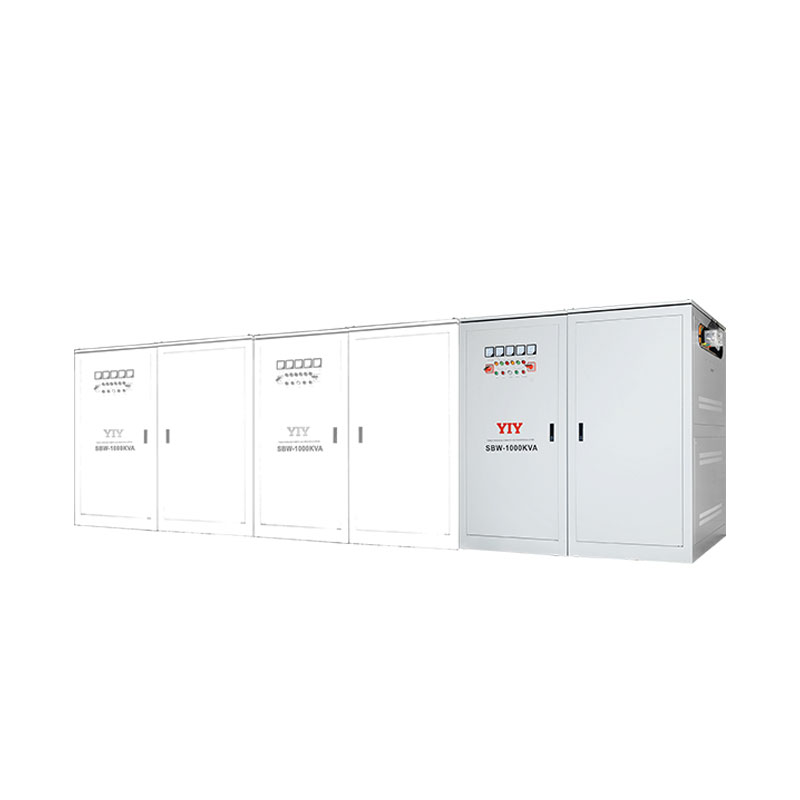

Ultra-High Capacity Models (400KVA-3000KVA)

Swipe or use Shift + mouse wheel to view all capacities.

Specification 400KVA 500KVA 600KVA 800KVA 1000KVA 1200KVA 1500KVA 3000KVA
Phase 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire 3-phase 4-wire
Input Voltage AC 304V-456V
Input Frequency 50Hz/60Hz
Output Voltage AC 380V ±3%
Output Capacity 320000W 400000W 480000W 640000W 800000W 960000W 1200000W 1600000W
Low voltage 318V ±7V
Over voltage 426V±7V
Time delay 3-6s/3-6min optional
Overload/short circuit MCB/MCCB
Pcs per Carton 1
Net Wt.(kg) 740 1050 1090 1835 2335 / / /
Shipping Wt.(kg) 765 1075 1115 1860 2360 / / /
Package dimensions (mm) 1100*1000*1790 1400*1100*2060 (1680*1300*1800)*2 (1680*1300*1800)*2 (1680*1300*1800)*2 Cabinet*2 Cabinet*3 Cabinet*6
AC-AC Efficiency 98%
Noise level ≤50dB
Temperature -15℃ to +45℃
Humidity 20% to 90%

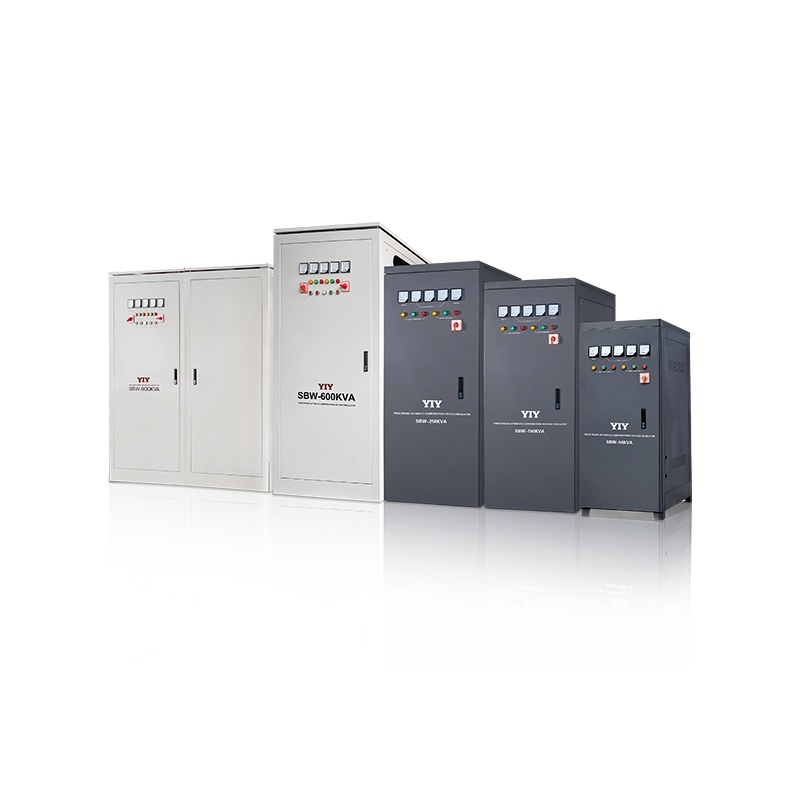

SBW Three-Phase Servo Voltage Stabilizer Catalog

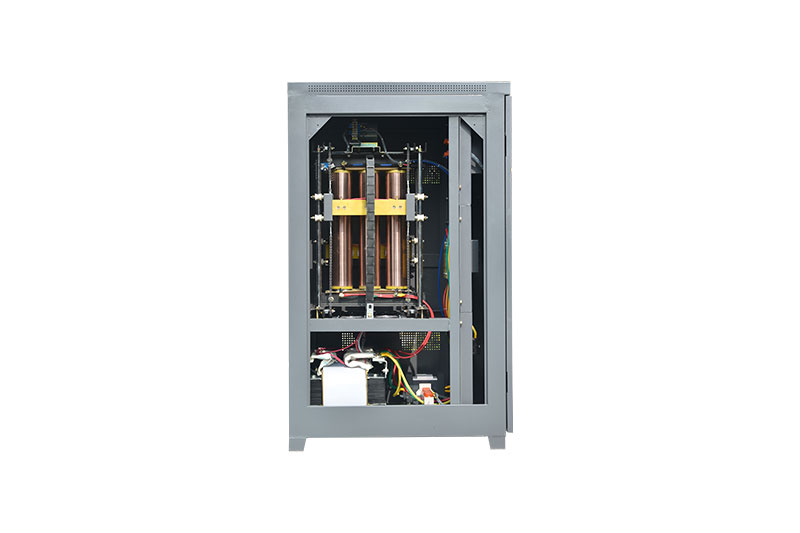

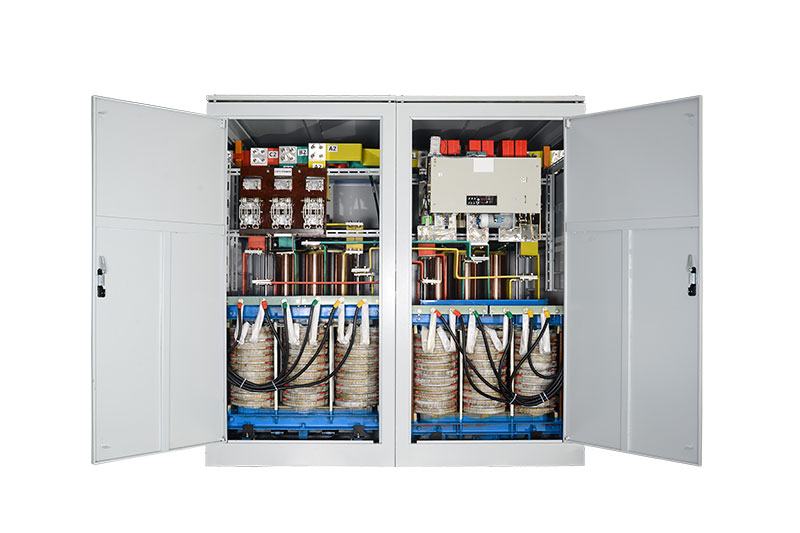

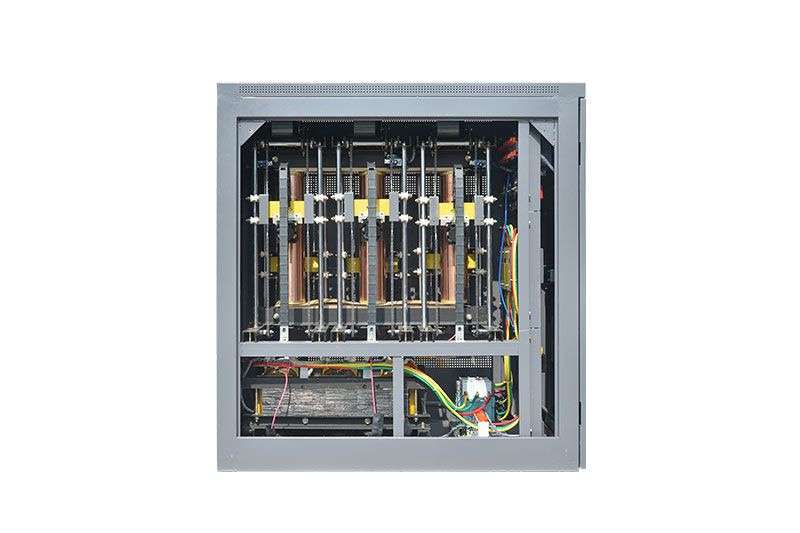

Internal Structure

SBW Three-Phase Servo Voltage Stabilizer Applications

Why Choose YIY SBW Series?

YIY TWS Series Servo Wall-Mount Voltage Stabilizer

Three-Phase Balanced Load Technology

  • Optimized design for balanced three-phase applications
  • Overall voltage stability with proven compensation technology
  • Cost-effective solution for standard balanced loads



Advanced European Technology

Advanced European Technology

  • European Standard: 304V-456V (±20% input range)
  • ±3% output precision for consistent power quality
  • 98% high efficiency energy conversion technology



Wide Capacity Range

Wide Capacity Range

  • Power handling: 50KVA to 3000KVA capacity

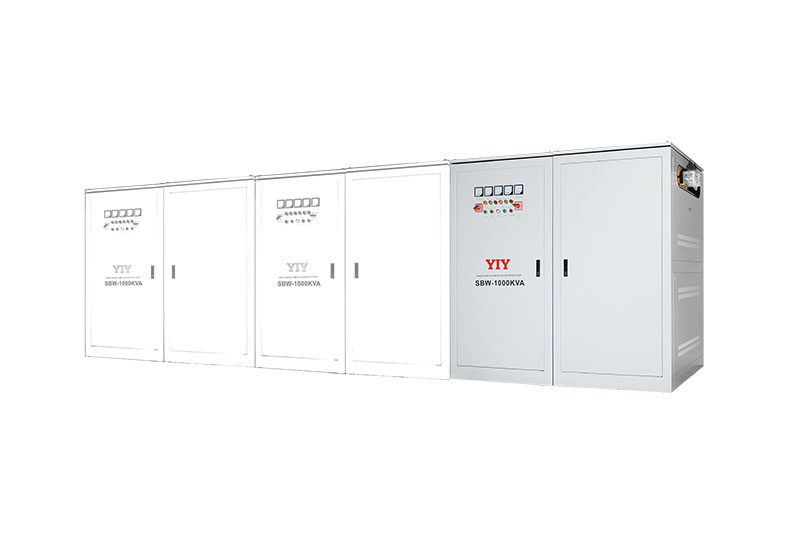

  • Modular design for large installations up to 3000KVA
  • Simple design with low maintenance costs



Contact Us

Don’t hesitate to reach out for any questions, quotes, or specialized advice. Our industry veterans are available to guide you through your specific needs.

    Get In Touch

    Zhejiang Yiyen Holding Group Co.,Ltd

    Address:

    No.77, Xiang Long Road, Lian Du Zone, Lishui City, Zhejiang Province, China

    E-Mail:

    yiyen at yiyen.com

    Phone/WhatsApp:

    Follow Our Social Media

    WhatsApp
    LinkedIn

    SBW vs SBW-F: Standard vs IP54 Protection

    The SBW and SBW-F share the same core servo technology and capacity range (SBW from 30 KVA, SBW-F from 150 KVA), but differ in two critical ways. The SBW uses standard industrial enclosures suited for clean, indoor electrical rooms — it assumes the installation environment is controlled. The SBW-F adds IP54-rated enclosures (dust-tight, splash-proof) and independent per-phase regulation, enabling outdoor deployment and handling of severely unbalanced three-phase loads. The SBW-F also offers selectable input tolerance (±20%/±25%/±30%) for sites where grid conditions vary seasonally.

    Best Applications for SBW

    The SBW is the standard specification for large factory production floors (textile mills, steel rolling, automotive assembly) where 100–3000 KVA capacity is needed and the electrical room is indoor and climate-controlled. It also serves utility distribution substations and data center main feeds where raw capacity and oil-cooled continuous duty matter more than IP54 environmental protection.

    Selection Notes: SBW as the Indoor Central-Feeder Choice

    SBW should be sold as the indoor central-feeder servo platform for large balanced three-phase loads, not just as “another big stabilizer”. Its strongest use case is the electrical room or production feeder where the buyer wants one high-capacity unit to stabilize an entire manufacturing line, workshop sub-panel, or plant section.

    • Best fit: indoor production feeders, central plant distribution, balanced three-phase motor loads, and manufacturing rooms where a single stabilizer protects a whole downstream line.
    • Choose SBW over SBW-F: when the installation sits in a clean electrical room and the project does not need IP54 protection.
    • Choose AVC instead: when the load is dominated by highly sensitive electronics that justify a tighter precision envelope and faster electronic correction.
    • Choose PWR-3 instead: when the buyer needs lower-capacity three-phase regulation with wider low-input tolerance rather than a full high-capacity central feeder architecture.

    For facility-scale sizing and commercial justification, see the 200-500 KVA industrial guide. For broader industrial application context, see the industrial equipment solution page.
