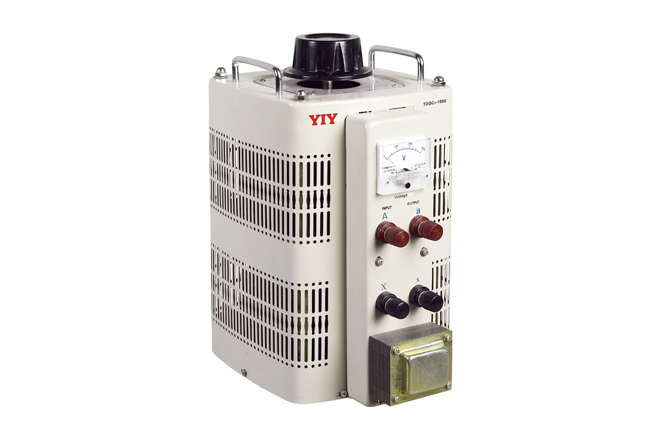

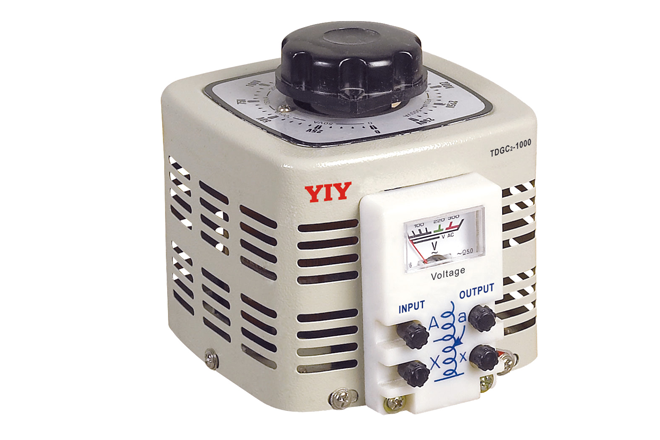

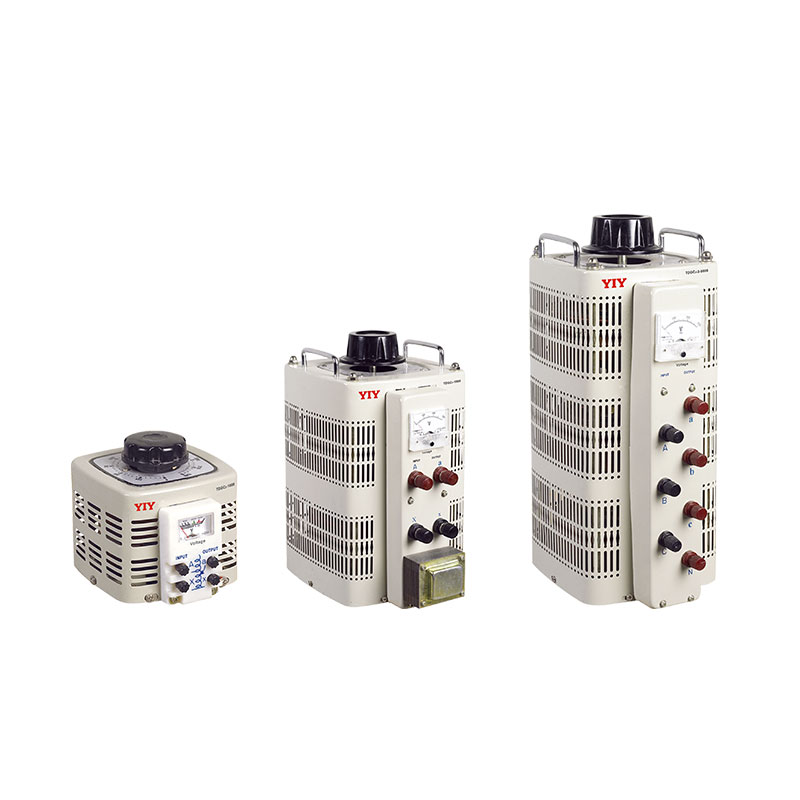

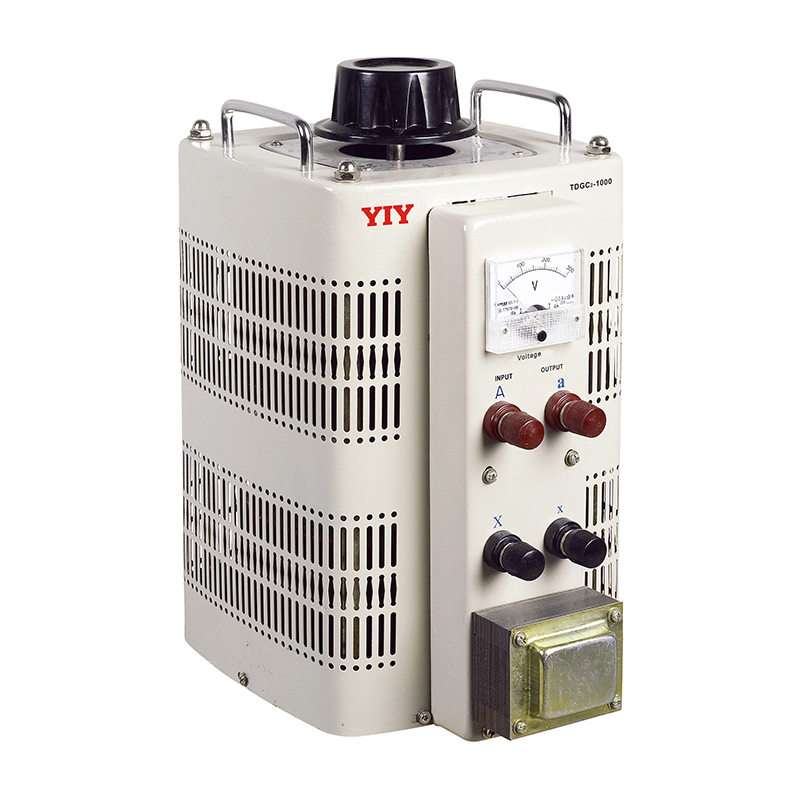

TDGC2/TSGC2 Manual Voltage Regulator

Precision manual voltage regulators providing accurate hand-wheel voltage control for testing, calibration, and laboratory applications. The TDGC2/TSGC2 series delivers reliable variable voltage output from 0.2KVA to 30KVA with precise manual adjustment capabilities, featuring single-phase TDGC2 (0.2KVA-20KVA) and three-phase TSGC2 (1.5KVA-30KVA) configurations. Perfect for laboratory testing, equipment calibration, and applications requiring precise voltage adjustment, offering variable output ranges (0-250V/0-430V), mechanical reliability, and comprehensive capacity options for diverse voltage regulation needs.

  • Precise Manual Control– Hand-wheel operation provides accurate, stepless voltage adjustment
  • Dual Configuration Options– Single-phase TDGC2 and three-phase TSGC2 models available
  • Wide Capacity Range– 0.2KVA to 30KVA covers laboratory to industrial applications
  • Variable Output Voltage– 0-250V (single-phase) and 0-430V (three-phase) adjustment ranges
  • Mechanical Reliability– Robust construction ensures long-term dependable operation
  • Multiple Current Ratings– Comprehensive current options from 0.8A to 80A

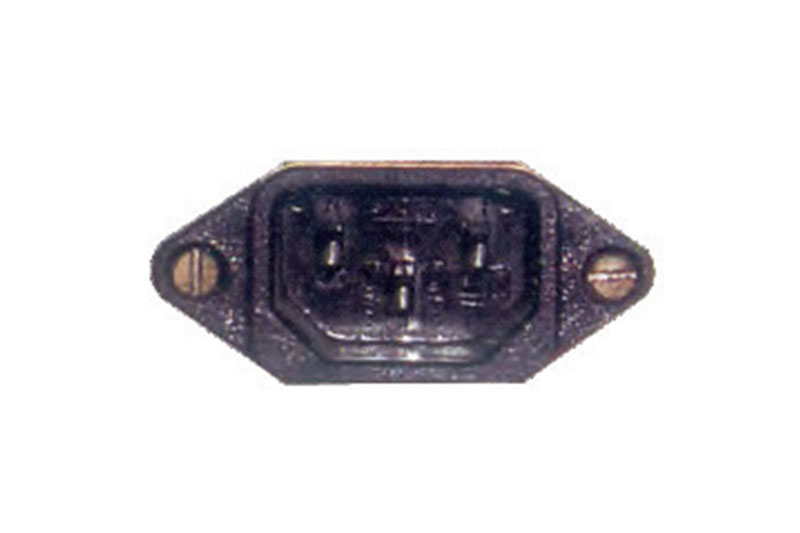

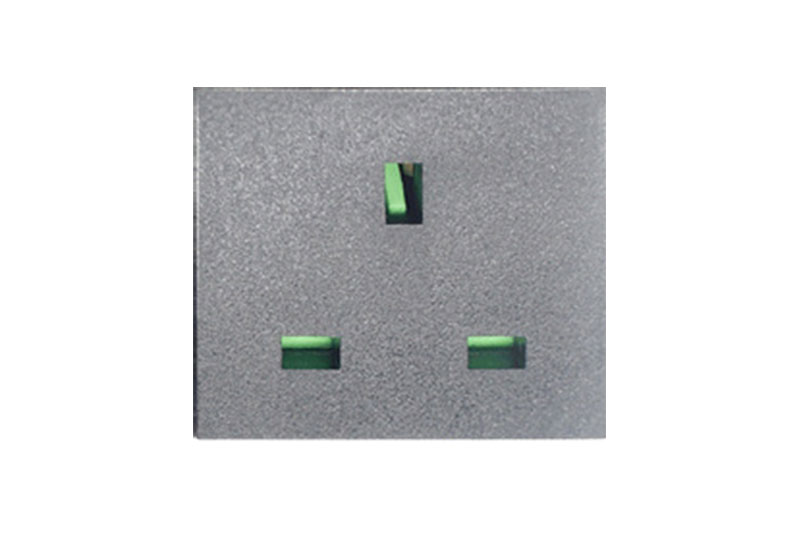

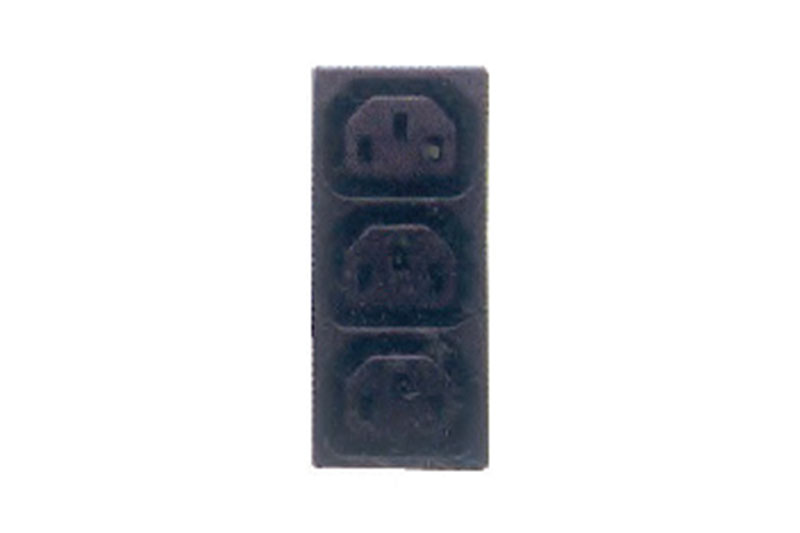

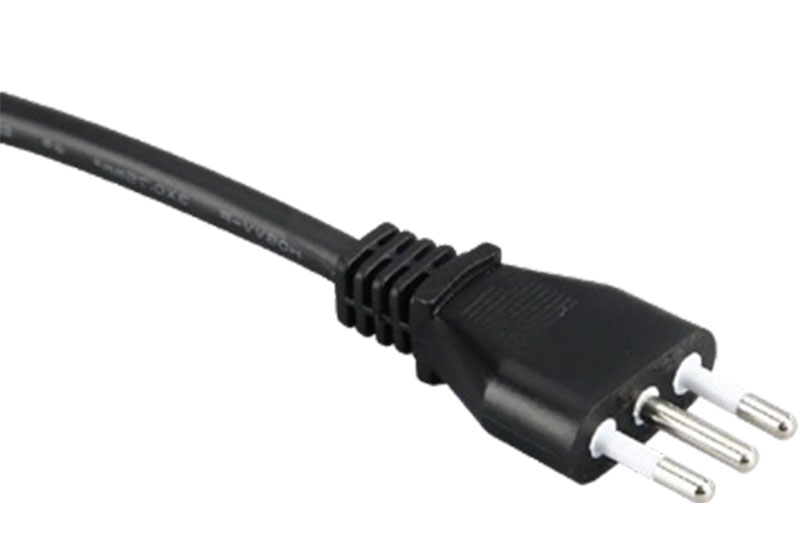

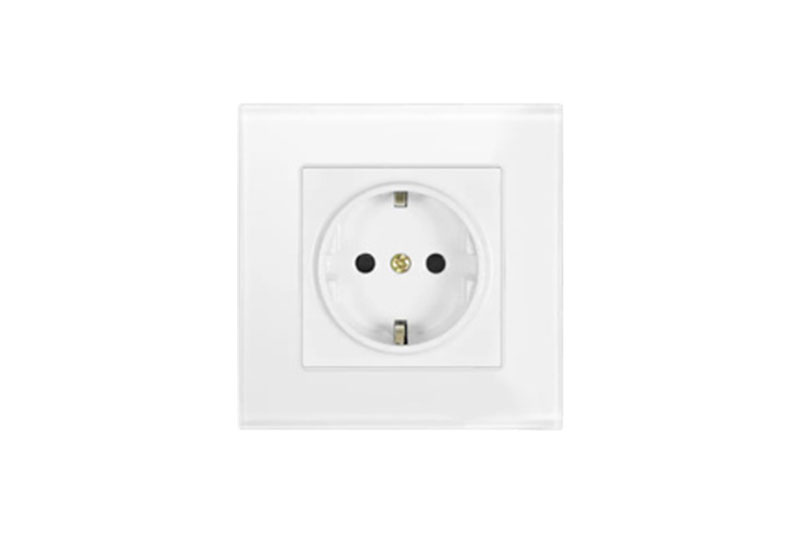

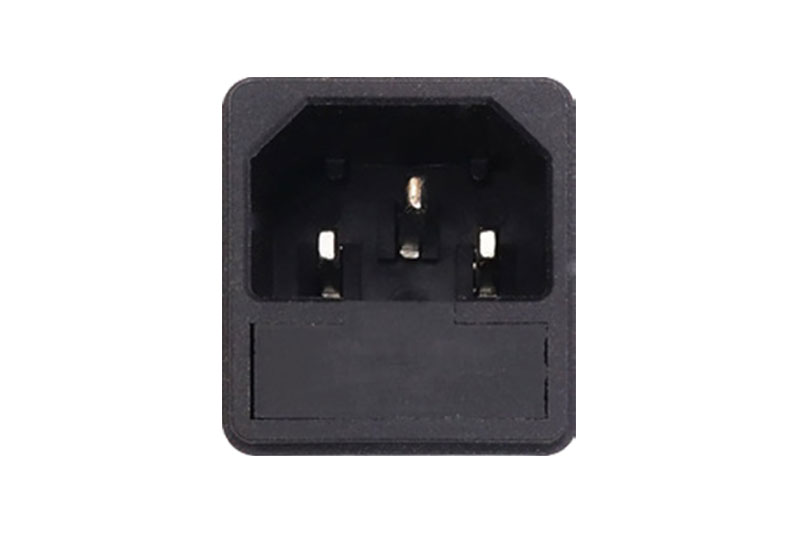

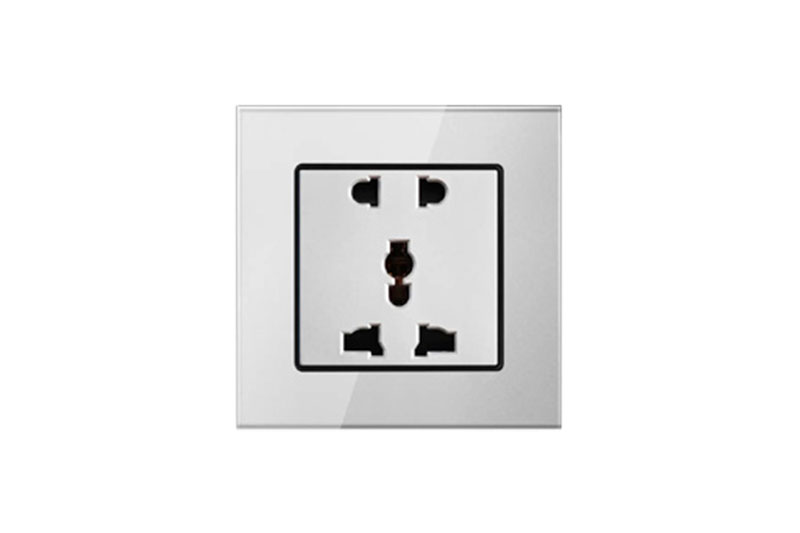

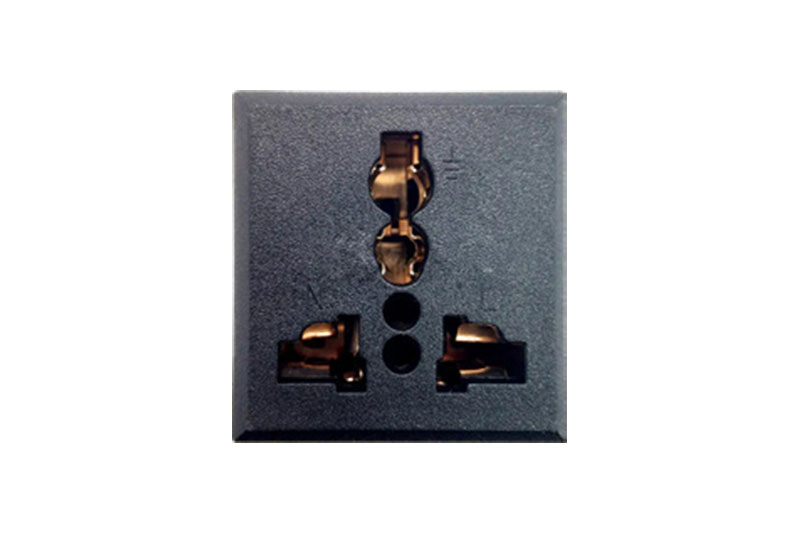

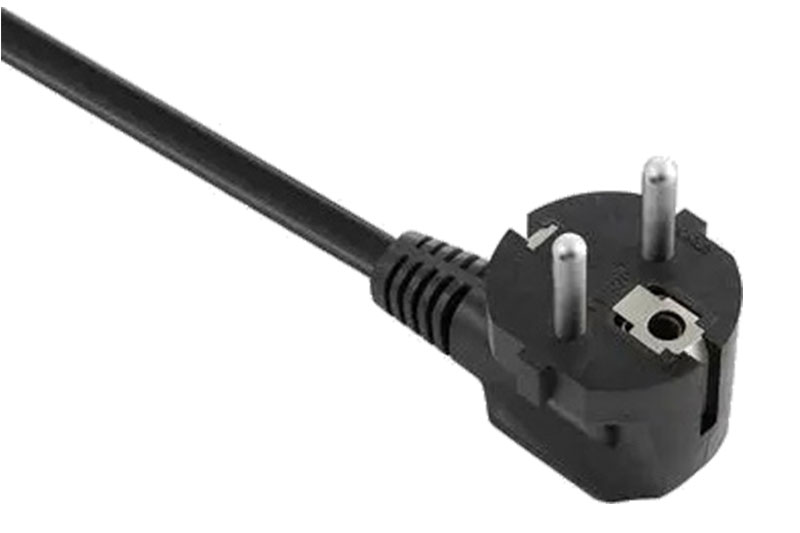

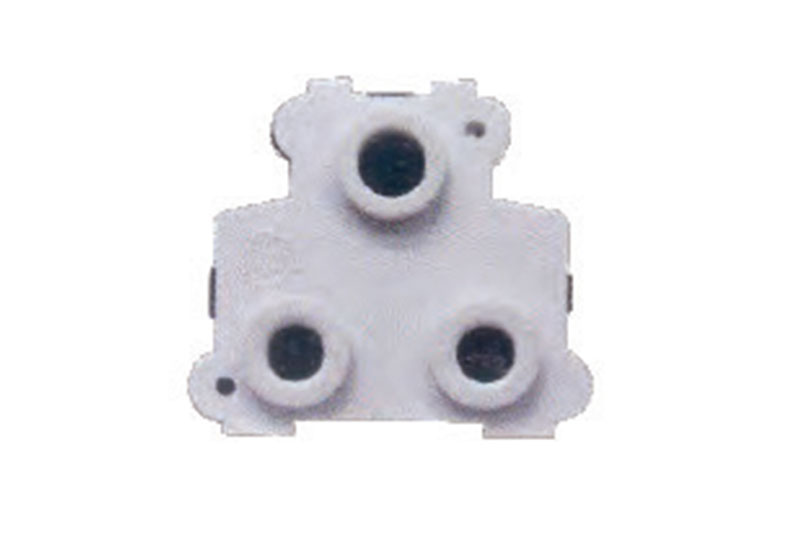

TDGC2/TSGC2 Manual Voltage Regulator Complete Specifications

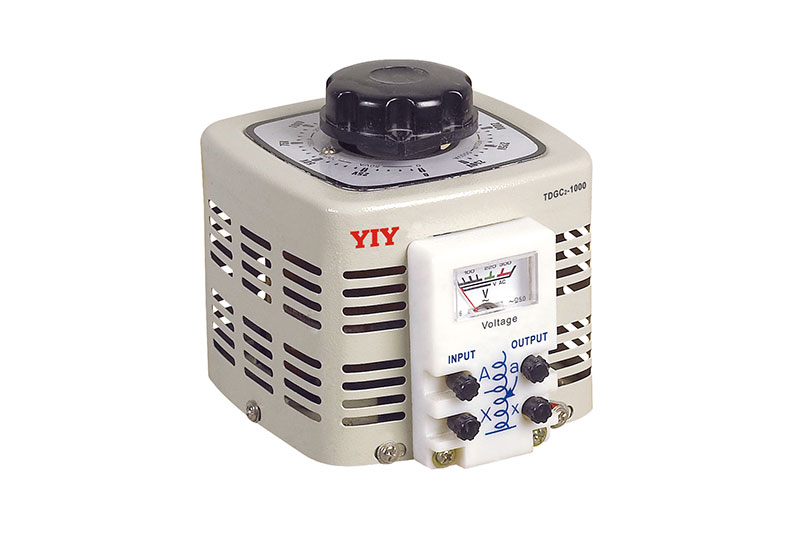

TDGC2 Single-Phase Models

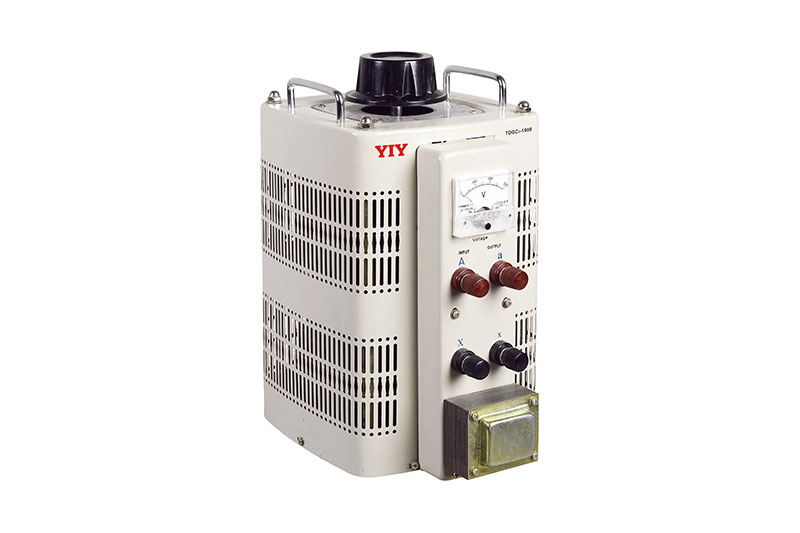

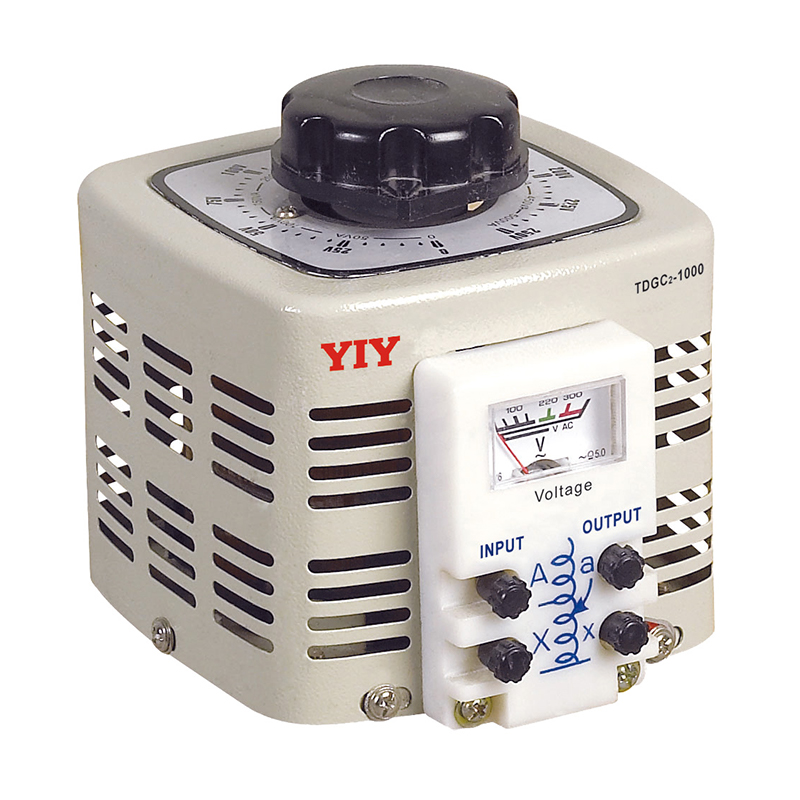

Model Max Output Capacity (KVA) Rated Input Voltage (V) Rated Output Voltage (V) Max Output Current (A) Overall Size (W×D×L mm) Package Size (W×D×L mm) Net Weight (kg) Gross Weight (kg) Qty per Package
TDGC2-0.2 0.2 220V 0-250V 0.8 105×130×130 380×347×350 25 26.5 12
TDGC2-0.5 0.5 220V 0-250V 2 125×150×130 380×347×350 27 28 8
TDGC2-1 1 220V 0-250V 4 180×200×210 435×255×465 25 26 4
TDGC2-2 2 220V 0-250V 8 180×200×210 435×255×465 31.5 33 4
TDGC2-3 3 220V 0-250V 12 210×230×230 490×275×290 21.5 23 2
TDGC2-5 5 220V 0-250V 20 240×285×250 330×275×290 17.5 18 1
TDGC2-10 10 220V 0-250V 40 240×335×400 390×295×505 34 40 1
TDGC2-15 15 220V 0-250V 60 240×335×560 390×295×650 50 58 1
TDGC2-20 20 220V 0-250V 80 240×340×590 390×295×650 53 60 1

TSGC2 Three-Phase Models

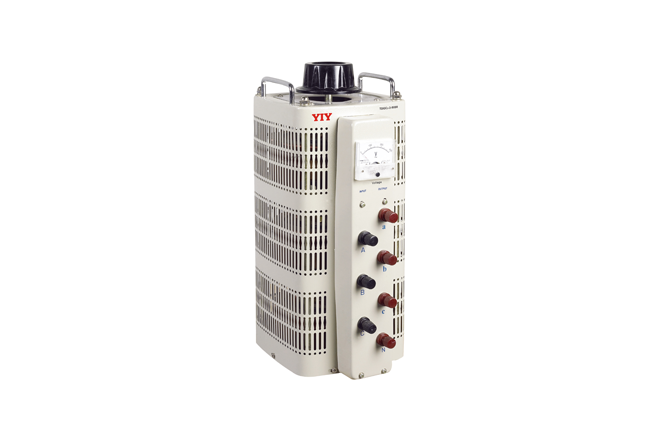

Model Max Output Capacity (KVA) Rated Input Voltage (V) Rated Output Voltage (V) Max Output Current (A) Overall Size (W×D×L mm) Package Size (W×D×L mm) Net Weight (kg) Gross Weight (kg) Qty per Package

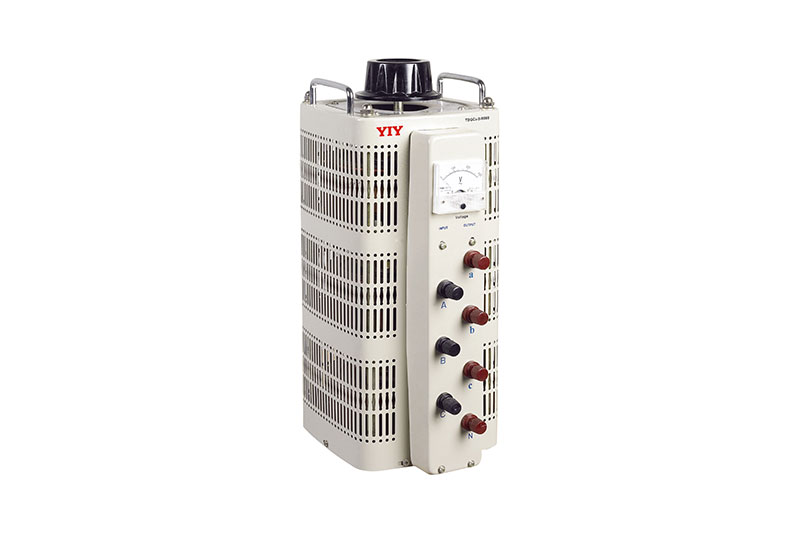

TSGC2-1.5 1.5 380V 0-430V 2 180×250×430 300×220×510 17 21.5 1
TSGC2-3 3 380V 0-430V 4 180×250×460 330×220×560 22 27 1
TSGC2-6 6 380V 0-430V 8 180×250×460 330×220×560 22 27 1
TSGC2-9 9 380V 0-430V 12 210×250×590 320×260×580 29 35 1
TSGC2-15 15 380V 0-430V 20 240×330×560 390×295×650 48 56 1
TSGC2-20 20 380V 0-430V 27 240×330×580 390×295×650 53 60 1
TSGC2-30 30 380V 0-430V 40 350×420×1060 440×450×1170 138 150 1

TDGC2/TSGC2 Manual Voltage Regulator Catalog

TDGC2/TSGC2 Manual Voltage Regulator Applications

Laboratory Testing & Calibration

Laboratory Testing & Calibration

Precision voltage control for equipment calibration, testing procedures, and laboratory applications requiring accurate stepless voltage adjustment with manual operation.
  • Applications: Equipment Calibration, Testing Benches, Measurement Standards, Laboratory Instruments, Quality Control Testing
  • Recommended Models: TDGC2: 0.2KVA – 20KVA, TSGC2: 1.5KVA – 30KVA
  • Core Value: Hand-wheel precision control with variable output ranges (0-250V/0-430V) for accurate testing requirements

Research & Development

Research & Development

Variable voltage sources for prototype testing, electronic device development, and R&D applications requiring precise voltage adjustment for product validation.
  • Applications: Prototype Testing, Electronic Development, Component Testing, Product Validation, Performance Analysis
  • Recommended Models: TDGC2: 1KVA – 10KVA, TSGC2: 3KVA – 20KVA
  • Core Value: Mechanical reliability with comprehensive capacity options for diverse research and development needs

Educational Training

Educational Training

Hands-on learning tools for electrical engineering education, training programs, and educational demonstrations requiring manual voltage regulation understanding.

  • Applications: Electrical Engineering Education, Training Programs, Educational Demonstrations, Student Experiments, Technical Training
  • Recommended Models: TDGC2: 0.2KVA – 5KVA, TSGC2: 1.5KVA – 9KVA
  • Core Value: Dual configuration options (single-phase TDGC2 and three-phase TSGC2) for comprehensive educational applications

Why Choose YIY TDGC2/TSGC2 Series?

Precise Manual Control

Precise Manual Control

  • Hand-wheel operation provides accurate, stepless voltage adjustment
  • Direct mechanical control for immediate response and fine-tuning
  • No electronic components to fail – purely mechanical reliability
  • Perfect for applications requiring hands-on voltage control



Dual Configuration Options

Dual Configuration Options

  • Single-phase TDGC2 models: 0.2KVA to 20KVA capacity range
  • Three-phase TSGC2 models: 1.5KVA to 30KVA capacity range
  • Variable output voltage: 0-250V (single-phase), 0-430V (three-phase)
  • Comprehensive current ratings from 0.8A to 80A



Wide Capacity Range

Wide Capacity Range

  • Laboratory applications: 0.2KVA – 5KVA for precision testing
  • Industrial applications: 10KVA – 30KVA for higher power requirements
  • Multiple current ratings available for diverse application needs
  • Robust construction ensures long-term dependable operation



Contact Us

Don’t hesitate to reach out for any questions, quotes, or specialized advice. Our industry veterans are available to guide you through your specific needs.

    Get In Touch

    Zhejiang Yiyen Holding Group Co.,Ltd

    Address:

    No.77, Xiang Long Road, Lian Du Zone, Lishui City, Zhejiang Province, China

    E-Mail:

    yiyen at yiyen.com

    Phone/WhatsApp:

    Follow Our Social Media

    WhatsApp
    LinkedIn

    TDGC2/TSGC2: Manual Variable Voltage for Testing and Commissioning

    Unlike every automatic stabilizer in YIY’s lineup, the TDGC2 (single-phase) and TSGC2 (three-phase) are manually operated variable autotransformers (variacs). The operator turns a rotary knob to smoothly adjust output voltage from 0V to 250V (single-phase) or 0V to 430V (three-phase). There is no automatic regulation, no feedback loop, no MCU control. This is intentional — the purpose is to give engineers full manual control over voltage during equipment testing, commissioning, and calibration.

    Best Applications for TDGC2/TSGC2

    The TDGC2/TSGC2 is standard equipment in electrical testing laboratories for voltage sweep testing (observing equipment behavior across a range of input voltages), equipment commissioning (gradually ramping voltage to detect inrush problems before connecting to full grid), and educational institutions (teaching electrical engineering students about voltage-dependent behavior). It is also used for motor soft-start applications where a manual voltage ramp-up controls starting current better than a fixed-voltage contactor.
