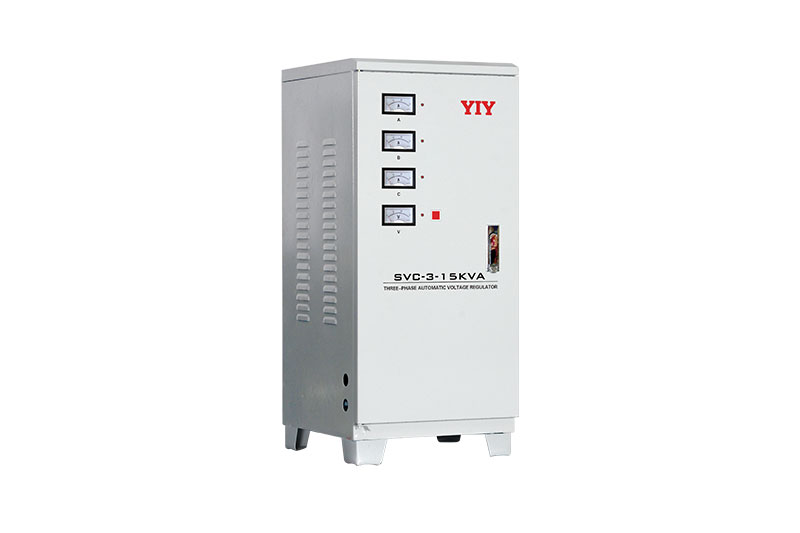

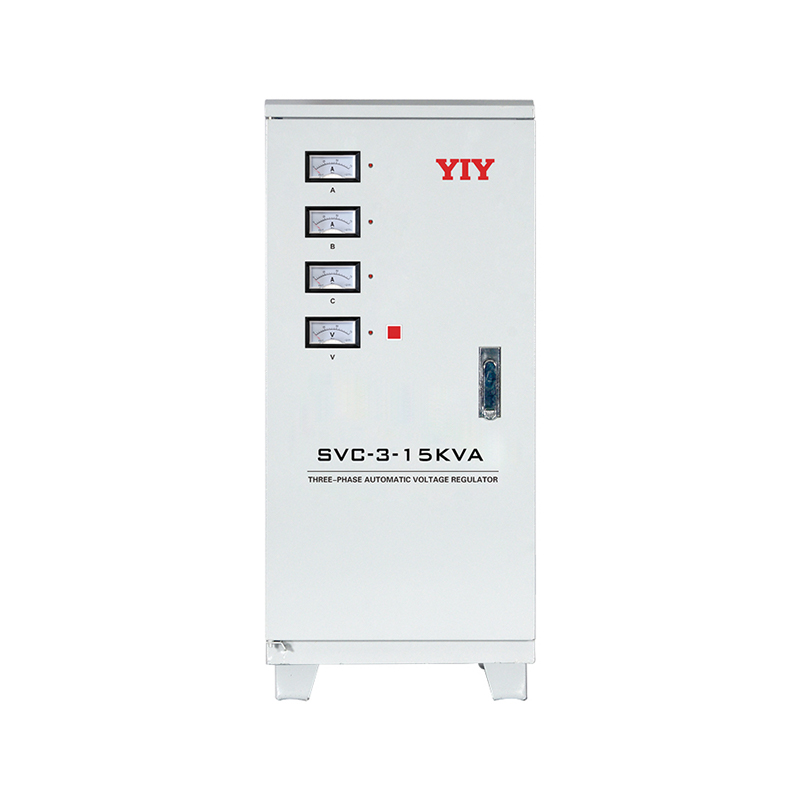

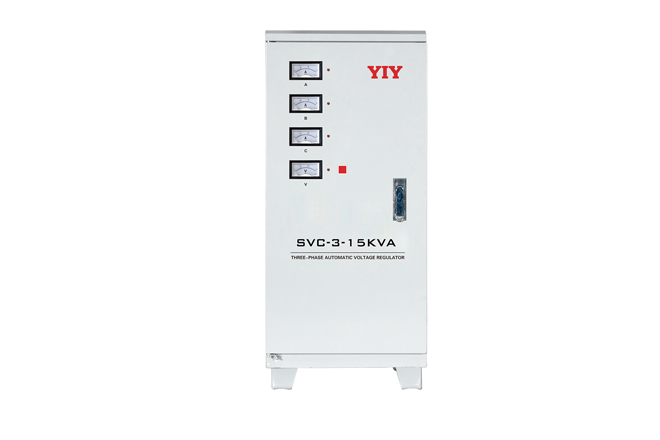

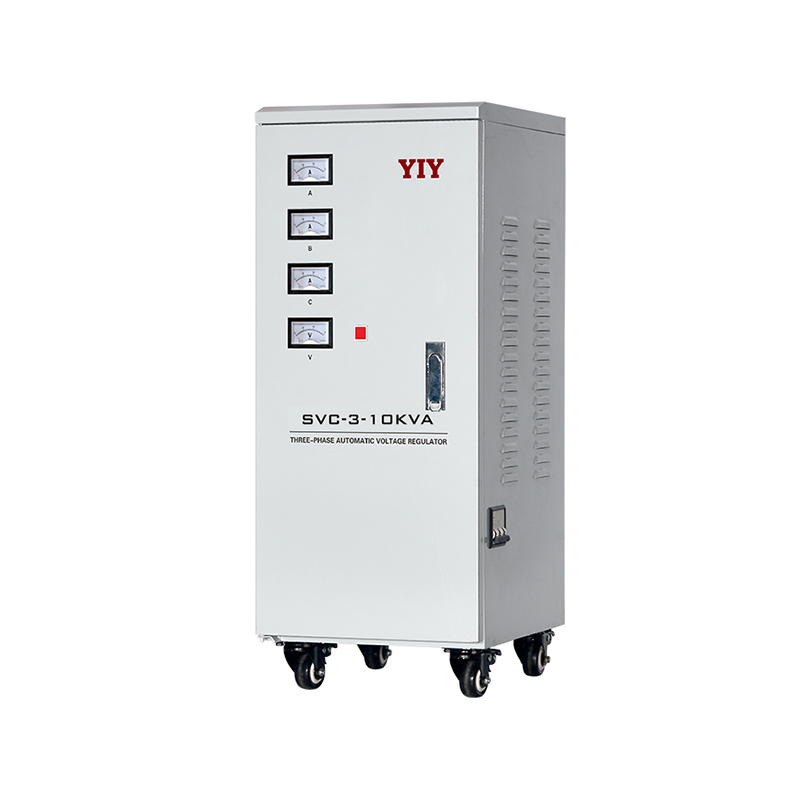

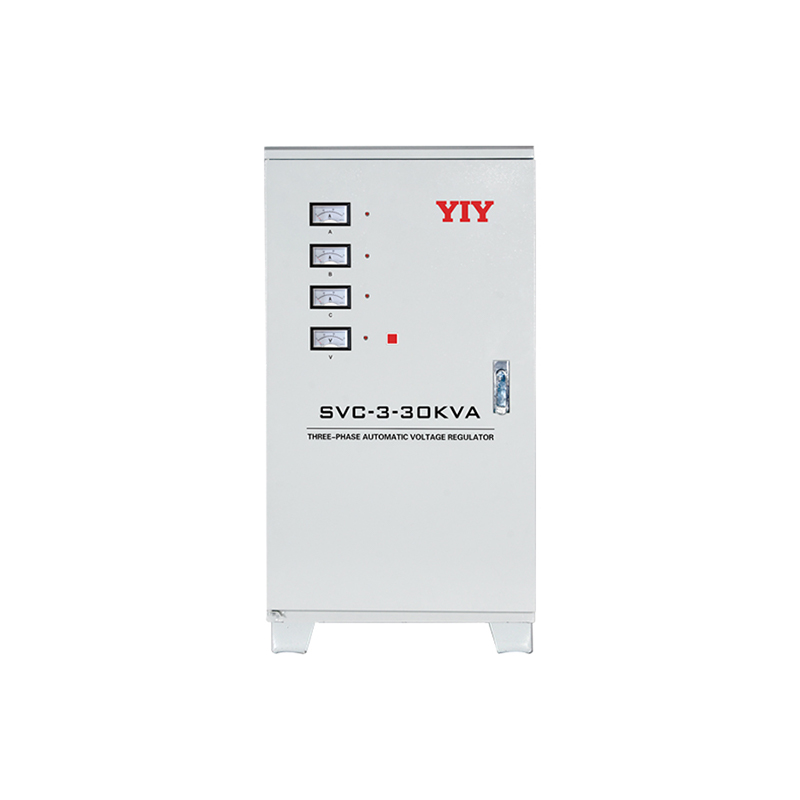

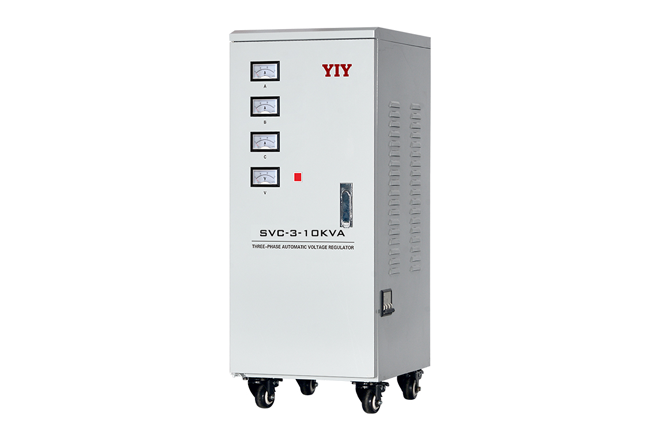

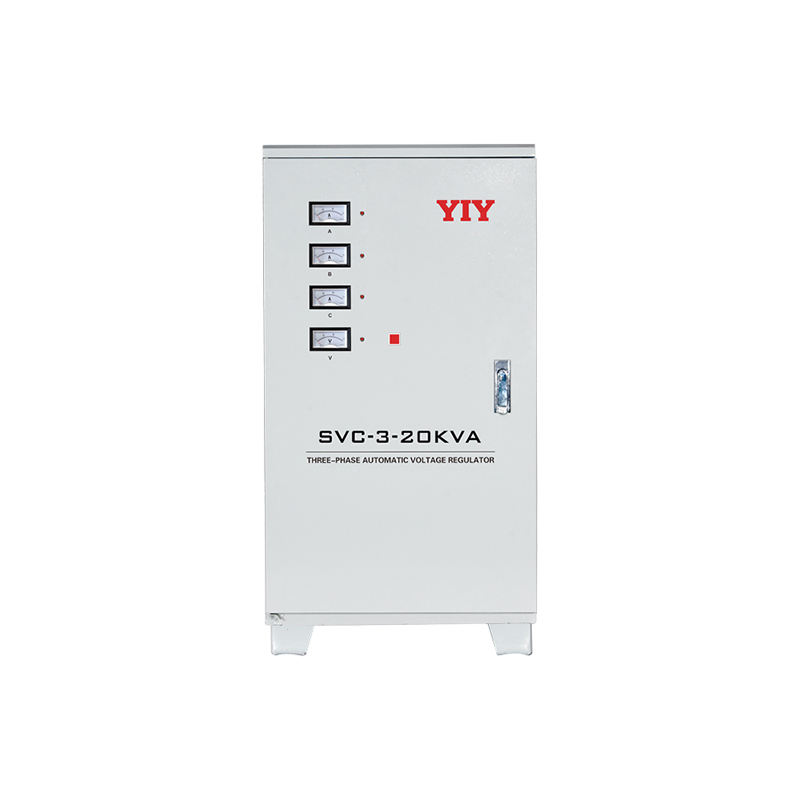

SVC-3 (TNS) Three-Phase Servo Motor Type Voltage Stabilizer

Revolutionary three-phase servo motor voltage stabilizer engineered for demanding industrial applications requiring exceptional precision and reliability. The SVC-3 series excels in challenging three-phase power environments with industry-leading 100% unbalanced load capability, delivering reliable ±3% voltage regulation through advanced three-phase compensating servo motor technology. Perfect for industrial manufacturing, critical infrastructure, and power-sensitive applications where voltage stability is paramount, featuring isolated manual bypass switch and comprehensive protection systems for 24/7 operation.

  • 100% Unbalanced Load Capability– Handles severe load imbalances without performance degradation
  • Three-Phase Compensating Servo Motor Technology– Advanced mechanical voltage regulation system
  • Wide AC Input Voltage Range– Multiple input configurations for global power grid compatibility
  • Isolated Manual Bypass Switch– Continuous operation during maintenance procedures
  • Complete Protection Circuits– Comprehensive safety systems for equipment protection
  • Industrial-Grade Components– Built for harsh industrial environments and 24/7 operation

SVC-3 Three-Phase Servo Voltage Stabilizer Complete Specifications

Small to Medium Capacity Models (1.5KVA-15KVA)

Specification 1.5KVA 3KVA 4.5KVA 6KVA 9KVA 15KVA
Phase 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire)
Input Voltage 278V-433V or 152V-228V / 166V-249V
Input Frequency 50Hz/60Hz
Output Voltage AC 380V ±3% or 220V ±3% / customized
Output Capacity 1200W 2400W 3600W 4800W 7200W 12000W
Output Frequency 50Hz/60Hz
Low voltage 318V±7V or 184V±7V
Over voltage 426V±7V or 246V±7V
Time delay Default 3-6s
Overload/short circuit MCB/MCCB
Pcs per Carton 1

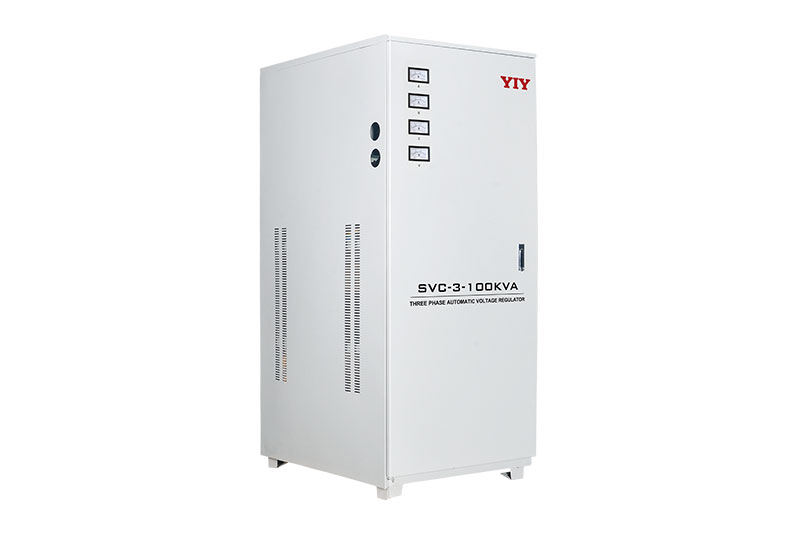

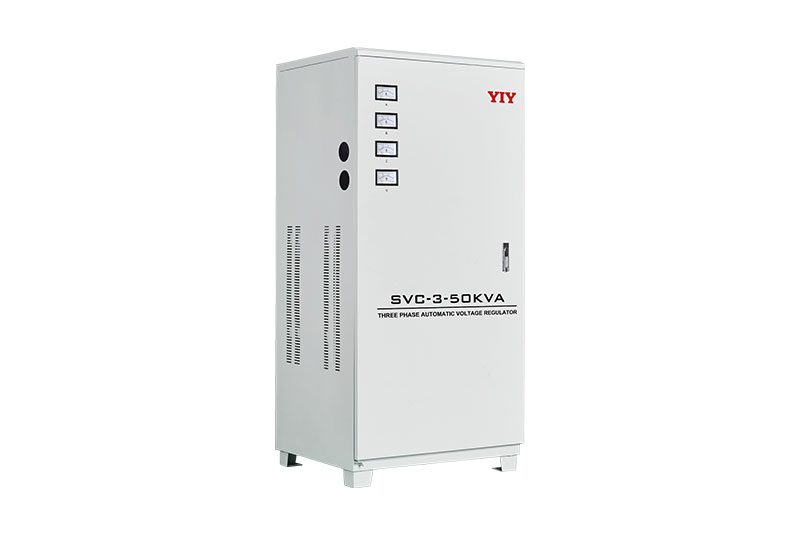

Medium to High Capacity Models (20KVA-100KVA)

Specification 20KVA 30KVA 45KVA 50KVA 60KVA 75KVA 100KVA
Phase 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire) 3-phase 4-wire (3-phase 3-wire)
Input Voltage 278V-433V or 152V-228V / 166V-249V 304V-456V
Input Frequency 50Hz/60Hz
Output Voltage AC 380V ±3% or 220V ±3% / customized
Output Capacity 16000W 24000W 36000W 40000W 48000W 60000W 80000W
Output Frequency 50Hz/60Hz
Low voltage 318V±7V or 184V±7V
Over voltage 426V±7V or 246V±7V
Time delay Default 3-6s
Overload/short circuit MCB/MCCB
Pcs per Carton 1
Package dimensions (mm) 460*410*855 460*410*855 625*605*1015 625*605*1015 625*605*1015 800*740*1030 800*740*1030
AC-AC Efficiency 98%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

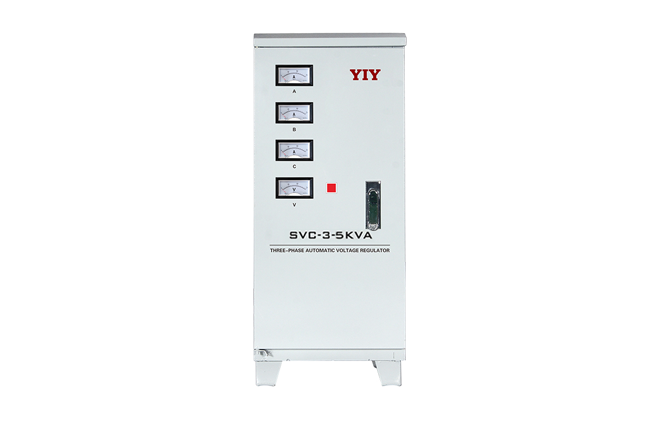

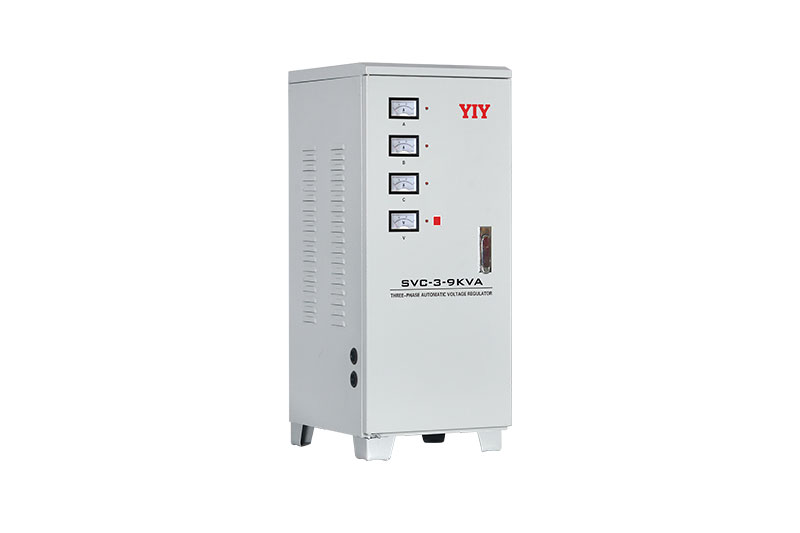

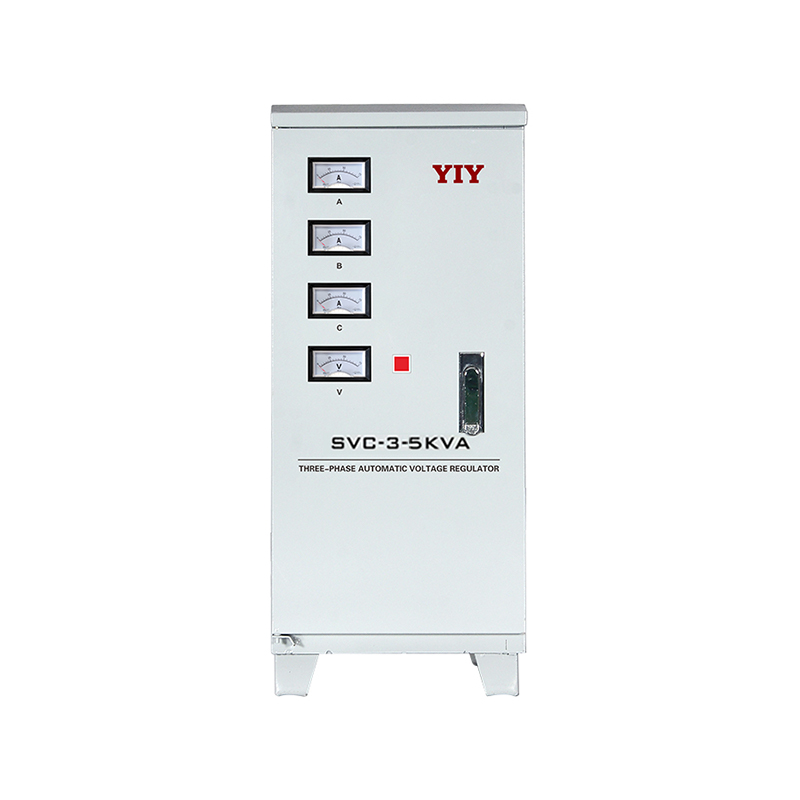

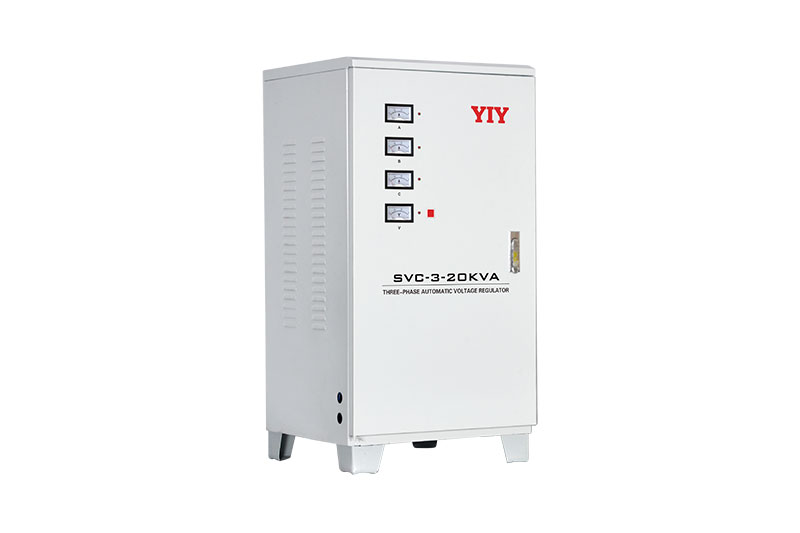

SVC-3 Three-Phase Servo Voltage Stabilizer Catalog

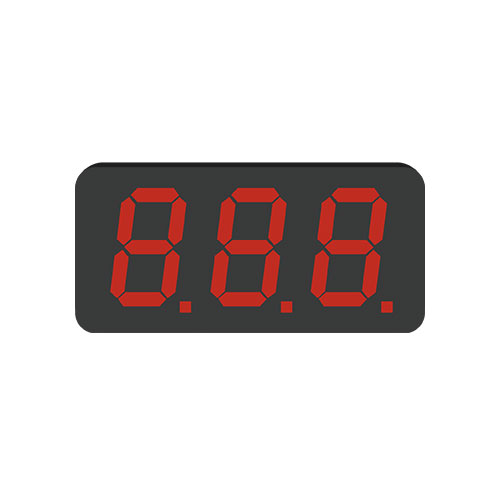

Display Options

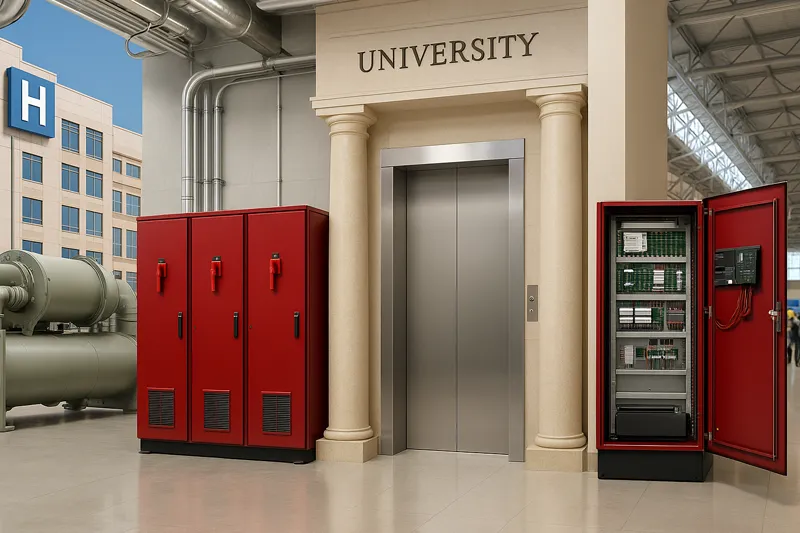

SVC-3 Three-Phase Servo Voltage Stabilizer Applications

Why Choose YIY SVC-3 Series?

YIY voltage stabilizer technology feature

100% Unbalanced Load Capability

  • Handles severe load imbalances
  • Three-phase compensating technology
  • Superior voltage regulation under all conditions



YIY voltage stabilizer in use

Advanced Servo Motor Technology

  • Mechanical voltage regulation system
  • ±3% high precision output
  • Wide AC input voltage range



YIY voltage stabilizer installation example

Industrial-Grade Durability

  • Built for 24/7 continuous operation
  • Isolated manual bypass switch
  • Complete protection circuits
