Ultra-Fast Response Electromagnetic Switching Technology

Relay Voltage Stabilizer Manufacturer

Reliable voltage protection with electromagnetic relay switching technology. Ultra-fast <60ms response time, wide input voltage capability, and reliable performance for general applications.

WHAT WE DO

Advantages of Static Relay Voltage Stabilization

shield (1)

Ultra-Fast Response Technology

Advanced electromagnetic switching responds to voltage fluctuations in under 60ms – up to 33x faster than servo technology for instant equipment protection.
Voltage stabilizer guide illustration

Superior Cost-Performance Ratio

Relay technology delivers reliable voltage protection at 30-40% lower cost than servo systems without compromising essential protection features.
Voltage stabilizer guide illustration

Maintenance-Free Operation

Solid-state relay design eliminates moving components, providing maintenance-free voltage protection ideal for limited-access installations.

By Product Technology

By Voltage Standard

By Capacity

Complete Relay Voltage Stabilizer Range

YIY comprehensive Relay voltage stabilizer lineup offers solutions from 500VA to 3000KVA for all power protection requirements.

Professional Relay Stabilizer Custom OEM Service

Fully customized relay stabilizer designs with input ranges 45V-270V, output voltage settings for various specifications, specialized switching thresholds, and market-specific plug configurations for seamless local integration. Sourcing relay AVRs for a private-label range? See how leading AVR manufacturers compare on capacity, customization, and certification.

  • Custom housing colors and designs
  • Customized control panels and indicators
  • Custom relay configurations for voltage patterns

Advanced Relay Stabilizer Features

Production Infrastructure

Automated PCB assembly lines, precision relay testing equipment, computerized quality assurance stations, and climate-controlled production areas.
test machine 7
Voltage stabilizer guide illustration

Premium Components Selection

Industrial-grade electromagnetic relays, military-spec circuit boards, high-tolerance capacitors, and precision voltage sensing components.

Comprehensive Testing

Response time verification (<60ms), continuous operation under various loads, extreme input voltage simulations, and EMI/EMC compliance testing.
test machine 1

Relay Voltage Stabilizer Applications

Voltage stabilizer guide illustration

Rural School Technology Protection

Rural schools eliminated voltage-related computer damage with TRS Series relay stabilizers: 92% failure rate reduction, 68% lower maintenance costs, 4-year extended equipment lifespan within budget constraints.
Voltage stabilizer guide illustration

Small Business Power Quality Solution

Retail chain protected POS systems with AVR Series relay stabilizers: 98% uptime achievement, eliminated data corruption, protected payment terminals, seamless minor fluctuation handling.

Selection guide

How to choose a relay voltage stabilizer

A relay stabilizer switches between transformer taps with electromagnetic relays controlled by a microcontroller. Correction happens in steps, so the output stays inside a band rather than at a fixed point: ±8–10% on the AVR series and ±10% on TRS, SWR and PR. There is no brush or motor to wear, and switching is fast. The AVR page lists a 60ms response time.

That combination makes relay the practical choice for single-phase homes, shops and offices where appliances already tolerate a ±10% band. Every relay model YIY lists is single-phase, rated from 500VA to 20kVA.

Choose this range when

  • You protect refrigerators, TVs, computers, small pumps, lighting or point-of-sale equipment whose rated tolerance covers 198–242V (220V ±10%).
  • The site sees very low input voltage. The TRS series lists 45–270V input on 5–20kVA models, and SWR lists 45–275V on 5kVA and above.
  • You need a compact, maintenance-light unit for retail or distribution channels.

Look elsewhere when

  • Equipment needs ±2–3% output or runs large motors: choose a servo stabilizer.
  • The supply is three-phase, or the load needs ±0.5% and 10ms correction: choose a three-phase servo or IGBT model.

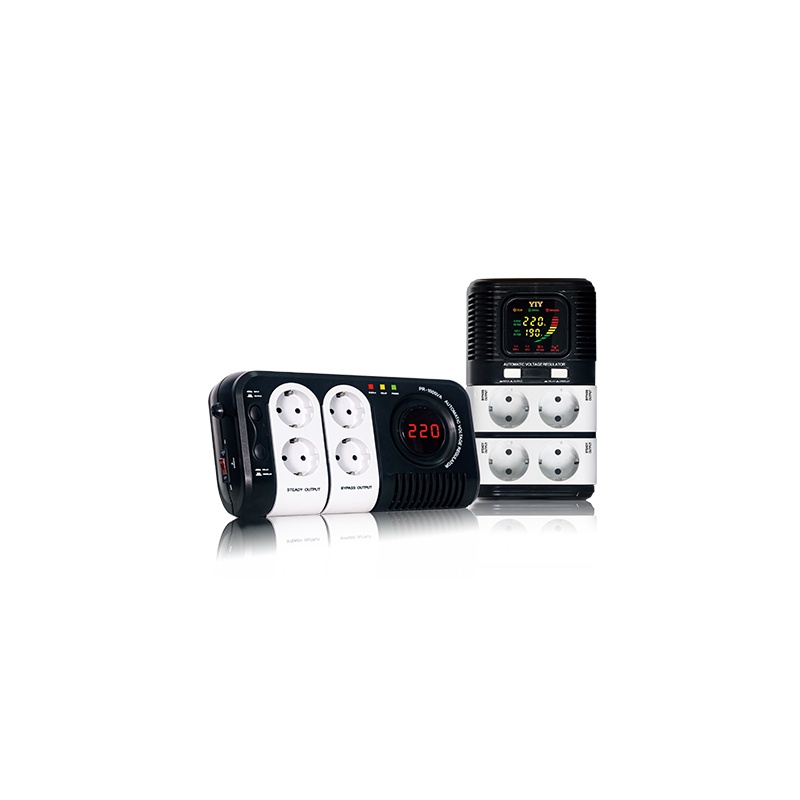

Choose the format next. PR is a plug-in portable unit for one appliance (500–2000VA, 1.3–1.8kg net). AVR covers desktop and tower installs from 500VA to 20kVA with three input windows. TRS and SWR are wall-mounted mainline units from 0.5kVA to 20kVA with MCU overload cut-off at 120% and 98% AC-AC efficiency.

Specification summary

ModelFormatRatingsInput rangeOutput
PR Portable Relay StabilizerPortable500–2000VA (250–1000W)125–270V / 140–260V220V ±10%
AVR Single-Phase Relay StabilizerDesktop / tower500VA–20kVA70–270V / 90–270V / 140–260V220V ±8–10%, 60ms response

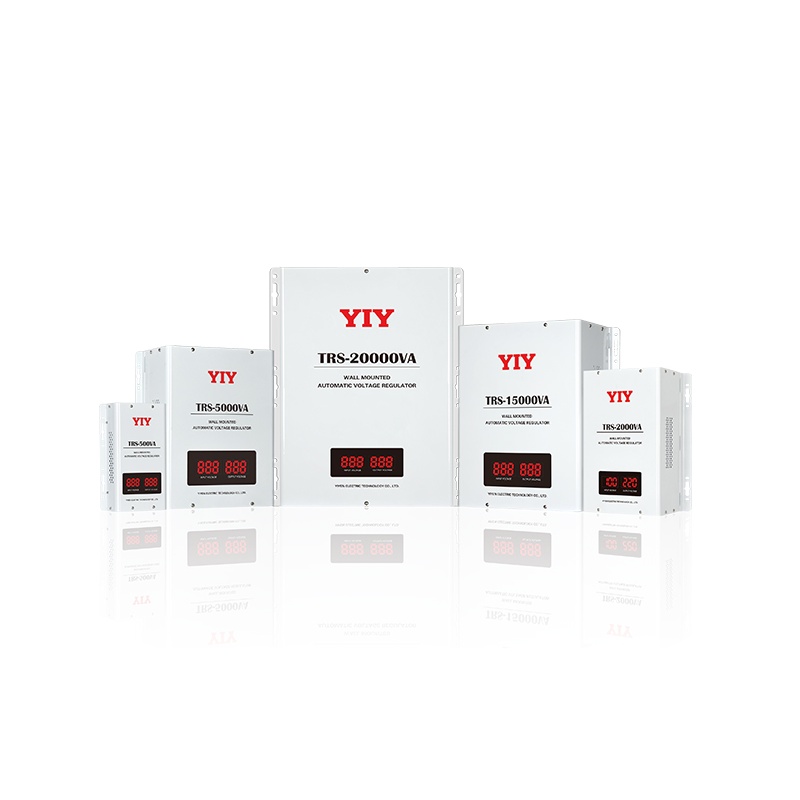

TRS Wall-Mounted Relay StabilizerWall-mounted0.5–20kVA90–270V; 70–270V (3–20kVA); 45–270V (5–20kVA)220V / 230V ±10%

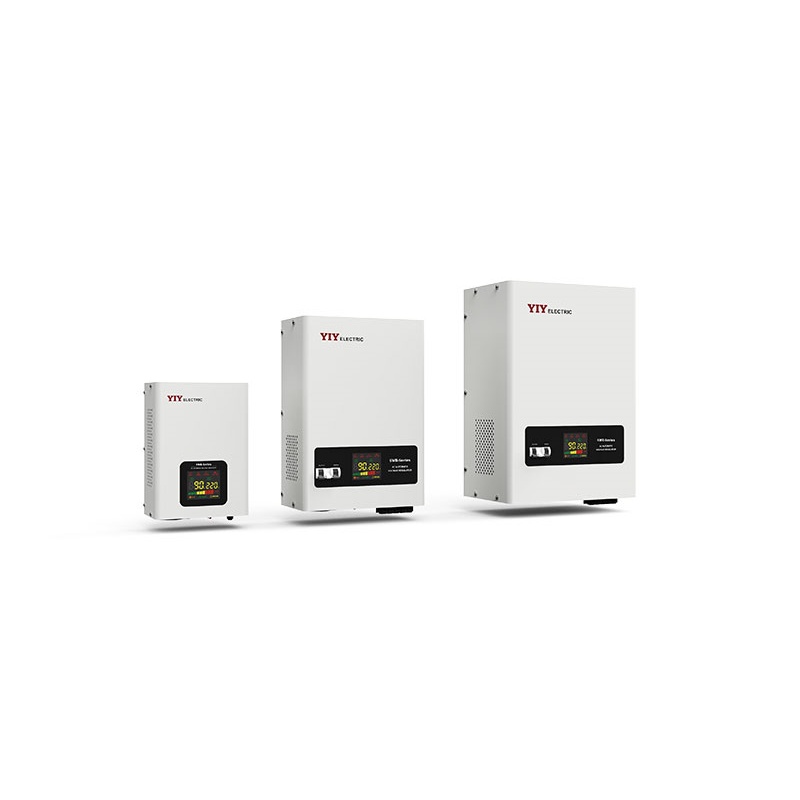

SWR Wall-Mounted Relay StabilizerWall-mounted0.5–20kVA90–275V; 45–275V (5kVA+)220V / 230V ±10%

Values copied from each product page’s specification table. Efficiency listed: TRS and SWR 98%, AVR and PR 95%.

Application scenarios

Whole-house and mainline protection

TRS and SWR wall-mounted units from 5kVA to 20kVA sit at the incoming supply and cover the whole home or shop. The 45V-start versions suit areas with deep voltage sags.

Single-appliance protection

PR portable units (250–1000W output) and small AVR models protect one refrigerator, TV or workstation without rewiring.

Small commercial sites

Shops, classrooms and site offices use AVR tower models up to 20kVA where lighting, IT and refrigeration share a single-phase feed.

Distributor retail ranges

Product pages list carton quantities: AVR ships 8, 4 or 2 units per carton depending on rating, and PR ships 9 per carton. That makes container planning for retail programmes straightforward.

Buyer questions

Which relay model handles extremely low input voltage?

TRS 5–20kVA models list 45–270V input, and SWR models of 5kVA and above list 45–275V. Standard versions start at 90V.

Should I choose a wall-mounted or a desktop relay stabilizer?

Wall-mounted TRS and SWR units suit fixed mainline installation up to 20kVA. AVR desktop and tower units suit plug-in or floor installation, and PR suits a single portable appliance.

Is ±10% output acceptable for my equipment?

On a 220V system ±10% means 198–242V. Most household appliances are rated for that band. If the equipment datasheet asks for a narrower range, use a servo model (±2–3%) instead.

What output power does a relay stabilizer deliver per VA?

The tables list output power below the VA rating. For example, AVR 1000VA delivers 800W and PR 1000VA delivers 500W, so size by watts.

Can relay stabilizers be supplied under our own brand?

Yes. TRS and SWR list 220V or 230V output, and branding, labels and packaging are handled through YIY OEM/ODM programmes. Since 2008, YIY has built Servo, Relay and IGBT stabilizers in a 30,000 m² plant with 300+ staff, producing 1,000,000+ units a year for buyers in 130+ countries.

Frequently Asked Question

A: A relay voltage stabilizer uses electromagnetic relays to switch between different transformer taps in response to input voltage changes. When the input voltage fluctuates outside the acceptable range, the control circuit activates the appropriate relay to select a different transformer tap, adjusting the output voltage back to the desired level. This switching happens within milliseconds to protect connected equipment.

A: Relay stabilizers offer several key benefits:

  • Ultra-fast response time (<60ms),
  • Excellent cost-performance ratio,
  • Maintenance-free operation,
  • High reliability in challenging power environments,
  • Compact design, and
  • Energy efficiency up to 98%.

The technology is particularly advantageous for general-purpose applications that call for a simple, robust design.

A: Our relay stabilizers can accommodate extremely wide input voltage ranges, with the TRS Series accepting inputs as low as 45V and up to 270V depending on the model. This makes them ideal for areas with severe voltage fluctuations or unreliable power grids. Custom input ranges are also available for specific applications.

A: Our servo voltage stabilizers typically respond to voltage fluctuations within ≤2 seconds, which provides optimal protection for most applications. This response time ensures smooth correction without abrupt changes that could affect sensitive equipment.

A: The main differences are in their technology and performance characteristics. Relay stabilizers use electromagnetic relays to switch between fixed transformer taps, offering ultra-fast response (<60ms), lower cost, and step-wise correction with ±8% typical accuracy. Servo stabilizers use motor-driven mechanical adjustment for smooth, continuous correction with higher precision (±0.5-2%) but slower response (1-2 seconds) and higher cost.

A: We manufacture relay voltage stabilizers from 500VA for small applications up to 20,000VA for larger requirements. Our AVR and TRS series cover the full range, while the portable PR series is available from 500VA to 2,000VA for mobile applications.

A: Our relay stabilizers produce minimal audible noise during normal operation. You may hear a slight clicking sound when relays switch during significant voltage changes, but this is typically much quieter than the mechanical noise produced by servo stabilizer motors. For noise-sensitive environments, we offer models with sound-dampening features.

A: With our high-quality components, YIY relay voltage stabilizers typically provide 8-10 years of reliable service. The solid-state design with no moving parts (except the relays themselves) contributes to this extended lifespan with minimal maintenance requirements.

A: Yes, we provide extensive customization options for relay stabilizers, including specialized input/output voltage parameters, custom housing designs, enhanced protection features, special mounting configurations, and complete OEM/ODM services with your branding.

A: Our standard warranty is 2 years on all relay stabilizer models, with extended warranty options available. We also provide comprehensive after-sales support including installation guidance and technical assistance.
