Series: PR Services

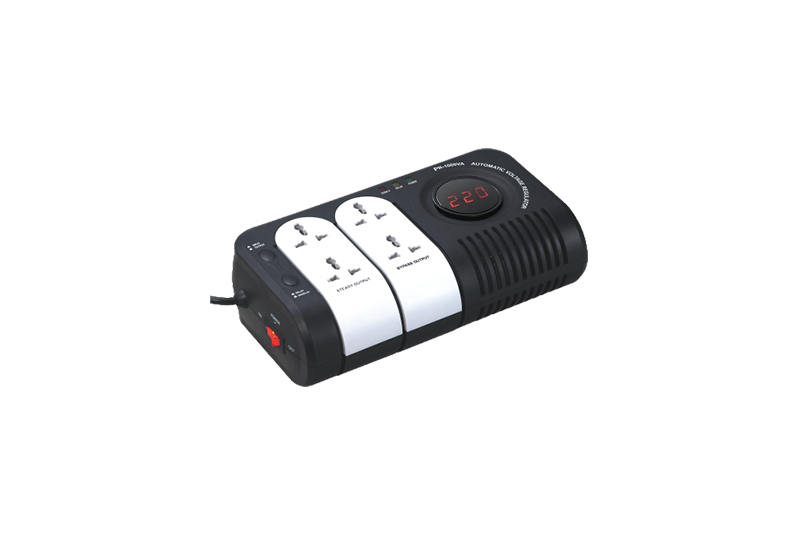

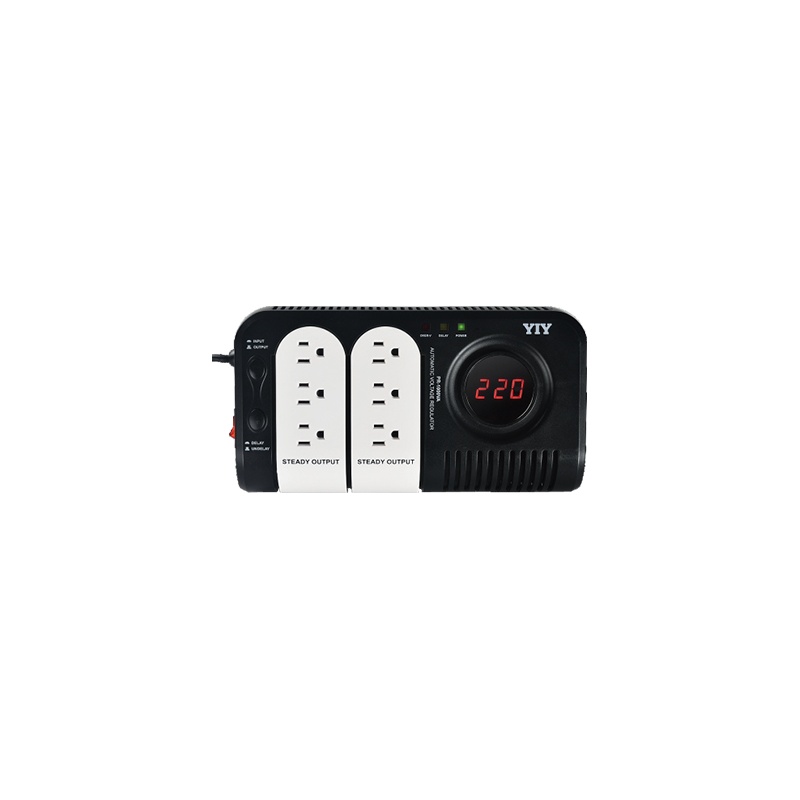

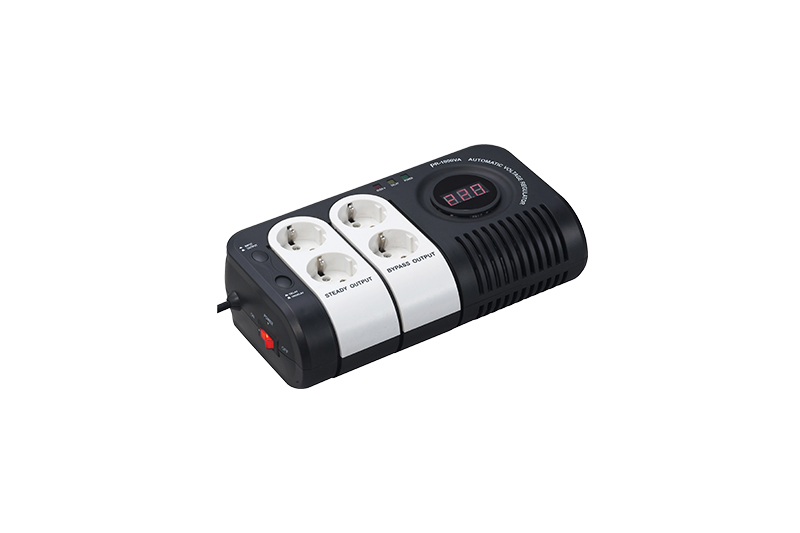

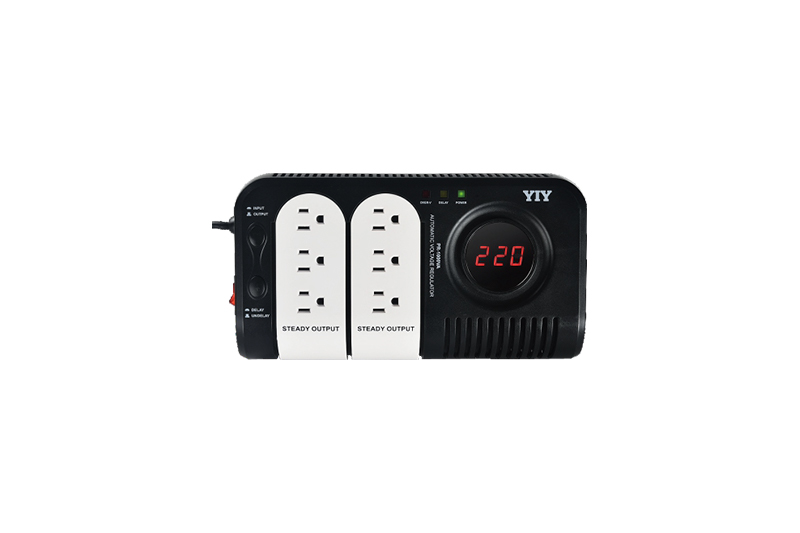

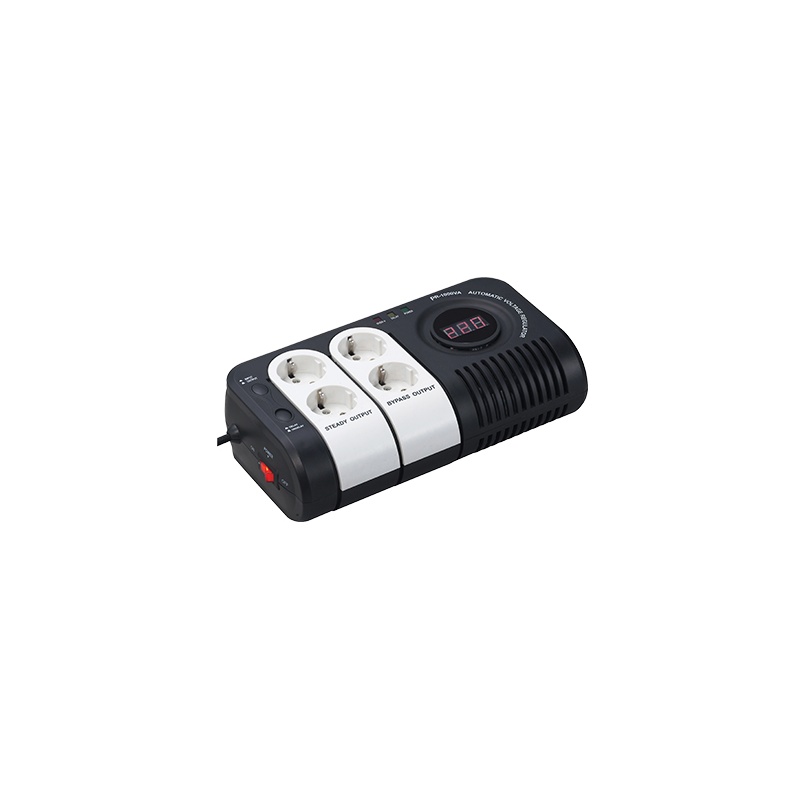

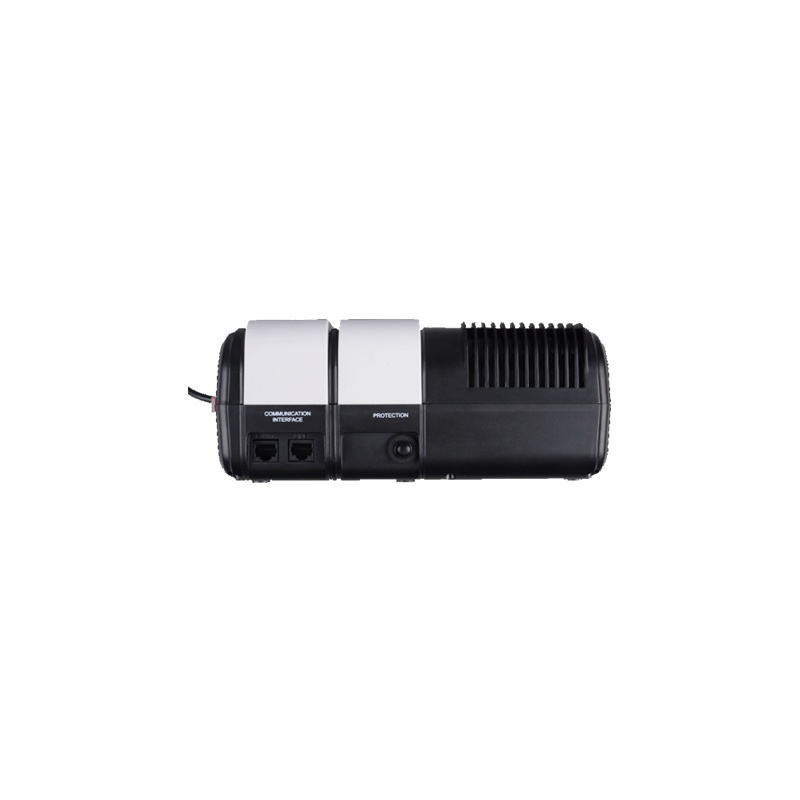

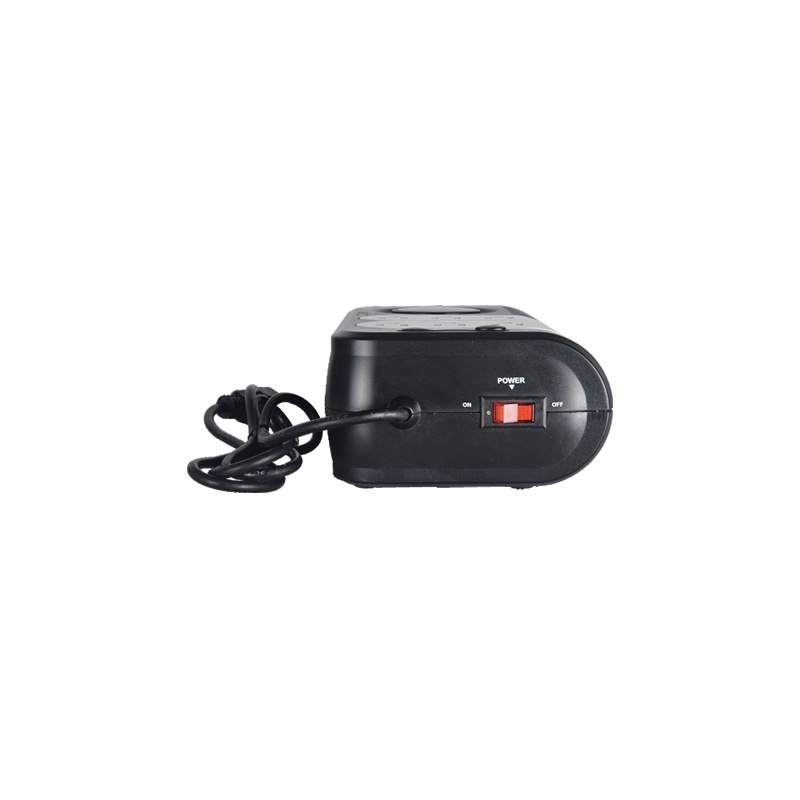

PR Portable Single-Phase Relay Voltage Stabilizer

Compact portable single-phase relay voltage stabilizer featuring CPU control technology and digital meter display for mobile and temporary power applications. The PR series delivers reliable voltage regulation from 500VA to 2000VA with 125V-270V input range, making it ideal for field work, temporary installations, and portable equipment protection. Perfect for contractors, technicians, and mobile applications requiring lightweight voltage protection, featuring extension socket functionality, LED status indicators, and comprehensive protection systems in a convenient portable design.

  • CPU Control Technology– Intelligent processor-based control for superior accuracy and reliability
  • Digital Meter Display– Real-time indication of line voltage and output voltage for precise monitoring

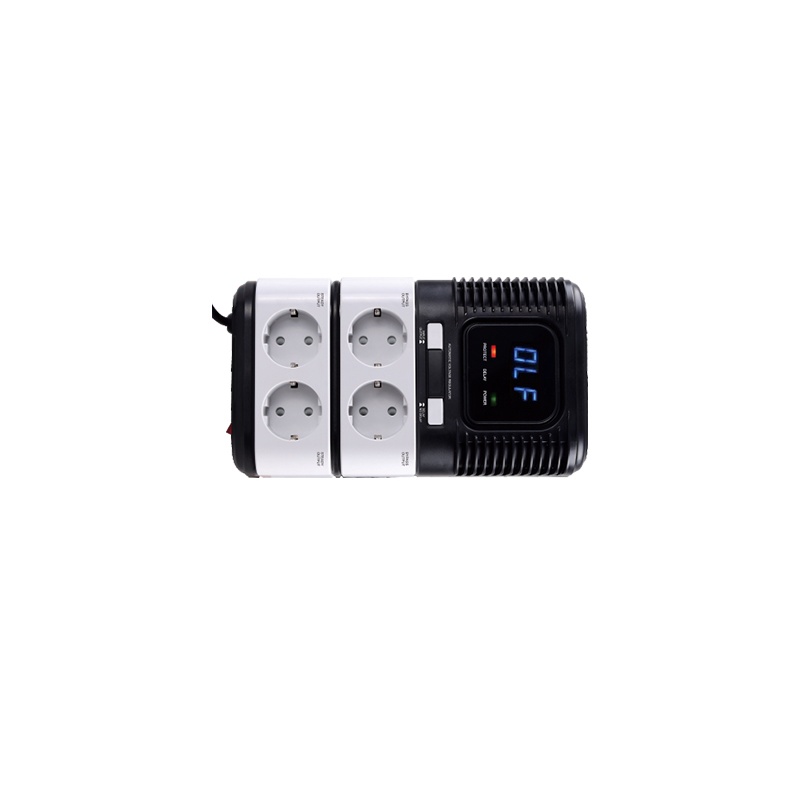

  • Extension Socket Functionality– Built-in extension sockets for convenient equipment connection
  • LED Status Indicators– Clear visual indication of working status, over voltage, and low voltage conditions
  • Portable Lightweight Design– Compact construction for easy transportation and temporary installations
  • Component Damage Protection– Advanced protection prevents electronic component damage

PR Portable Single-Phase Relay Voltage Stabilizer Complete Specifications

Specification PR-500VA PR-1000VA PR-1500VA PR-2000VA
Phase Single phase Single phase Single phase Single phase
Input Voltage AC 125V-270V / 140V-260V
Input Frequency 50Hz/60Hz
Output Voltage AC 220V ±10%
Output Capacity 250W 500W 750W 1000W
Output Frequency 50Hz/60Hz
Low voltage 184V±5V
Over voltage 246V±5V
Time Delay 5s / 255s
Overload/short circuit Fuse/MCB
Pcs per Carton 9
Net Wt.(kg) 1.3 1.6 1.75 1.8
Shipping Wt.(kg) 11.9 14.3 15.5 16.8
Package dimensions (mm) 528*320*360
AC-AC Efficiency 95%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

PR Portable Single-Phase Relay Voltage Stabilizer Catalog

PR Portable Single Phase Relay Voltage Stabilizer Applications

Field Work & Contractors

Field Work & Contractors

Portable voltage protection for contractors, technicians, and field workers using sensitive equipment on-site.
  • Applications: Power Tools, Testing Equipment, Field Instruments, Portable Devices, Construction Equipment
  • Recommended Models: 500VA – 1500VA
  • Core Value: Lightweight portability with reliable voltage protection for mobile work environment

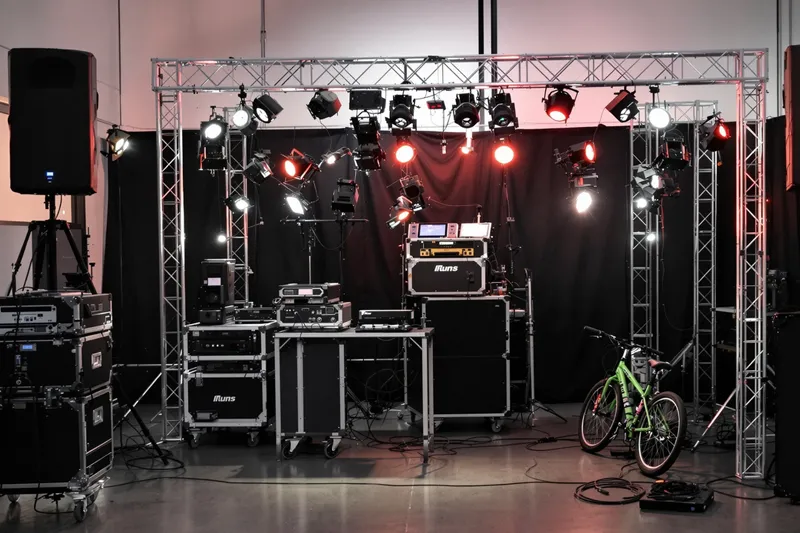

Temporary Installations & Events

Temporary Installations & Events

Mobile power solution for temporary events, exhibitions, and short-term installations requiring voltage stability.
  • Applications: Event Equipment, Exhibition Displays, Temporary Lighting, Sound Systems, Mobile Setups
  • Recommended Models: 1000VA – 2000VA
  • Core Value: Easy transportation and quick setup for temporary power quality requirements
Mobile Testing & Service

Mobile Testing & Service

Professional portable solution for service technicians and testing specialists requiring precise voltage regulation.
  • Applications: Diagnostic Equipment, Testing Instruments, Service Tools, Measurement Devices, Mobile Labs
  • Recommended Models: 1000VA – 2000VA
  • Core Value: Ensure accurate testing results with stable voltage for sensitive measurement equipment

Why Choose YIY PR Series?

Portable Lightweight Design

Portable Lightweight Design

  • Compact construction: Only 1.3kg-1.8kg for easy transportation
  • Built-in carrying handle for convenient mobility
  • Space-efficient design perfect for temporary installations



Digital Meter Display

Digital Meter Display

  • Real-time voltage monitoring with digital display
  • Clear indication of input and output voltage levels
  • LED status indicators for working status and voltage conditions
Extension Socket Functionality

Extension Socket Functionality

  • Built-in extension sockets for direct equipment connection
  • Input range: 125V-270V for various power conditions
  • ±10% output precision with CPU control technology
