Series: TRS Services

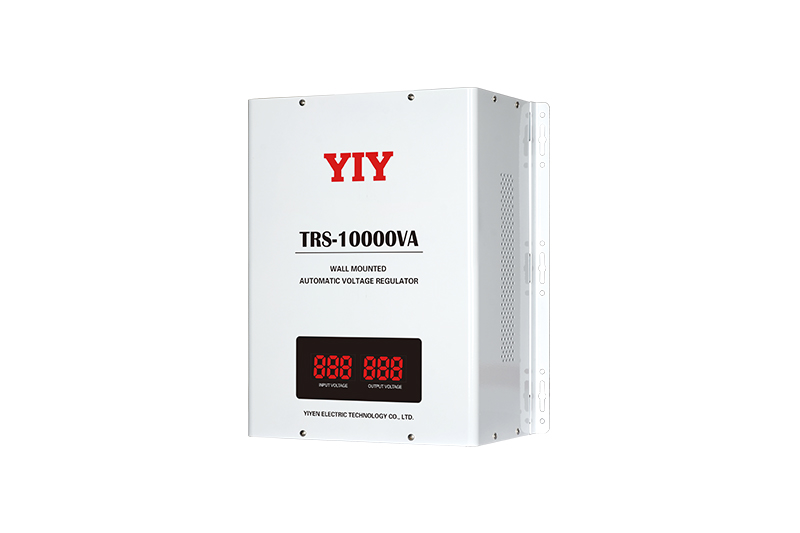

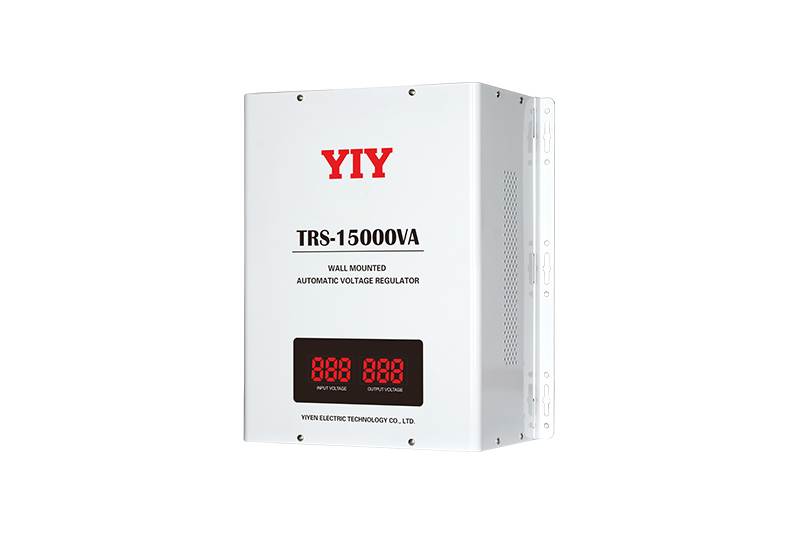

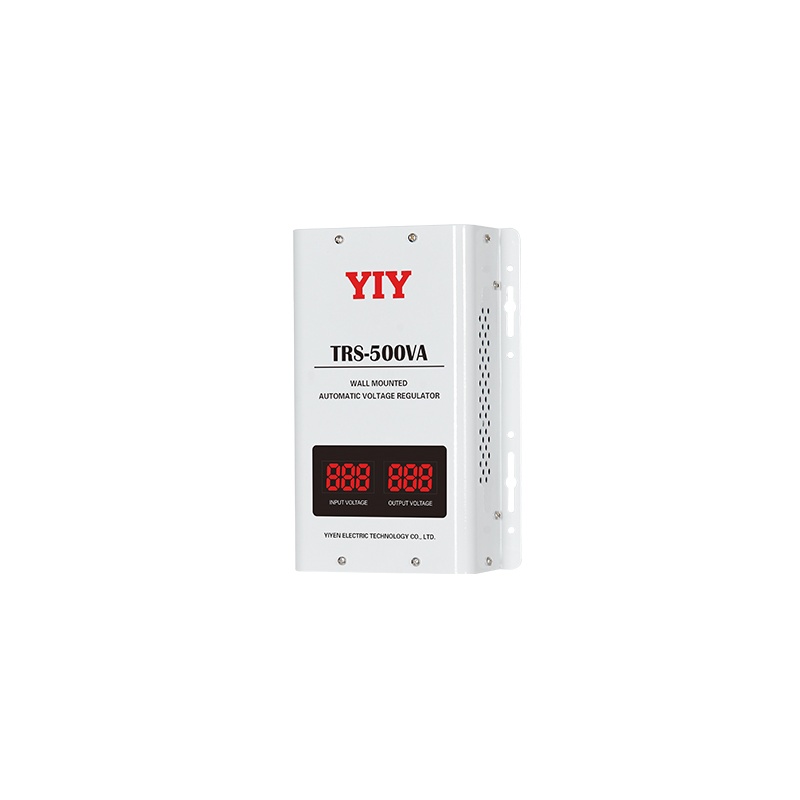

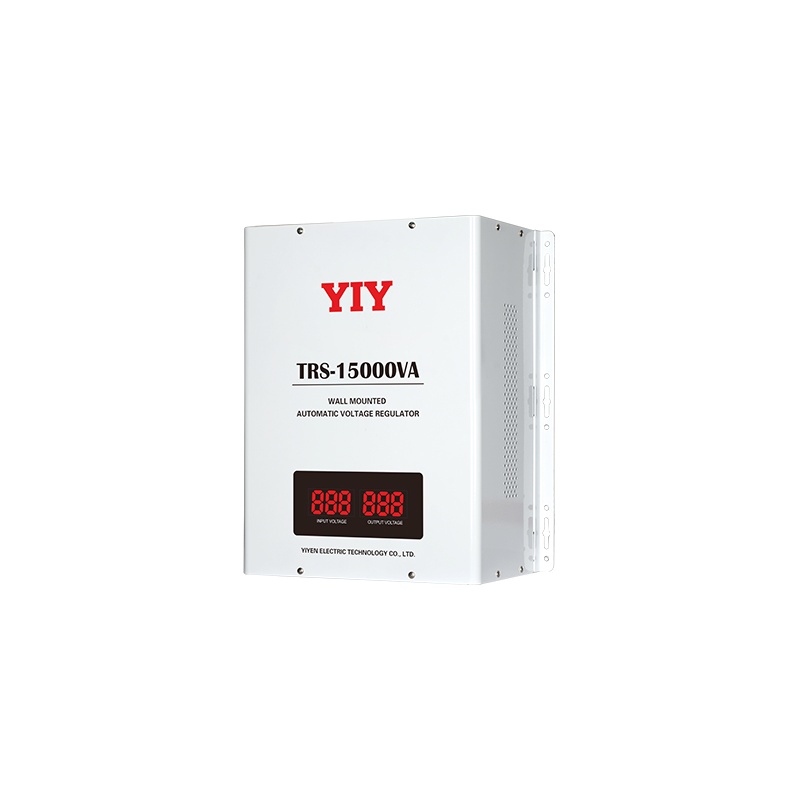

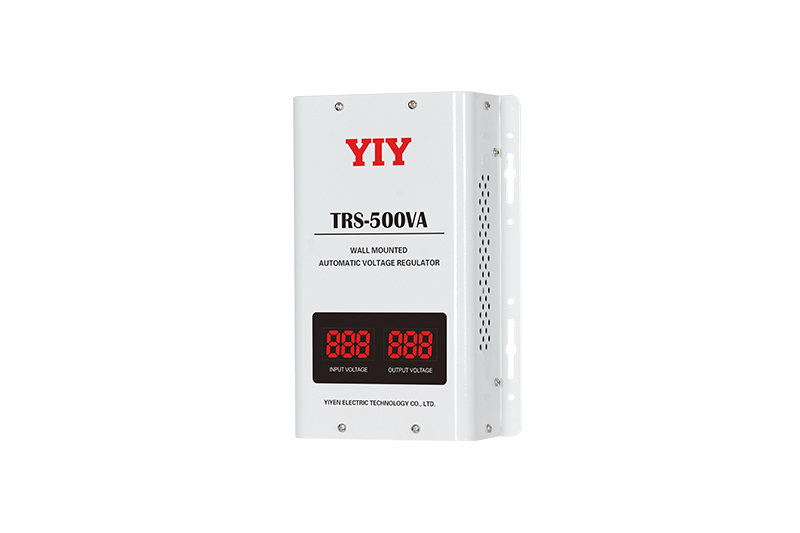

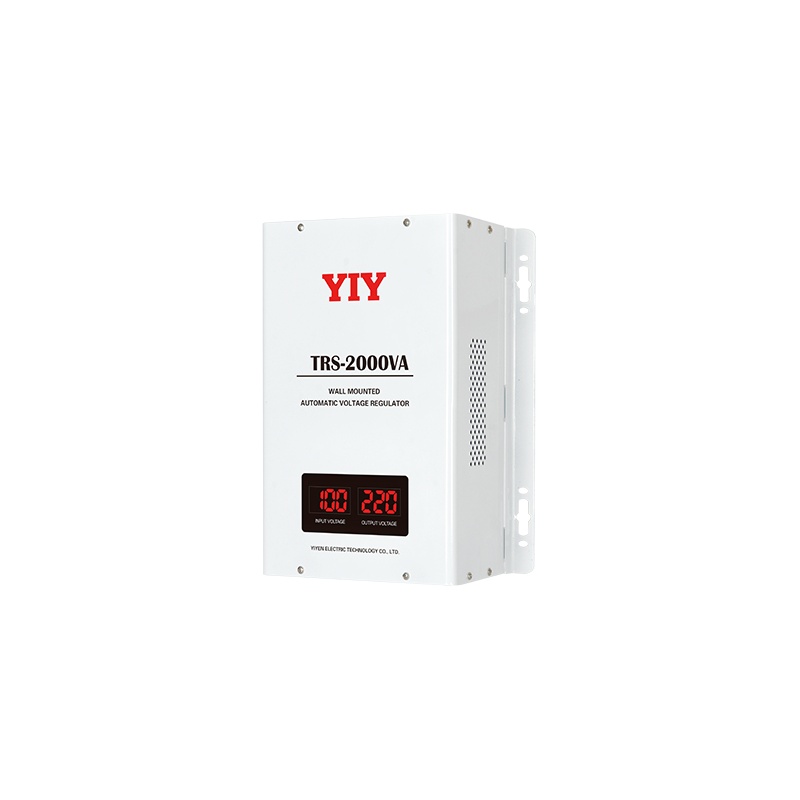

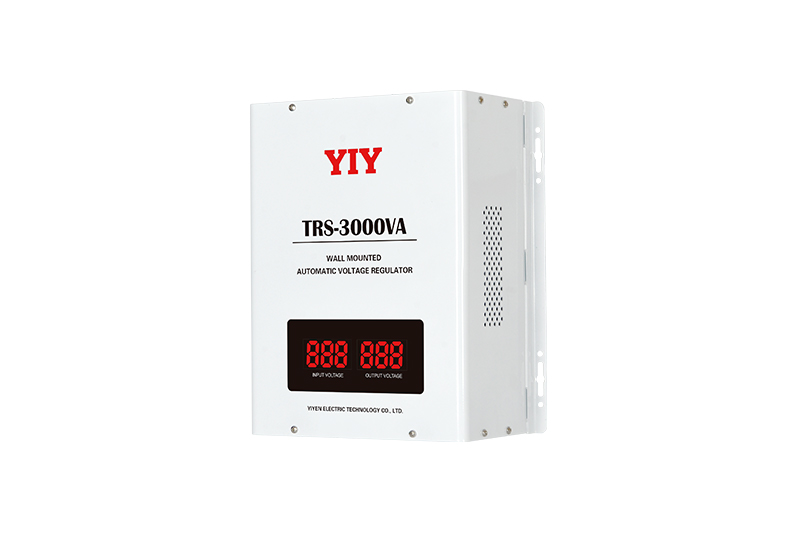

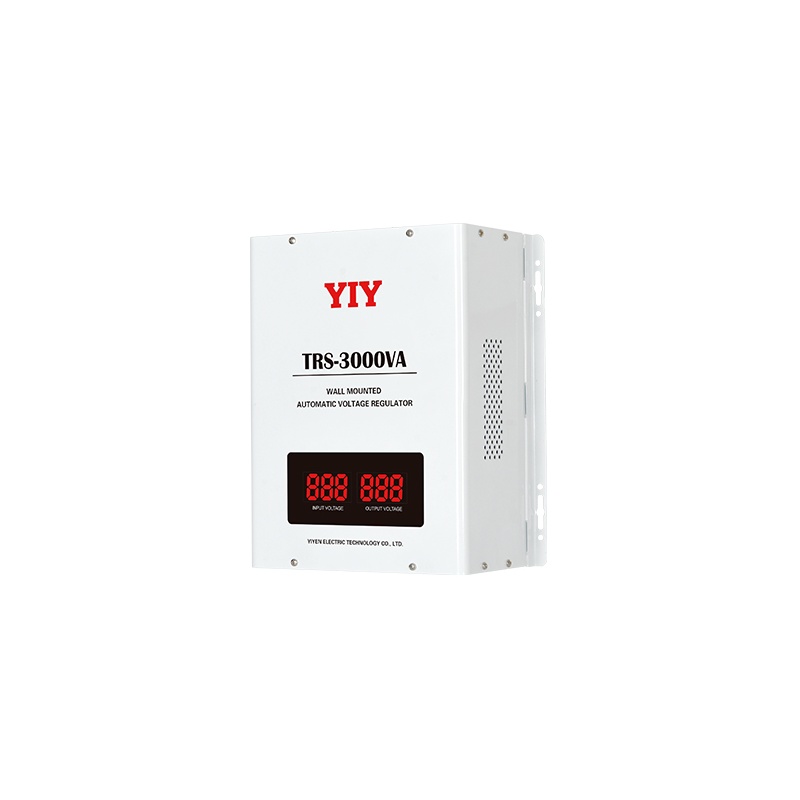

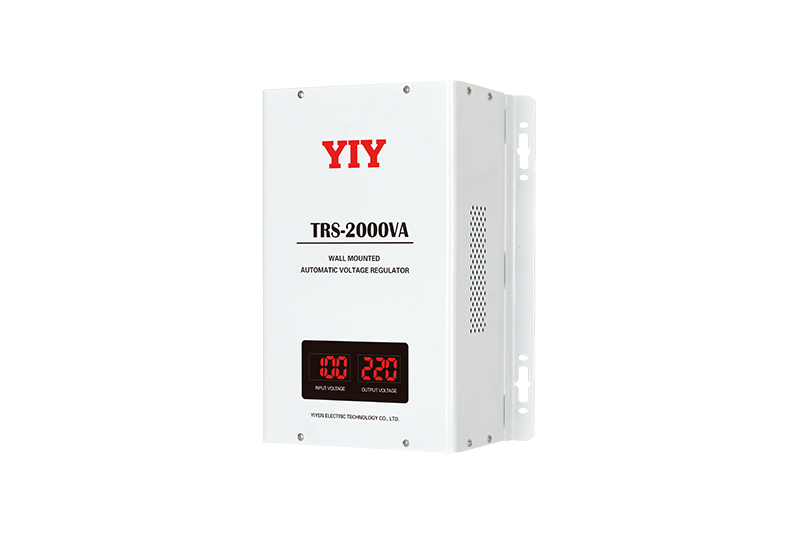

TRS Wall-Mounted Single-Phase Relay Voltage Stabilizer

Advanced wall-mounted single-phase relay voltage stabilizer featuring ultra-low input voltage capability and MCU controlled precision output for residential and commercial installations. The TRS series delivers exceptional voltage regulation from 500VA to 20000VA with ultra-wide input voltage range from 45V to 270V, making it ideal for areas with extreme grid variations. Perfect for space-constrained applications requiring reliable wall-mounted voltage protection, featuring zero cross transfer technology, ≤60ms response time, and high efficiency toroidal transformer for superior performance and compact design.

  • Ultra-Low Input Voltage (45V-270V)– Operates from extremely low voltages for maximum grid compatibility
  • MCU Controlled Circuit– Precision output control with intelligent microprocessor management
  • Zero Cross Transfer Technology– Seamless switching with integrated protection for smooth operation
  • High Efficiency Toroidal Transformer– Superior energy conversion with reduced heat generation
  • Wall-Mounted Design– Space-saving installation for residential and commercial applications
  • Super Fast Response Time (≤60ms)– Quick voltage correction protects sensitive equipment

TRS Wall-Mounted Single-Phase Relay Voltage Stabilizer Complete Specifications

90V-270V Input Range Models

Specification TRS-0.5K TRS-1K TRS-1.5K TRS-2K TRS-3K TRS-5K TRS-8K TRS-10K TRS-12K TRS-15K TRS-20K
Phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase Single phase
Input Voltage AC 90V-270V
Input Frequency 50Hz/60Hz
Output Voltage AC 220V±10% / 230V±10%
Output Capacity 400W 800W 1200W 1600W 2400W 4000W 6400W 8000W 9600W 12000W 16000W
Output Frequency 50Hz/60Hz
Low voltage 184±4V / 194±4V
Over voltage 246V±4V / 256V±4V
Time delay 5s (255s optional)
Overload Protection MCU (cutting off output for 3 seconds when exceeding rated power by 120%)
Short circuit Circuit Breaker
Other Protection Surge protection (optional)
AC-AC Efficiency 98%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

70V-270V Input Range Models (Selected Capacities)

Specification TRS-3K TRS-5K TRS-8K TRS-10K TRS-12K TRS-15K TRS-20K
Input Voltage AC 70V-270V
Output Capacity 2400W 4000W 6400W 8000W 9600W 12000W 16000W

45V-270V Input Range Models (Ultra-Low Voltage)

Specification TRS-5K TRS-8K TRS-10K TRS-12K TRS-15K TRS-20K
Input Voltage AC 45V-270V
Output Capacity 4000W 6400W 8000W 9600W 12000W 16000W

TRS Wall-Mounted Single-Phase Relay Voltage Stabilizer

Display Options

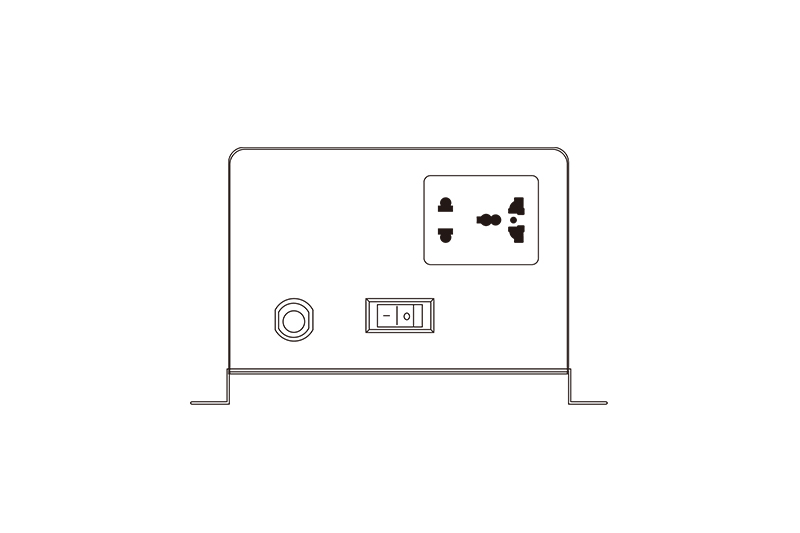

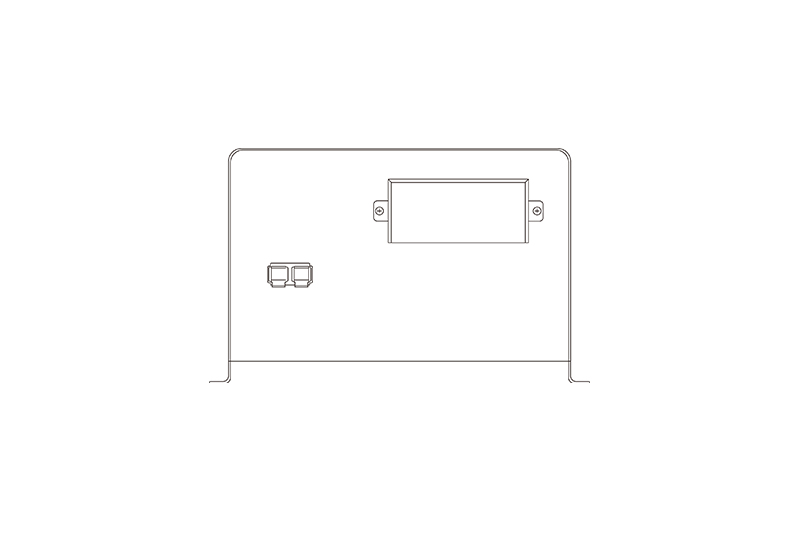

Bottom Panel

Socket Options

TRS Wall-Mounted Single-Phase Relay Voltage Stabilizer Applications

Residential Space-Saving Solutions

Residential Space-Saving Solutions

Compact wall-mounted voltage protection for residential homes with space constraints.
  • Applications: Home Appliances, Air Conditioners, Refrigerators, Entertainment Systems, Home Office Equipment
  • Recommended Models: 1000VA – 8000VA
  • Core Value: Save valuable floor space while providing reliable voltage protection for home electronics

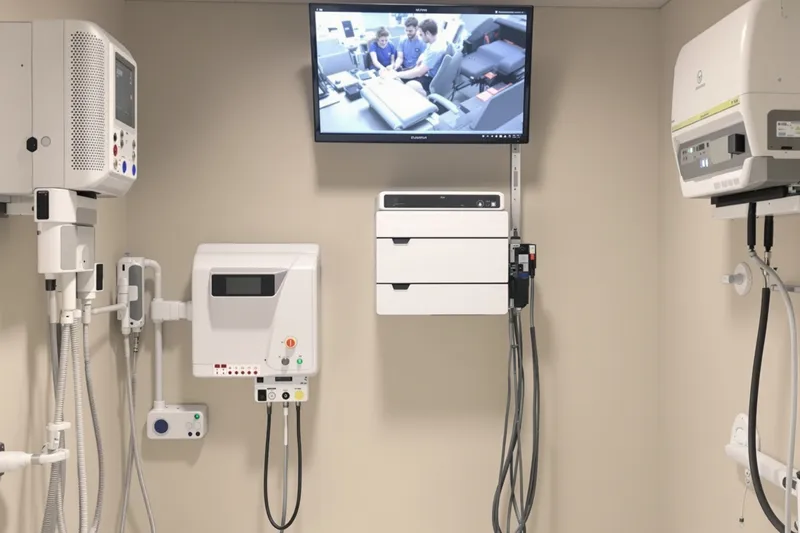

Commercial Space-Constrained Installations

Commercial Space-Constrained Installations

Professional wall-mounted solutions for clinics, small offices, and commercial spaces with limited floor area.
  • Applications: Medical Equipment, Office Systems, Clinic Devices, Small Commercial Appliances, Professional Equipment
  • Recommended Models: 3000VA – 15000VA
  • Core Value: Maximize usable floor space while ensuring professional-grade voltage protection
extreme low voltage areas - YIY voltage stabilizer guide illustration

Extreme Low Voltage Areas

Ultra-wide input range capability for areas experiencing severe voltage fluctuations and extreme low voltage conditions.
  • Applications: Rural Areas, Remote Locations, Areas with Grid Instability, Developing Infrastructure Regions
  • Recommended Models: 5000VA – 20000VA (45V-270V Range)
  • Core Value: Operate reliably even in extreme low voltage conditions from 45V input capability

Why Choose YIY TRS Series?

Wall-Mounted Design

Wall-Mounted Design

  • Space-saving installation for residential and commercial use
  • Compact form factor maximizes usable floor area
  • Professional mounting system for secure wall installation



Ultra-Low Input Voltage

Ultra-Low Input Voltage

  • Input range: 45V-270V for extreme voltage conditions
  • ±10% output precision for consistent power quality
  • Multiple input ranges: 90V-270V, 70V-270V, 45V-270V options
Zero Cross Transfer Technology

Zero Cross Transfer Technology

  • A super fast response time of 60ms is available for immediate protection
  • High efficiency toroidal transformer with 98% efficiency
  • MCU controlled precision output with intelligent management
