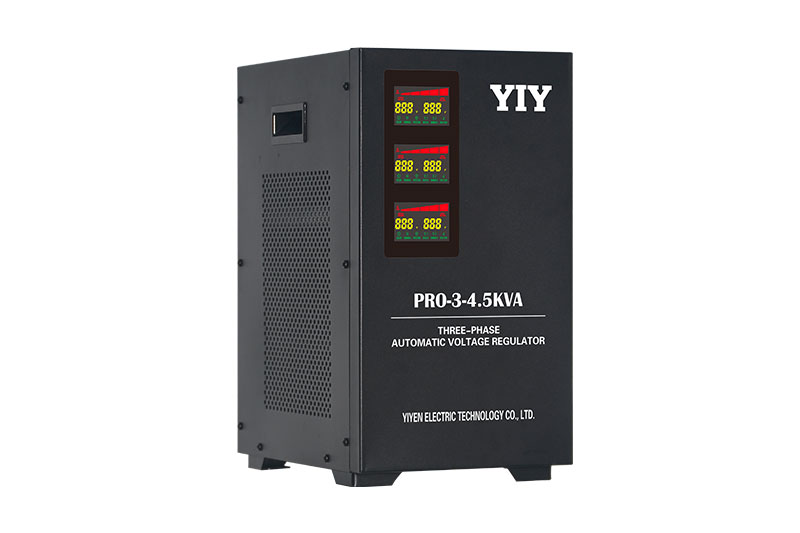

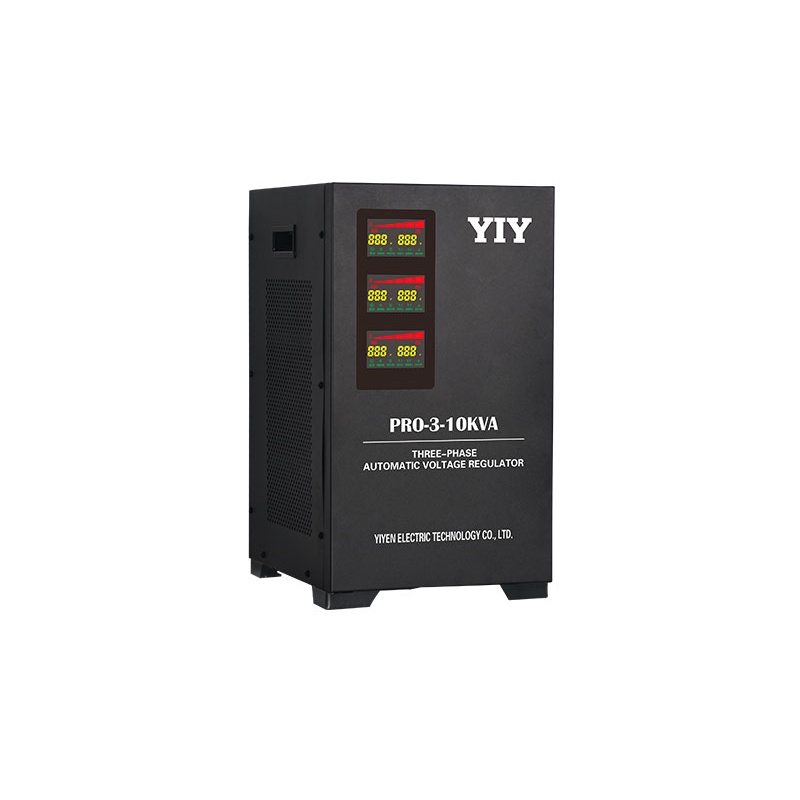

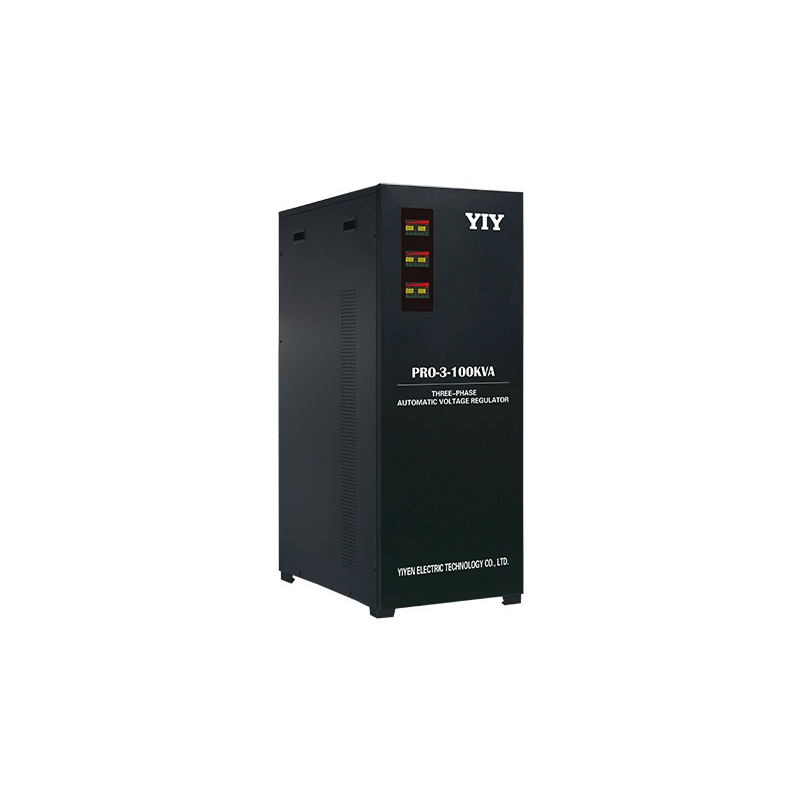

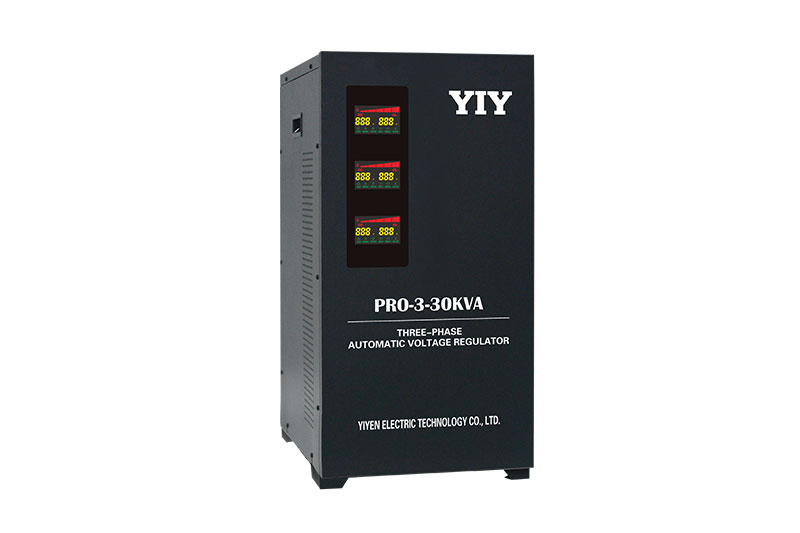

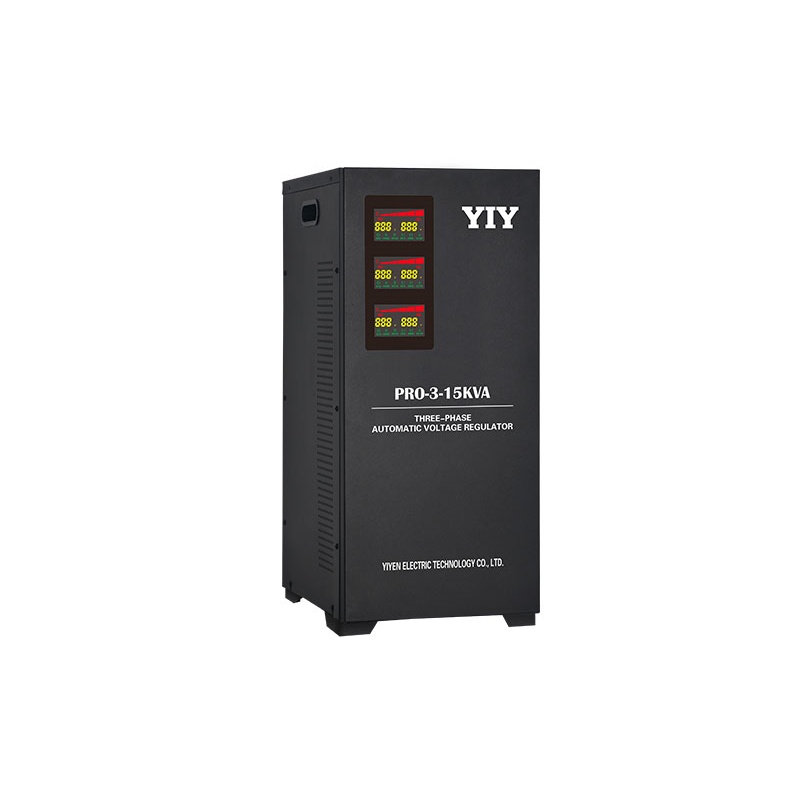

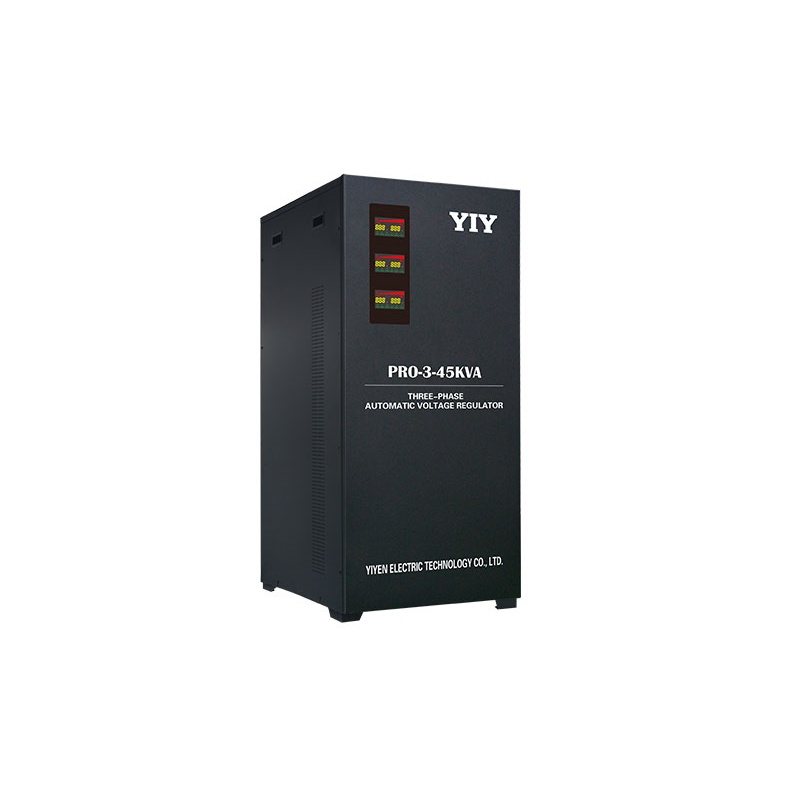

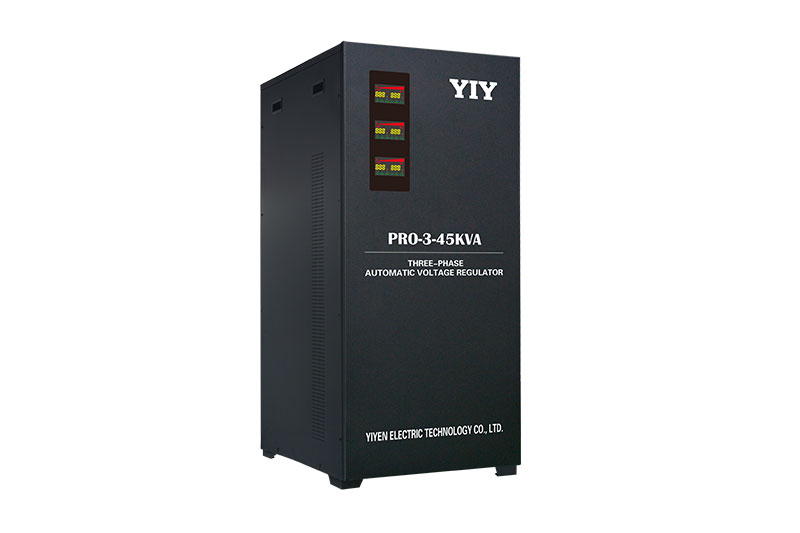

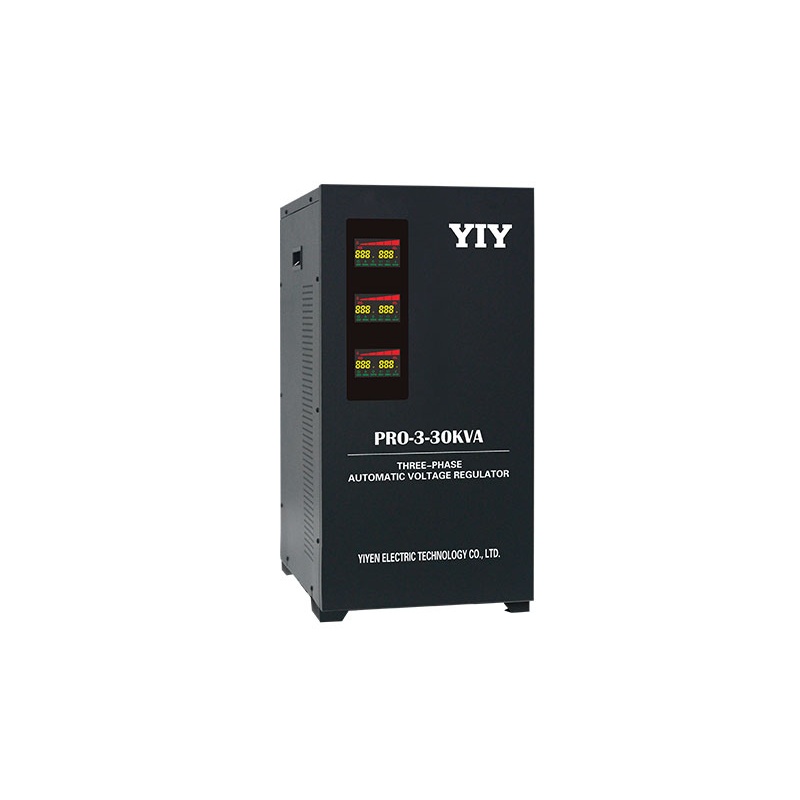

PRO-3 Three-Phase Servo Voltage Stabilizer

Advanced three-phase servo motor voltage stabilizer featuring MCU control technology and ≤2% output precision, specifically engineered for precision industrial applications demanding exceptional voltage stability. The PRO-3 series combines intelligent microcontroller control with robust three-phase compensating servo motor technology, delivering superior 100% unbalanced load capability and comprehensive protection systems. Perfect for precision manufacturing, laboratory equipment, and critical industrial processes where voltage accuracy is paramount, featuring colorful LED display and unique motor protection functionality for maximum reliability.

  • MCU Control Technology– Intelligent microcontroller unit control for enhanced stability and response
  • ≤2% Output Precision– Superior voltage accuracy for precision equipment and sensitive applications
  • Motor Protection (Unique Function)– Exclusive motor protection system ensuring servo component longevity
  • Colorful LED Display– Real-time monitoring with intuitive visual status indicators
  • ≥120% Overload Protection– Advanced PCB-based overload protection for equipment safety
  • Industrial Strength Components– Built with high-reliability industrial-grade components

PRO-3 Three-Phase Servo Voltage Stabilizer Complete Specifications

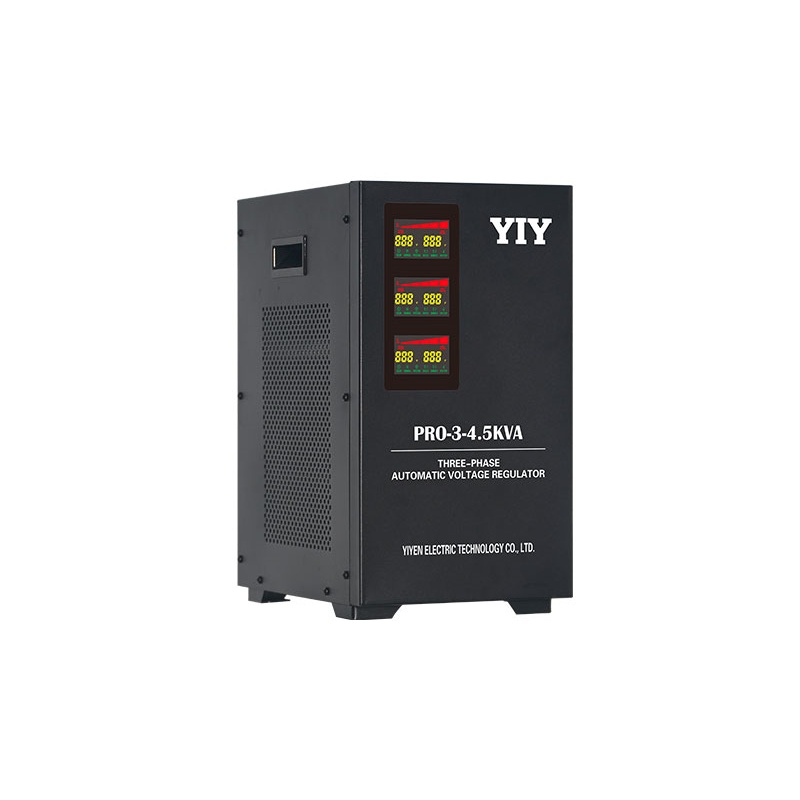

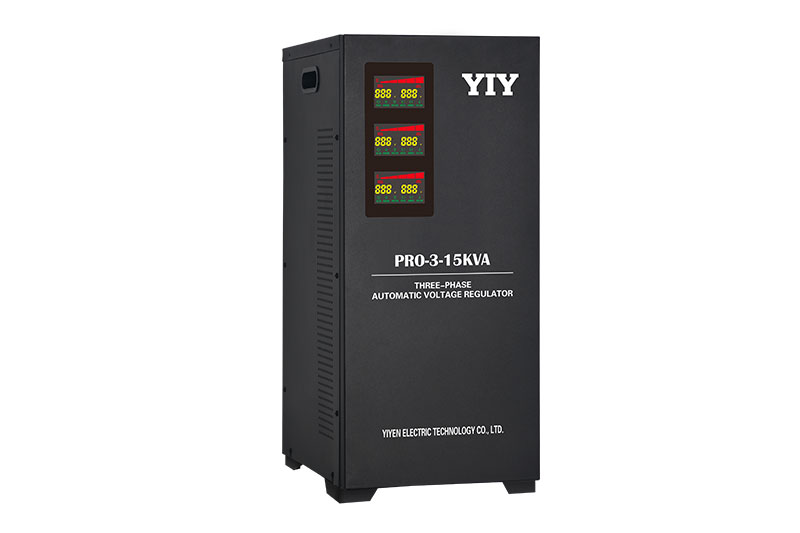

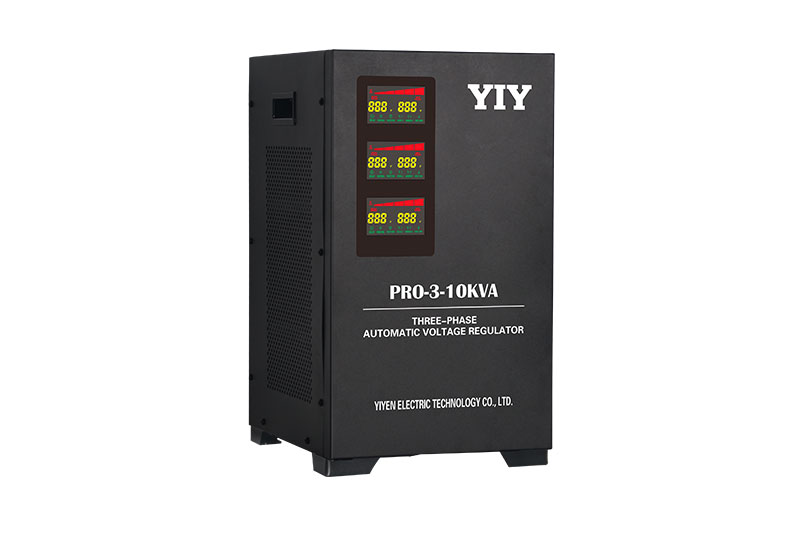

Small to Medium Capacity Models (1.5KVA-15KVA)

Specification 1.5KVA 3KVA 4.5KVA 6KVA 9KVA 15KVA
Phase 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire)
Input Voltage 278V-433V or 152V-228V / 166V-249V
Input Frequency 50Hz/60Hz
Output Voltage AC 380V ±3% or 220V ±2% / customized
Output Capacity 1200W 2400W 3600W 4800W 7200W 12000W
Output Frequency 50Hz/60Hz
Low voltage 318V±7V or 184V±7V
Over voltage 426V±7V or 246V±7V
Time delay Default 5s
Overload/short circuit MCB/MCCB/MCU
Pcs per Carton 1
Package dimensions (mm) 230*330*418 280*380*645 280*380*690 / / /
AC-AC Efficiency 98%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

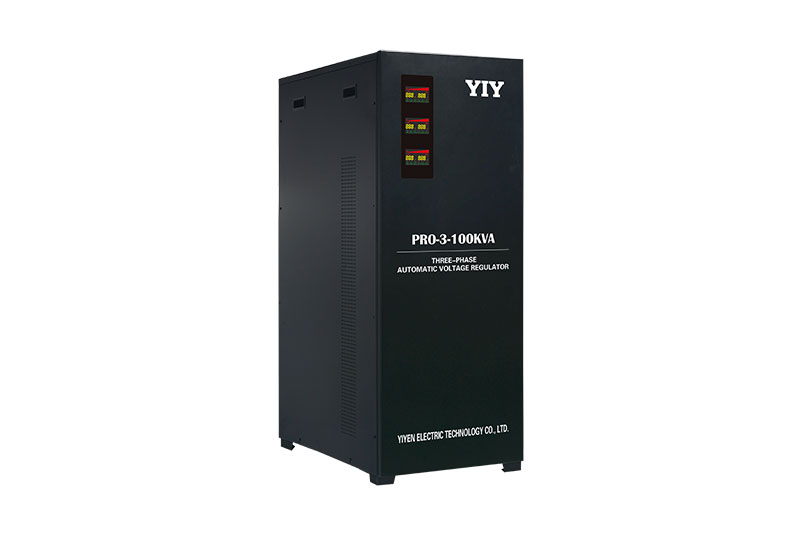

High Capacity Industrial Models (20KVA-100KVA)

Specification 20KVA 30KVA 45KVA 50KVA 60KVA 75KVA 100KVA
Phase 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire) 3-phase 4-wire (Can be customized 3-phase 3-wire)
Input Voltage 278V-433V or 152V-228V / 166V-249V 278V-433V or 152V-228V / 166V-249V 304V-456V 304V-456V 304V-456V 304V-456V 304V-456V
Input Frequency 50Hz/60Hz
Output Voltage AC 380V ±3% or 220V ±2% / customized
Output Capacity 16000W 24000W 36000W 40000W 48000W 60000W 80000W
Output Frequency 50Hz/60Hz
Low voltage 318V±7V or 184V±7V
Over voltage 426V±7V or 246V±7V
Time delay Default 5s
Overload/short circuit MCB/MCCB/MCU
Pcs per Carton 1
Package dimensions (mm) 325*420*667 / 430*755*1020 / / / 800*740*1030
AC-AC Efficiency 98%
Noise level ≤50dB
Temperature -5℃ to 40℃
Humidity 20% to 90%

PRO-3 Three-Phase Servo Voltage Stabilizer

Display Options

PRO-3 Three-Phase Servo Voltage Stabilizer Applications

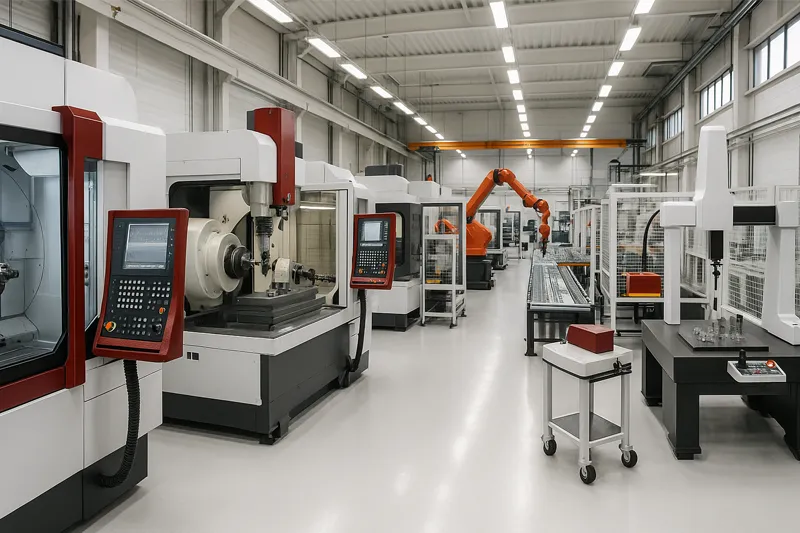

YIY stabilizers for precision manufacturing

Precision Manufacturing

Ultra-precise three-phase power conditioning for high-precision manufacturing operations.
  • Applications: CNC Machines, Precision Grinding, Robotic Assembly, Quality Control Equipment
  • Recommended Models: 15KVA – 60KVA
  • Core Value: Achieve ≤2% voltage precision for superior product quality

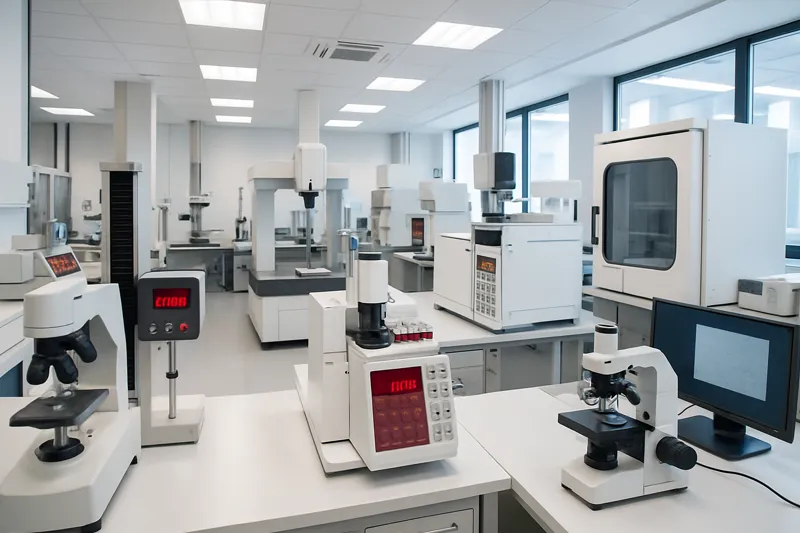

YIY stabilizers in research labs

Laboratory & Research

Advanced power protection for sensitive laboratory and research equipment.
  • Applications: Analytical Instruments, Testing Machines, Measurement Devices, R&D Equipment
  • Recommended Models: 3KVA – 30KVA
  • Core Value: Ensure measurement accuracy with MCU intelligent control

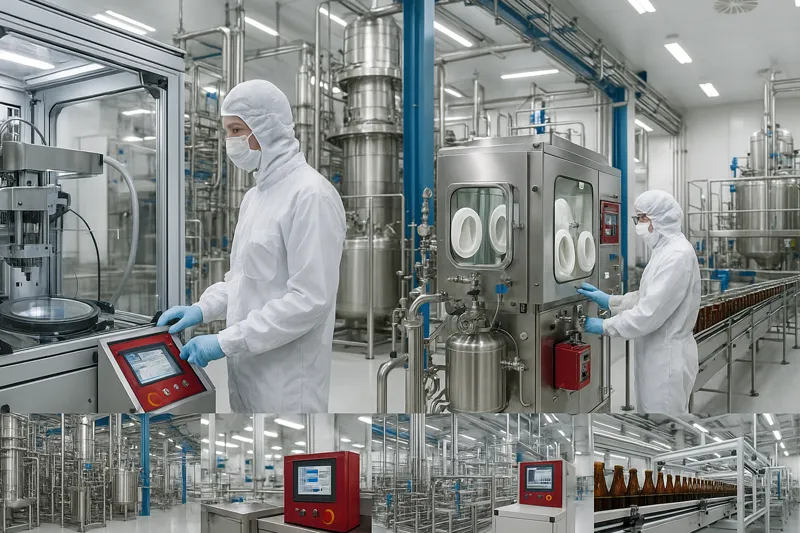

YIY stabilizers for process industries

Critical Process Industries

Specialized power management for critical manufacturing processes.
  • Applications: Semiconductor Fab, Pharmaceutical Production, Chemical Processing, Food & Beverage
  • Recommended Models: 20KVA – 100KVA
  • Core Value: Maintain process integrity with colorful LED monitoring

Why Choose YIY PRO-3 Series?

YIY voltage stabilizer internal component

MCU Intelligent Control

  • Advanced microcontroller technology
  • Enhanced stability and response
  • Motor protection functionality
YIY voltage stabilizer key feature

Ultra-Precision Accuracy

  • ≤2% output precision
  • Superior voltage accuracy
  • Ideal for sensitive equipment
YIY voltage stabilizer technical diagram

Advanced Monitoring Display

  • Colorful LED display system
  • Real-time status indicators
  • Intuitive visual monitoring
